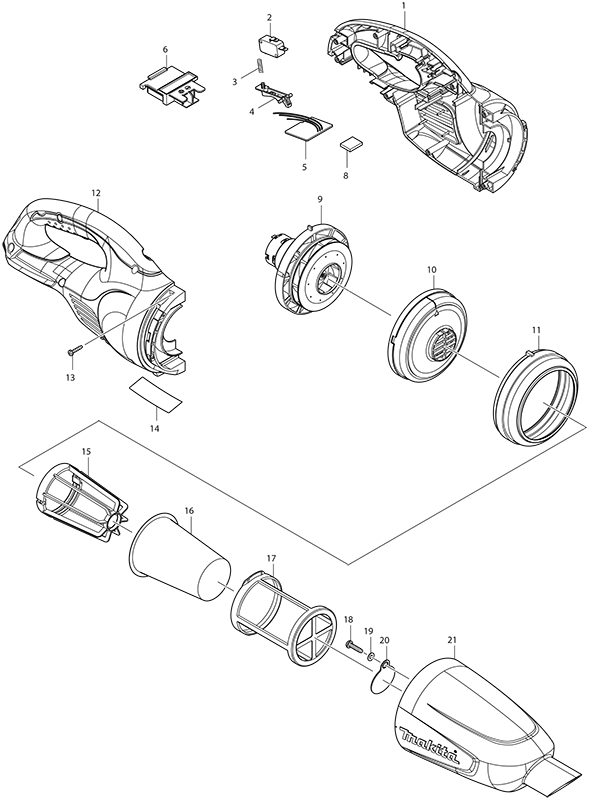

Makita XLC02R1B Cordless Vacuum

Model: XLC02R1B

Save Part Not Listed?
product name

Makita XLC02R1B

...
...
xxx
Sponge Sheet 50-50 MK-424209-4
...
xxx
Caution Label MK-802X57-9
...
A04
Sash Nozzle Holder MK-456585-8
...
A03
Pipe MK-456587-4
...
A02
Sash Nozzle MK-456586-6
...
xxx
Wiper MK-424096-1
...
xxx
Pin 3 MK-268208-4
...
xxx
Roller MK-451410-8
...
A01-1
Nozzle Assembly MK-123539-7
...
xxx
Base MK-452455-9
...
xxx
Pan Head Screw M3X8 MK-265199-0
...
xxx
Fan 82 MK-240102-2
...
001
Housing Set MK-183G95-1
...
002
Switch V-15-3A6 MK-651891-8
...
003
Compression Spring 4 MK-231473-8
...
004
Switch Lever MK-451227-9
...
005
Controller Unit MK-638936-9
...
006
Terminal MK-643860-3
...
008
Sponge Sheet 15-25 MK-424248-4
...
009
Motor Assembly MK-125867-6
...
010
Fan Cover MK-416030-5
...
011
Rubber Ring MK-424320-2
...
012
Housing Set MK-183G95-1
...
013
Tapping Screw 3X16 MK-266429-2
...
014
Xlc02 Name Plate MK-815F74-2
...
015
Stay MK-410237-5
...
016
Filter MK-443060-3
...
017
Pre-Filter MK-451208-3
...
018
Tapping Screw 4X18 MK-265995-6
...
019
Flat Washer 4 MK-941051-3
...
020
Valve MK-424208-6
...
021
Capsule MK-456196-9
...
022
Sponge Sheet 50-36 MK-424308-2
...
023
Fuse Unit MK-632H18-7
