Makita XCV04PT Blower & Vacuum

Model: XCV04PT

Save Part Not Listed?
product name

Makita XCV04PT

...
...
xxx
Stopper MK-417586-1
...
A01
Nozzle Ass'Y MK-122512-4
...
xxx
Roller 40 Complete MK-151449-8
...
xxx
Roller 14 MK-415962-3
...
xxx
Pin 3 MK-256241-8
...
xxx
Tapping Screw Bt 4X16 MK-265871-4
...
xxx
Elbow Joint Complete MK-154427-7
...
xxx
Upper Nozzle MK-415965-7
...
xxx
Joint Holder MK-415964-9
...
xxx
Brush MK-743328-0
...
xxx
Wiper MK-743327-2
...
A02-1
Hose Complete 38-2.5 Set MK-195434-1
...
xxx
Cuff Lock MK-417191-4
...
xxx
Sleeve MK-417306-3
...
xxx
Front Cuff MK-417307-1
...
A03
Poly Bag Set MK-195432-5
...
A04
Straight Pipe MK-192563-1
...
A05
Bending Pipe MK-192562-3
...
A06
Corner Nozzle MK-410306-2
...
A07
Stopper MK-451350-0
...
A08
Tool Box MK-455732-8
...
A09
Pan Head Screw M4X20 MK-911138-5
...
A11-1
Hose Complete 28-3.5 Set MK-195433-3
...
xxx
Front Cuff 22 MK-417765-1
...
xxx
Front Cuff 24 MK-424379-9
...
xxx
Sleeve MK-417662-1
...
xxx
Front Cuff 38 MK-417766-9
...
E01
Caution Label MK-806K55-7
...
001
Battery Cover Complete MK-143174-5
...
002
Xcv04 Name Plate MK-851W60-1
...
003
Grip MK-455734-4
...
004
Switch Button MK-455730-2
...
005
Compression Spring 20 MK-234273-5
...
006
Tapping Screw 4X65 MK-266340-8
...
007
Cowling Complete MK-143173-7
...
008
Rubber Pin 6 MK-263005-3
...
009
Top Damper MK-424688-6
...
010
Tapping Screw 4X18 MK-266326-2
...
011
Switch Holder MK-451343-7
...
012
Receptacle Sleeve MK-686023-8
...
013
Switch MK-650745-6
...
014
Stop Ring E-12 MK-961062-2
...
015
Led Circuit MK-620394-3
...
016
Sub Controller MK-631922-9
...
017
Stop Ring E-7 MK-961013-5
...
018
Switch Base Complete MK-143176-1
...
019
O Ring 14 MK-213176-6
...
020
Switch Lever MK-455733-6
...
021
O Ring 9 MK-213054-0
...
022
Switch Dial MK-451344-5
...
023
Battery Cover Hook MK-455728-9
...
024
Compression Spring 7 MK-231240-1
...
025
Terminal MK-644808-8
...
026
Terminal Base MK-455729-7
...
027
Controller B MK-620393-5
...
028
Controller A MK-620391-9
...
029
Switch D2Vw-01-3Hs MK-651910-0
...
030
Receptacle Sleeve MK-686039-3
...
031
Tapping Screw 4X25 MK-266374-1
...
032
Strain Relief MK-687123-7
...
033
Terminal Block MK-654561-8
...
034
Separater MK-455726-3
...
036
Power Supply Cord MK-664999-9
...
037
Cord Guard MK-682584-6
...
038
Rubber Ring 60 MK-424685-2
...
039
Motor Assembly MK-629155-8
...
040
Rubber Ring 120 MK-424686-0
...
041
Support Ring MK-424687-8
...
042
Rear Block Filter MK-424690-9
...
043
Tank Cover Complete MK-143175-3
...
044
Band Damper MK-424691-7
...
045
Front Damper MK-424689-4
...
048
Powder Filter H Set MK-197166-6
...
049
Damper MK-423398-2
...
050
Pre-Filter Complete MK-140253-0
...
051
Bumper MK-424230-3
...
052
Rubber Holder MK-424382-0
...
053
Tapping Screw 4X28 MK-266257-5
...
054
Holder Plate MK-419351-4
...
055
Holder MK-419350-6
...
056
Cord Seal MK-421468-1
...
057
Tapping Screw 4X14 MK-266192-7
...
058
O Ring 56 MK-213655-4
...
059
Inlet MK-451348-7
...
060
Hook MK-168537-4
...
061
Caster 50 MK-168535-8
...
062
Caster 50 MK-168434-4
...
063
Earth Line 120 MK-649150-2
...
064
Tank MK-451334-8
...
065
Controller C MK-620502-6
...
066
Lead Unit MK-632F97-3
...
067
Brush Spring MK-DM46312612
...
068
Carbon Brush Cb-352 (197205-2) MK-CB352
...
069
Brush Holder MK-DM46714602

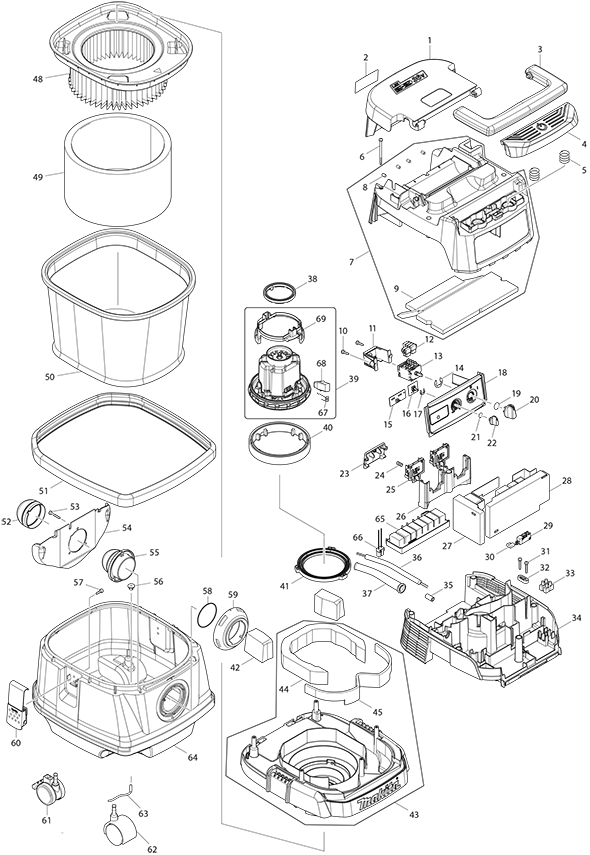

Schematic Image Zoomed
