product name

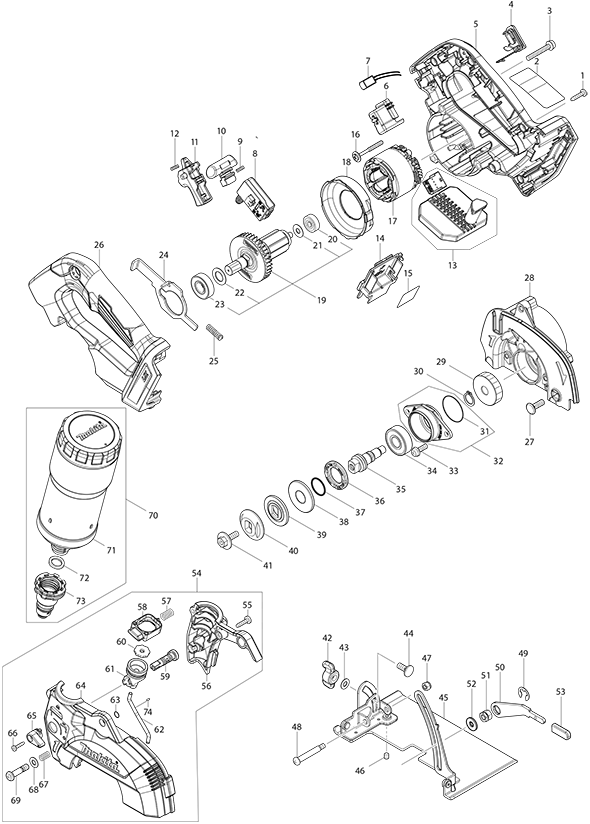

Makita XCC01Z Wet_Dry Masonry Saw

Model: XCC01Z

Save Part Not Listed?
product name

Makita XCC01Z

...
...
A04
Water Supply Hose Complete A MK-140Y23-7
...
A01
Hex. Wrench 5 MK-783217-7
...
xxx
Pin 8 MK-413296-8
...
xxx
O Ring 16 MK-213218-6
...
xxx
Cap Label MK-818H07-8
...
xxx
Compression Spring 8 MK-232668-6
...
xxx
Rubber Pin 6 MK-263005-3
...
xxx
Caution Label MK-8027K0-3
...
xxx
O Ring 6 MK-213017-6
...
xxx
O Ring 7 MK-213011-8
...
xxx
Cap B MK-453557-4
...
xxx
O Ring 50 MK-213605-9
...
xxx
O Ring 28 MK-213430-8
...
001
Tapping Screw 4X18 MK-266326-2
...
002
Xcc01 Name Plate MK-858D78-9
...
003
Pan Head Screw M5X35 MK-911258-5
...
004
Cap Complete MK-140F99-0
...
005
Motor Housing Complete MK-141A82-0
...
006
Holder MK-459256-6
...
007
Led Circuit MK-620936-3
...
008
Switch C3Xa-1Pspm MK-651083-9
...
009
Compression Spring 4 MK-231433-0
...
010
Lock Off Button MK-459264-7
...
011
Switch Lever MK-458594-3
...
012
Compression Spring 4 MK-231433-0
...
013
Controller MK-620E44-0
...
014
Terminal MK-643874-2
...
015
Xcc01 Serial No. Label MK-858D85-2
...
016
Tapping Screw 4X40 MK-265679-6
...
017
Stator MK-629A39-6
...
018
Baffle Plate MK-413291-8
...
019
Rotor Ass'Y MK-519665-2
...
020
Ball Bearing 626Ddw MK-210022-4
...
021
Thin Washer 6 MK-253332-6
...
022
Flat Washer 12 MK-253744-3
...
023
Ball Bearing 6001Ddw MK-211131-2
...
024
Shaft Lock MK-347785-0
...
025
Compression Spring 6 MK-232667-8
...
026
Handle Cover Complete MK-140Y24-5
...
027
Flat Head Square Neck Bolt M6 MK-251586-9
...
028
Gear Housing Complete MK-140Y21-1
...
029
Helical Gear 45 MK-227855-0
...
030
Retaining Ring S-12 MK-961052-5
...
031
O Ring 30 MK-213444-7
...
032
Bearing Box Assembly MK-135948-8
...
033
Pan Head Screw M5X16 MK-911223-4
...
034
Ball Bearing 6201Ddw MK-211129-9
...
035
Spindle MK-325603-2
...
036
Bearing Retainer 19-33 MK-285858-0
...
037
O Ring 18 MK-213279-6
...
038
Cup Washer 15 MK-253397-8
...
039
Inner Flange 36 MK-224423-0
...
040
Outer Flange 36 MK-224424-8
...
041
Hex. Socket Hex. Bolt M6X18 MK-266510-9
...
042
Thumb Nut M6 MK-252649-4
...
043
Flat Washer 6 MK-941151-9
...
044
Flat Head Sq. Neck Bolt M6X14 MK-265939-6
...
045
Base MK-162951-6
...
046
H.S.Set Screw(Flat Point)M5X6 MK-266264-8
...
047
Hex. Lock Nut M5-8 MK-252103-8
...
048
+ Pan Head Screw M5 MK-266515-9
...
049
Bow Stop Ring E-8 MK-257982-9
...
050
Lever Plate MK-347399-5
...
051
Hex. Nut M6 MK-264103-6
...
052
Flat Washer 6 MK-253111-2
...
053
Cap MK-286036-5
...
054
Water Supply Cover Assembly A MK-127748-0
...
055
Tapping Screw Ct 4X16 MK-266034-5
...
056
Water Supply Cover R MK-413293-4
...
057
Compression Spring 7 MK-232669-4
...
058
Button MK-413299-2
...
059
Valve MK-413297-6
...
060
Rubber Washer 5 MK-261166-3
...
061
Valve Base MK-413298-4
...
062
Nozzle MK-327746-6
...
063
O Ring 5 MK-213005-3
...
064
Water Supply Cover L MK-312A80-3
...
065
Lever 16 MK-413300-3
...
066
Tapping Screw Bind 3X14 MK-266404-8
...
067
Compression Spring 7 MK-233267-7
...
068
Flat Washer 6 MK-941151-9
...
069
Pan Head Screw M6X26 MK-265658-4
...
070
Water Supply Tank Assembly MK-127800-4
...
071
Water Supply Tank Complete MK-140Y25-3
...
072
Rubber Washer 12 MK-261056-0
...
073
Cap Complete MK-140Y22-9
...
074
O Ring 3 MK-213022-3
