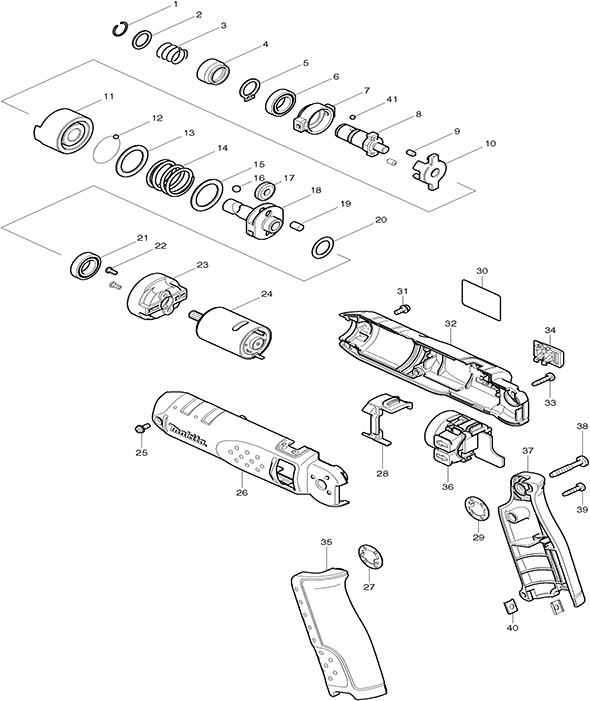

Makita TD020D Cordless Screwdriver

Model: TD020D

Save Part Not Listed?
product name

Makita TD020D

...
...
1
Ring Spring 10, Df030Dw MK-231965-7
...
2
Flat Washer 11, Btd060Z MK-267143-3
...
3
Comp.Spring 13,6903Vdw MK-233005-7
...
4
Bit Sleeve, Td020 MK-324711-6
...
5
Retaining Ring S-12, 9607Nb MK-961072-9
...
6
Ball Bearing 6801Llu, Td020 MK-210108-4
...
7
Lock Ring, Td020 MK-313136-9
...
8
Spindle M, Td020 MK-324717-4
...
9
Pin 3.5, Td020 MK-268160-6
...
10
Anvil, Td020 MK-324713-2
...
11
Hammer, Td020 MK-324714-0
...
12
Steel Ball 3, Btd060Z MK-216019-1
...
13
Flat Washer 20, Td020 MK-267335-4
...
14
Comp. Spring 20, Td020 MK-233481-5
...
15
Flat Washer 20, Td020 MK-267335-4
...
16
Steel Ball 4.8, Nhp1310 MK-216002-8
...
17
Spur Gear 27, Td020 MK-227173-6
...
18
Spindle, Td020 MK-324715-8
...
19
Pin 5, Td020 MK-268161-4
...
20
F. Washer 12, 9031 MK-253052-2
...
21
Ball Bearing 6801Llu, Td020 MK-210108-4
...
22
P.H. Screw 2.6X6, Td020 MK-265172-0
...
23
Internal Gear Case, Td020 MK-419639-2
...
24
Dc Motor, Td020 MK-629842-9
...
25
P.H. Screw M3X8, Td020 MK-265173-8
...
26
Motor Housing Set, Td020 MK-188205-3
...
27
Lock Washer, Td020 MK-267803-7
...
28
Change Lever, Td020 MK-419637-6
...
29
Lock Washer, Td020 MK-267803-7
...
30
Name Plate, Td020 MK-862714-7
...
31
P.H. Screw M3X8, Td020 MK-265173-8
...
32
Motor Housing Set, Td020 MK-188205-3
...
33
T. Screw 3X14, Td020 MK-266404-8
...
34
Light Cover, Td020 MK-419638-4
...
35
Handle Set, Td020 MK-188199-2
...
36
Switch Unit, Td020 MK-638470-9
...
37
Handle Set, Td020 MK-188199-2
...
38
Tapping Screw M4X25, Hm1800 MK-265999-8
...
38
Tapping Screw 4X25, Ga7021 MK-266374-1
...
39
T. Screw 3X14, Td020 MK-266404-8
...
40
Set Plate, Td020 MK-345749-8
...
41
Steel Ball 3, Btd060Z MK-216019-1
...
42
Caution Label, Td020 MK-810288-2
...
1002
Bl7010 Battery,Td020 MK-194356-2
...
1003
Holstor, Td020 MK-168435-2
...
1004
Soft Case, Td020 MK-831272-4
...
1005
Drill Set, Td020 MK-194375-8
...
1006
Holder, Td020 MK-419730-6
