Makita TD0101F Electric Impact Wrench & Driver

Model: TD0101F

Save Part Not Listed?
product name

Makita TD0101F

...
...
A01
Phillips Bit 2-65 MK-784203-1
...
001
Housing Set MK-188664-1
...
002
Td0101F Name Plate MK-866417-5
...
003
Tapping Screw 3X16 MK-266429-2
...
004
Ring Spring 10 MK-231965-7
...
005
Flat Washer 11 MK-267143-3
...
006
Compression Spring 13 MK-233005-7
...
007
Bit Sleeve MK-324711-6
...
008
Bumper MK-424184-4
...
009
Hammer Case Cover MK-450976-5
...
010
Hammer Case Complete MK-158898-0
...
011
Nylon Washer 20 MK-261140-1
...
012
Steel Ball 3 MK-216019-1
...
013
Anvil N MK-325618-9
...
014
Hammer MK-324894-2
...
015
Steel Ball 3 MK-216019-1
...
016
Flat Washer 20 MK-267380-9
...
017
Compression Spring 21 MK-234096-1
...
018
Washer 21 MK-267813-4
...
019
Steel Ball 4.8 MK-216002-8
...
020
Spur Gear 17 MK-227213-0
...
021
Spindle MK-324897-6
...
022
Pin 3.5 MK-268217-3
...
023
Flat Washer 12 MK-253052-2
...
024
Internal Gear 43 MK-227215-6
...
025
Bearing Box Complete MK-158899-8
...
026
Ball Bearing 698Vv MK-210013-5
...
027
Fan 46 MK-240046-6
...
028
Armature Assy 220V MK-517653-3
...
029
Ball Bearing 607Zz MK-210062-2
...
030
Field 220V MK-635108-7
...
031
Holder Arm Complete MK-638643-4
...
032
Carbon Brush Set Cb-411A MK-B-80167
...
033
Brush Holder Cap MK-643928-5
...
035
Switch C3Ta MK-650613-3
...
036
Housing Set MK-188664-1
...
037
Light Circuit MK-631873-6
...
038
Tapping Screw 4X18 MK-266326-2
...
039
Strain Relief MK-687124-5
...
040
Cord Guard 8 MK-682559-5
...
041
Power Supply Cord 0.75-2-2.5 MK-691065-9
...
043
F/R Change Lever MK-419250-0
...
044
Sleeve 5 MK-262560-2

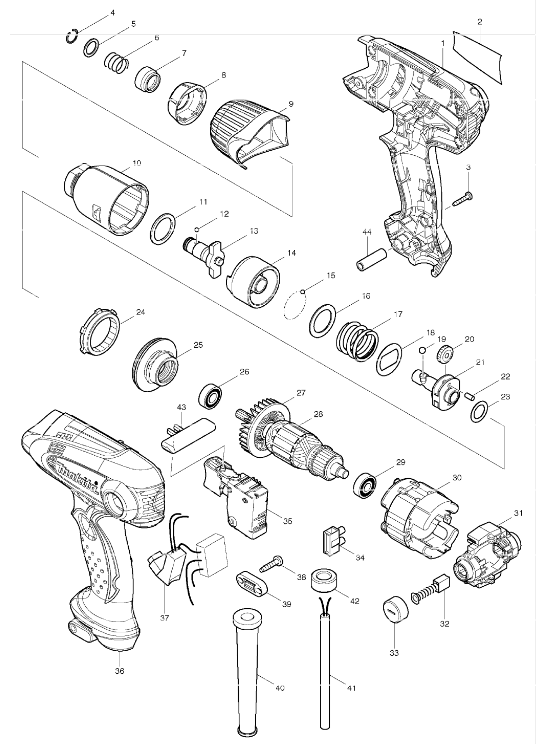

Schematic Image Zoomed
