product name

Makita LXSF01 Type 2 Cordless Screwdriver

Model: LXSF01 Type 2

Save Part Not Listed?
product name

Makita LXSF01 Type 2

...
...
xxx
Magnetic Bit Holder 6.35-60 MK-784807-9
...
xxx
Rubber Pin 6 MK-263005-3
...
C01
Carton For Lxsf01Z MK-872026-0
...
D01
+Pan Head Screw M3.5X5 MK-652045-0
...
A02
Hook, Compact Belt Clip, 18V, 14.4V Li-Ion Battery MK-346449-3
...
A03
Phillips Insert Bit 1-25 MK-784212-0
...
xxx
Phillips Insert Bit 3-25 MK-784213-8
...
A04
Magnetic Bit Holder 6.35-76 MK-784801-1
...
xxx
Caution Label MK-892614-7
...
A05
Battery Cover MK-450128-8
...
A06
Charger Dc18Rc MK-DC18RC
...
A07
18V Li-Ion Battery Bl1830 MK-194205-3
...
xxx
18V Li-Ion Battery Bl1830 2/Pk MK-194230-4
...
xxx
18V Li-Ion Battery Bl1815 MK-194309-1
...
xxx
18V Li-Ion Battery Bl1815 2/Pk MK-194428-3
...
A08
Plastic Carrying Case Complete MK-141490-9
...
1
Lock Ring MK-455591-0
...
2
Seal Ring 30 MK-424235-3
...
3
Locator L Complete MK-158876-0
...
3-1
Locator L Assembly MK-197024-6
...
4
Dust Seal Sleeve MK-424163-2
...
5
Ring Spring 33 MK-234266-2
...
6
Leaf Spring MK-232245-4
...
7
Locator Base Complete (Left Handed Thread) MK-141100-8
...
8
Leaf Spring MK-232050-9
...
9
Steel Ball 3.5 MK-216001-0
...
10
Spindle 125S Complete MK-140771-8
...
11
Flat Washer 25 MK-267331-2
...
12
Compresseion Spring 25 MK-234017-3
...
13
Flat Washer 26 MK-267332-0
...
14
Clutch Cam 125S MK-223170-0
...
15
Steel Ball 4 MK-216008-6
...
16
X-Ring 14 MK-213184-7
...
17
Bearing Complete MK-142306-1
...
18
Gear Complete MK-140772-6
...
19
Ball Bearing 608Zz MK-211032-4
...
20
Flat Washer 14 MK-253192-6
...
21
Lxsf01 Name Plate MK-869443-3
...
22
Rubber Plate MK-423413-2
...
23
Tapping Screw 4X18 MK-265995-6
...
24
Housing Set MK-187172-9
...
25
Carbon Brush Cb-440 2Pc/Set, W/ Origin MK-195021-6
...
26
Brush Holder Complete MK-638748-0
...
27
Yoke Unit MK-638426-2
...
28
Armature (Use With Item No. 37) MK-619351-6
...
29
Pan Head Screw M3X8 MK-911006-2
...
30
Heat Sink MK-689150-0
...
31
Change Lever F/R MK-452516-5
...
32
Switch Tg553Fsb-9B MK-650657-3
...
33
Light Circuit MK-620030-1
...
34
Terminal MK-643852-2
...
37
Flat Washer 12 (Added) MK-267104-3
...
100
+ Truss Head Screw M4X12 F/Item No. A02 MK-266622-8
...
101
Plastic Case Label F/Lxsf01 MK-892870-9

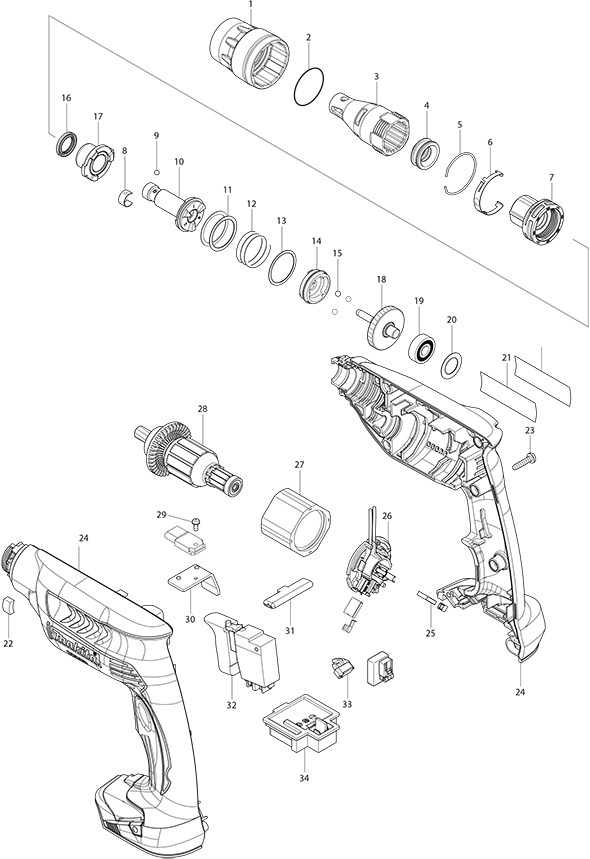

Schematic Image Zoomed
