Makita HM0860C Demolition Hammer

Model: HM0860C

Save Part Not Listed?
product name

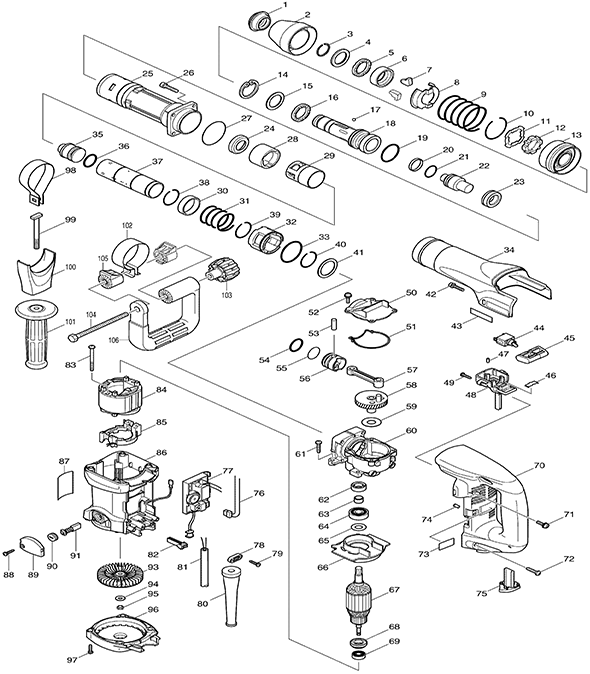

Makita HM0860C

...
...
1
Tool Holder Cap, Hm0860C MK-286269-2
...
2
Chuck Cover, Hm0860C MK-418351-1
...
3
Ring Spring 25, Hr5001C MK-231984-3
...
4
Flat Washer 28, Hm0860C MK-267272-2
...
5
Urethan Ring 28, Hm0860C MK-262110-3
...
6
Chuck Ring, Hm0860C MK-331659-5
...
7
Tool Retainer, Hm0860C MK-310108-5
...
8
Spring Guide, Hm0860C MK-345360-6
...
9
Compression Spring 52, Hm0860C MK-233387-7
...
10
Ring Spring 50, Hm0860C MK-233928-9
...
11
Plate, Hm0860C MK-345371-1
...
12
Lock Ring, Hm0860C MK-310145-9
...
13
Change Ring, Hm0860C MK-418357-9
...
14
Retaining Ring R-42, Hr3000C MK-962211-4
...
15
Flat Washer 29, Hm0860C MK-267273-0
...
16
Urethan Ring 28, Hm0860C MK-262110-3
...
17
Steel Ball 4.8, Nhp1310 MK-216002-8
...
18
Tool Holder, Hm0860C MK-324387-9
...
19
O Ring 38, Hm0860C MK-213527-3
...
20
Fluoride Ring 28, Hr5001C MK-213431-6
...
21
O Ring 23, Hr5001C MK-213394-6
...
22
Impact Bolt, Hm0860C MK-324389-5
...
23
Rubber Ring 20, Hm0860C MK-421852-0
...
24
Cup Washer 23, Hm0860C MK-267780-3
...
25
Barrel, Hm0860C MK-317720-2
...
25
Barrel, Hm0860C MK-318052-0
...
26
H.S.H. Bolt M6X30, Hm1100C MK-922351-0
...
27
O Ring 53, An451 MK-213656-2
...
28
Guide Ring, Hm0860C MK-418352-9
...
28
Guide Ring, Hm0860C MK-450097-3
...
29
Slide Sleeve, Hm0860C MK-418356-1
...
29
Slide Sleeve, Hm0860C MK-419202-1
...
29
Slide Sleeve, Hm0860C MK-450098-1
...
30
Ring 36, Hm0860C MK-331660-0
...
31
Compression Spring 37, Hm0860C MK-233386-9
...
32
Cylinder Guide, Hm0860C MK-317719-7
...
33
O Ring 46, Gd0810C MK-213611-4
...
34
Crank Housing Cover, Hm0860C MK-183719-7
...
35
Strinker, Hm0860C MK-324388-7
...
36
O Ring 24, Hm0860C MK-213958-6
...
37
Cylinder 32, Hm0860C MK-331658-7
...
38
Ring Spring 34, Hm0860C MK-233927-1
...
39
Ring Spring 34, Hm0860C MK-233927-1
...
40
Ring Spring 34, Hm0860C MK-233927-1
...
41
Flat Washer 34, 6905H MK-267079-6
...
42
H. S. H. Bolt M5X25,2702 MK-922243-3
...
43
Makita Label, Da3010F MK-819063-3
...
44
Switch, Rd1100/1101 MK-651423-1
...
45
Switch Lever, Hm0860C MK-418360-0
...
46
Leaf Spring, Hm0860C MK-232209-8
...
47
Rubber Pin 4, Hm0860C MK-263027-3
...
48
Switch Box, Hm0860C MK-418361-8
...
49
Tapping Screw 4X18, 4323K MK-265995-6
...
50
Crank Cap, Hm0860C MK-418358-7
...
51
Seal Ring, Hm0860C MK-421851-2
...
52
P.H. Screw M5X20, Tw1000 MK-911233-1
...
53
Pin 8, Hm0860C MK-268104-6
...
54
O Ring 24, Hm0860C MK-213958-6
...
55
O Ring 26, Hm0860C MK-213432-4
...
56
Piston, Hm0860C MK-418349-8
...
57
Connecting Rod, Hm0860C MK-418350-3
...
58
Crank Shaft Cpl., Hm0860C MK-153676-3
...
59
Flat Washer, Hm0860C MK-267166-1
...
60
Crank Housing Cpl., Hm0860C MK-153678-9
...
61
Tapping Screw, Flange 5X25, 5177B MK-266041-8
...
62
Oil Seal 15, Hr4500C MK-213231-4
...
63
Sleeve 12, Hr4041C MK-331596-3
...
64
Ball Bearing 6201Llu,4140 MK-211137-0
...
65
Washer 12, Js3200 MK-253759-0
...
66
Baffle Plate, Hm0860C MK-418355-3
...
67
Armature Ass'Y 115V, Hm0860C MK-513561-6
...
68
Insulation Washer, Hr4000C MK-681650-6
...
69
Ball Bearing 608Ddw, 9031 MK-210005-4
...
70
Handle, Hm0860C MK-418366-8
...
71
P.H. Screw M5X20, Tw1000 MK-911233-1
...
72
Tapping Screw, Flange 5X25, 5177B MK-266041-8
...
73
Hm0860C Serial No. Label MK-815954-6
...
74
Acrylic Pin 5, Hr4000C MK-416285-2
...
75
Handle Cap, Hm0860C MK-418359-5
...
76
Lead Unit, Hm0860C MK-638294-3
...
77
Controller, Hm0860C MK-631555-0
...
78
Strain Relief, 4323K MK-687063-9
...
79
Tapping Screw 4X18, 4323K MK-265995-6
...
80
Cord Guard 10, Hm1202C MK-682560-0
...
81
Cord (2X16X16 Sj), Hr5000 MK-664276-9
...
82
Fix Rod, Hm0860C MK-418353-7
...
83
T. Screw Flange 5X60, 5037Nb MK-266044-2
...
84
Field 115V, Hm0860C MK-634506-2
...
85
Support Complete, Hm0860C MK-638293-5
...
86
Motor Housing Cpl., Hm0860C MK-153677-1
...
87
Name Plate, Hm0860C MK-850965-4
...
88
Tapping Screw 4X18, 4323K MK-265995-6
...
89
Brush Holder Cover, Hm0860C MK-418362-6
...
90
Brush Holder Cap, Hm1100C MK-643750-0
...
91
A.C. Carbon Brush Cb-304, Hm1100C MK-191961-6
...
91
Carbon Brush Set Cb-304, Hm1100C MK-194997-4
...
93
Fan 76 Ass'Y, Hm0860C MK-135058-1
...
94
F. Washer 6, 2708 MK-253047-5
...
95
Hex Nut M6, 2012 MK-931303-0
...
96
Rear Cover, Hm0860C MK-418354-5
...
97
Tapping Screw 4X18, 4323K MK-265995-6
...
98
Grip Spring 60, Hm0860C MK-345361-4
...
99
Square Bolt M8X80, Hm0860C MK-266322-0
...
100
Side Grip Base 60, Hm0860C MK-418363-4
...
101
Grip 36 Complete, Hr4000C MK-152554-4
...
1001
Bit Grease, Hr2400 MK-181573-3
...
1001
Grease Vessel (Bit), Hm1214C MK-194683-7
...
1002
Plastic Tool Case, Hm0860C MK-824708-0
