product name

Makita GA5000 Type 2 Electric Grinder

Model: GA5000 Type 2

Save Part Not Listed?
product name

Makita GA5000 Type 2

...
...
A05
Lock Nut 5/8"-48 (For Abr. Disc) MK-224517-1
...
xxx
Auto Cut-Off Carbon Brush Cb-112 MK-191903-0
...
xxx
Brush Holder (Type 2) MK-643609-1
...
A01
Wheel Cover Assembly (With Items 43 & 44) MK-164554-2
...
A02
Inner Flange (For Depressed Center Wheel) MK-224361-6
...
xxx
Inner Flange 45 MK-224378-9
...
A03
Lock Nut 5/8" (For Depressed Center Wheel, Cut-Off Wheel & Diamond Cutter) MK-224509-0
...
xxx
Lock Nut 5/8" - 45 MK-224566-8
...
xxx
Lock Nut 5/8" - 45 MK-224568-4
...
A04
5" Rubber Pad (For Abr. Disc.) MK-743015-1
...
A06
Inner Flange 40 - Bulk (For Cut-Off Wheel & Diamond Cutter) MK-224054-5
...
xxx
Inner Flange 40 - Packaged(For Cut-Off Wheel & Diamond Cutter) MK-193553-7
...
A07
Side Handle 36 MK-152492-0
...
A08
Lock Nut Wrench MK-782412-6
...
A11
3-1/4" Wire Cup Brush MK-743205-6
...
A12
5" Cut-Off Wheel (Grit C36)(5 Pkg.) MK-792155-2
...
xxx
5" Cut-Off Wheel (Grit A36)(5 Pkg.) MK-792156-0
...
1
P.H. Screw M4X25 MK-911146-6
...
4
Spiral Bevel Gear 13 MK-221354-4
...
5
O Ring 26 MK-213407-3
...
6
Ball Bearing 6000Lb MK-211063-3
...
7
Woodruff Key 3 MK-254002-0
...
8
Retaining Ring R-26 MK-962105-3
...
9
Fan (Old 241319-0) MK-241517-6
...
10
Armature Assembly (Includes Items 9, 11 & 39) MK-615151-2
...
11
Ball Bearing 608Lb MK-211033-2
...
12
Baffle Plate MK-410021-8
...
13
Field Assembly (Includes Items 22 & 30) MK-625136-0
...
14
Insulation Washer MK-681001-3
...
15
Hex Nut M4 MK-931102-0
...
16
(+) P.H. Screw M4X70 (With Washer) MK-911200-6
...
17
Rubber Pin 4 MK-263002-9
...
18
Motor Housing (With Item 38) MK-156901-1
...
19
Carbon Brush Cb-124 (2Pcs/Set) MK-191945-4
...
20
Brush Holder Cap 6-10 MK-643600-9
...
21
Rivet 0-5 MK-953106-2
...
22
Garter Spring MK-654019-7
...
23
Rear Cover MK-411938-8
...
24
P.H. Screw M5X70 MK-911293-3
...
25
Cord Guard 8-85 MK-682502-4
...
26
Cord With Plug 2P-18-2.5 MK-664013-1
...
27
P.H. Screw M4X14 MK-911121-2
...
28
Strain Relief MK-687002-9
...
29
Switch Holder MK-411939-6
...
30
Solderless Connector P-1.25 MK-654501-6
...
31
P.H. Screw M4X14 MK-911123-8
...
32
Compression Spring 6 MK-231223-1
...
33
Switch Ac/Dc MK-651466-3
...
34
Stop Ring E-2.3 MK-257903-1
...
35
Switch Rod MK-410022-6
...
36
Woodruff Key 3 MK-254002-0
...
37
Switch Lever (Black) MK-411741-7
...
38
Brush Holder 6-10(Type 1) MK-643603-3
...
39
Insulation Washer (Added) MK-681615-8
...
40
Fibre Sleeve (Add.) MK-682056-1
...
41
P.H. Screw M4X16 MK-911126-2
...
42
Bearing Box MK-315397-7
...
43
Spring Washer 5 MK-942101-7
...
44
(+) P.H. Screw M5X16 MK-251259-4
...
45
5/8" Spindle MK-321336-7
...
46
Flat Washer 12 MK-253055-6
...
47
Ball Bearing 6201Lb MK-211108-7
...
48
Retaining Ring R-32 MK-962151-6
...
49
Spiral Bevel Gear 40 MK-221355-2
...
50
Retaining Ring S-12 MK-961052-5
...
51
Gear Housing Com. (With Items 52 - 55) MK-156902-9
...
52
Needle Bearing 810 MK-212005-0
...
53
Compression Spring 6 MK-231252-4
...
54
Pin 5 MK-256616-1
...
55
Cup MK-343312-1
...
56
Urethane Washer 14 (Makes It Easier To Remove Wire Brush) MK-261039-0

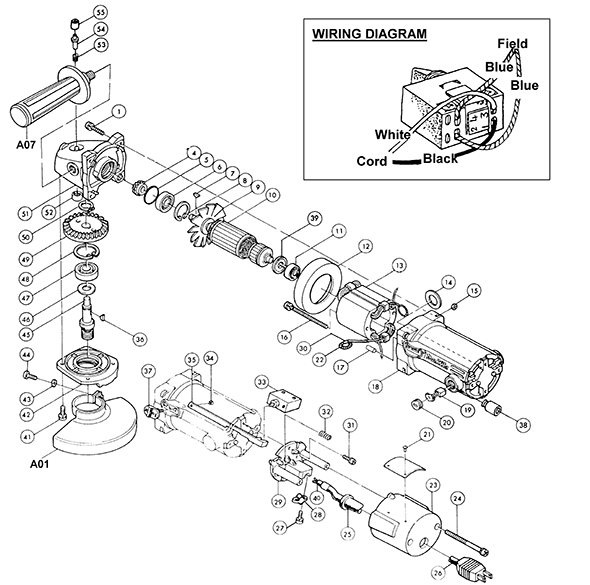

Schematic Image Zoomed
