Makita FS2300 Electric Screwdriver

Model: FS2300

Save Part Not Listed?
product name

Makita FS2300

...
...
A02
Magnetic Connect Bit 6.35-60 MK-784811-8
...
A01
+Bit 2-25 MK-784261-7
...
001
Locator S Complete MK-158875-2
...
002
Dust Seal Sleeve MK-424163-2
...
003
Seal Ring 30 MK-424235-3
...
004
Lock Ring MK-450881-6
...
005
Ring Spring 33 MK-233974-2
...
006
Leaf Spring MK-232245-4
...
007
Tapping Screw 4X30 MK-266361-0
...
008
Gear Housing Ls Complete MK-158895-6
...
009
Leaf Spring MK-232050-9
...
010
Steel Ball 3.5 MK-216001-0
...
011
Spindle 125S Complete MK-158886-7
...
012
Compresseion Spring 8 MK-234121-8
...
013
Flat Washer 8 MK-267202-3
...
014
Flat Washer 8 MK-267202-3
...
015
Clutch Cam 125S MK-223170-0
...
016
Steel Ball 4 MK-216008-6
...
017
Spur Gear 35S Complete MK-158891-4
...
018
Thrust Needle Gauge 821 MK-216415-3
...
019
Washer 821 MK-216212-7
...
020
Urethane Washer 8 MK-261111-8
...
021
Gasket MK-442149-4
...
022
Gear Housing Cover Complete MK-158982-1
...
023
Ring 7 MK-451099-2
...
024
Ball Bearing 608Vv MK-210007-0
...
025
Fan 52 MK-240083-0
...
026
Armature Assembly 240V MK-515764-8
...
027
Insulation Washer MK-681636-0
...
028
Ball Bearing 607Zz MK-210062-2
...
029
Labyrinth Rubber Ring 19 MK-421868-5
...
030
Tapping Screw 4X50 MK-266467-4
...
031
Baffle Plate MK-450880-8
...
032
Field 220-240V MK-633693-4
...
033
Motor Housing L MK-450878-5
...
034
Hook MK-162272-6
...
035
Fs2300 Name Plate MK-867019-0
...
036
Indication Label MK-808574-3
...
037
Spacer MK-689111-0
...
038
Carbon Brush Cb-419 MK-191962-4
...
039
Brush Holder MK-643952-8
...
040
Brush Holder MK-643953-6
...
041
Strain Relief MK-687124-5
...
042
Switch MK-650614-1
...
043
Handle Cover L Complete MK-158878-6
...
044
Tapping Screw 4X25 MK-266374-1
...
045
Tapping Screw 4X25 MK-266374-1
...
046
Light Circuit MK-631939-2
...
047
Choke Coil MK-646122-8
...
048
Noise Suppressor MK-645253-0
...
049
Tapping Screw 4X18 MK-265995-6
...
050
Cord Guard 8 MK-682559-5
...
051
Power Supply Cord 1.0-2-4.0 MK-695034-2
...
052
Ball Bearing 606Zz MK-211012-0
...
053
Gear Complete 17-39 MK-226157-1
...
054
Flat Washer 8 MK-267017-8
...
056
Rubber Plate MK-423413-2

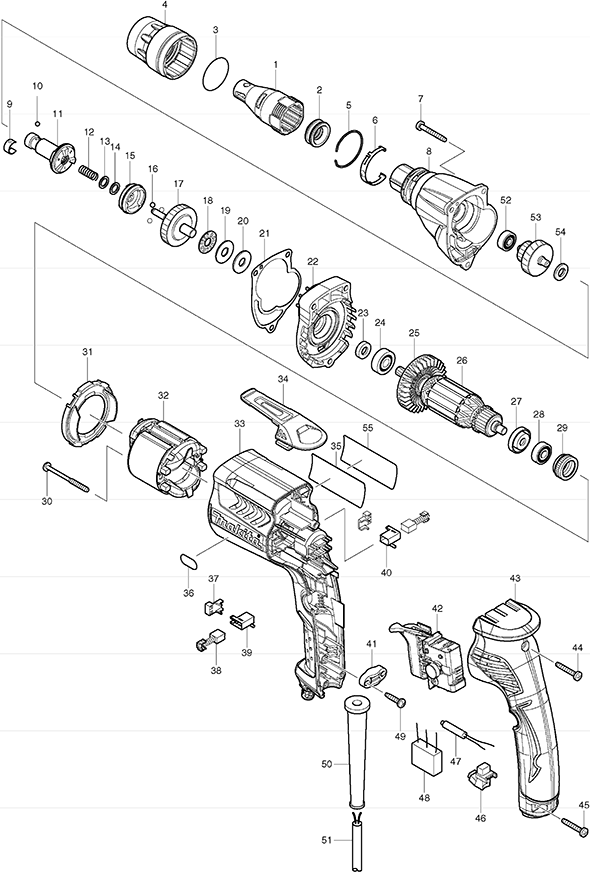

Schematic Image Zoomed
