product name

Makita DT04 Cordless Impact Wrench & Driver

Model: DT04

Save Part Not Listed?
product name

Makita DT04

...
...
xxx
Hex. Locking Nut M4-7 MK-252126-6
...
E01
Caution Label MK-810J34-3
...
xxx
Latch MK-417724-5
...
A07
Plastic Carrying Case MK-821661-1
...
A06
Battery Bl1021B Set (197414-3) MK-BL1021B
...
A05
Dc10Wd Battery Charger MK-DC10WD
...
A04
Battery Cover MK-456128-6
...
A03
+ Bit 2-50 MK-784202-3
...
A02
Hook MK-346909-5
...
A01
+ Truss Head Screw M4X12 MK-266622-8
...
001
Housing Set MK-183E65-8
...
002
Dt04 Name Plate MK-852P35-1
...
003
Tapping Screw 3X16 MK-266429-2
...
004
F/R Change Lever MK-455053-8
...
005
Switch C3Jw-2B MK-650689-0
...
006
Rotor MK-619415-6
...
007
Stator MK-629232-6
...
008
Led Circuit MK-620553-9
...
009
Terminal MK-644813-5
...
010
Ring Spring 10 MK-231965-7
...
011
Flat Washer 11 MK-267143-3
...
012
Compression Spring 13 MK-233005-7
...
013
Bit Sleeve MK-326803-7
...
014
Bumper MK-424907-0
...
015
Hammer Case Cover MK-457062-3
...
016
Hammer Case Complete MK-144058-0
...
017
Nylon Washer 19 MK-261159-0
...
018
Steel Ball 3 MK-216019-1
...
019
Anvil M MK-326630-2
...
020
Hammer MK-324894-2
...
021
Steel Ball 3 MK-216019-1
...
022
Flat Washer 20 MK-267380-9
...
023
Compression Spring 21 MK-232326-4
...
024
Washer 21 MK-267813-4
...
025
Steel Ball 4.8 MK-216002-8
...
026
Spur Gear 17 MK-221437-0
...
027
Spindle MK-324897-6
...
028
Pin 3.5 MK-268217-3
...
029
Flat Washer 12 MK-253052-2
...
030
Internal Gear 43 MK-227316-0
...
032
O Ring 33 MK-213479-8
...
033
Bearing Box Complete MK-141893-7
...
035
Housing Set MK-183E65-8
...
036
Switch Plate Complete MK-144060-3
...
037
Tapping Screw Pt 2X6 MK-266490-9
...
038
Controller MK-620552-1

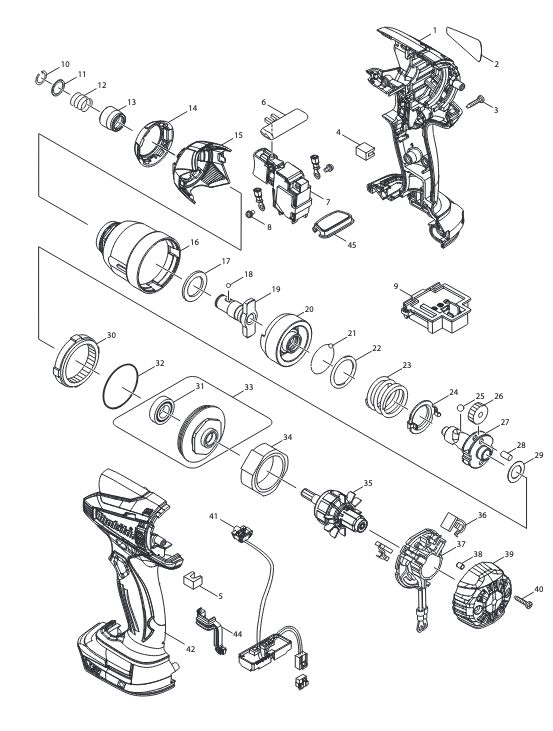

Schematic Image Zoomed
