product name

Makita DPC7321 Electric Saw

Model: DPC7321

Save Part Not Listed?
product name

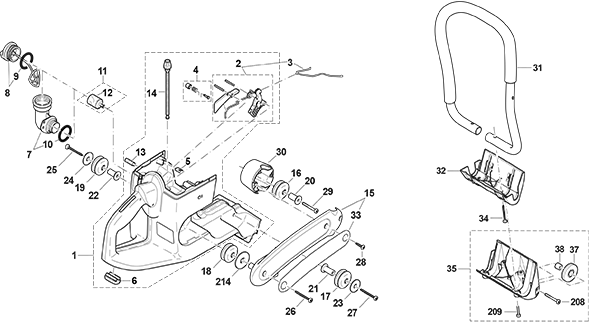

Makita DPC7321

...
...
1
Tank Cpl., Blue MK-394114604
...
1
Tank CPL , Blue MK-394114604
...
2
Throttle Mechanism, Cpl. MK-957117020
...
2
Throttle Mechanism, CPL MK-957117020
...
3
Throttle Linkage MK-394117011
...
4
Half-Throttle Lock, Cpl. MK-957117030
...
4
Half-Throttle Lock, CPL MK-957117030
...
5
Screw Plug MK-394114100
...
6
Rubber Foot MK-394114070
...
7
Angular Union Assy. MK-010114081
...
8
Tank Cap Cpl. MK-010114091
...
8
Tank Cap CPL MK-010114091
...
9
O-Ring, Red, Diameter30X3 MK-963230031
...
10
O-Ring, Red, Diameter30X3 MK-963230031
...
11
Suction Head MK-963601120
...
12
Felt MK-963601240
...
13
Air Valve Cpl. MK-010175050
...
13
Air Valve CPL MK-010175050
...
14
Fuel Line MK-965404911
...
15
Bracket, Makita MK-394114660
...
16
Rubber Buffer MK-965403535
...
17
Rubber Buffer MK-965403535
...
18
Rubber Buffer MK-965403535
...
19
Rubber Buffer MK-965403535
...
20
Axle MK-394114032
...
21
Axle MK-394114032
...
22
Axle MK-394114032
...
23
Washer MK-900005078
...
24
Washer MK-900005078
...
25
Screw, 5,5X45 MK-913455454
...
26
Screw, 5,5X45 MK-913455454
...
27
Screw, 5,5X45 MK-913455454
...
28
Screw, 5,5X20 MK-913455204
...
29
Screw, M5X20X40 MK-908305405
...
30
Pot MK-394114050
...
31
Wrap Around Handle MK-394310100
...
32
Foot MK-394114190
...
33
Label, Makita MK-980115215
...
34
Screw, 5,5X45 MK-913455454
...
35
Foot Cpl. MK-394114270
...
35
Foot CPL MK-394114270
...
37
Roller MK-394114230
...
38
Bushing MK-394114240
...
208
Screw, M6X35 MK-908006355
...
209
Screw, 5X16 MK-908905165
...
214
Washer MK-900005076

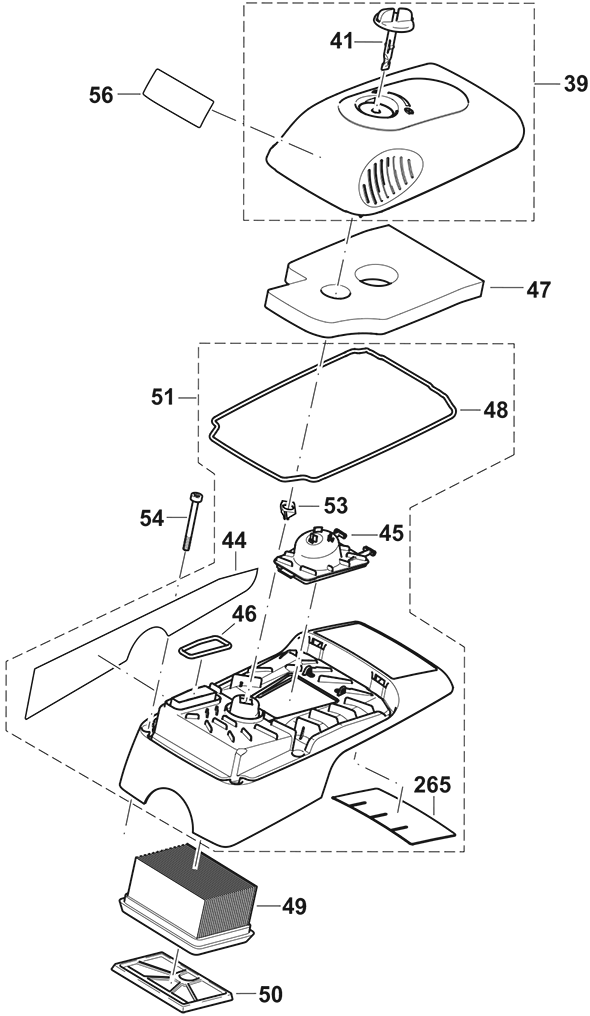

Makita DPC7321

...
...
39
Cover Assy. MK-326118610
...
41
Bayonet Fixing MK-394118010
...
44
Safety Label MK-980115269
...
45
Cover For Spark Plug MK-326118070
...
46
Packing Ring MK-326118050
...
47
Prefilter MK-326173080
...
48
Packing Ring MK-326118020
...
49
Air Filter MK-394173010
...
50
Inner Filter MK-394173020
...
51
Hood Cpl., Kat MK-326118090
...
51
Hood CPL , Kat MK-326118090
...
53
Bayonet Lock MK-394118050
...
54
Screw, M5X50 MK-908605505
...
56
Label, Mix MK-980114999
...
265
Thermal Film MK-326118060

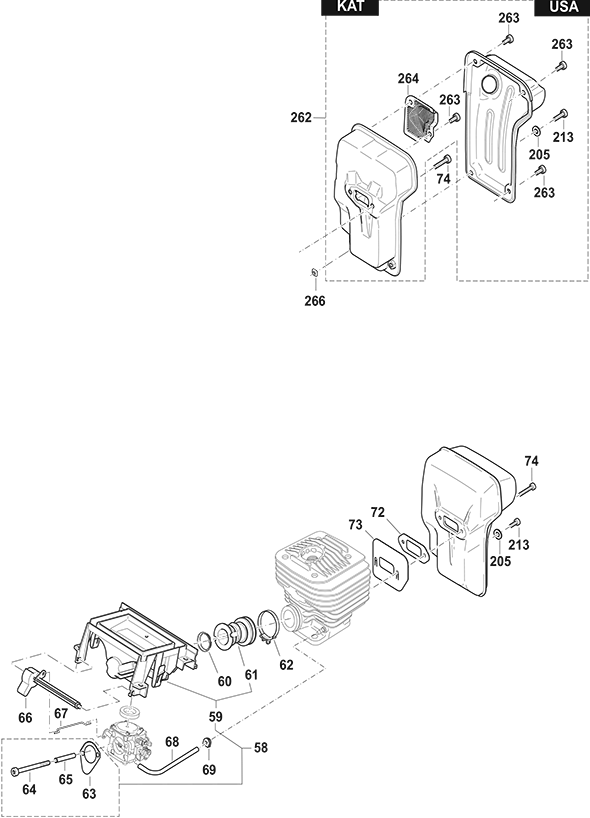

Makita DPC7321

...
...
58
Modification Set MK-957171394
...
59
Connecting Sleeve Cpl. MK-394171051
...
59
Connecting Sleeve CPL MK-394171051
...
60
Insert For Suction Hose MK-024131032
...
61
Suction Line MK-394131101
...
62
Hose Clip MK-965603050
...
63
Gasket MK-965518120
...
64
Screw, M4X55 MK-908204555
...
65
Tube 37Mm; 1 1/2" MK-970502050
...
66
Choke Shaft MK-394150030
...
67
Choke Shaft MK-394150042
...
68
Tube 116Mm; 4 1/2" MK-965452380
...
69
Rubber Bush MK-965401016
...
72
Gasket MK-965531131
...
73
Cover Plate MK-394174051
...
74
Screw, M5X20 MK-908405205
...
205
Disc MK-928405000
...
213
Screw, M5X12 MK-908005125
...
262
Muffler, Kat MK-394174550
...
263
Screw, M5X9 MK-908005095
...
264
Spark Arrestor Screen, Kat MK-394174340
...
266
Square Nut, M5, Sw10 MK-038111060

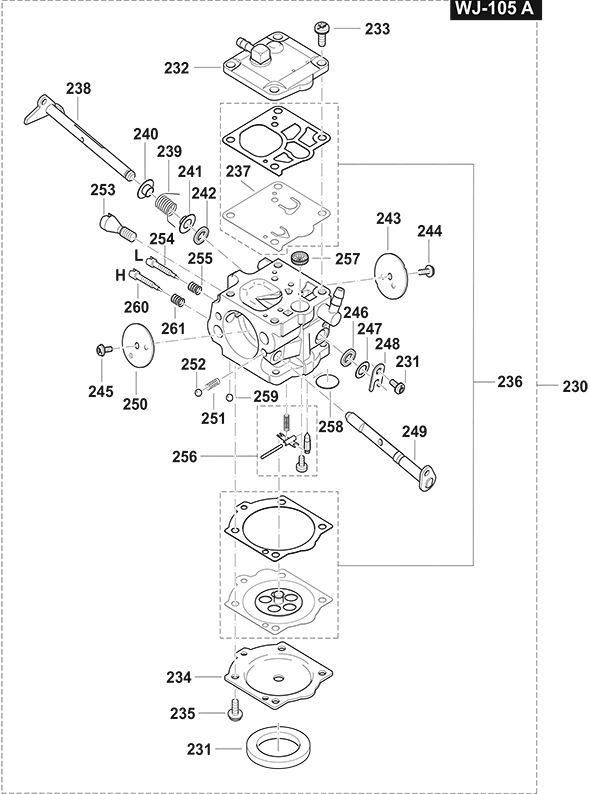

Makita DPC7321

...
...
230
Carburetor, Wj-105 A MK-394151051
...
231
Gasket MK-965402970
...
232
Pump Cover Cpl. MK-394151160
...
232
Pump Cover CPL MK-394151160
...
233
Screw MK-144150170
...
234
Diaphragm Cover MK-394151120
...
235
Screw MK-378151220
...
236
Set Diaphragm / Gaskets MK-957151180
...
237
Pump Diaphragm MK-394151150
...
238
Throttle Shaft MK-394151300
...
239
Spring MK-394151310
...
240
Bushing MK-394151315
...
241
Bushing MK-394151315
...
242
Packing Ring MK-394151330
...
243
Throttle Shutter MK-394151320
...
244
Screw MK-394151650
...
245
Screw MK-394151660
...
246
Packing Ring MK-394151330
...
247
Disc MK-394151400
...
248
Shaft Clip MK-108151350
...
249
Shaft MK-394151250
...
250
Choke Shutter MK-394151260
...
251
Locking Spring MK-118151160
...
252
Locking Ball MK-118151170
...
253
Idle Stop Screw MK-394151570
...
254
Idle Adjustment Screw MK-394151470
...
255
Spring MK-021151480
...
256
Control Parts MK-957151190
...
257
Screen MK-021151180
...
258
Cover Disc MK-394151040
...
259
Locking Ball MK-394151510
...
260
Main Adjustm. Screw MK-001151450
...
261
Spring MK-021151480

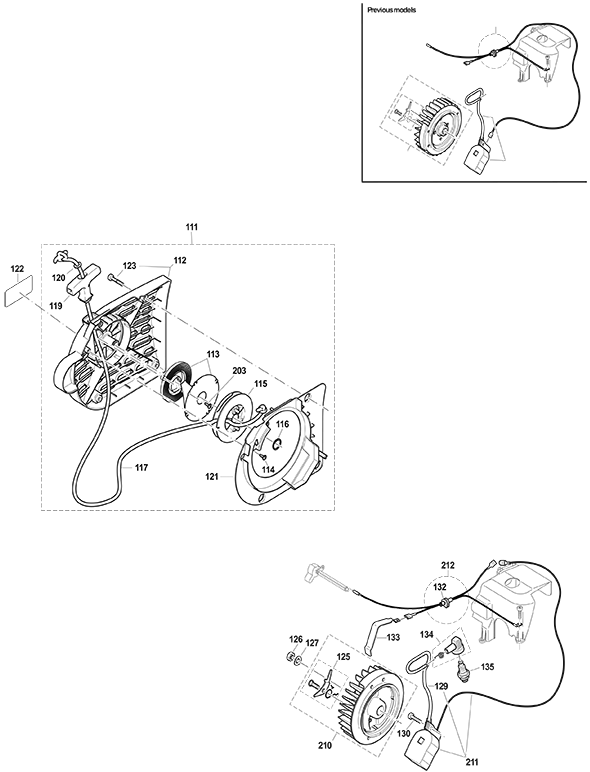

Makita DPC7321

...
...
111
Starter Assy. MK-394112642
...
112
Housing MK-394112621
...
113
Rewind Spring MK-394163020
...
114
Screw, 3,5X9,5 MK-915135100
...
115
Cable Drum MK-394162040
...
116
Snap Ring MK-929314100
...
117
Starter Rope Black, Diameter4 X 1000Mm MK-394164020
...
117
Starter Rope, Diameter4 X 100M MK-985000165
...
117
Starter Rope, Diameter4 X 1000Mm MK-122164010
...
117
Starter Ropelack, Diameter4 X 1000Mm MK-394164020
...
119
Starter Grip MK-001161020
...
120
Disc MK-928405000
...
121
Air Guide Plate MK-394112141
...
122
Label, Makita MK-980115214
...
123
Screw, M5X20 MK-908605205
...
125
Starter Ratchet Cpl. MK-031166010
...
125
Starter Ratchet CPL MK-031166010
...
126
Hexagonal Nut, M8X1 MK-920208024
...
127
Spring Washer, B8 Din137 MK-926208001
...
129
Ignition Cable 360Mm; 141/8" MK-970310200
...
130
Screw, M5X20 MK-908605205
...
132
Rubber Bush MK-965401016
...
133
Contact Spring MK-394146013
...
134
Spark Plug Cap Cpl. MK-957604240
...
134
Spark Plug Cap CPL MK-957604240
...
135
Spark Plug MK-965603021
...
203
Screw, 3,5X9,5 MK-915135100
...
210
Flywheel Assy. MK-394141050
...
211
Ignition Coil MK-394143030
...
212
Cable With Plug MK-965605510

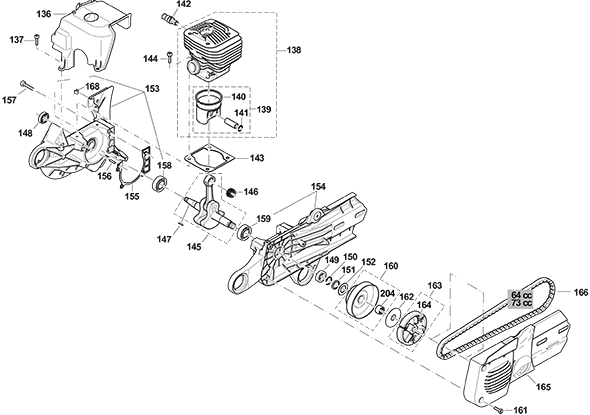

Makita DPC7321

...
...
136
Hood MK-394131042
...
137
Screw, M5X16 MK-908005165
...
138
Cylinder / Piston, Cpl., Diameter 50 Deco MK-394130015
...
138
Cylinder / Piston, CPL , Diameter 50 Deco MK-394130015
...
139
Piston Cpl., Diameter 50 MK-394132111
...
139
Piston CPL , Diameter 50 MK-394132111
...
140
Piston Ring, Diameter 50 MK-394132020
...
141
Spring Ring, C12X1 MK-119132060
...
142
Valve MK-001131150
...
143
Gasket, Metal MK-965531160
...
143
Gasket, Paper MK-965531121
...
144
Screw, M5X20 MK-908005205
...
145
Crankshaft Cpl. MK-394120011
...
145
Crankshaft CPL MK-394120011
...
146
Needle Cage MK-962210015
...
147
Key MK-939630370
...
148
Radial Ring, Diameter15/24X7 MK-962900052
...
149
Radial Ring, Diameter15/24X7 MK-962900052
...
150
Spring Ring MK-930916160
...
151
Stop Ring MK-394245010
...
152
Guide Disc MK-394182020
...
153
Crankc., Mag. Side, (Incl. Fig. 205,213,266) MK-326111731
...
154
Crankc., Clutch Side MK-326111740
...
155
Gasket MK-965531111
...
156
Clamping Pin, 3X16 MK-936430160
...
157
Screw, M5X30 MK-908005305
...
158
Ball Bearing (Use Glue), 6202 MK-960102159
...
159
Ball Bearing (Use Glue), 6202 MK-960102159
...
160
Clutch Drum Assy. MK-394223023
...
161
Screw, M5X14 MK-908605145
...
162
Disc MK-001182042
...
163
Clutch Assy. MK-010180022
...
164
Spring MK-024184021
...
165
Cover MK-394213670
...
166
V-Belt MK-965300470
...
168
Rubber Plate, Set=35 Pcs. MK-965402870
...
204
Needle Bush MK-962300017

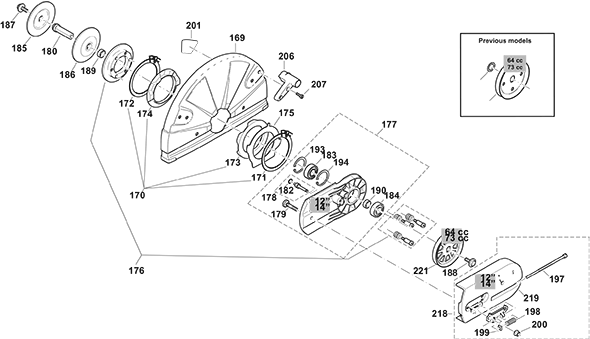

Makita DPC7321

...
...
169
Hood, Diameter 350Mm; 14" MK-394341011
...
170
Mounting, Cpl. MK-957342011
...
170
Mounting, CPL MK-957342011
...
171
Sliding Disc MK-394342180
...
172
Sliding Disc MK-394342180
...
173
Rubber Ring Ext. MK-965404900
...
173
Rubber Ring xt. MK-965404900
...
174
Rubber Ring Int. MK-965404920
...
174
Rubber Ring nt. MK-965404920
...
175
Impact Plate MK-394342160
...
176
Pressure Ring Cpl. MK-394342211
...
176
Pressure Ring PL MK-394342211
...
177
Cutting Device Assy. MK-394211740
...
178
Bolt Cpl. MK-394342190
...
178
Bolt CPL MK-394342190
...
179
Screw MK-394211091
...
180
Axle, Diameter 20Mm, Dpc7321 3MK-94228101
...
180
Axle, Diameter 22,2Mm 3MK-94228130
...
180
Axle, Diameter 25,4Mm; 1", Dpc7321Hd MK-394228111
...
182
Packing Ring, 9X2 MK-963209020
...
183
Ball Bearing MK-960102176
...
184
Ball Bearing MK-960102176
...
185
Pressure Disc, 12"-16" MK-326228010
...
186
Pressure Disc, 12"-16" MK-326228010
...
187
Hexagonal Screw, M8X25 MK-994280250
...
188
Hexagonal Screw, M8X25 MK-994280250
...
189
Spacer MK-394228021
...
190
Spacer MK-394228021
...
193
Snap Ring MK-929240180
...
194
Snap Ring MK-929240180
...
197
Tensioning Screw MK-394213032
...
198
Spring MK-394342120
...
199
Square Nut, M6 MK-921906004
...
200
Hexagonal Nut, M8 MK-923208004
...
201
Safety Label, Diameter350/25,4Mm; Diameter14"/1", Dpc7321Hd MK-980114975
...
201
Safety Label, Diameter350/20,0Mm; Diameter14"/.787", Dpc7321 MK-980114974
...
206
Grip MK-326341300
...
207
Screw, M5X16 MK-908605165
...
218
Cover Cpl. MK-394211190
...
218
Cover CPL MK-394211190
...
219
Cover MK-394211625
...
221
Belt Pulley MK-394221050

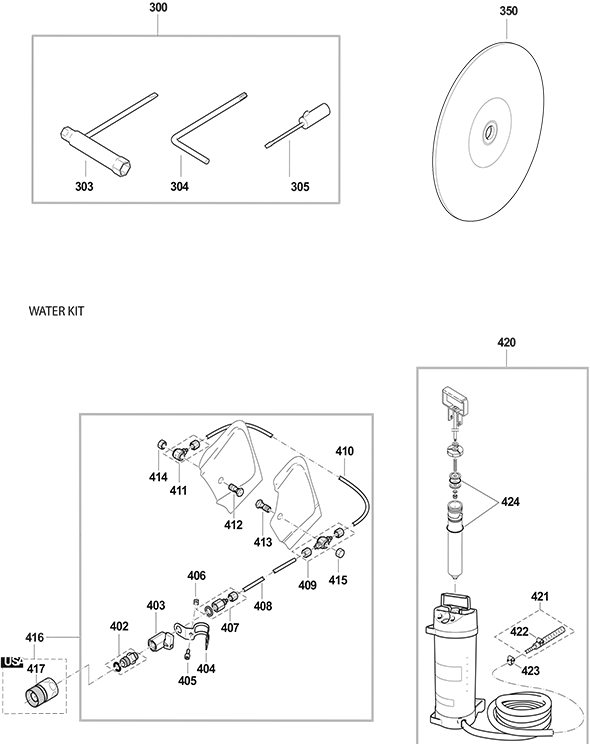

Makita DPC7321

...
...
300
Tools Cpl. MK-957004006
...
300
Tools CPL MK-957004006
...
303
Universal Wrench, Sw 13/19 MK-941719140
...
304
Angled Screw Driver, T27 MK-940827000
...
305
Screw Driver MK-944340001
...
350
Abras. Blade, Steel, 350/25,4Mm; 14" MK-965210212
...
350
Abras. Blade, Stone, 350/25,4Mm; 14" MK-965210222
...
402
Hose Connector MK-964802280
...
403
Shut Off Cock MK-964802290
...
404
Clamp MK-394365160
...
405
Screw, M6X10 MK-908006105
...
406
Square Nut, M6 MK-921906004
...
407
Connecting Piece MK-964802310
...
408
Hose 405Mm; 16" MK-964802321
...
409
Connecting Piece T MK-964802330
...
410
Hose 210Mm; 8 1/4" MK-964802321
...
411
Connecting Piece L MK-964802340
...
412
Nozzle MK-964802351
...
413
Nozzle MK-964802351
...
414
Cap Nut MK-964802361
...
415
Cap Nut MK-964802361
...
416
Water Attachment Kit MK-394365630
...
417
Coupling Sleeve, Stop 1 1/16" MK-964802400
...
420
Pressurised Water Tank, 10 L MK-957802600
...
421
Connecting Reducer MK-394365180
...
422
Hose Clip, Diameter10-16 Mm MK-964802250
...
423
Hose Clip, Diameter10-16 Mm MK-964802250
...
424
Gasket Set MK-957963200
