Makita DF030DWE Cordless Screwdriver

Model: DF030DWE

Save Part Not Listed?
product name

Makita DF030DWE

...
...
xxx
Compression Spring 4 MK-231433-0
...
E01
Caution Label MK-810400-4
...
xxx
Latch MK-417724-5
...
A06
Plastic Carrying Case MK-824842-6
...
A04
+ Bit 2-50 MK-784214-0A
...
A03
Battery Bl1013 Set MK-BL1013
...
A02
Dc10Wa Battery Charger MK-DC10WA
...
A01
Holster MK-168467-9
...
1
Speed Change Lever Assembly MK-125461-4
...
2
Housing Set MK-188499-0
...
3
Df030D Name Plate MK-865041-1
...
4
Tapping Screw Bind Pt 3X16 MK-266130-9
...
5
Led Circuit MK-631813-4
...
6
Leaf Spring MK-232239-9
...
7
F/R Change Lever MK-450504-6
...
8
Switch C3Hy-1A-Lm MK-650599-1
...
9
Set Plate MK-345998-7
...
10
Terminal MK-643830-2
...
11
Gear Assembly MK-125459-1
...
12
Ring Spring 10 MK-231965-7
...
13
Flat Washer 11 MK-267143-3
...
14
Compression Spring 13 MK-233005-7
...
15
Bit Sleeve MK-324919-2
...
16
Steel Ball 3 MK-216019-1
...
17
Dc Motor MK-629853-4
...
18
Pan Head Screw M3X6 MK-911003-8
...
19
Housing Set MK-188499-0

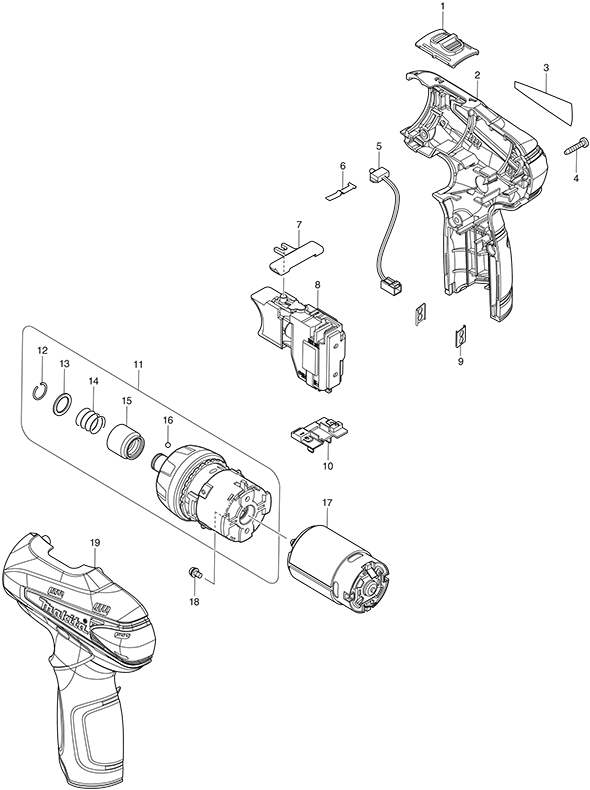

Schematic Image Zoomed
