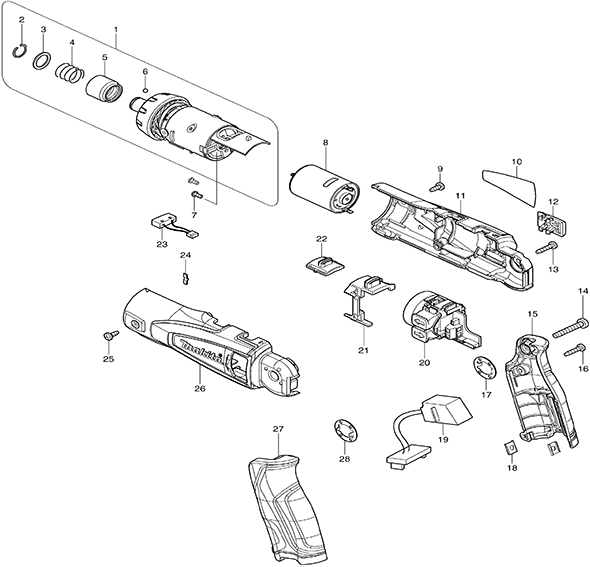

Makita DF010D Cordless Screwdriver

Model: DF010D

Save Part Not Listed?
product name

Makita DF010D

...
...
1
Gear Assembly, Df010Dse MK-125464-8
...
2
Ring Spring 10, Df030Dw MK-231965-7
...
3
Flat Washer 11, Btd060Z MK-267143-3
...
4
Comp.Spring 13,6903Vdw MK-233005-7
...
5
Bit Sleeve, Df030Dw MK-324919-2
...
6
Steel Ball 3, Btd060Z MK-216019-1
...
7
P.H. Screw 2.6X6, Td020 MK-265172-0
...
8
Dc Motor, Df010Dse MK-629854-2
...
9
Tapping Screw Bind Pt3X8,9526Pb MK-265954-0
...
10
Df010D Name Plate MK-865100-1
...
11
Motor Housing Set, Df010Dse MK-188508-5
...
12
Slide Plate, Df010Dse MK-450590-7
...
13
T. Screw 3X14, Td020 MK-266404-8
...
14
Tapping Screw 4X25, Ga7021 MK-266374-1
...
15
Handle Set, Df010Dse MK-188509-3
...
16
T. Screw 3X14, Td020 MK-266404-8
...
17
Lock Washer, Td020 MK-267803-7
...
18
Set Plate, Td020 MK-345749-8
...
19
Controller, Df010Dse MK-631811-8
...
20
Switch Unit, Df010Dse MK-638605-2
...
21
Change Lever, Df010Dse MK-450553-3
...
22
Speed Change Lever Ass'Y, Df010Dse MK-125465-6
...
23
Switch Unit, Df010Dse MK-638609-4
...
24
Leaf Spring, Df010Dse MK-232242-0
...
25
Tapping Screw Bind Pt3X8,9526Pb MK-265954-0
...
26
Motor Housing Set, Df010Dse MK-188508-5
...
27
Handle Set, Df010Dse MK-188509-3
...
28
Lock Washer, Td020 MK-267803-7
...
1002
Bl7010 Battery,Td020 MK-194356-2
...
5001
Caution Label, Df010Dse MK-810414-3
