Makita DCS33 Electric Saw

Model: DCS33

Save Part Not Listed?
product name

Makita DCS33

...
...

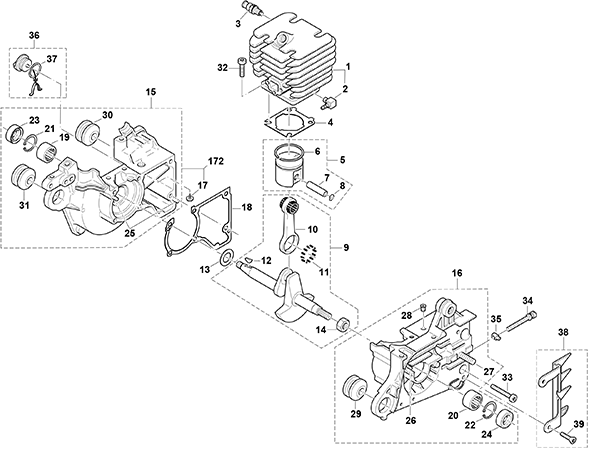

1
Cylinder, Diameter 37Mm MK-021131110
...
2
Angular Nipple MK-001151670
...
4
Gasket MK-965524042
...
5
Piston Assy., Diameter 37Mm MK-021132110
...
6
Piston Ring, Diameter 37Mm MK-021132030
...
7
Piston Pin MK-021132020
...
8
Spring Ring MK-108132050
...
9
Crankshaft Cpl. MK-957120028
...
9
Crankshaft CPL MK-957120028
...
10
Con-Rod Cpl. MK-021123010
...
10
Con-Rod CPL MK-021123010
...
11
Roller MK-962640061
...
12
Key MK-939615260
...
13
Stop Disc MK-108121010
...
14
Hexagonal Nut Left Thread, M8X1 L MK-920108044
...
15
Crankcase M. Side Cpl. Blue MK-028111640
...
15
Crankcase M. Side CPL Blue MK-028111640
...
16
Crankcase Cl. Side Cpl. Blue MK-028111630
...
16
Crankcase Cl. Side CPL Blue MK-028111630
...
18
Gasket MK-965524011
...
19
Needle Cage, 13X19X12 MK-962300011
...
20
Needle Cage, 13X19X12 MK-962300011
...
21
Snap Ring MK-929319101
...
22
Snap Ring MK-929319101
...
23
Radial Ring MK-962900049
...
24
Radial Ring MK-962900049
...
25
Clamping Pin, 3X16 MK-936430160
...
26
Guide Pin MK-021245070
...
27
Bolt, M8X25 MK-905808254
...
28
Air Valve Cpl. MK-010245010
...
28
Air Valve CPL MK-010245010
...
29
Rubber Buffer MK-965403491
...
30
Rubber Buffer MK-965403491
...
31
Rubber Buffer MK-965403491
...
32
Screw, M5X25 MK-908405255
...
33
Screw, M5X30 MK-908005305
...
34
Tensioning Screw MK-389213080
...
35
Nut With Pivot MK-001213042
...
36
Oil Tank Cap Assy. MK-965450040
...
37
Gasket MK-963100041
...
38
Spike Bar Assy. MK-957250015
...
39
Screw, M5X12 MK-908105124

Makita DCS33

...
...

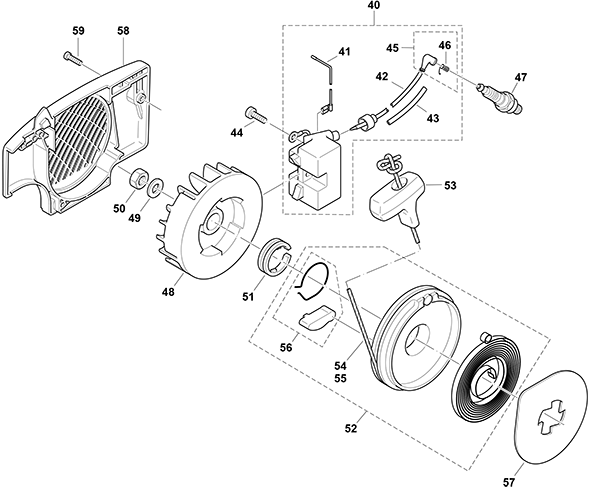

40
Ignition Electronic Assy. MK-028142021
...
41
Short-Circuit Cable MK-028147000
...
42
Ignition Cable, 300 Mm MK-970310200
...
43
Insulating Hose, 100 Mm MK-970502110
...
44
Screw, M5X14 MK-908605145
...
45
Plug Cap Cpl. MK-957604260
...
45
Plug Cap CPL MK-957604260
...
46
Spring MK-965604180
...
47
Spark Plug MK-965603018
...
48
Flywheel MK-021141011
...
49
Spring Washer, B8 Din137 MK-926208001
...
50
Hexagonal Nut, M8X1 MK-920308024
...
51
Snap Ring MK-021166040
...
52
Starter Assy. MK-021160000
...
53
Starter Knob MK-965404031
...
54
Starter Rope, Diameter 3 X 900Mm MK-021164010
...
55
Starter Rope, Diameter3 X 100 M MK-985000150
...
56
Starter Ratchet/Spring MK-028166030
...
57
Disc MK-900004375
...
58
Fan Housing Blue MK-028112630
...
59
Screw, M5X16 MK-908005165

Makita DCS33

...
...

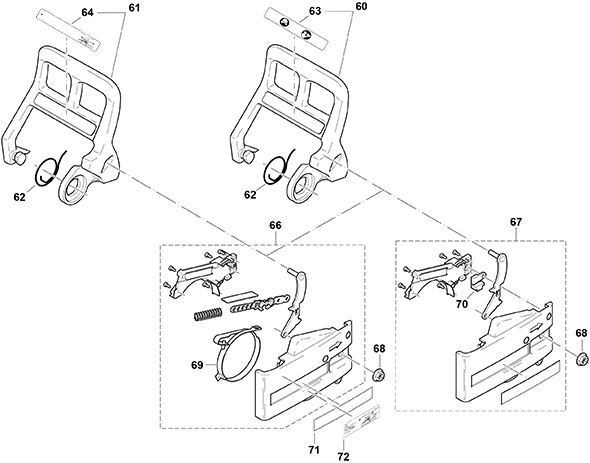

60
Hand Guard Cpl. MK-028213615
...
60
Hand Guard CPL MK-028213615
...
62
Spring MK-028213560
...
63
Label MK-980114237
...
66
Chain Brake Cpl. Blue MK-028213600
...
66
Chain Brake CPL Blue MK-028213600
...
68
Hexagonal Nut, M8 MK-923208004
...
69
Brake Spring MK-028213501
...
71
Label, Makita MK-980114251

Makita DCS33

...
...

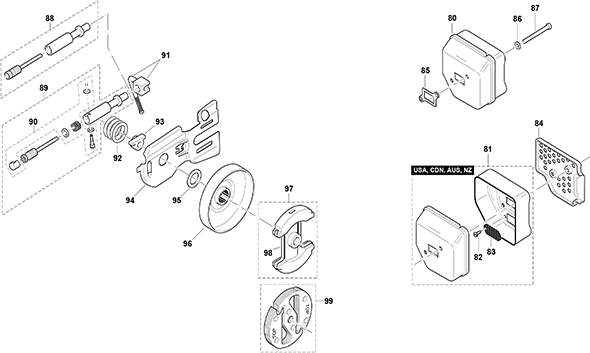

80
Muffler MK-021174301
...
85
Gasket MK-965524062
...
86
Disc MK-928405000
...
87
Screw, M5X60 MK-908205605
...
88
Oil Pump Cpl. MK-021245003
...
88
Oil Pump CPL MK-021245003
...
91
Suction Line Assy. For Oil MK-965451962
...
92
Worm MK-021245040
...
93
Sealing Cap MK-021245080
...
94
Guide Plate MK-021111037
...
95
Shim, 10X16X0,5 MK-021224010
...
96
Clutch Drum, 3/8" MK-028223313
...
97
Clutch Assy. MK-021180011
...
98
Flat Spring MK-028184020
...
99
Clutch Assy. MK-028180031

Makita DCS33

...
...

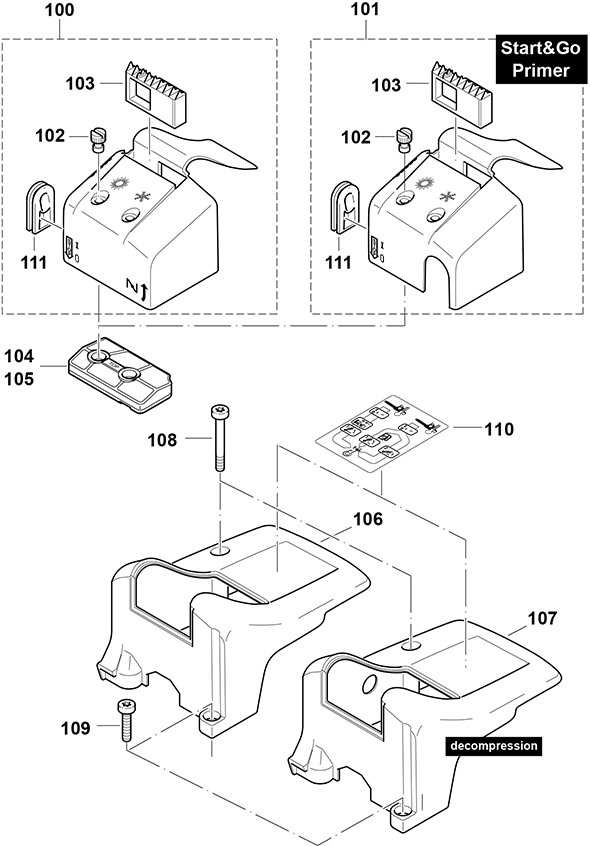

100
Cover Assy. Black MK-028118480
...
102
Nut, M5 MK-001118062
...
103
Insert Red MK-028118180
...
104
Air Filter, Nylon MK-028173041
...
105
Air Filter, Robkoflok MK-028173141
...
106
Hood Black MK-028118310
...
108
Screw, M5X60 MK-908205605
...
109
Screw, M5X16 MK-908005165
...
111
Adjusting Guide MK-028118030

Makita DCS33

...
...

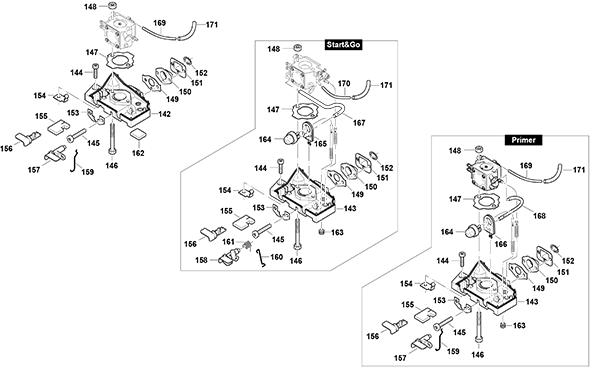

142
Bottom MK-028118271
...
144
Screw, M5X16 MK-908005165
...
145
Screw, M5X30 MK-908005305
...
146
Screw, M5X55 MK-900205554
...
147
Gasket MK-965524120
...
148
Hexagon Nut, M5 MK-920205000
...
149
Gasket MK-965524082
...
150
Intermediate Flange MK-028131063
...
151
Gasket MK-965524131
...
152
Gasket MK-965524092
...
153
Plate MK-028118160
...
154
Contact Plate MK-028118112
...
155
Gasket MK-965404421
...
156
Stop Switch MK-028118121
...
157
Choke Lever MK-028150740
...
159
Choke Linkage MK-028150750
...
162
Gasket MK-965404430
...
169
Fuel Line, 118 Mm MK-965452060
...
171
Insulating Hose, 48 Mm MK-970502110

Makita DCS33

...
...

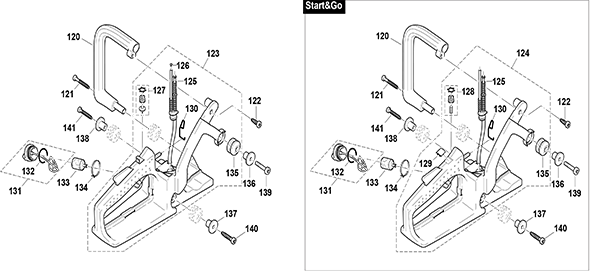

120
Tubular Handle MK-028310050
...
121
Screw, 5,5X45 MK-913455454
...
122
Screw, 5,5X20 MK-913455204
...
123
Tank Assy. Blue MK-028114691
...
125
Fuel Line MK-965404661
...
126
Rivet MK-937130120
...
127
Vent Valve Assy. MK-957114010
...
130
Throttle Linkage MK-028117245
...
131
Tank Cap Assy. (Fuel) MK-010114050
...
132
Packing Ring, Diameter 28X3 MK-963228030
...
133
Suction Head MK-963601120
...
134
Cable Strap MK-980003583
...
135
Rubber Buffer MK-965403491
...
136
Fixing Bush MK-021114051
...
137
Fixing Bush MK-021114051
...
138
Fixing Bush MK-021114051
...
139
Screw, M5X30 MK-908005305
...
140
Screw, 5,5X30 MK-913455304
...
141
Screw, 5,5X30 MK-913455304

Makita DCS33

...
...

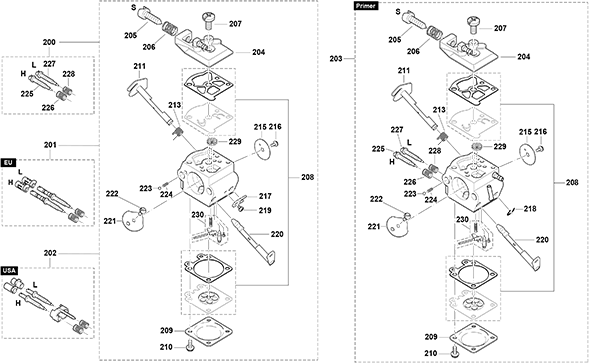

200
Carburetor Cpl., Wt-174 MK-957151700
...
200
Carburetor CPL , Wt-174 MK-957151700
...
201
Carburetor Cpl., Wt-174 Eu MK-028151702
...
201
Carburetor CPL , Wt-174 Eu MK-028151702
...
204
Pump Cover MK-001151140
...
205
Adjusting Screw MK-021151240
...
206
Pressure Spring MK-021151230
...
207
Screw MK-118151190
...
208
Set Gaskets/Diaphragm MK-021151540
...
209
Diaphragm Cover MK-021151120
...
210
Set Screw MK-118151020
...
211
Throttle Shaft MK-001151320
...
213
Spring MK-001151310
...
215
Throttle Shutter MK-108151320
...
216
Screw MK-118151060
...
217
Shaft Clip MK-108151350
...
220
Choke Shaft MK-001151255
...
221
Choke Shutter MK-001151350
...
222
Screw MK-118151060
...
223
Locking Ball MK-118151170
...
224
Locking Spring MK-118151160
...
225
Main Adjustm. Screw MK-001151515
...
226
Spring MK-021151530
...
227
Idling Adjustm. Screw MK-021151470
...
228
Spring MK-021151480
...
229
Screen MK-021151180
...
230
Set Of Control Parts MK-957150040

Makita DCS33

...
...

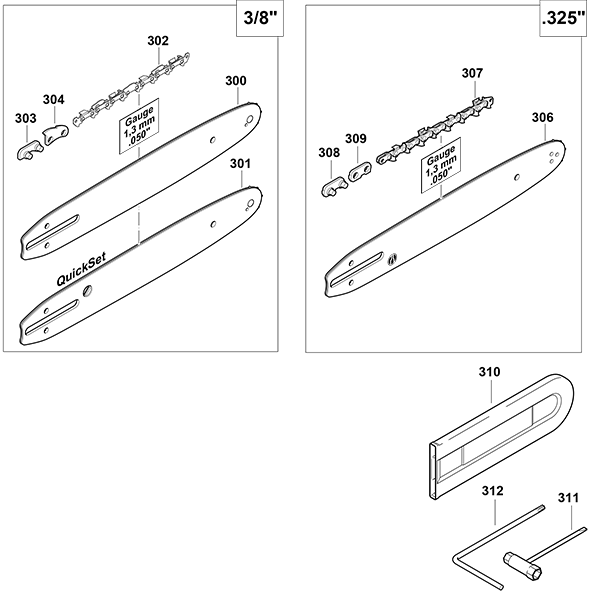

300
Sprocket Nose Bar, 3/8" .050" 30Cm-12" MK-442030661
...
300
Sprocket Nose Bar, 3/8" .050" 35Cm-14" MK-442035661
...
300
Sprocket Nose Bar, 3/8" .050" 40Cm-16" MK-442040661
...
301
Sprocket Nose Bar, 3/8" .050" 30Cm-12" MK-442030061
...
301
Sprocket Nose Bar, 3/8" .050" 35Cm-14" MK-442035061
...
301
Sprocket Nose Bar, 3/8" .050" 40Cm-16" MK-442040061
...
302
Saw Chain, 3/8" .050" 30Cm-12" MK-528092646
...
302
Saw Chain, 3/8" .050" 35Cm-14" MK-528092652
...
302
Saw Chain, 3/8" .050" 40Cm-16" MK-528092656
...
303
Tie Strap With Rivets, 3/8" .050" MK-558092010
...
304
Safety Tie Strap, 3/8" .050" MK-558092000
...
310
Chain Protection Cover, 30-40Cm, 12"-16" MK-952100633
...
311
Universal Wrench, 13/16 Mm MK-941716131
