Makita CT411 Impact Driver

Model: CT411

Save Part Not Listed?

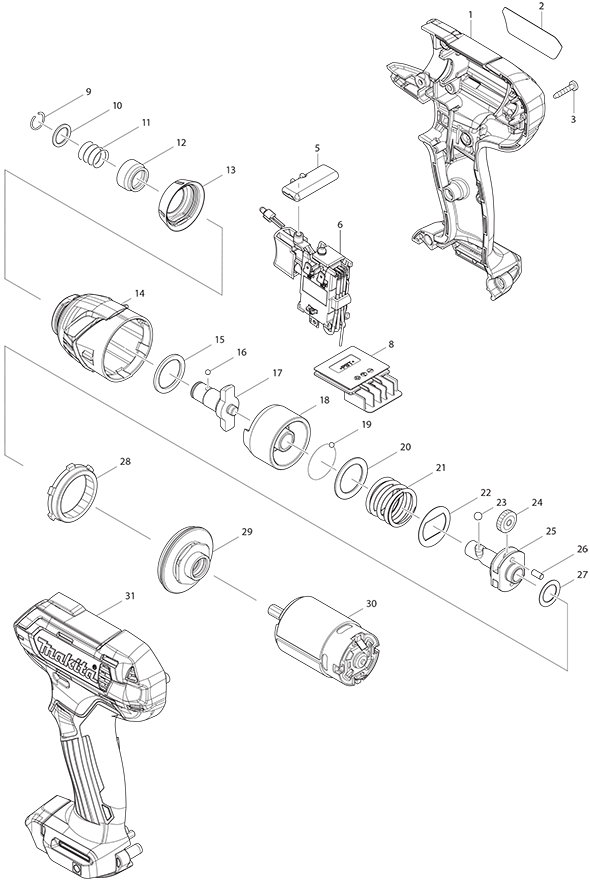

product name

Makita CT411

...
...
xxx
Hex. Locking Nut M4-7 MK-252126-6
...
xxx
Led Circuit MK-620463-0
...
A01
+ Truss Head Screw M4X12 MK-266622-8
...
A02
Hook MK-346909-5
...
A03
+ Bit 2-50 MK-784244-7
...
A04
Battery Cover MK-456128-6
...
A05
Dc10Wd Battery Charger MK-DC10WD
...
A06
Battery Bl1021B MK-BL1021B
...
A07
Plastic Carrying Case MK-821661-1
...
xxx
Latch MK-417724-5
...
E01
Caution Label MK-807H20-1
...
001
Housing Set MK-183B49-8
...
002
Dt03 Name Plate MK-851G84-1
...
003
Tapping Screw 3X16 MK-266429-2
...
005
F/R Change Lever MK-456039-5
...
006
Switch Unit MK-632F43-6
...
008
Terminal MK-644813-5
...
009
Ring Spring 10 MK-231965-7
...
010
Flat Washer 11 MK-267143-3
...
011
Compression Spring 13 MK-233005-7
...
012
Bit Sleeve MK-324711-6
...
013
Bumper MK-424737-9
...
014
Hammer Case Complete MK-143277-5
...
015
Nylon Washer 20 MK-261140-1
...
016
Steel Ball 3 MK-216019-1
...
017
Anvil M MK-324895-0
...
018
Hammer MK-324894-2
...
019
Steel Ball 3 MK-216019-1
...
020
Flat Washer 20 MK-267380-9
...
021
Compression Spring 21 MK-234064-4
...
022
Washer 21 MK-267813-4
...
023
Steel Ball 4.8 MK-216002-8
...
024
Spur Gear 17 MK-227213-0
...
025
Spindle MK-324897-6
...
026
Pin 3.5 MK-268217-3
...
027
Flat Washer 12 MK-253052-2
...
028
Internal Gear 43 MK-227215-6
...
029
Bearing Box Complete MK-158671-8
...
030
Dc Motor MK-629163-9
...
031
Housing Set MK-183B49-8

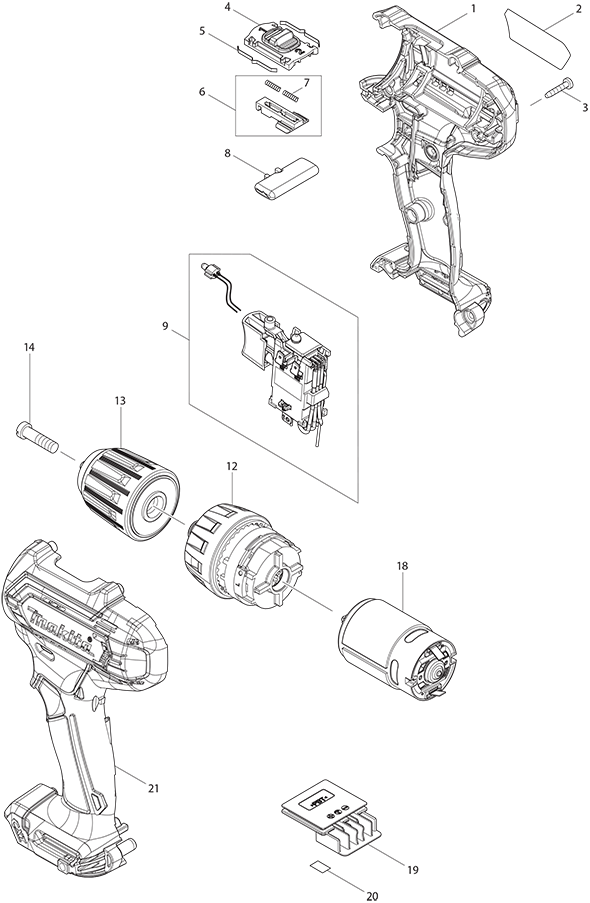

Makita CT411

...
...
xxx
Hex. Locking Nut M4-7 MK-252126-6
...
xxx
Led Circuit MK-620625-0
...
A01
+ Screw M4X12 MK-251314-2
...
A02
Hook MK-346909-5
...
A04
Plastic Carrying Case MK-821661-1
...
xxx
Latch MK-417724-5
...
A05
Fd09R1 Model No. Label MK-818R05-2
...
A08
Battery Cover MK-456128-6
...
A09
Dc10Wd Battery Charger MK-DC10WD
...
A10
Battery Bl1021B Set (197414-3) MK-BL1021B
...
001
Housing Set MK-183K90-5
...
002
Fd09 Name Plate MK-855E34-6
...
003
Tapping Screw 3X16 MK-266429-2
...
004
Speed Change Lever MK-459026-3
...
005
Leaf Spring MK-232493-5
...
006
Change Lever Assembly MK-127127-2
...
007
Compression Spring 2 MK-233025-1
...
008
F/R Change Lever MK-456039-5
...
009
Switch Unit MK-632J77-3
...
012
Gear Assembly MK-127125-6
...
013
Keyless Drill Chuck 10 MK-763238-5
...
014
- Flat Head Screw M6X22 MK-251468-5
...
018
Dc Motor MK-629395-8
...
019
Terminal MK-644813-5
...
020
Fd09 Serial No. Label MK-855E41-9
...
021
Housing Set MK-183K90-5

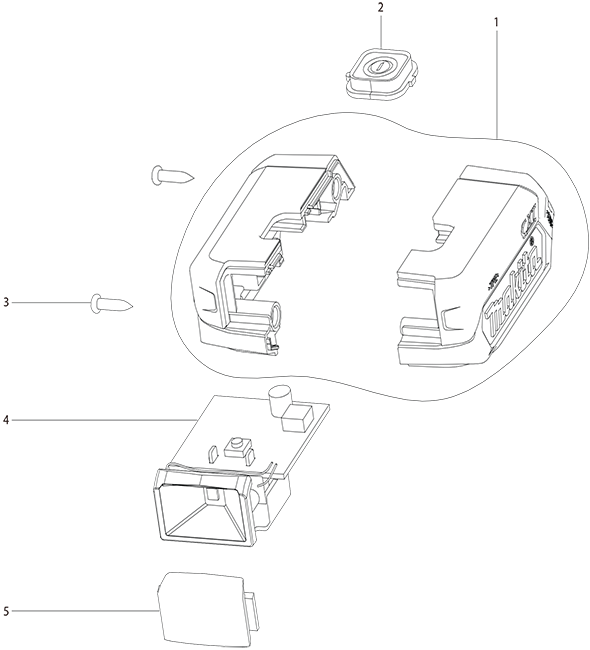

Makita CT411

...
...
001
Housing L/R Assembly Ros81030003 MK-GM00001496
...
002
Switch Holder Assy Ros81030002 MK-GM00001495
...
003
Screw 3X12 B0130120202 MK-GM00001024
...
004
Main Circuit Assy Ros81030001 MK-GM00001493
...
005
Lenz Ros81030000 MK-GM00001492

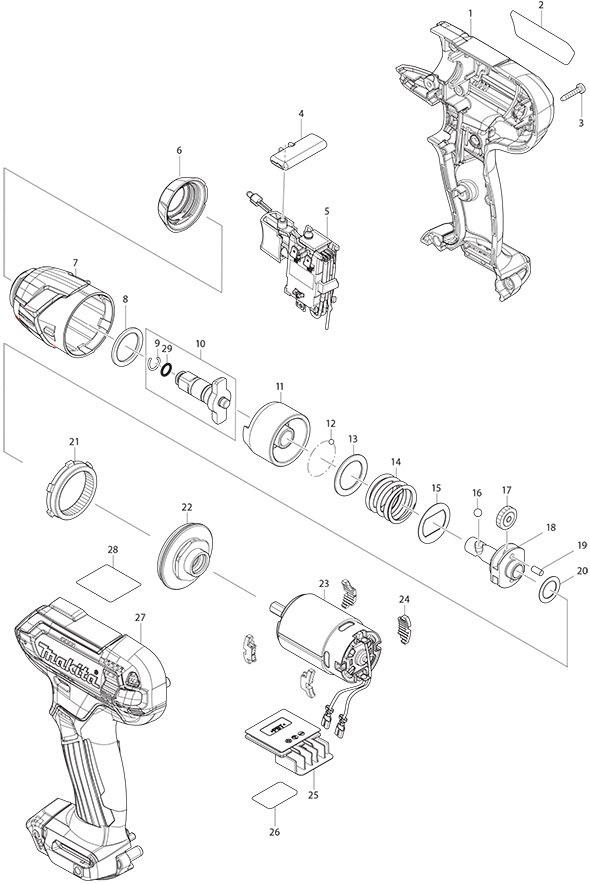

Makita CT411

...
...
xxx
Hex. Locking Nut M4-7 MK-252126-6
...
xxx
O-Ring 13 MK-213188-9
...
A01
+ Truss Head Screw M4X12 MK-266622-8
...
A02
Hook MK-346909-5
...
A03
Tool Bag MK-831497-0
...
A07
Dc10Wd Battery Charger MK-DC10WD
...
A08
Battery Bl1021B Set (197414-3) MK-BL1021B
...
A09
Battery Cover MK-456128-6
...
001
Housing Set MK-183J75-5
...
002
Wt02 Name Plate MK-854M37-5
...
003
Tapping Screw 3X16 MK-266429-2
...
004
F/R Change Lever MK-456039-5
...
005
Switch Unit MK-632M06-4
...
006
Bumper MK-422228-4
...
007
Hammer Case Complete MK-140B03-5
...
008
Nylon Washer 20 MK-261140-1
...
009
Ring Spring 8 MK-233943-3
...
010
Anvil Assembly MK-135932-3
...
011
Hammer MK-324894-2
...
012
Steel Ball 3 MK-216019-1
...
013
Flat Washer 20 MK-267380-9
...
014
Compression Spring 21 MK-234064-4
...
015
Washer 21 MK-267813-4
...
016
Steel Ball 4.8 MK-216002-8
...
017
Spur Gear 18 MK-226190-3
...
018
Spindle MK-327127-4
...
019
Pin 3.5 MK-268217-3
...
020
Flat Washer 12 MK-253052-2
...
021
Internal Gear 45 MK-226191-1
...
022
Bearing Box Complete MK-140B04-3
...
023
Motor Complete MK-632L96-1
...
024
Cushion MK-422273-9
...
025
Terminal MK-644813-5
...
026
Wt02 Serial No. Label MK-854M44-8
...
027
Housing Set MK-183J75-5
...
028
Caution Label MK-817D86-9
...
029
O Ring 5 MK-213960-9
