Makita BTD145 Cordless Impact Wrench & Driver

Model: BTD145

Save Part Not Listed?
product name

Makita BTD145

...
...
1
Housing Set MK-188922-5
...
2
Name Plate MK-868465-0
...
3
Tapping Screw Pt3X16, 6233Dwa MK-266130-9
...
4
F/R Change Lever, Btd140 MK-419041-9
...
5
Switch MK-650632-9
...
6
Rotor, Btd144 MK-619239-0
...
7
Stator Unit MK-638723-6
...
8
Led Circuit, Btd144 MK-631829-9
...
9
Terminal, Btd144 MK-643833-6
...
10
Ring Spring 11, 6903Vdw MK-231951-8
...
11
Flat Washer 12, 6903Vdw MK-267085-1
...
12
Comp.Spring 13,6903Vdw MK-233005-7
...
13
Sleeve, Btd144 MK-324878-0
...
14
Bumper MK-424362-6
...
15
Hammer Case Cover MK-452294-7
...
16
Hammer Case, Btd141 MK-154590-6
...
17
Nylon Washer 14, 6908Dwa MK-261108-7
...
18
Steel Ball 3.5, 6800Dbv MK-216001-0
...
19
Anvil MK-325975-5
...
20
Hammer, Btd144 MK-325671-5
...
21
Steel Ball 3.5, 6800Dbv MK-216001-0
...
22
Flat Washer 24, 6914Dwa MK-267175-0
...
23
Comp. Spring 25, Btw251 MK-234082-2
...
24
Cup Washer 14, Btw121Sa MK-267766-7
...
25
Steel Ball 5.6, 6222Dwe MK-216011-7
...
26
Spur Gear 22, Btw251 MK-227233-4
...
27
Spindle, Btd130F MK-324552-0
...
28
Pin 5, 6908Dwa MK-256253-1
...
29
Flat Washer 12, 6918Dwd MK-267212-0
...
30
Internal Gear 51, Btd130F MK-227150-8
...
31
Ball Bearing 6901Llb, 6918Dwd MK-211140-1
...
32
O Ring 40, Hr1821 MK-213507-9
...
33
Bearing Box, Btw251 MK-158145-9
...
35
Housing Set MK-188922-5
...
36
Switch Plate Cpl MK-140574-0
...
1001
Truss Head Screw M4X12 MK-266622-8
...
1002
Hook MK-346317-0
...
5001
Caution Label MK-891014-8

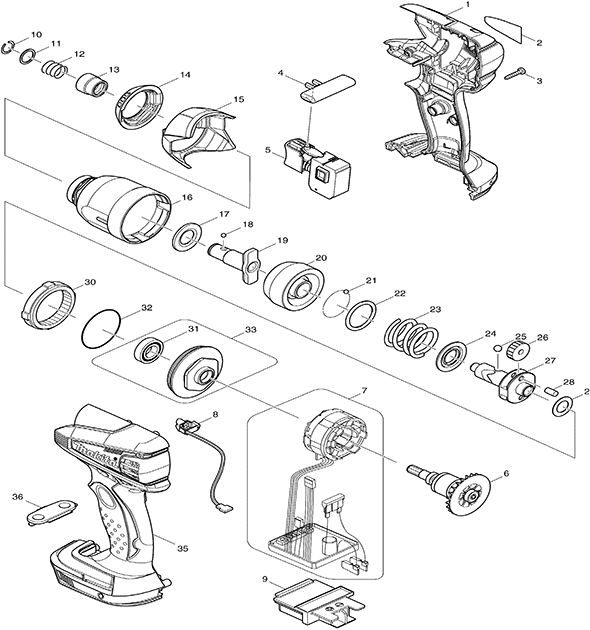

Schematic Image Zoomed
