Makita BFT125FZ Cordless Screwdriver

Model: BFT125FZ

Save Part Not Listed?
product name

Makita BFT125FZ

...
...
1
Plate I MK-345345-2
...
2
Bft125F Name Plate MK-868494-3
...
3
Housing Set MK-188964-9
...
4
Compression Spring 2 MK-233025-1
...
5
Switch Lever MK-418002-6
...
6
Switch Unit MK-638274-9
...
7
Led Circuit MK-631513-6
...
8
F/R Change Lever MK-417511-2
...
9
Switch C3Z-5-01 MK-650536-5
...
10
Controller MK-620016-5
...
11
Buzzer Circuit MK-631514-4
...
13
Terminal MK-643811-6
...
14
Ring Spring 10 MK-231965-7
...
15
Flat Washer 11 MK-267143-3
...
16
Compression Spring 13 MK-233005-7
...
17
Sleeve MK-162218-2
...
18
Pan Head Screw M4X8 MK-265171-2
...
19
Clutch Case Cover Complete MK-140645-3
...
19
Caution Label MK-810401-2
...
20
Clutch Case MK-317694-7
...
21
+ Pan Head Screw M4X22 MK-265145-3
...
22
Steel Ball 3 MK-216019-1
...
23
Spindle M MK-324377-2
...
24
Ball Bearing 6801Llb MK-211136-2
...
25
Ring 12 MK-257011-8
...
26
Ball Bearing 6801Llb MK-211136-2
...
27
Ring Spring 11 MK-231951-8
...
28
Retaining Ring R-21 MK-962111-8
...
29
Ring 38I MK-345351-7
...
30
+ Pan Head Screw M4X4 MK-265127-5
...
31
Compression Spring 5 MK-233019-6
...
32
Lock Nut M12 MK-324834-0
...
33
Adjust Ring Complete MK-158408-3
...
34
Spindle MK-324296-2
...
35
Steel Ball 5.0 MK-216018-3
...
36
Compression Spring 19C MK-233358-4
...
37
Cam D MK-223146-7
...
38
Steel Ball 4 MK-216024-8
...
39
Cam A MK-223139-4
...
40
Steel Ball 3 MK-216019-1
...
41
Flat Washer 7 MK-267247-1
...
42
Torx C.S Head Screw M5X10 MK-266305-0
...
43
Clutch Ass'Y G MK-125394-3
...
44
Carrier Complete B MK-153444-4
...
45
Ball Bearing 6805Llb MK-211375-4
...
46
Gear Case MK-418004-2
...
47
Spur Gear 18 MK-227052-8
...
48
Spur Gear 9 Complete B MK-153448-6
...
49
Spur Gear 19 MK-227051-0
...
50
Internal Gear 47 MK-227048-9
...
51
Lock Washer MK-267774-8
...
52
Motor Bracket MK-418003-4
...
53
Yoke Unit MK-638191-3
...
54
Armature MK-619267-5
...
55
Endbell Complete MK-638195-5
...
56
Carbon Brush Cb-434 MK-CB434
...
57
Brush Holder Cap MK-643933-2
...
58
Lens MK-419829-7
...
59
Housing Set MK-188964-9
...
60
Makita Logo Label MK-819216-4
...
61
Pan Head Screw M3X20 MK-265095-2
...
62
Flat Washer 18 MK-267276-4
...
63
Gear Ass'Y D MK-125192-5

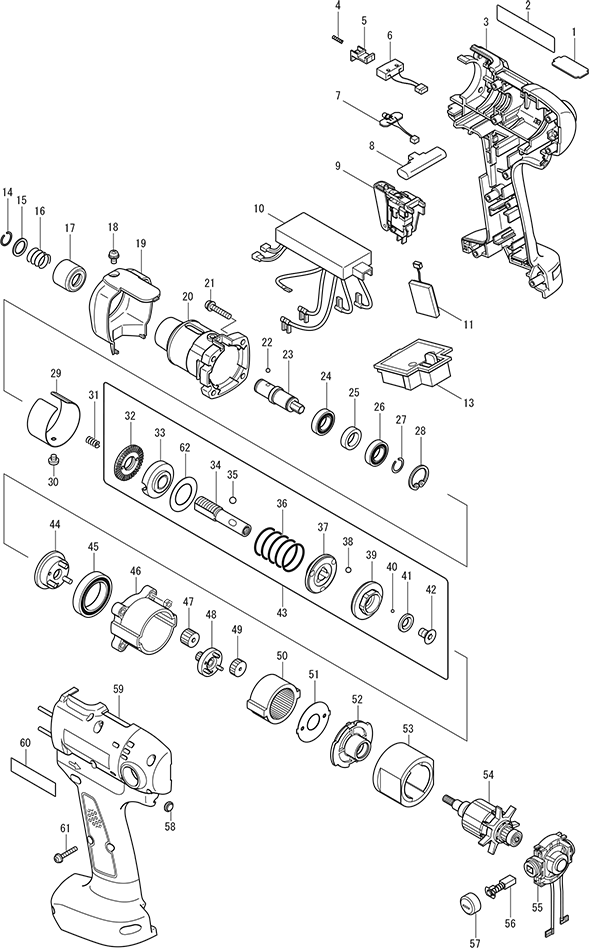

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
