Makita BFT124R Cordless Screwdriver

Model: BFT124R

Save Part Not Listed?
product name

Makita BFT124R

...
...
xxx
Receiver Rcv-02 MK-194444-5
...
E01
Caution Label MK-810401-2
...
A01
Torque Adjust Tool MK-765027-4
...
A02
14.4V Li-Ion Battery Bl1430(3.0Ah) MK-194066-1
...
xxx
14.4V Li-Ion Battery Bl1430(3.0Ah)(2Pcs/Pk) MK-194397-8
...
A03
Charger Dc18Ra MK-DC18RA
...
A03
Charger Dc18Rc MK-DC18RC
...
xxx
Charger Dc24Sa MK-DC24SA
...
A04
Refreshing Adaptor Adp03 MK-193681-8
...
A05
Grip 37 MK-273443-1
...
A06
Protector(Yellow) (For Body) MK-418423-2
...
xxx
Protector(Blue) (For Body) MK-418424-0
...
xxx
Protect0R(Red) (For Body) MK-418425-8
...
xxx
Protector(Clear) (For Body) MK-450331-1
...
A07
Receiver Set MK-A-47977
...
xxx
Cd-Rom, Software F/ Receiver (Os Windows Xp Or Older Version) MK-889919-4
...
xxx
Receiver Set MK-A-55924
...
xxx
Cd-Rom, Software F/ Receiver (Os Upto Windows Xp MK-800W96-7
...
A08
Receiver Kit MK-RCV-02
...
xxx
Rs-232C Cable MK-638386-8
...
xxx
Usb Convertor MK-194089-9
...
xxx
Cd-Rom, Software F/ Receiver (Os Upto Windows Xp) MK-800W96-7
...
xxx
Cd-Rom, User Manual F/Rcv02 MK-889920-9
...
A09
Grip Base Set MK-193874-7
...
xxx
Square Head Bolt M6X25 MK-266287-6
...
xxx
Grip Base MK-317552-7
...
xxx
Belt MK-345381-8
...
1
Plate P MK-345792-7
...
2
Bft124R Name Plate MK-864020-6
...
4
Housing Set MK-188301-7
...
4
Housing Set (N/A) MK-188888-9
...
4
Housing Set MK-187857-7
...
5
Compression Spring 2 MK-233025-1
...
6
Switch Lever MK-418002-6
...
7
Switch Unit MK-638274-9
...
8
Led Circuit MK-631513-6
...
11
Power Supply Unit MK-631756-0
...
11
Power Supply Unit MK-631982-1
...
12
Cover MK-419828-9
...
12
Cover MK-452188-6
...
13
Rf Unit MK-631717-0
...
14
Ring Spring 10 MK-231965-7
...
15
Flat Washer 11 MK-267143-3
...
16
Compression Spring 13 MK-233005-7
...
17
Sleeve MK-162218-2
...
18
Pan Head Screw M4X8 MK-265171-2
...
19
Clutch Case Cover MK-418289-0
...
20
Clutch Case MK-317694-7
...
21
+ Pan Head Screw M4X22 MK-265145-3
...
22
Steel Ball 3 MK-216019-1
...
23
Spindle M MK-324377-2
...
24
Ball Bearing 6801Llb MK-211136-2
...
25
Ring 12 MK-257011-8
...
26
Ball Bearing 6801Llb MK-211136-2
...
27
Ring Spring 11 MK-231951-8
...
28
Retaining Ring R-21 MK-962111-8
...
29
Ring 38P MK-345794-3
...
30
+ Pan Head Screw M4X4 MK-265127-5
...
31
Compression Spring 5 MK-233019-6
...
32
Lock Nut M12 MK-324834-0
...
33
Adjust Ring Complete MK-158408-3
...
34
Spindle MK-324296-2
...
35
Steel Ball 5.0 MK-216018-3
...
36
Compression Spring 19C MK-233358-4
...
37
Cam D MK-223146-7
...
38
Steel Ball 4 MK-216024-8
...
39
Cam A MK-223139-4
...
40
Steel Ball 3 MK-216019-1
...
41
Flat Washer 7 MK-267247-1
...
42
Torx C.S Head Screw M5X10 MK-266305-0
...
43
Clutch Ass'Y G MK-125394-3
...
44
Carrier Complete B MK-153444-4
...
45
Ball Bearing 6805Llb MK-211375-4
...
46
Gear Case MK-418004-2
...
47
Spur Gear 18 MK-227052-8
...
48
Spur Gear 9 Complete A MK-153447-8
...
49
Spur Gear 18 MK-227049-7
...
50
Internal Gear 47 MK-227048-9
...
51
Lock Washer MK-267774-8
...
52
Motor Bracket MK-418003-4
...
53
Motor Control Unit MK-631763-3
...
53
Motor Control Unit MK-631977-4
...
54
Rotor MK-619208-1
...
56
Terminal MK-643811-6
...
56
Terminal MK-643828-9
...
58
Tapping Screw Bind Pt 3X16 MK-266130-9
...
59
Cover MK-418204-4
...
60
F/R Change Lever MK-418201-0
...
61
Leaf Spring MK-232201-4
...
62
Switch Unit MK-638276-5
...
63
Switch Base MK-418202-8
...
64
Switch Lever A MK-418203-6
...
65
Compression Spring 4 MK-231397-8
...
66
Switch Unit MK-638275-7
...
67
Lens MK-419829-7
...
69
Makita Logo Label (Removed) MK-819216-4
...
70
Pan Head Screw M3X20 MK-265095-2
...
71
Flat Washer 18 MK-267276-4
...
72
Gear Assembly B MK-125190-9

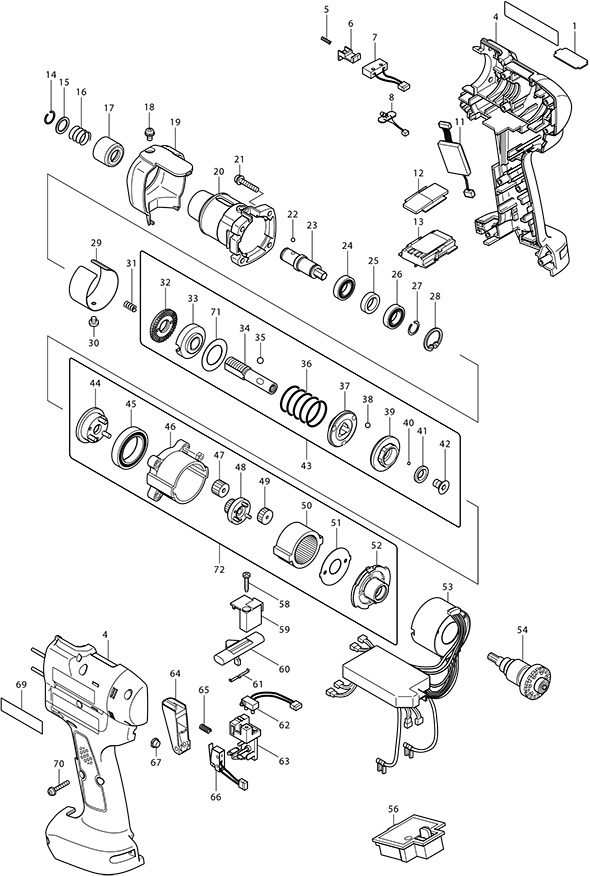

Schematic Image Zoomed
