product name

Makita BFT084FZ Cordless Screwdriver

Model: BFT084FZ

Save Part Not Listed?
product name

Makita BFT084FZ

...
...
E01
Caution Label MK-800G78-3
...
A01
Torque Adjust Tool MK-765027-4
...
001
Plate H MK-345344-4
...
002
Bft084F Name Plate MK-897694-8
...
003
Housing Set MK-187486-6
...
004
Compression Spring 2 MK-233025-1
...
005
Switch Lever MK-418002-6
...
006
Switch Unit MK-638274-9
...
007
Led Circuit MK-631513-6
...
008
F/R Change Lever MK-417511-2
...
009
Switch C3Z-5-01 MK-650536-5
...
010
Controller Unit MK-632A44-4
...
011
Buzzer Circuit MK-631514-4
...
013
Terminal MK-643828-9
...
014
Ring Spring 10 MK-231965-7
...
015
Flat Washer 11 MK-267143-3
...
016
Compression Spring 13 MK-233005-7
...
017
Sleeve MK-162218-2
...
018
Pan Head Screw M4X8 MK-265171-2
...
019
Clutch Case Cover MK-418289-0
...
020
Clutch Case MK-317694-7
...
021
+ Pan Head Screw M4X22 MK-265145-3
...
022
Steel Ball 3 MK-216019-1
...
023
Spindle M MK-324377-2
...
024
Ball Bearing 6801Llb MK-211136-2
...
025
Ring 12 MK-257011-8
...
026
Ball Bearing 6801Llb MK-211136-2
...
027
Ring Spring 11 MK-231951-8
...
028
Retaining Ring R-21 MK-962111-8
...
029
Ring 38H MK-345350-9
...
030
+ Pan Head Screw M4X4 MK-265127-5
...
031
Compression Spring 5 MK-233019-6
...
032
Lock Nut M12 MK-324834-0
...
033
Adjust Ring Complete MK-158408-3
...
034
Spindle MK-324296-2
...
035
Steel Ball 5.0 MK-216018-3
...
036
Compression Spring 19E MK-233384-3
...
037
Cam D MK-223146-7
...
038
Steel Ball 4 MK-216024-8
...
039
Cam A MK-223139-4
...
040
Steel Ball 3 MK-216019-1
...
041
Flat Washer 7 MK-267247-1
...
042
Torx C.S Head Screw M5X10 MK-266305-0
...
043
Clutch Ass'Y F MK-125393-5
...
044
Carrier Complete A MK-153443-6
...
045
Ball Bearing 6805Llb MK-211375-4
...
046
Gear Case MK-418004-2
...
047
Spur Gear 13 MK-227050-2
...
048
Spur Gear 20 Complete MK-153446-0
...
049
Spur Gear 19 MK-227051-0
...
050
Internal Gear 47 MK-227048-9
...
051
Lock Washer MK-267774-8
...
052
Motor Bracket MK-418003-4
...
053
Yoke Unit MK-638191-3
...
054
Armature MK-619129-7
...
055
Endbell Complete MK-638195-5
...
056
Carbon Brush Cb-434 195020-8 MK-CB434
...
057
Brush Holder Cap MK-643933-2
...
058
Lens MK-419829-7
...
059
Housing Set MK-187486-6
...
060
Makita Logo Label MK-819216-4
...
061
Pan Head Screw M3X20 MK-265095-2
...
062
Flat Washer 18 MK-267276-4
...
063
Gear Ass'Y C MK-125191-7

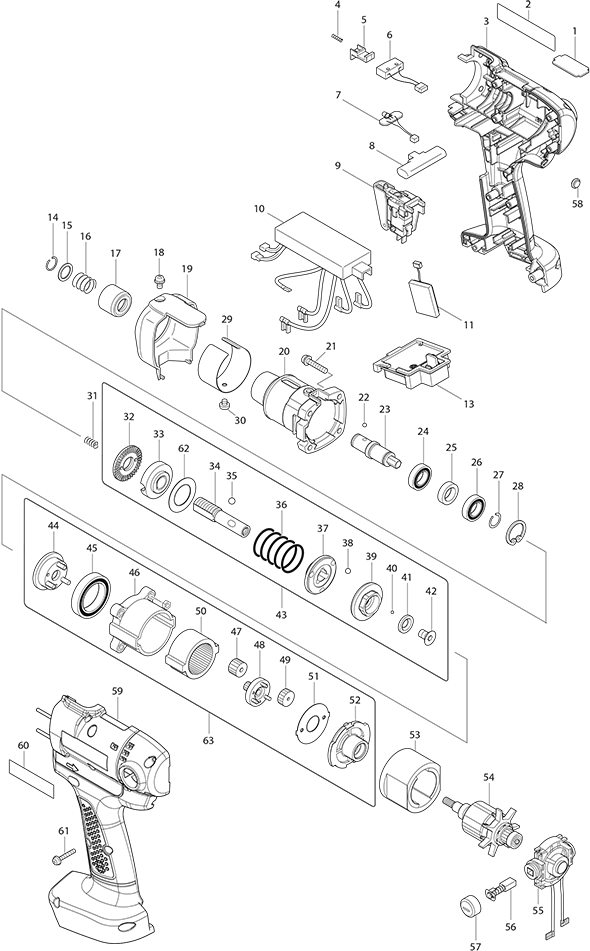

Schematic Image Zoomed
