product name

Makita BFT081FZ Cordless Screwdriver

Model: BFT081FZ

Save Part Not Listed?
product name

Makita BFT081FZ

...
...
F09
Protect0R(Red) MK-418425-8
...
F08
Protector(Blue) MK-418424-0
...
F07
Protector(Yellow) MK-418423-2
...
F06
Grip 37 MK-273443-1
...
C30
Belt MK-345381-8
...
C20
Grip Base MK-317552-7
...
C10
Square Head Bolt M6X25 MK-266287-6
...
F05
Grip Base Set MK-193874-7
...
F04
Battery Bh1233C Set MK-193931-1
...
F02
Battery Bh1220C Set MK-193929-8
...
A01
Torque Adjust Tool MK-765027-4
...
1
Plate M MK-345646-8
...
2
Bft081F Name Plate MK-861581-7
...
3
Housing Set MK-183679-3
...
4
Compression Spring 2 MK-233025-1
...
5
Switch Lever MK-418002-6
...
6
Switch Unit MK-638274-9
...
7
Led Circuit MK-631513-6
...
8
F/R Change Lever MK-417511-2
...
9
Switch C3Z-5-01 MK-650536-5
...
10
Controler MK-631559-2
...
11
Buzzer Circuit MK-631514-4
...
13
Terminal MK-643983-7
...
14
Ring Spring 10 MK-231965-7
...
15
Flat Washer 11 MK-267143-3
...
16
Compression Spring 13 MK-233005-7
...
17
Sleeve MK-162218-2
...
18
Pan Head Screw M4X8 MK-911108-4
...
19
Clutch Case Cover MK-418289-0
...
20
Clutch Case MK-317694-7
...
21
+ Pan Head Screw M4X22 MK-265145-3
...
22
Steel Ball 3 MK-216019-1
...
23
Spindle M MK-324377-2
...
24
Ball Bearing 6801Llb MK-211136-2
...
25
Ring 12 MK-257011-8
...
26
Ball Bearing 6801Llb MK-211136-2
...
27
Ring Spring 11 MK-231951-8
...
28
Retaining Ring R-21 MK-962111-8
...
29
Ring 38H MK-345350-9
...
30
+ Pan Head Screw M4X4 MK-265127-5
...
31
Compression Spring 5 MK-233019-6
...
32
Lock Nut M12 MK-324281-5
...
33
Adjust Ring Complete MK-153442-8
...
34
Spindle MK-324296-2
...
35
Steel Ball 5.0 MK-216018-3
...
36
Compression Spring 19E MK-233384-3
...
37
Cam D MK-223146-7
...
38
Steel Ball 4 MK-216024-8
...
39
Cam A MK-223139-4
...
40
Steel Ball 3 MK-216019-1
...
41
Flat Washer 7 MK-267247-1
...
42
Torx C.S Head Screw M5X10 MK-266305-0
...
43
Clutch Ass'Y F MK-125218-3
...
44
Carrier Complete A MK-153443-6
...
45
Ball Bearing 6805Llb MK-211375-4
...
46
Gear Case MK-418004-2
...
47
Spur Gear 13 MK-227050-2
...
48
Spur Gear 20 Complete MK-153446-0
...
49
Spur Gear 19 MK-227051-0
...
50
Internal Gear 47 MK-227048-9
...
51
Lock Washer MK-267774-8
...
52
Motor Bracket MK-418003-4
...
53
Yoke Unit MK-638191-3
...
54
Armature MK-619129-7
...
55
Endbell Complete MK-638195-5
...
56
Carbon Brush Cb-434 MK-193466-2
...
57
Brush Holder Cap MK-643933-2
...
58
Lens MK-416764-0
...
59
Housing Set MK-183679-3
...
60
Makita Label MK-819063-3
...
61
Pan Head Screw M3X20 MK-265095-2
...
62
Flat Washer 18 MK-267276-4

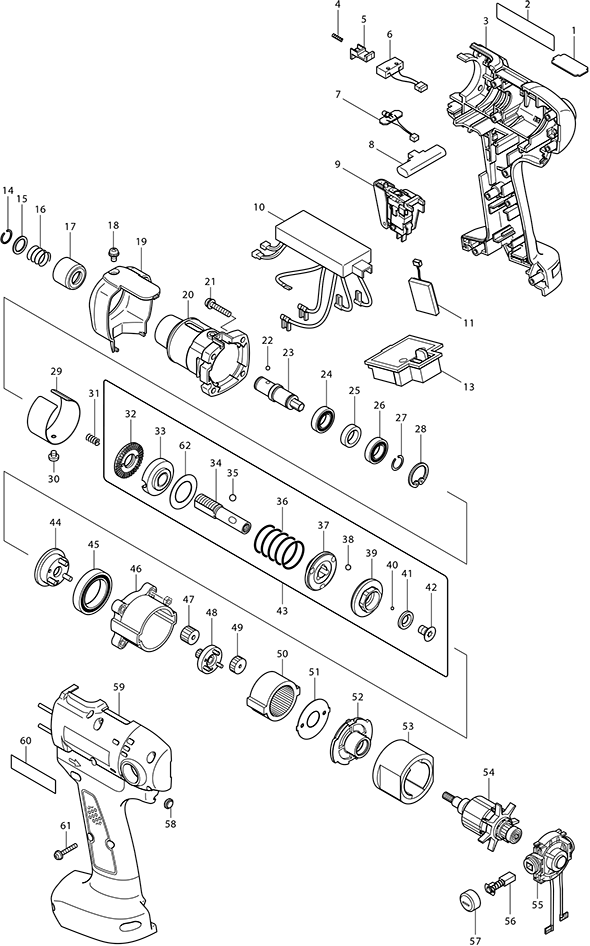

Schematic Image Zoomed
