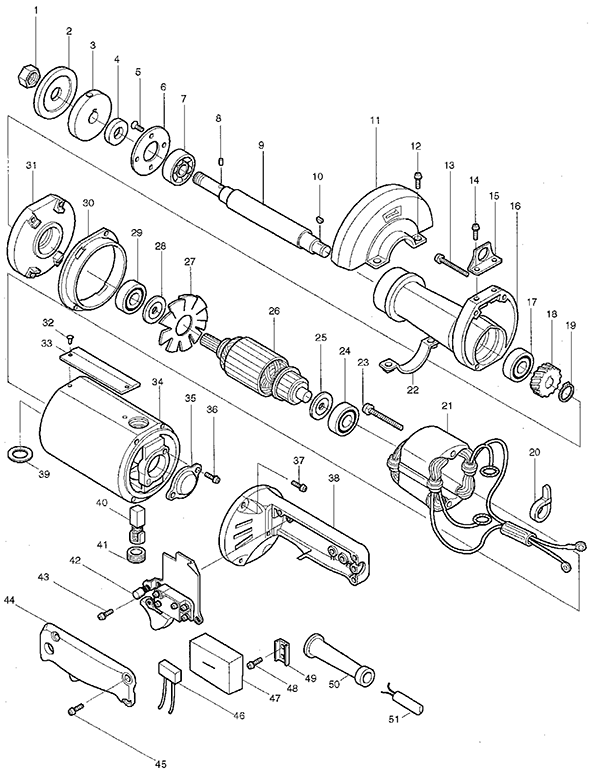

Makita 9105 Electric Grinder

Model: 9105

Save Part Not Listed?
product name

Makita 9105

...
...
001
Nut MK-252041-4
...
002
Inner/Outer Flange MK-224090-1
...
003
Inner Flange MK-224089-6
...
004
Ring MK-257025-7
...
005
Screw M4 X 12 MK-912116-8
...
006
Bearing Retainer MK-285621-1
...
007
Ball Bearing MK-211258-8
...
008
Pin MK-256009-2
...
009
Spindle MK-325312-3
...
010
Key MK-254002-0
...
012
Screw M5 X 14 MK-911216-1
...
013
P.H. Screw Iv15 X 40 MK-911261-6
...
014
Screw M5 X 14 MK-911216-1
...
015
Hanger MK-342004-9
...
016
Gear Hsg Type 2 MK-316099-8
...
017
Ball Bearing MK-211258-8
...
018
Gear MK-221126-7
...
019
Stop Ring S-12 MK-961052-5
...
020
Band MK-687010-0
...
021
Use Mc# 623002-5 MK-523002-4
...
022
Holder MK-342472-6
...
023
P.H. Screw M5 X 65 MK-911290-9
...
024
Ball Bearing MK-211066-7
...
025
Seal MK-213051-6
...
026
Use Mc# 613152-4 MK-513152-3
...
027
Fan MK-241013-4
...
028
Dust Seal 12 MK-213102-5
...
029
Ball Bearing MK-211108-7
...
030
Fan Guide MK-343086-4
...
031
Gear Hsg Cover Type 2 MK-316097-2
...
032
Rivet 0-5 MK-953106-2
...
035
Cover MK-285006-1
...
036
Screw M5 X 10 MK-911206-4
...
037
Screw M5 X 20 MK-911231-5
...
039
Washer MK-681002-1
...
040
Carbon Brush Cb-154 MK-181047-4
...
041
Brush Holder Cap MK-643650-4
...
042
Switch Type 2 MK-651016-4
...
043
P.H. Screw M4 X 8 MK-911106-8
...
045
Screw M4 X 14 MK-911121-2
...
048
Screw M4 X 14 MK-911123-8
...
049
Strain Relief MK-687001-1
...
050
Cord Guard 8 X 90 MK-682503-2
...
051
Power Supply Cord Awg#18-3-2.5 MK-664630-7
...
400
Depressed Center Wheel Set 125 MK-794031-6
...
401
Wrench 24 MK-781030-7
...
402
Sleeve 17 MK-262517-3
...
900
Wheel Cover Type 2 MK-164841-9
...
901
Side Cover MK-164842-7
...
902
Spring Pin 4-32 MK-951125-2
...
903
T. Screw M4 X 6 MK-924101-9
...
904
Flat Washer 4 MK-941051-3
...
905
Spring Washer 4 MK-942051-6
