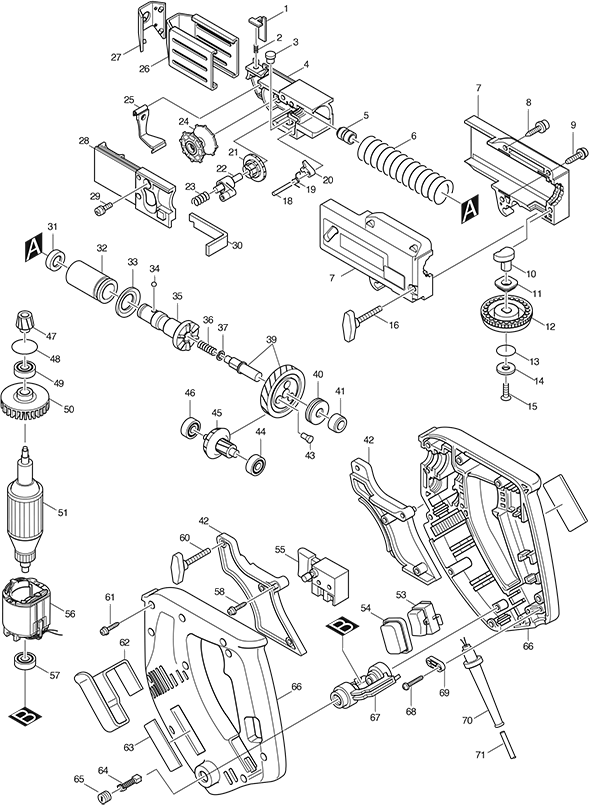

Makita 6834 Type 3 Electric Screwdriver

Model: 6834 Type 3

Save Part Not Listed?
product name

Makita 6834 Type 3

...
...
A03
Extension Handle MK-192501-3
...
xxx
Slide Latch (R.L) Set MK-182935-8
...
A02
Plastic Carrying Case MK-824421-0
...
A01
Phillips Bit 2-146 MK-784238-2
...
xxx
Brush Holder 6X9 MK-643932-4
...
xxx
Indication Label MK-818554-1
...
xxx
Indication Label MK-816282-2
...
xxx
Indication Label MK-818844-2
...
1
Lever MK-344625-3
...
2
Compression Spring 2 MK-233211-4
...
3
Pin 6 MK-256451-7
...
4
Feeder Box MK-416500-4
...
5
Sleeve 5 MK-257685-5
...
6
Compression Spring 21 MK-233210-6
...
7
Casing Set MK-182998-4
...
8
Tapping Screw 4X20 MK-266045-0
...
9
Tapping Screw 4X12 MK-266020-6
...
10
Shifter Pin MK-310091-6
...
11
Sleeve 8 MK-257686-3
...
12
Dial 42 MK-417056-0
...
13
O Ring 11 MK-213105-9
...
14
Flat Washer 6 MK-267201-5
...
15
Countersunk Head Screw M4X12 MK-912117-6
...
16
Thumb Screw M4X28 MK-265779-2
...
18
Pin MK-256158-5A
...
19
Torsion Spring 4 MK-231636-6
...
20
Stopper MK-310062-3
...
21
Spur Gear 16 MK-226344-2
...
22
Ratchet Arm Complete MK-152580-3
...
23
Compression Spring 6 MK-233212-2
...
24
Wheel MK-416518-5
...
25
Dust Cover MK-162201-9
...
26
Stopper Base MK-344628-7
...
27
Cap MK-421617-0
...
28
Box Cover Complete MK-152581-1
...
29
Pan Head Screw M4X18 MK-911133-5
...
30
Plate MK-344627-9
...
31
Dust Cover MK-421467-3
...
32
Plane Bearing 14 MK-214162-0
...
33
Ring 15 MK-421618-8
...
34
Steel Ball 3.5 MK-216001-0
...
35
Spindle Complete MK-153735-3
...
36
Compression Spring 8 MK-233393-2
...
37
Flat Washer 8 MK-267277-2
...
39
Gear Complete MK-153739-5
...
40
Thrust Needle Bearing 821 MK-212042-4
...
41
Plane Bearing 8 MK-214028-4
...
42
Screw Guide Set MK-182984-5
...
43
Shoulder Pin 4 MK-256467-2
...
44
Ball Bearing 606 MK-211014-6
...
45
Gear Complete 9-22 MK-226823-0
...
46
Ball Bearing 606 MK-211014-6
...
47
Spiral Bevel Gear 15 MK-226704-8
...
48
O Ring 24 MK-213380-7
...
49
Ball Bearing 6000Llb MK-211061-7
...
50
Fan 55 MK-241869-5
...
51
Armature Ass'Y 115V MK-517061-8
...
53
Switch Vlx13 MK-651569-3
...
54
Dust Cover MK-421621-9
...
55
Switch Sgel208C MK-651283-1
...
56
Field 115V MK-633256-6
...
57
Ball Bearing 627Llb MK-210025-8
...
58
Tapping Screw 4X20 MK-266045-0
...
60
Thumb Screw M4X28 MK-265779-2
...
61
Tapping Screw 4X20 MK-266045-0
...
62
Hook MK-344056-6
...
63
Makita Label MK-819063-3
...
65
Brush Holder Cap 5-8 MK-643550-8
...
66
Housing Set MK-182601-7
...
67
Holder Arm Cpmplete MK-152433-6
...
68
Tapping Screw 4X18 MK-265995-6
...
69
Strain Relief MK-687063-9
...
70
Cord Guard 8-85 MK-682502-4
...
71
Cord W/Plug 2P-18-2.5M, Sj MK-664064-4
