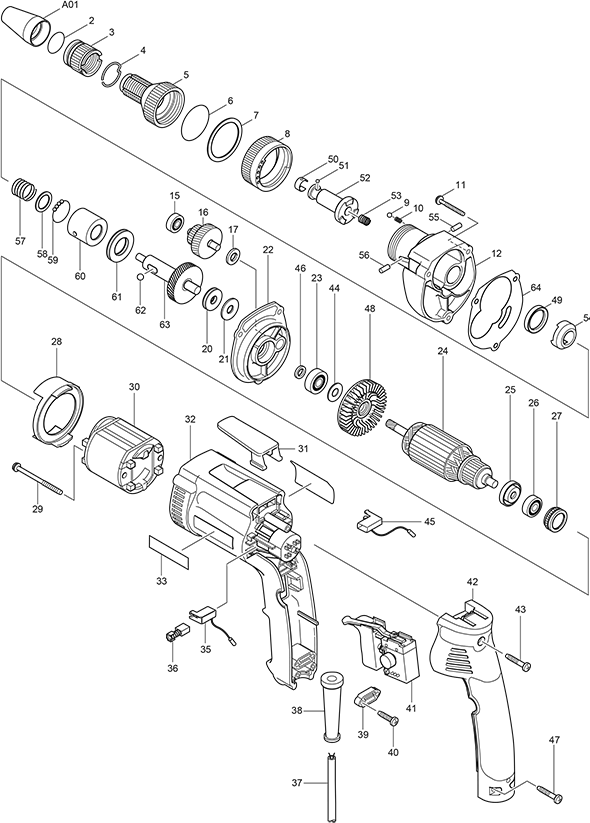

Makita 6827 Type 2 Electric Screwdriver

Model: 6827 Type 2

Save Part Not Listed?
product name

Makita 6827 Type 2

...
...
xxx
7/16" Front Cap MK-322126-1
...
xxx
3/8" Front Cap MK-322119-8
...
xxx
5/16" Front Cap MK-322125-3
...
xxx
1/4" Front Cap MK-322124-5
...
A01
Front Cap 12 MK-322120-3
...
2
O Ring 20 MK-213310-8
...
3
Adjust Sleeve MK-322073-6
...
4
Ring Spring 22 MK-231940-3
...
5
Clutch Cover MK-324140-3
...
6
O Ring 35 MK-213343-3
...
7
Flat Washer 36 MK-253806-7
...
8
Ring 36 Complete MK-152841-1
...
9
Steel Ball 4 MK-216008-6
...
10
Compression Spring 4 MK-233314-4
...
11
Tapping Screw 4X30 MK-266050-7
...
12
Gear Housing MK-317440-8
...
15
Ball Bearing 606Zz MK-211012-0
...
16
Gear Complete 17-35 MK-226133-5
...
17
Flat Washer 8 MK-267017-8
...
20
Thrust Needle Bearing 821 MK-212042-4
...
21
Urethane Washer 8 MK-261111-8
...
22
Gear Housing Cover Complete MK-152913-2
...
22
Needle Bearing 810 MK-212004-2
...
22
Needle Bearing 609 MK-212016-5
...
23
Ball Bearing 608Vv MK-210007-0
...
24
Armature Ass'Y 115V MK-517321-8
...
25
Insulation Washer MK-681636-0
...
26
Ball Bearing 607Llb MK-211021-9
...
27
Rubber Ring 19 MK-421479-6
...
28
Baffle Plate MK-416993-5
...
29
Tapping Screw 4X55 MK-266147-2
...
30
Field 115V MK-633441-1
...
31
Hook MK-417625-7
...
32
Motor Housing MK-188628-5
...
33
Makita Label (Old) MK-819063-3
...
35
Brush Holder MK-643952-8
...
36
Carbon Brush Cb-407 2Pc/Set (W/ Origin) MK-195007-0
...
37
Cord W/Plug 2P-18-2.5M, Sj MK-664891-9
...
38
Cord Guard 8 MK-682559-5
...
39
Cord Clamp MK-687063-9
...
40
Tapping Screw 4X18 MK-265995-6
...
41
Switch (Trigger Shaft:Black > White) MK-651978-6
...
42
Handle Cover Com. MK-158710-4
...
43
Tapping Screw 4X25 MK-265999-8
...
44
Flat Washer 8 MK-253139-0
...
45
Brush Holder MK-643953-6
...
46
Ring 8 MK-262087-2
...
47
Tapping Screw 4X25 MK-265999-8
...
48
Fan 52 MK-240022-0
...
49
Ring 20 MK-421766-3
...
50
Leaf Spring MK-232050-9
...
51
Steel Ball 3.5 MK-216001-0
...
52
Spindle Ass'Y MK-134461-3
...
53
Compression Spring 6 MK-231278-6
...
54
Clutch Cam MK-223073-8
...
55
Pin 4 MK-268075-7
...
56
Pin 4 MK-268075-7
...
57
Compression Spring 13.6 MK-231423-3
...
58
Flat Washer 14 MK-253837-6
...
59
Steel Ball 3.2 MK-216014-1
...
60
Sleeve MK-324209-3
...
61
Thrust Needle Bearing 1831 MK-212262-0
...
62
Steel Ball 5.6 MK-216011-7
...
63
Gear Complete MK-152840-3
...
64
Gasket MK-442136-3
...
65
Pin 3 MK-256157-7
...
100
Tab MK-654121-6
