Makita 6339D Cordless Drill

Model: 6339D

Save Part Not Listed?
product name

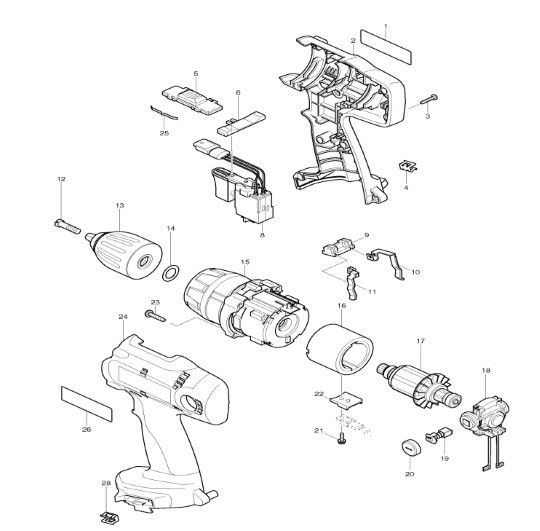

Makita 6339D

...
...
1
Name Plate, 6339Dwd MK-860954-1
...
2
Housing Set, 6339Dwde MK-183970-9
...
3
Tapping Screw Pt3X16, 6233Dwa MK-266130-9
...
4
Bit Holder, 6233Dwa MK-344391-2
...
5
Speed Change Lever Ass'Y,6339Dwde MK-125261-2
...
5
Speed Change Lever Ass'Y, 6349Ddwde MK-125434-7
...
6
F/R Change Lever, 8444D MK-418753-1
...
8
Switch, 6339Dwde MK-650559-3
...
9
Holder, 6233Dwa MK-687085-9
...
10
Spring Terminal (+), 6933Fd MK-654168-0
...
11
Spring Terminal (-), 6233Dwa MK-654169-8
...
12
Flat Screw M6X22, Hp2031 MK-251464-3
...
13
Keyless Chuck 13, Bhp451 MK-763191-5
...
14
F. Washer 13, Hp2010N MK-253798-0
...
15
Gear Ass'Y, 6339Dwde MK-125284-0
...
15
Gear Ass'Y, 6339Dwde MK-125340-6
...
15
Gear Ass'Y, 6349Dwde MK-125432-1
...
16
Yoke Unit, 6339Dwde,6349Dwde MK-638376-1
...
17
Armature, 6339Dwde MK-629829-1
...
18
Endbell Complete, 6339Dwde MK-638375-3
...
19
Carbon Brush Set Cb-430, 6343Dwa MK-191971-3
...
19
Carbon Brush Set Cb-430, 6343Dwa MK-195018-5
...
20
Brush Holder Cap, 6339Dwde MK-643807-7
...
21
Tapping Screw St3X10, Btw150Sa MK-266282-6
...
22
Fet Spacer, 6339Dwde MK-689136-4
...
23
Tapping Screw 4X20, 9046 MK-266045-0
...
24
Housing Set, 6339Dwde MK-183970-9
...
25
Leaf Spring, 6339Dwde MK-232220-0
...
28
Bit Holder, 6233Dwa MK-344391-2
...
1001
Grip Ass'Y, 6339Dw MK-122712-6
...
1002
Battery Cover, 6222Dwe MK-414938-7
...
1003
Charger Dc1414(7.2-14.4V/1.3-3.0Ah) MK-DC1414
...
1004
Battery 1434 14.4V Nimh,6337D MK-193158-3
...
1005
Phil./Slotted Bit 2-45,6337D MK-784637-8
...
1006
Plastic Tool Case,6935Fdwdex MK-824763-2
...
1007
Hook Set, 6339Dwde MK-194156-0
...
1007
Hook, 6935Fd MK-324362-5
...
5001
Caution Label, 6281Dwple MK-810136-5
