Magic Chef RB15MN-0AL (BOM: CG07A)

Model: RB15MN-0AL (BOM: CG07A)

Save Part Not Listed?
product name

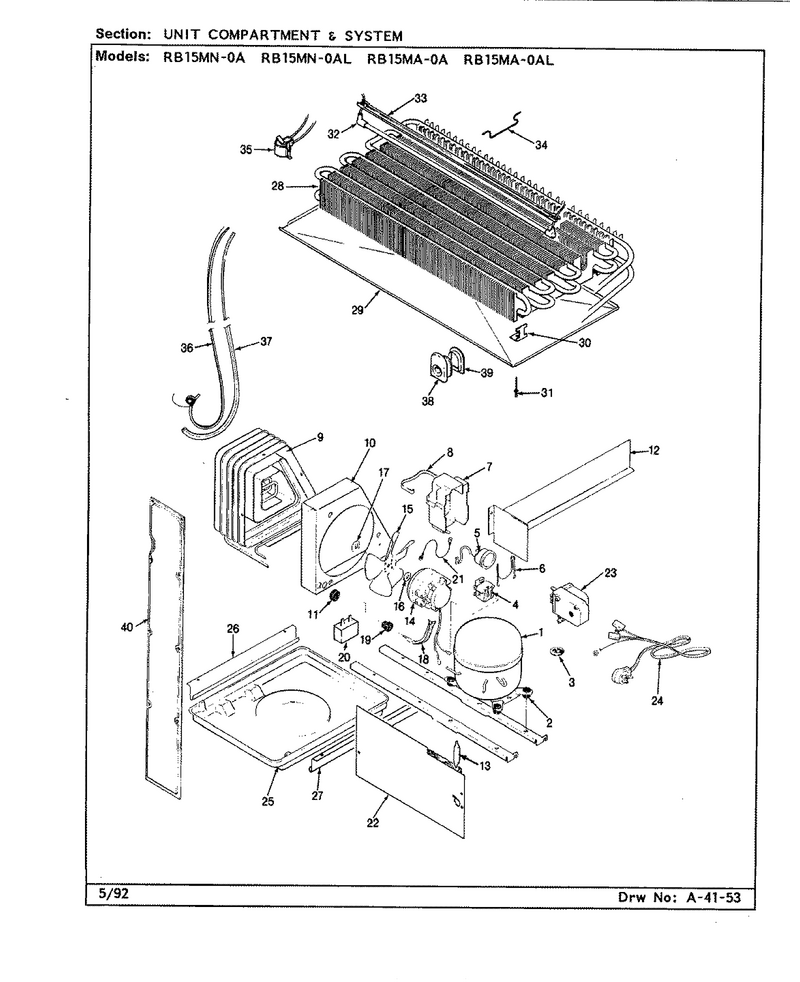

06 - Unit Compartment & System

...
...
1
Compressor WPL-W10439652
...
2
Grommet, Compressor WPL-17245-4
...
3
Clip, Mounting WPL-2163787
...
4
Relay WPL-2154436
...
5
Overload WPL-63294-12
...
6
Clip, Overload WPL-65887-1
...
7
Cover, Terminal WPL-66589-2
...
8
Clip, Terminal Cover WPL-65886-1
...
9
U-Nut, Condenser WPL-60408-2
...
10
Shroud, Condenser WPL-66228-1
...
11
Screw WPL-WP489478
...
12
Baffle, Air Divider WPL-66493-1
...
13
Drier-Uv WPL-WPW10143759
...
14
Screw WPL-65275-33
...
15
Blade- Con WPL-WP12587601
...
16
Washer, Fan Blade WPL-69063-1
...
17
Speednut WPL-19914-1
...
18
Bracket, Fan Motor WPL-66225-1
...
19
Grommet- B WPL-WP61004743
...
20
Screw WPL-WP489478
...
21
Ground Wire WPL-29675-3
...
22
Screw WPL-WP488729
...
23
Screw WPL-61005388
...
24
Cord, Power WPL-52890-2
...
25
Pan- Drain WPL-WP68236-1
...
26
Rail, Drain Pan (Rt) WPL-60555-1
...
27
Screw WPL-WP489478
...
28
Evaporator WPL-RA43620-10
...
29
Tray, Drip WPL-60101-7
...
30
Bracket, Evaporator WPL-60108-2
...
31
Rivet WPL-WP210720
...
32
Heater WPL-WP60106-34
...
33
Shield, Defrost Heater WPL-60109-4
...
34
Clip, Defrost Heater WPL-60263-1
...
35
Thermostat WPL-WP52085-28
...
36
Heat Exchanger WPL-RA43645-13
...
37
Cover, Heat Exchanger WPL-65398-1
...
38
Grommet, Tube Entry WPL-60068-1
...
39
Wire Harness, Main WPL-69159-1
...
40
Screw WPL-WP489478
...
41
Manual, Use & Care WPL-107099-3

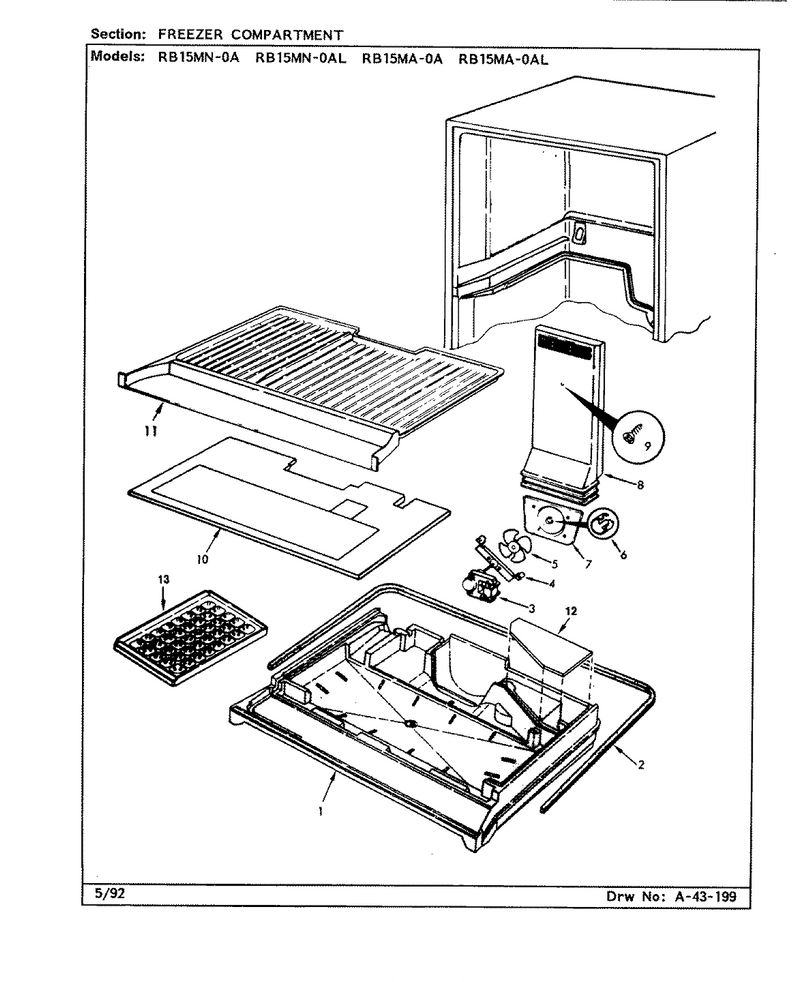

01 - Freezer Compartment

...
...
1
Seal, Front Corner WPL-67730-1
...
2
Seal 72`` WPL-68866-5
...
3
Motor, Evaporator Fan WPL-54482-10
...
4
Screw WPL-400015-12
...
5
Blade, Evaporator Fan WPL-64359-1
...
6
Washer, Spring WPL-420092-900
...
7
Orifice, Fan Blade WPL-60608-2
...
8
Tunnel, Air WPL-68592-1
...
9
Screw WPL-W11233072
...
10
Cover, Evaporator WPL-66403-3
...
11
Seal WPL-68946-1
...
12
Cover, Plenum WPL-66480-4
...
13
Tray-Ice WPL-WP61002140

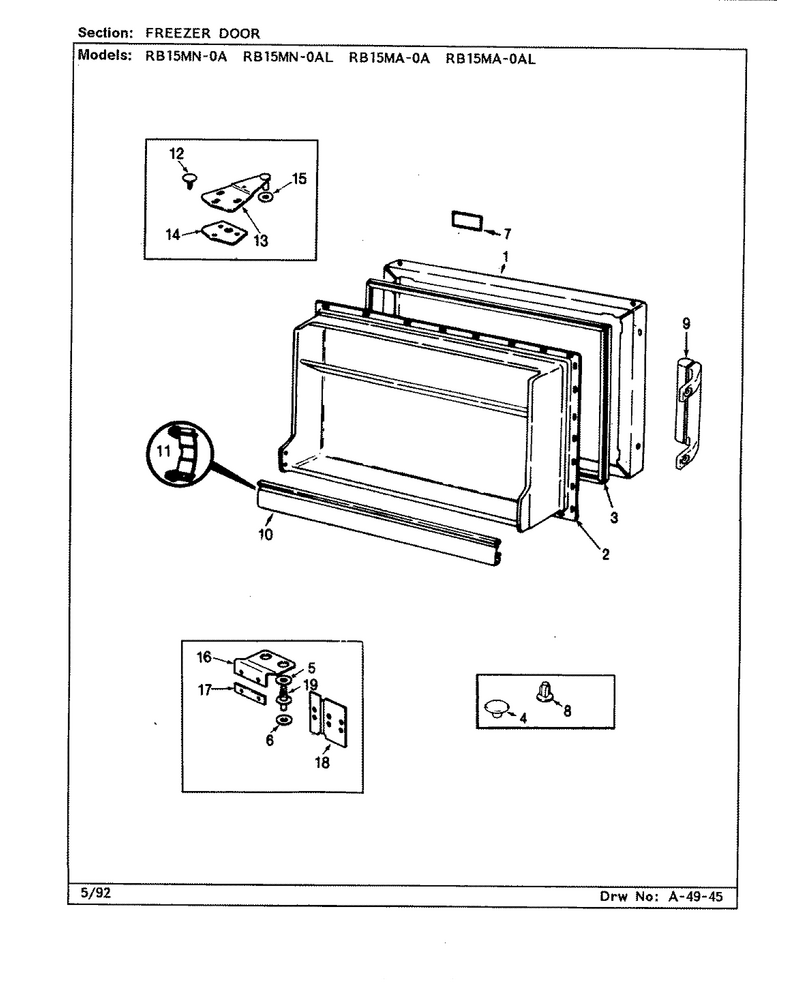

02 - Freezer Door

...
...
1
Door Insulation Kit WPL-RA95056-1
...
2
Liner, Door WPL-65930-5
...
3
Gasket, Door WPL-66199-1
...
4
Plug Button, Hinge Cup (Wht) WPL-67634-2
...
5
Washer WPL-61005628
...
6
Washer WPL-61005628
...
7
Nameplate (Blk) WPL-66982-14
...
8
Plug Button, Handle Hole (Wht) WPL-69480-2
...
9
Handle, Door (Wht) WPL-69168-1
...
10
Trim- Door WPL-WP61003045
...
11
Retainer- WPL-WP65245-1
...
12
Plug Button, Upper Hinge (Wht) WPL-56144-13
...
13
Screw WPL-WP3-24838-048
...
14
Shim, Upper Hinge WPL-65031-1
...
15
Washer WPL-54233-1
...
16
Hinge, Center WPL-68811-2
...
17
Shim, Center Hinge WPL-68812-1
...
18
Tapping Plate, Center Hinge WPL-68377-1
...
19
Pin, Center Hinge WPL-67322-1

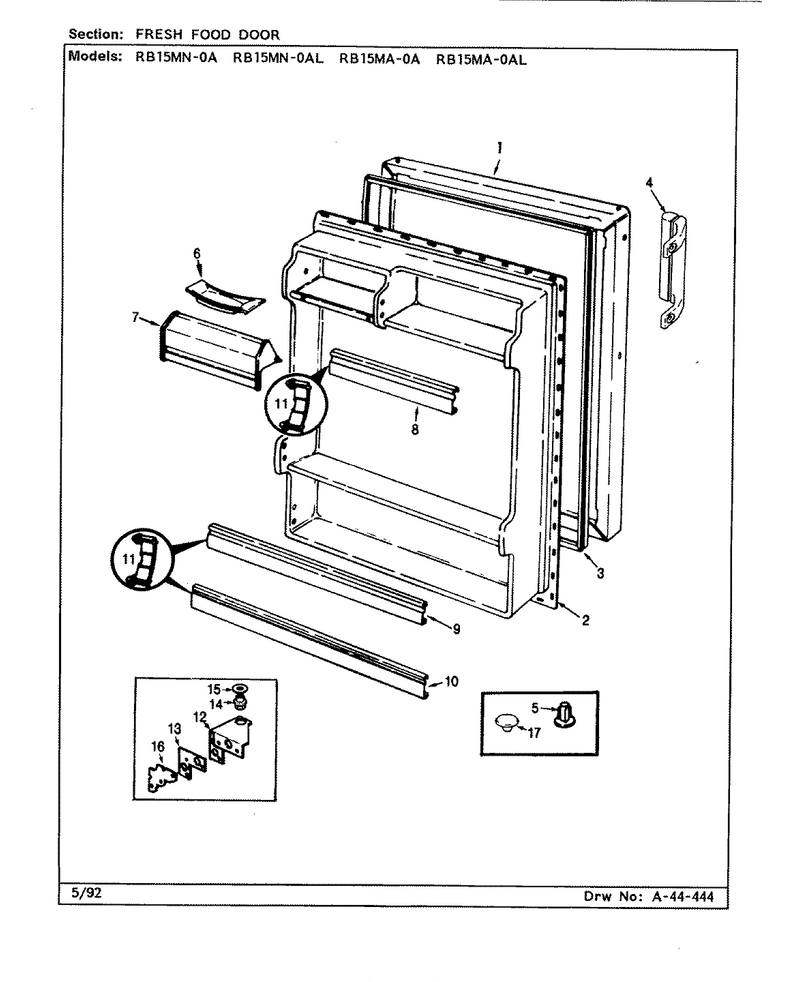

04 - Fresh Food Door

...
...
1
Panel, F.f. Door (Wht) WPL-68469-9-WW
...
2
Screw WPL-61005388
...
3
Gasket- Do WPL-WP70048-1
...
4
Handle, Door (Wht) WPL-69168-1
...
5
Plug Button, Handle Hole (Wht) WPL-69480-2
...
6
Tray, Butter WPL-29936-2
...
7
Door, Dairy WPL-66184-395
...
8
Trim- Door WPL-WP61003045
...
9
Trim- Door WPL-WP61003045
...
10
Trim- Door WPL-WP61003045
...
11
Retainer- WPL-WP65245-1
...
12
Hinge, Lower WPL-67714-6
...
13
Shim, Lower Hinge WPL-60626-1
...
14
Hinge Pin WPL-68788-1
...
15
Washer WPL-67483-4
...
16
Screw WPL-403100-1
...
17
Plug Button, Hinge Cup (Wht) WPL-67634-2

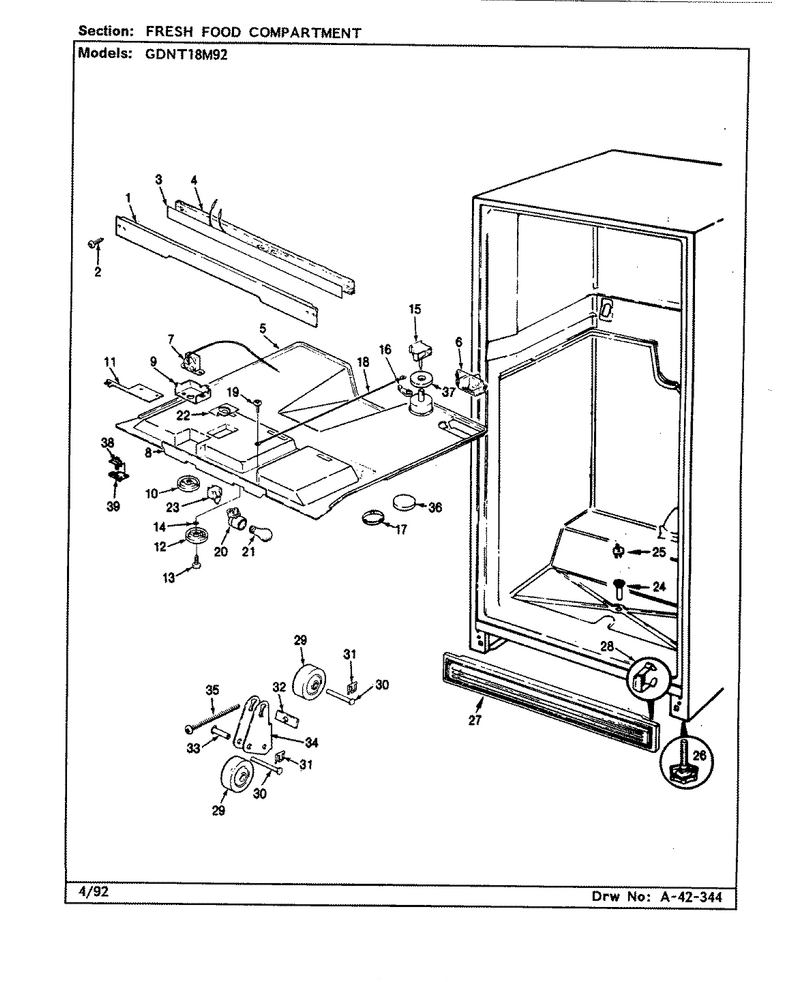

03 - Fresh Food Compartment

...
...
1
Divider, Mullion (Wht) WPL-65797-1-WW
...
2
Screw WPL-65275-54
...
3
Heater WPL-68829-1
...
4
Wire Harness Mullion WPL-69146-1
...
5
Top, F.f. Compartment WPL-68530-2
...
6
Air Deflector WPL-60120-3
...
7
Screw WPL-406013-1
...
8
Insert WPL-60571-65
...
9
Screw WPL-W11380570
...
10
Knob, Control WPL-68600-1
...
11
Rivet WPL-WP210720
...
12
Knob, Frz. WPL-68600-2
...
13
Washer, Spring WPL-420092-900
...
14
Screw WPL-405016-103
...
15
Orifice, Damper WPL-67915-1
...
16
Crank, Frz. Control WPL-67636-1
...
17
Rod, Freezer Control WPL-67499-3
...
18
Washer, Control Rod WPL-420005-1
...
19
Cover, Crank WPL-67493-1
...
20
Socket, Light WPL-60577-1
...
21
Bulb-Light WPL-W11679940
...
22
Bracket, Light Socket WPL-60147-2
...
23
Cord, Switch/light WPL-54653-28
...
24
Tube, Drain WPL-54531-7
...
25
Cap, Drain Tube WPL-65039-1
...
26
Kickplate WPL-60237-23
...
27
Screw WPL-WP489478
...
28
Leveler WPL-W11117769
...
29
Bracket, Switch WPL-60583-1
...
30
Switch, Mullion Heater WPL-60585-1
...
31
Wheel WPL-29834-2
...
32
Pin, Wheel WPL-29835-2
...
33
Clip WPL-60216-1
...
34
Seal, Top Tower WPL-68989-1
...
35
Disc, Crank Cover WPL-69037-1

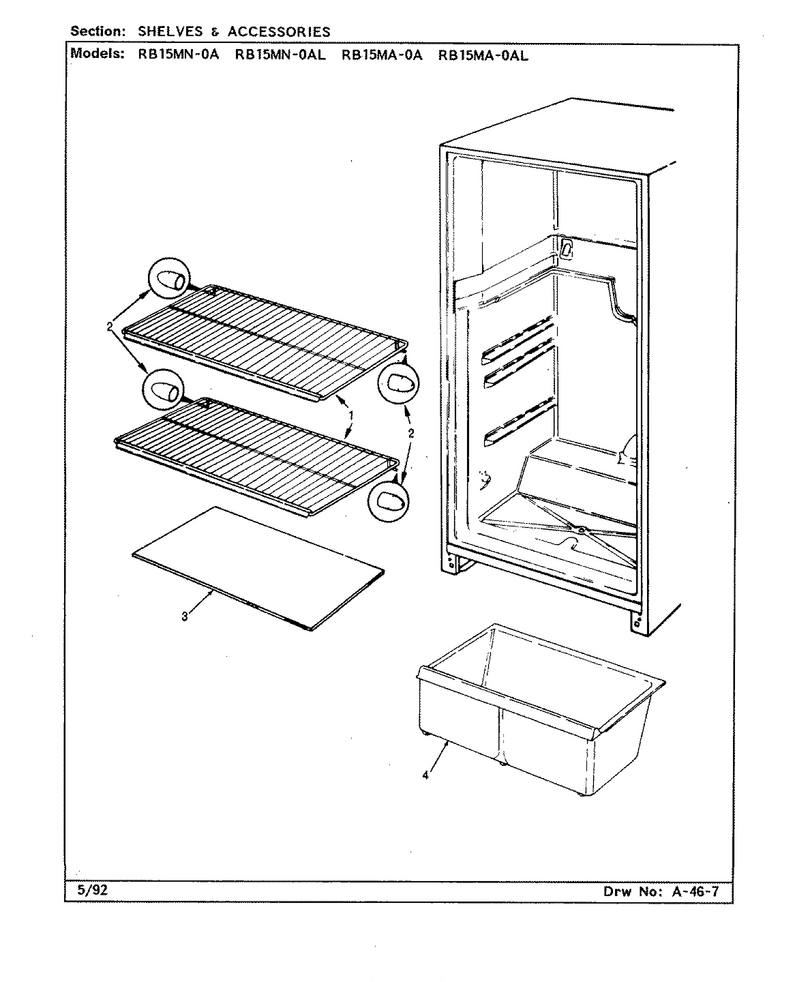

05 - Shelves & Accessories

...
...
1
Shelf WPL-60654-1
...
2
Tip WPL-24580-3
...
3
Shelf, Crisper WPL-65424-3
...
4
Pan, Crisper WPL-60145-32
