Magic Chef MCWP1085

Model: MCWP1085

Save Part Not Listed?
product name

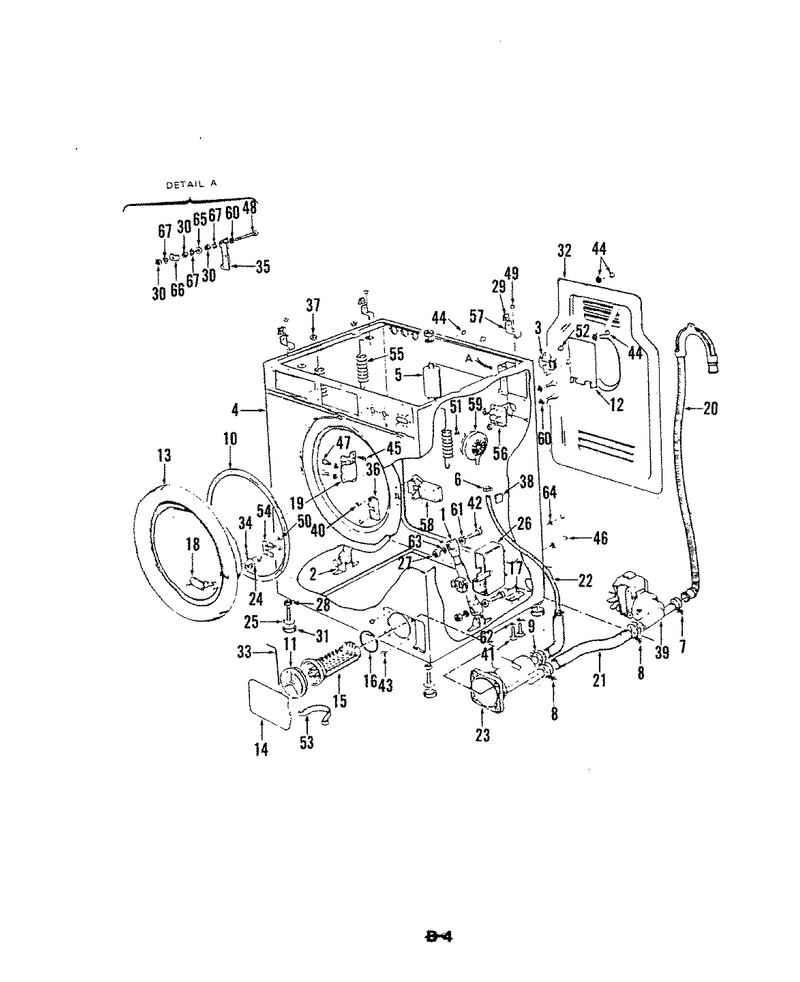

01 - Cabinet & Door

...
...
1
Cushion WPL-113800434
...
2
Cushion WPL-113800437
...
3
Terminal Block WPL-116990173
...
4
Wh Cabinet Asm WPL-119100586
...
5
Capacitor WPL-116200723
...
6
Clamp WPL-WP596669
...
7
Clamp WPL-WP616099
...
8
Clamp WPL-WP616099
...
9
Clamp WPL-WP285655
...
10
Door Seal Clamp WPL-113200489
...
11
Filter Cover WPL-112901953
...
12
Cover WPL-111100679
...
13
Door Asm WPL-112990021
...
14
Filter Door WPL-111100676
...
15
Filter WPL-112901952
...
16
Filter Gasket WPL-114200280
...
17
Pump Gasket WPL-114200266
...
18
Handle Asm WPL-119802497
...
19
Hinge Asm WPL-113190122
...
20
Drain Hose WPL-114300644
...
21
Hose WPL-114300665
...
22
Hose WPL-119802461
...
23
Filter Shield WPL-112901951
...
24
Locking Hook WPL-112300130
...
25
Leveler WPL-991170135
...
26
Motor Control WPL-116190097
...
27
Nut WPL-920153234
...
28
Nut WPL-920115235
...
29
Nut WPL-940073430
...
30
Nut WPL-920113418
...
31
Pad WPL-114400056
...
32
Back Panel WPL-111100657
...
33
Pin WPL-113900489
...
34
Latch Pin WPL-113900056
...
35
Plate WPL-940018320
...
36
Plate WPL-182990046
...
37
Plug WPL-112902017
...
38
Hose Protector WPL-112901939
...
39
Protector WPL-116590661
...
40
Screw WPL-991633518
...
41
Screw WPL-917115230
...
42
Screw WPL-917146134
...
43
Screw WPL-991342230
...
44
Screw WPL-995500001
...
45
Screw WPL-912153130
...
46
Screw WPL-912332234
...
47
Screw WPL-912200001
...
48
Screw WPL-911149414
...
49
Screw WPL-912353335
...
50
Screw WPL-912121136
...
51
Screw WPL-994000001
...
52
Screw WPL-912500100
...
53
Spring WPL-113800431
...
54
Spring WPL-113800428
...
55
Spring WPL-113800438
...
56
Strain Relief WPL-972111910
...
57
Bracket WPL-111901059
...
58
Door Switch WPL-116102334
...
59
Pressure Switch WPL-116102441
...
60
Washer WPL-930036328
...
61
Washer WPL-930063324
...
62
Washer WPL-930046331
...
63
Washer WPL-930037320
...
64
Washer WPL-930016333
...
65
Washer, Grounding Plate WPL-930021415
...
66
Washer WPL-111901103
...
67
Washer WPL-930024322

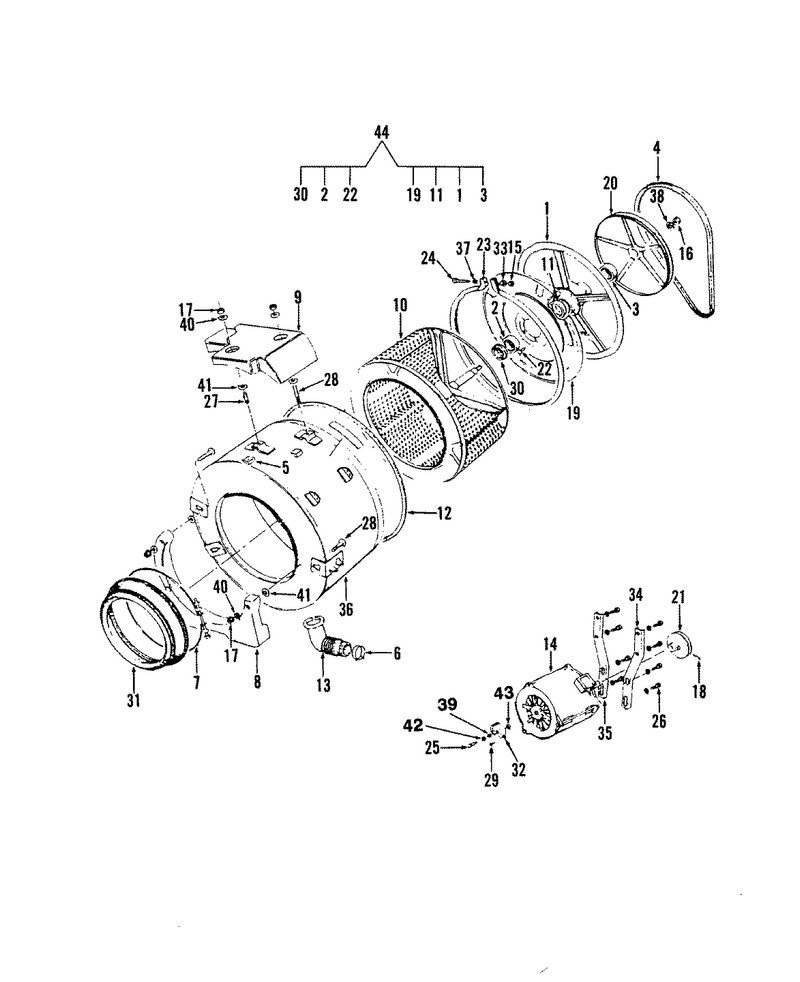

03 - Tub

...
...
1
Cyl X Bearing WPL-113300496
...
2
Ball Bearing WPL-117600130
...
3
Bearing WPL-117600181
...
4
Belt WPL-114900133
...
5
Rubber Block WPL-114900218
...
6
Clamp WPL-WP285655
...
7
Tub Seal Clamp WPL-113200488
...
8
Counterweight WPL-114900247
...
9
Counterweight WPL-114900246
...
10
Cylinder Asm WPL-119200711
...
11
Tub Ring Gasket WPL-114200647
...
12
Ring Gasket WPL-114200636
...
13
Hose WPL-114300707
...
14
Motor WPL-116590639
...
15
Nut WPL-920133131
...
16
Nut WPL-992400242
...
17
Nut WPL-992600001
...
18
Pulley Pin WPL-995100001
...
19
Rear Tub Plate WPL-111600612
...
20
Pulley Asm WPL-113300506
...
21
Motor Pulley WPL-113300521
...
22
Rivet WPL-950313702
...
23
Tub Back Ring WPL-111600490
...
24
Screw WPL-917129139
...
25
Screw WPL-111901081
...
26
Screw WPL-995700011
...
27
Screw WPL-991173002
...
28
Screw WPL-991173001
...
29
Screw WPL-912322233
...
30
Seal WPL-114200638
...
31
Door Seal WPL-114200651
...
32
Speed Sensor WPL-116102561
...
33
Spacer WPL-111901094
...
34
Lh Motor Supprt WPL-113900479
...
35
Rh Motor Supprt WPL-113900478
...
36
Tub Asm WPL-119200721
...
37
Washer WPL-930056320
...
38
Washer WPL-993053139
...
39
Washer WPL-112902092
...
40
Washer WPL-993062138
...
41
Washer WPL-993210561
...
42
Washer WPL-930046336
...
43
Hub WPL-112902369
...
44
Bearing Asm WPL-113390220

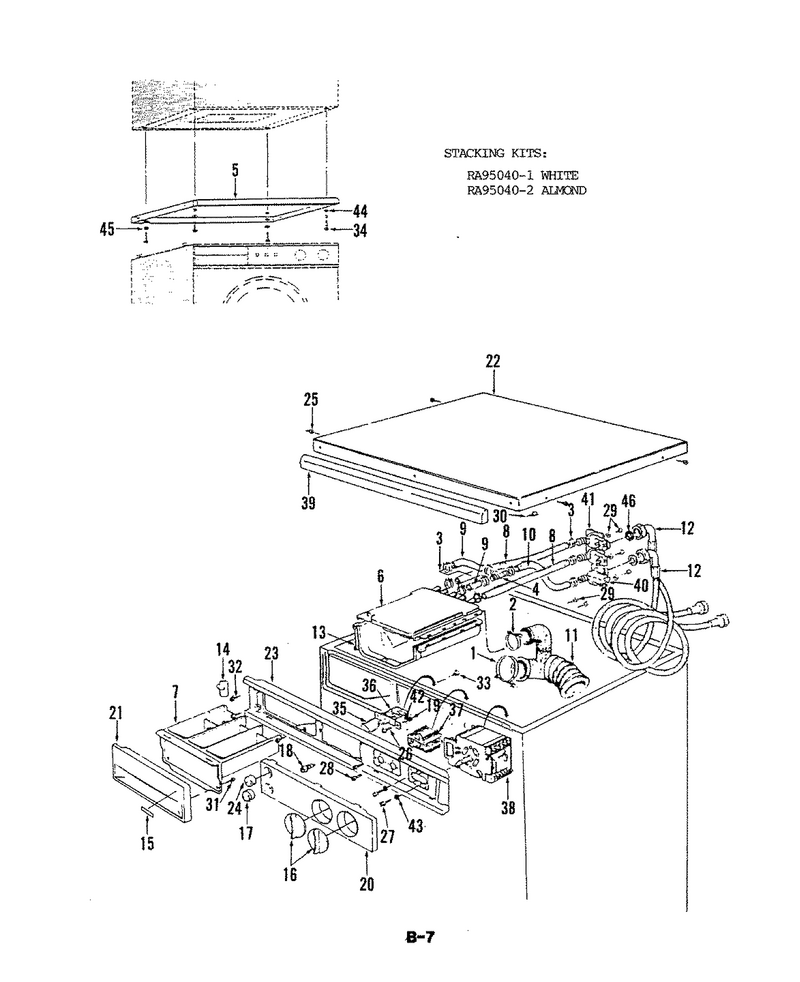

02 - Control Panel

...
...
1
Clamp WPL-113200164
...
2
Clamp WPL-WP616099
...
3
Clamp WPL-WP596669
...
4
T Fitting WPL-112901982
...
5
Cover WPL-111100740
...
6
Disp Outlet And Housing WPL-112400304
...
7
Dispenser Drwr WPL-112400392
...
8
Hose WPL-114300716
...
9
Hose WPL-114300718
...
10
Hose WPL-114300683
...
11
Hose WPL-114300715
...
12
Inlet Hose WPL-119400110
...
13
Disp Housing WPL-112400302
...
14
Level Indicator WPL-112400394
...
15
Nameplate WPL-33-9845
...
16
Knob WPL-189990081
...
17
Indicator Light WPL-112902219
...
18
``on`` Light WPL-116102567
...
19
Nut WPL-920113418
...
20
Control Panel WPL-119802655
...
21
Disp Frnt Panel WPL-112602966
...
22
Top Panel WPL-111100734
...
23
Cntrl Mtg Plate WPL-112400396
...
24
Pushbutton WPL-112902035
...
25
Screw WPL-912344102
...
26
Screw WPL-912133410
...
27
Screw WPL-WP4159193
...
28
Screw WPL-WP488234
...
29
Screw WPL-995500001
...
30
Screw WPL-912362330
...
31
Screw WPL-913331132
...
32
Screw WPL-991644512
...
33
Screw WPL-911354239
...
34
Screw WPL-917143112
...
35
Spacer WPL-182990081
...
36
Pushbutton Asm WPL-116102537
...
37
Selector WPL-116102530
...
38
Timer WPL-116102529
...
39
Top Panel Trim WPL-112902354
...
40
Hot Inlet Valve WPL-116102549
...
41
Valve WPL-116102541
...
42
Washer WPL-930036328
...
43
Washer WPL-930046333
...
44
Washer WPL-993210561
...
45
Washer WPL-993041134
...
46
Gasket WPL-114200090
