Magic Chef M5E-5

Model: M5E-5

Save Part Not Listed?
product name

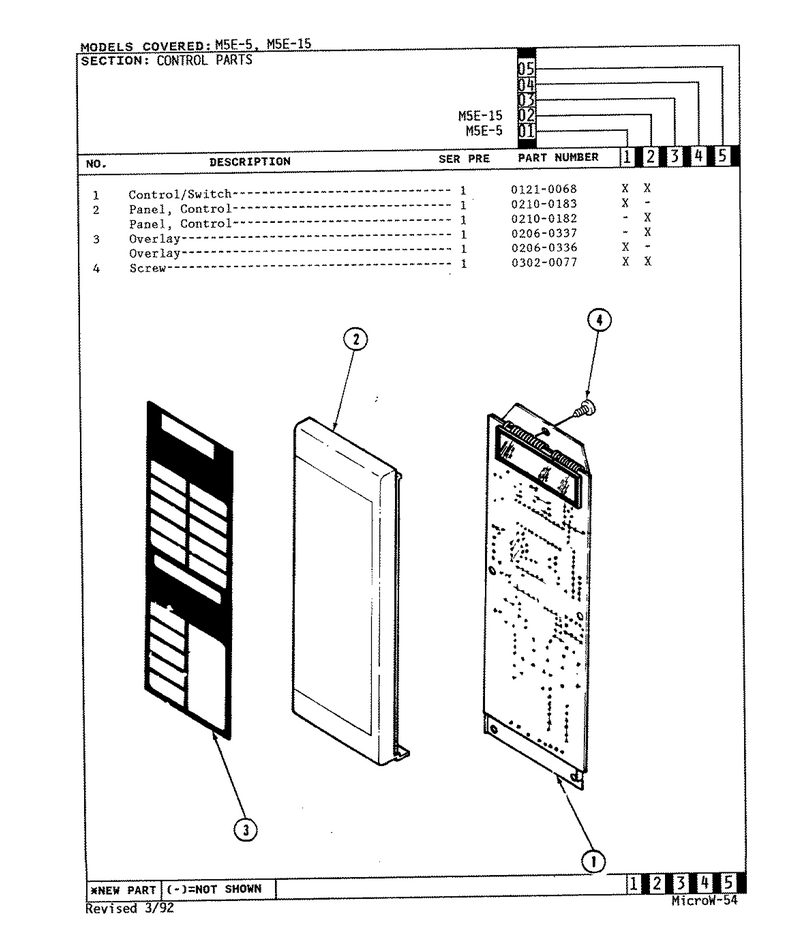

02 - Control Panel

...
...
1
Board, Control WPL-01210068
...
2
Panel, Control White WPL-02100183
...
3
Switch Panel WPL-02060336
...
4
Screw WPL-03020077

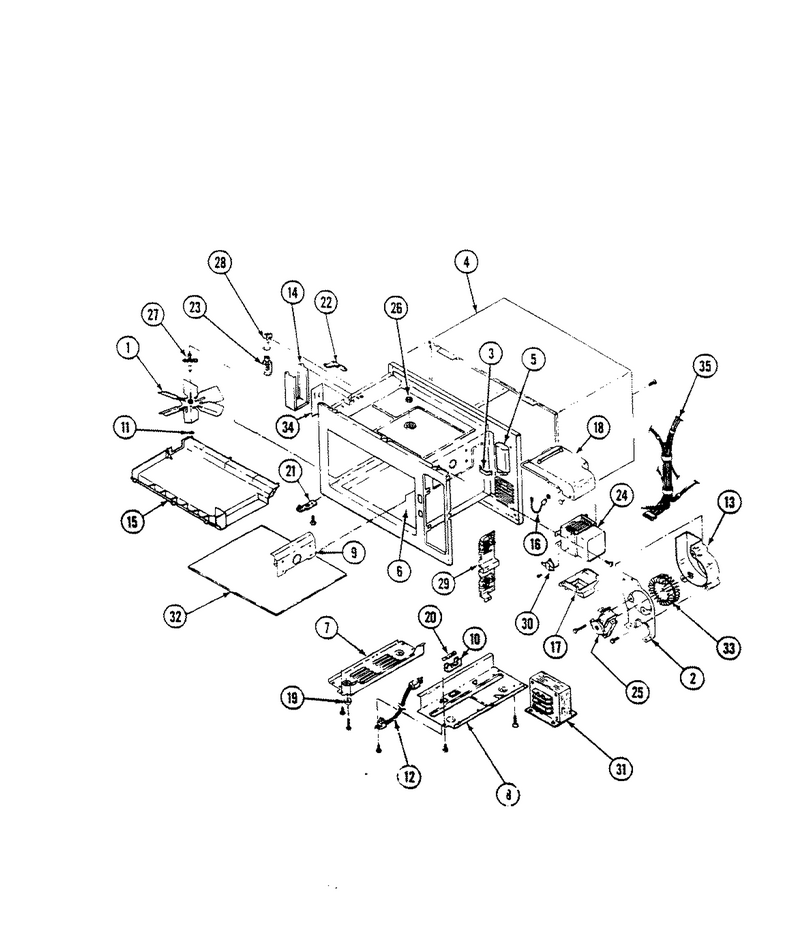

01 - Base & Cavity Parts

...
...
1
Blower Assembly WPL-04021090
...
2
Bracket WPL-Y02030136
...
3
Bracket WPL-02030123
...
4
Cabinet WPL-02140067
...
5
Capacitor- WPL-WP59001168
...
7
Channel Base, Left WPL-02090010
...
8
Channel Base, Right WPL-02090011
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Block-Fuse WPL-W10206728
...
11
Clip, Stirrer WPL-Y03110055
...
12
Cover, Air Intake WPL-02300040
...
13
Cover WPL-Y02300032
...
14
Cover, Magnetron WPL-02300034
...
16
Rectifier WPL-B8383101
...
17
Duct WPL-02170123
...
18
Duct Stirrer Air WPL-02170133
...
19
Foot, Base WPL-Y02230008
...
20
Fuse 15a 2 WPL-WPY01050009
...
21
Hinge Assy, Lower WPL-04021343
...
22
Bracket, Hinge (Upper) WPL-04021344
...
23
Bulb-Light WPL-WPA3167501
...
24
Magnetron WPL-01040005
...
25
Motor, Blower WPL-01110020
...
26
Plate, Popcorn WPL-02040094
...
27
Shaft, Stirrer WPL-02360045
...
28
Receptacle, Bulb WPL-51001095
...
29
Interlock Switch Assy, Upper WPL-01140063
...
30
Switch, Temperature Limit WPL-Y01180008
...
31
Transformer WPL-Y01130040
...
33
Wheel, Blower WPL-Y01110017
...
34
Window WPL-02220084
...
35
Wire, Lead Hv WPL-04060538
...
36
Manual, Use & Care WPL-06010292

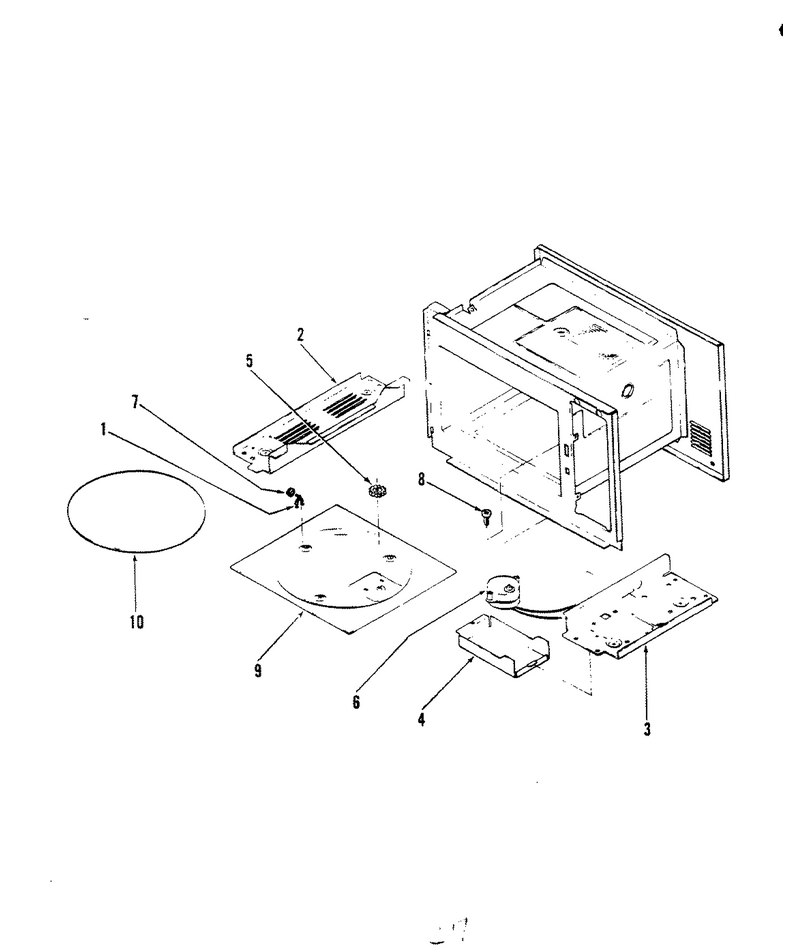

04 - Turntable

...
...
1
Bearing WPL-Y02440001
...
2
Channel Base, Left WPL-02090010
...
3
Channel Base, Right WPL-02090011
...
4
Cover, Motor Turntab WPL-02300043
...
5
Gear, Turntable WPL-Y02450002
...
6
Motor, Turntable WPL-01110024
...
7
Roller WPL-02210011
...
8
Screw WPL-03020077
...
9
Shelf, Turntable WPL-02280037
...
10
Turntable WPL-02460005

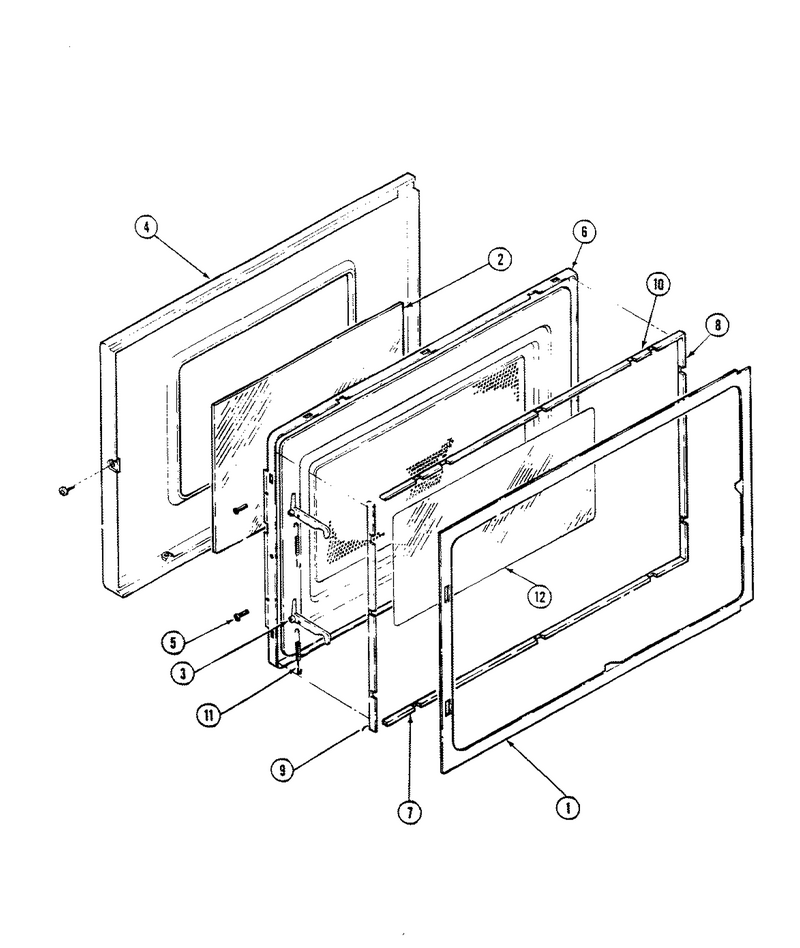

03 - Door Parts

...
...
1
Choke, Filler WPL-02100141
...
2
Glass, Door WPL-Y02220099
...
3
Latch, Pawl WPL-02190058
...
4
Panel, Door Outer WPL-02100144
...
5
Pin, Latch Pawl WPL-Y03070040
...
6
Plate, Door Choke Assy WPL-04021263
...
7
Seal, Bottom WPL-Y02120162
...
8
Seal Hinge WPL-Y02120160
...
9
Seal, Latch WPL-Y02120159
...
10
Seal, Top WPL-Y02120161
...
11
Spring WPL-03180032
...
12
Window, Poly WPL-02220097
