Magic Chef M40B-3-X9

Model: M40B-3-X9

Save Part Not Listed?
product name

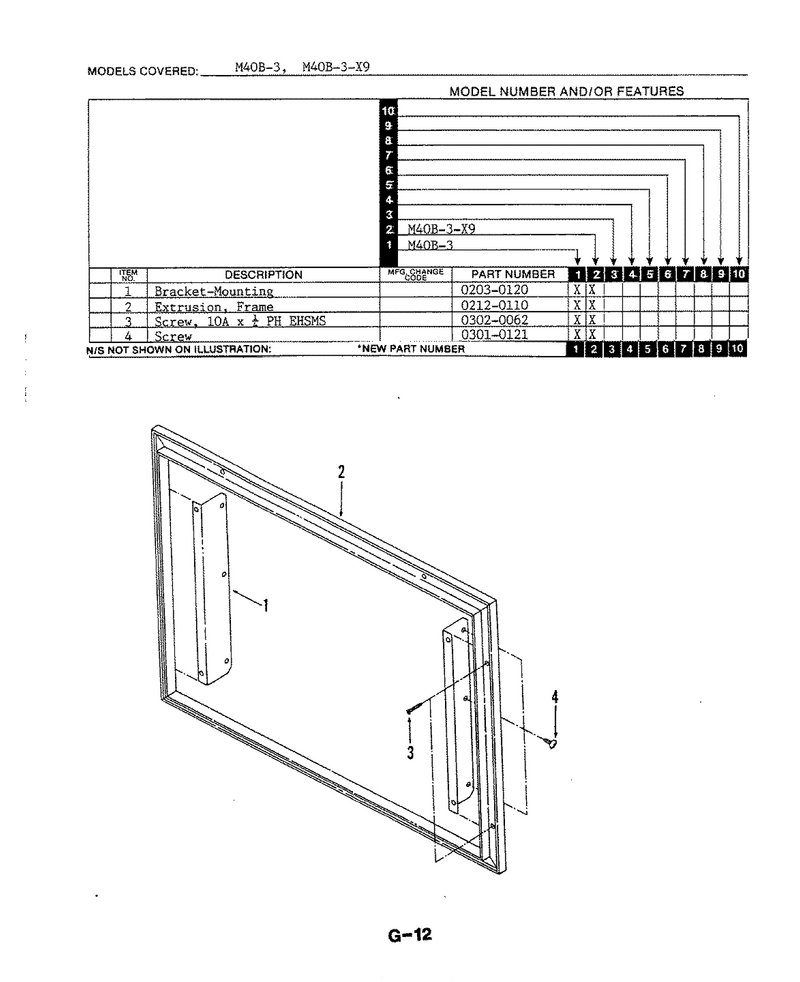

02 - Built-In Kit

...
...
1
Bracket, Mounting WPL-02030120
...
2
Trim WPL-02120110
...
3
Screw WPL-03020062
...
4
Screw, Burner Mtg WPL-7101P286-60

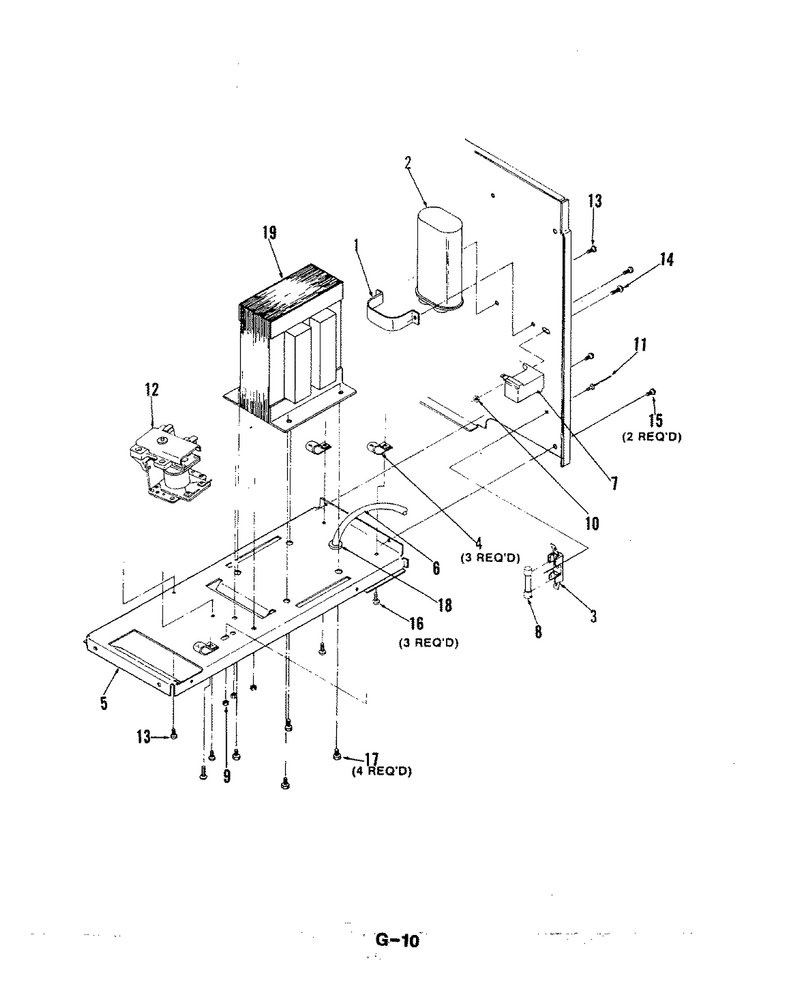

04 - Component Mounting Plate

...
...
1
Bracket WPL-02030123
...
2
Capacitor- WPL-WP59001168
...
3
Block-Fuse WPL-W10206728
...
4
Clip WPL-03110051
...
5
Plate, Component Mounting WPL-02040053
...
6
Cord, Power (Blk) WPL-01080050
...
7
Diode WPL-Y01030010
...
8
Fuse 15a 2 WPL-WPY01050009
...
9
Nut K WPL-M0282005
...
10
Nut WPL-03050003
...
11
Rivet WPL-WP210720
...
12
Relay WPL-01120028
...
13
Screw WPL-03020030
...
14
Screw WPL-03010124
...
15
Screw WPL-WP250830
...
16
Screw WPL-W11233072
...
17
Screw WPL-03010094
...
18
Strain Relief WPL-03150018
...
19
Transformer, H.v. WPL-01130028

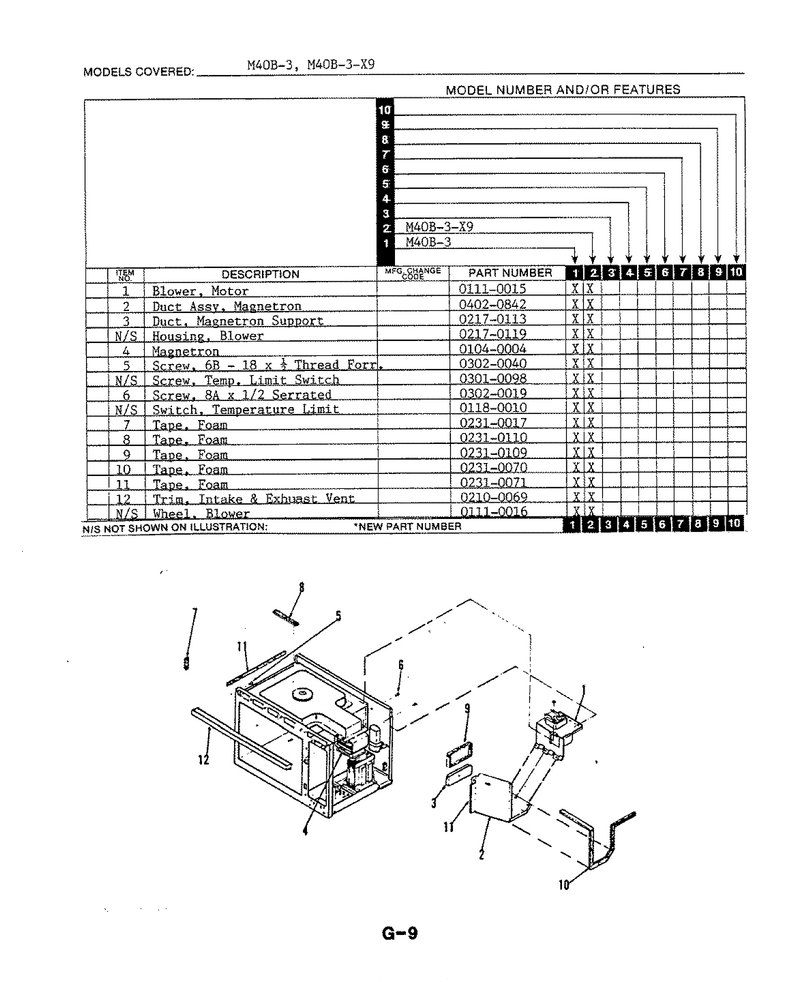

06 - Cooling System

...
...
1
Blower Motor WPL-01110015
...
2
Duct Assembly, Magnetron WPL-Y04020842
...
3
Housing, Blower WPL-Y02170119
...
4
Magnetron WPL-01040004
...
5
Screw WPL-03010098
...
6
Switch, Temp Limit WPL-01180010
...
7
Per Ft WPL-02310017
...
8
Foam Tape 4`` WPL-Y02310110
...
9
Tape, Foam WPL-02310109
...
10
Tape, Foam WPL-02310070
...
11
Tape, Foam WPL-02310071
...
12
Vent Trim WPL-02100069

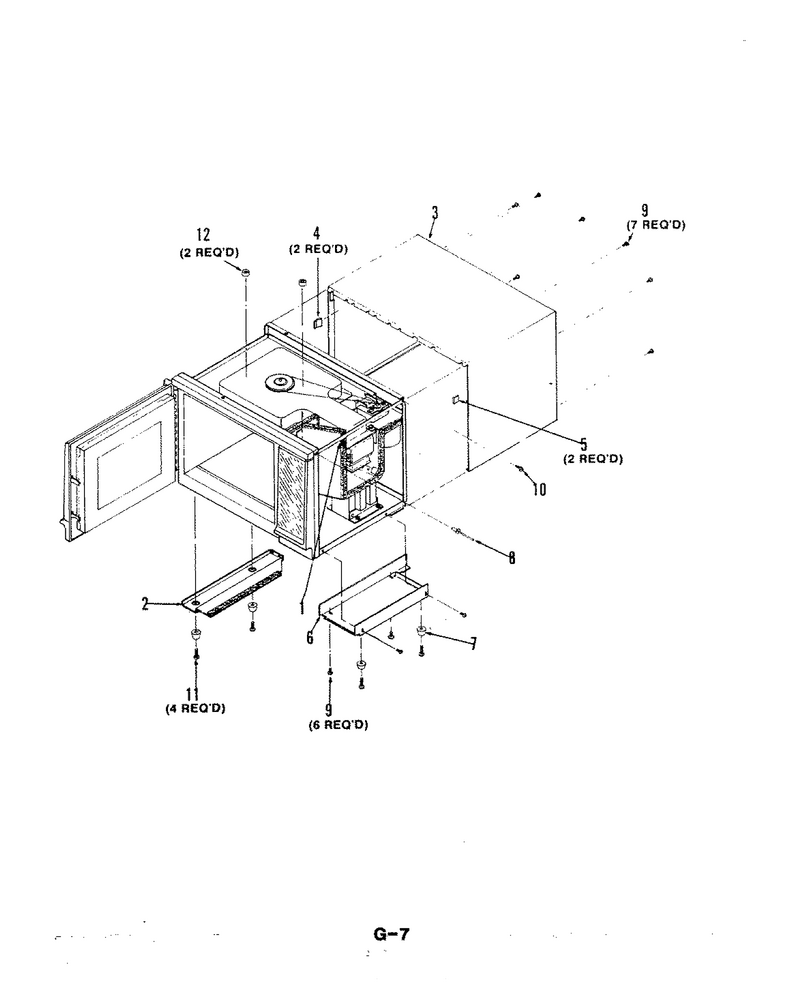

01 - Base

...
...
1
Brace, Upper Right Support WPL-02020020
...
2
Brace, Support (Lower) WPL-Y02020028
...
3
Cabinet (Blk) WPL-02140041
...
4
Clip, Cabinet (Lt) WPL-03110046
...
5
Clip, Cabinet (Rt) WPL-03110027
...
6
Cover, Comp Mntg WPL-02300020
...
7
Foot, Base WPL-Y02230008
...
8
Pop Rivet WPL-03060013
...
9
Screw WPL-03020019
...
10
Ground Screw WPL-03010082
...
11
Screw WPL-WP250830
...
12
Tape, Foam WPL-02310122

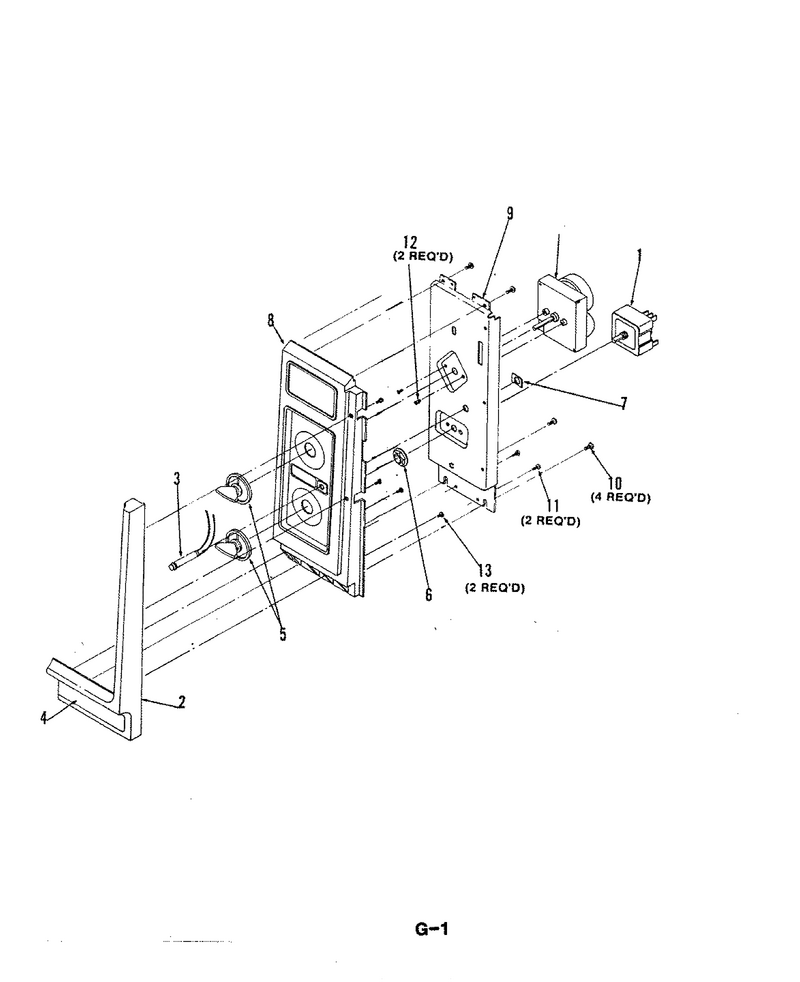

05 - Control Panel

...
...
1
Board, Control WPL-01200013
...
2
Frame WPL-02100061
...
3
Lamp Assy WPL-01060027
...
4
Insert, Door/control Pnl WPL-02100093
...
5
Label, Relamping WPL-02240407
...
6
Nut Lock 1/2 X 20 WPL-03050021
...
7
Nut WPL-Y03050032
...
8
Decorative WPL-02060215
...
9
Panel, Control Mntg WPL-02060285
...
10
Screw WPL-03020063
...
11
Screw WPL-03020061
...
12
Screw WPL-03020041
...
13
Tape, Foam WPL-02310122
...
14
Timer WPL-01070038

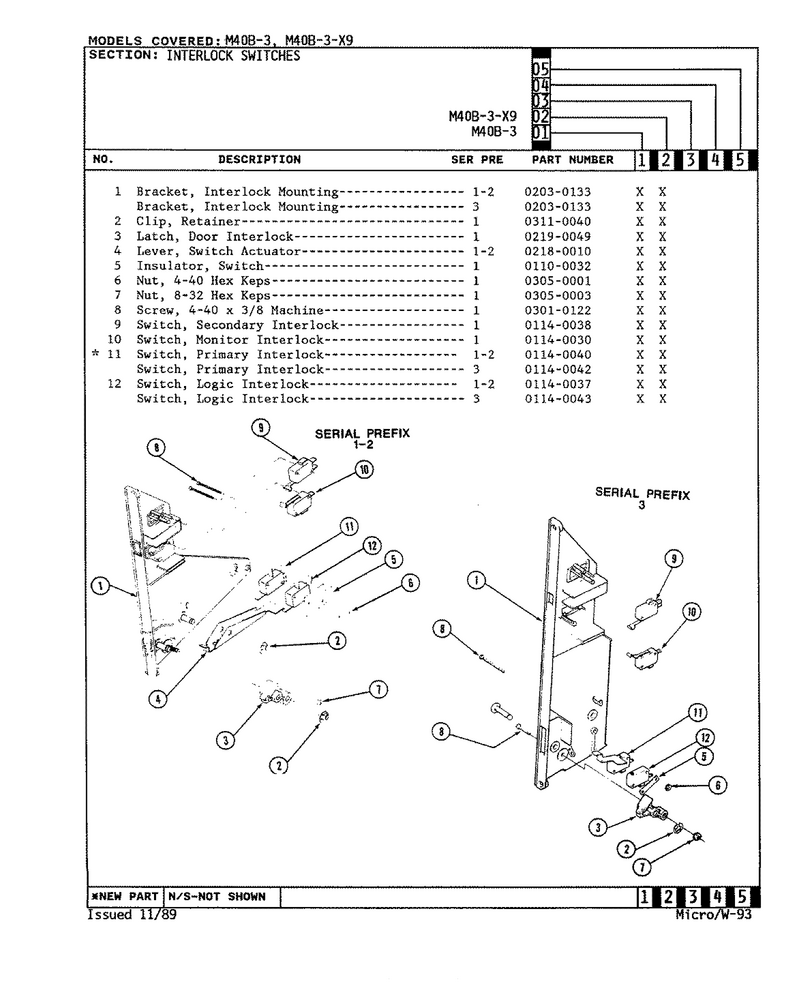

08 - Interlock Switches

...
...
1
Bracket, Interlock WPL-Y02030133
...
2
Clip, Retainer WPL-03110040
...
3
Latch, Door Interlock WPL-02190049
...
4
Switch Lever WPL-02180010
...
5
Switch Insulator WPL-01100032
...
6
Nut WPL-Y03050001
...
7
Nut WPL-03050003
...
8
Screw WPL-03010122
...
9
Switch, Tertiary (Logic) WPL-Y01140086
...
10
Switch, Monitor WPL-Y01140084
...
11
Switch, Primary Interlock WPL-Y01140042
...
12
Switch WPL-01140037

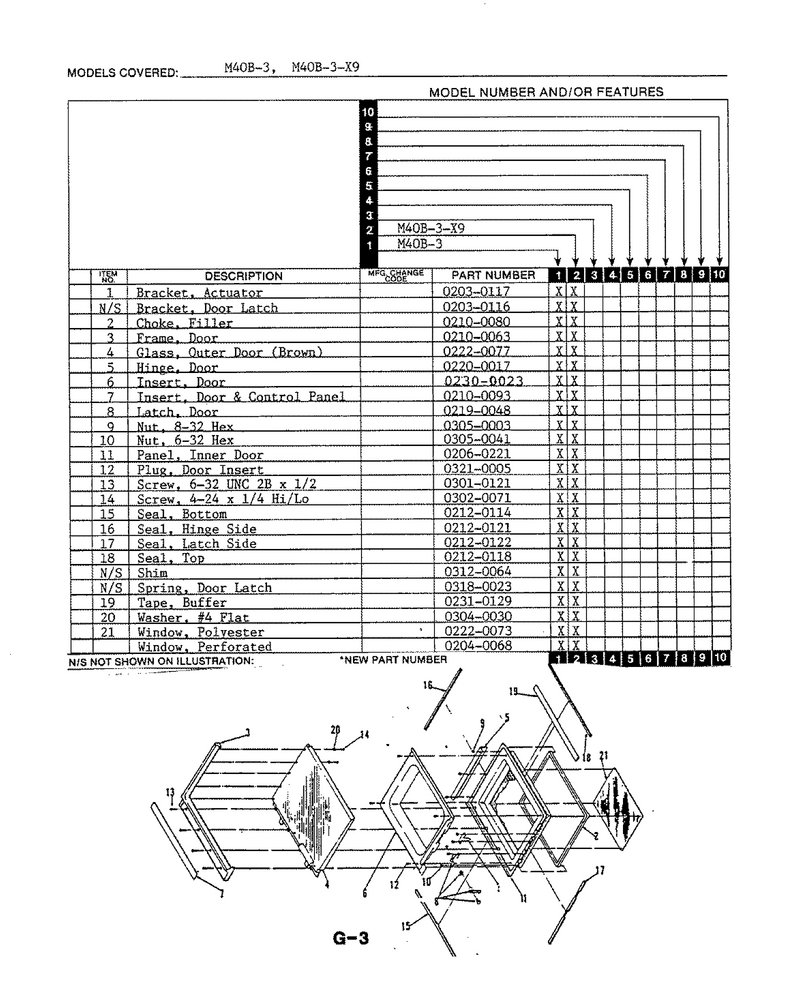

07 - Door

...
...
1
Bracket, Door Latch WPL-Y02030116
...
2
Choke, Filler (Wht) WPL-Y02100080
...
3
Trim, Door Frame WPL-02100063
...
4
Glass, Outer WPL-02220077
...
5
Hinge, Door WPL-Y02200017
...
6
Door Insert WPL-02300023
...
7
Insert, Door/control Pnl WPL-02100093
...
8
Door Latch WPL-02190048
...
9
Nut WPL-03050003
...
10
Nut K WPL-M0282005
...
11
Inner Door WPL-02060221
...
12
Dr Insert Plug WPL-03210005
...
13
Screw, Burner Mtg WPL-7101P286-60
...
14
Screw & Washer (Hi Lo) WPL-Y03020071
...
15
Seal, Bottom WPL-02120114
...
16
Seal, Hinge Side WPL-Y02120121
...
17
Seal, Latch Side WPL-Y02120122
...
18
Shim WPL-Y03120064
...
19
Tape, Buffer WPL-02310129
...
20
Washer WPL-03040030
...
21
Window, Polyester WPL-Y02220073

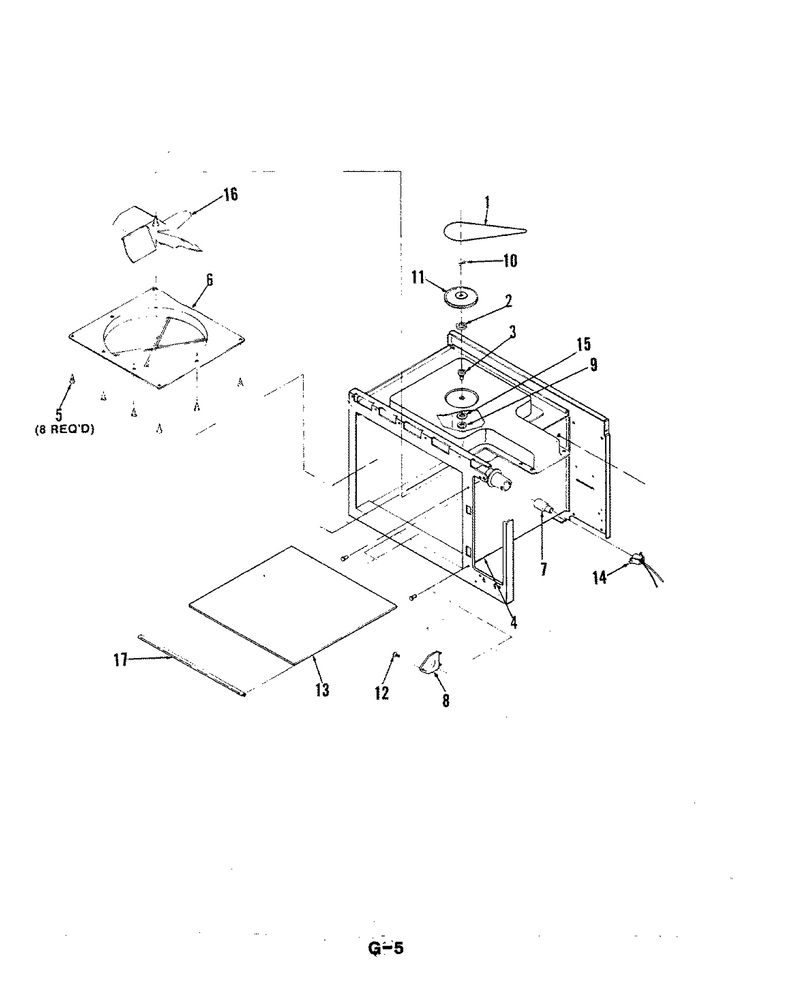

03 - Cavity

...
...
1
Stirrer Be WPL-Y07020153
...
2
Bushing Pulley WPL-02360022
...
3
Bushing WPL-02360034
...
4
Cavity WPL-04020999
...
5
Clip WPL-Y03110050
...
6
Guide WPL-Y02360036
...
7
Bulb-Light WPL-WPA3167501
...
8
Lens, Bulb WPL-Y02400007
...
9
Nut Lock 1/2 X 20 WPL-03050021
...
10
Cotter Pin WPL-03070013
...
11
Stirrer Pulley WPL-04020796
...
12
Screw WPL-03020060
...
13
Shelf, Bottom (Plastic) WPL-Y02280041
...
14
Lamp Socket WPL-01100033
...
15
Starwasher WPL-03030012
...
16
Stirrer Assy WPL-04020778
...
17
Shelf Trim WPL-02100052
