Magic Chef HA300-30

Model: HA300-30

Save Part Not Listed?

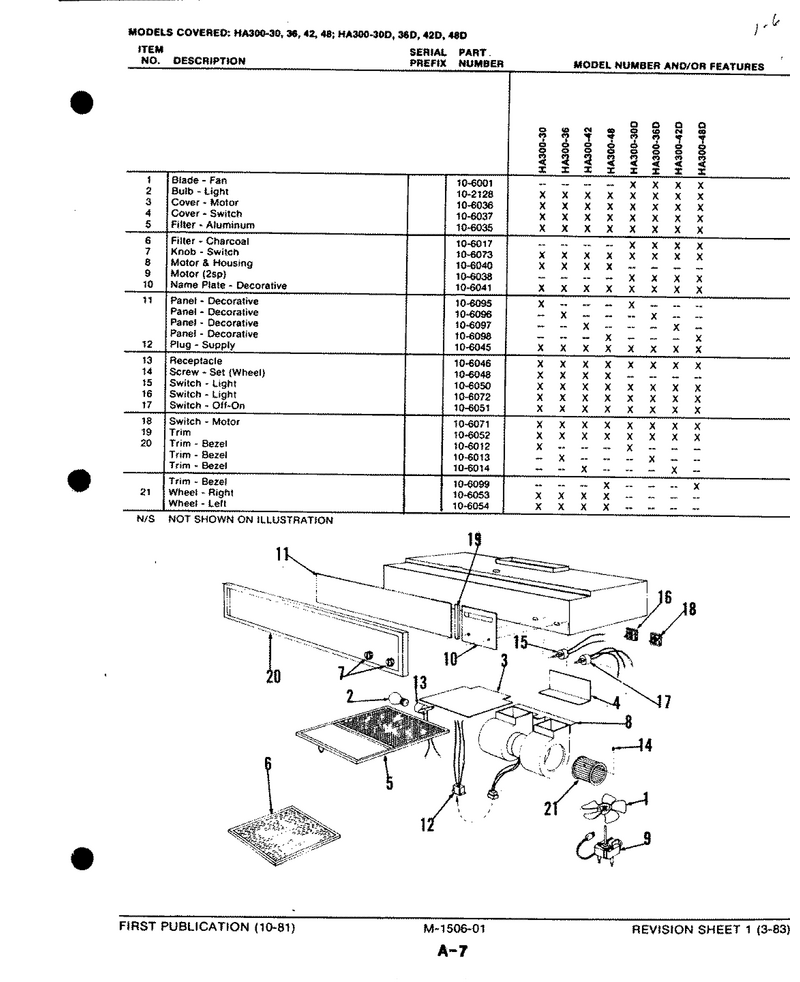

product name

01 - Vent Hood

...
...
1
Not Required Part Or See Note WPL-W10124350
...
2
Bulb, Light WPL-10-2128
...
3
Motor Cover WPL-10-6036
...
4
Switch Cover WPL-10-6037
...
5
Filter, Aluminum WPL-10-6035
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Knob WPL-10-6073
...
8
Mtr & Housing WPL-10-6040
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Name Plate WPL-10-6041
...
11
Panel WPL-10-6095
...
12
Supply Plug WPL-10-6045
...
13
Receptable WPL-10-6046
...
14
Screw. Set WPL-10-6048
...
15
Switch Light WPL-10-6050
...
16
Light Switch WPL-10-6072
...
17
Switch, On-Off WPL-10-6051
...
18
Use 10-6051 WPL-10-6071
...
19
Trim WPL-10-6052
...
20
Chrome Trim WPL-10-6012
