product name

Magic Chef FL8AW-1 (BOM: 1U41A)

Model: FL8AW-1 (BOM: 1U41A)

Save Part Not Listed?
product name

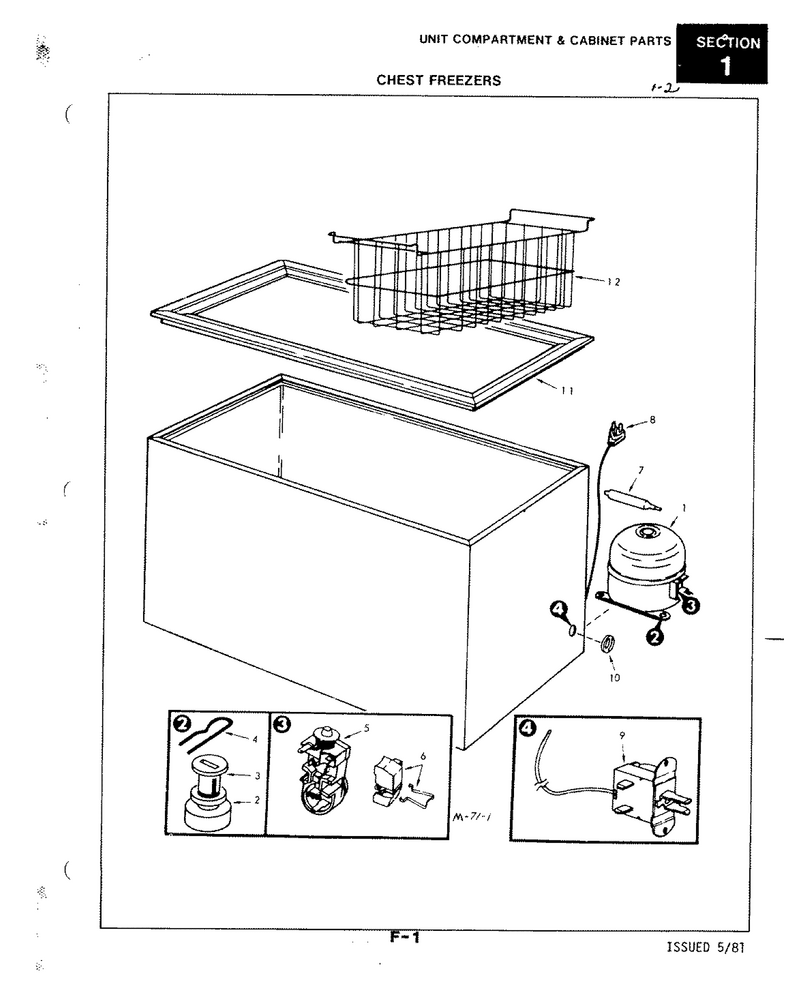

02 - Unit Compartment

...
...
1
Compressor WPL-4387521
...
2
Grommet WPL-242-4
...
3
Plug, Compressor WPL-52656-2
...
4
Clip, Mounting WPL-2163787
...
5
Condenser WPL-RA43631-1
...
6
Cover W/clip WPL-58331-2
...
7
Drier-Uv WPL-WPW10143759
...
8
Wire Harness WPL-56383-3
...
9
Control, Temperature WPL-52881-31
...
10
Knob WPL-20095-3
...
11
Brkr Frame Kit WPL-RA43579-1
...
12
Basket, Wire WPL-56992-5

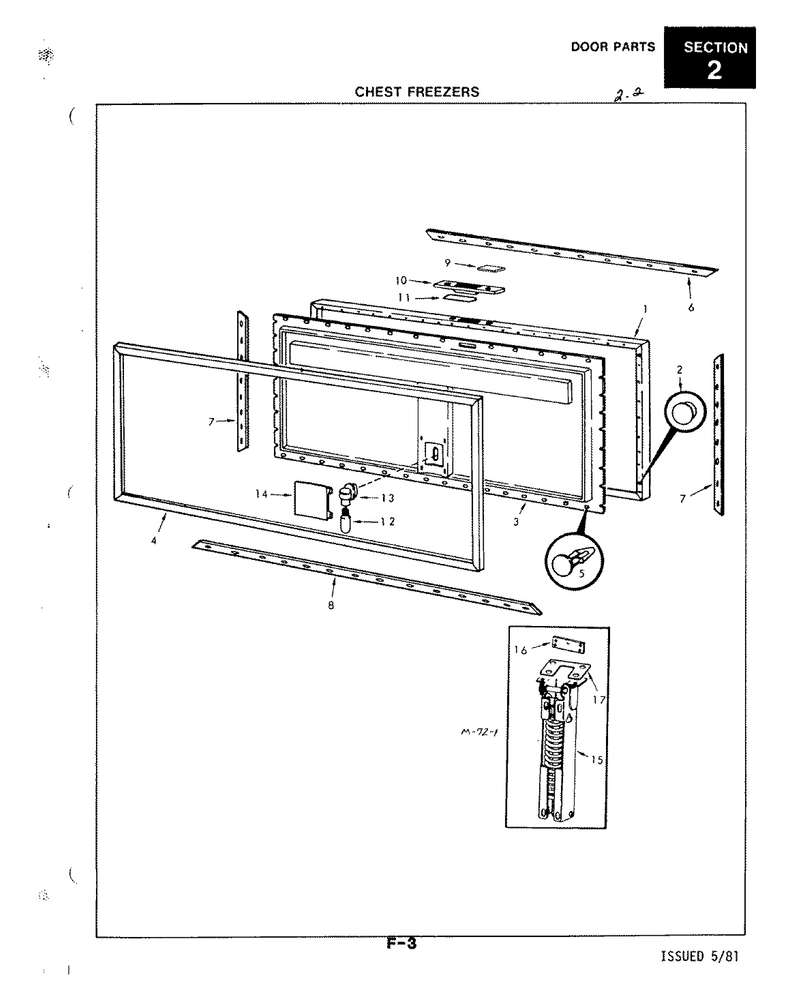

01 - Door

...
...
1
Panel WPL-58962-2
...
2
Plug Button, Door WPL-495034-900
...
3
Inner Panel WPL-56334-51
...
4
Gasket WPL-58973-2
...
5
Sub 56686-1 WPL-56686-3
...
6
Insul Dr Gasket WPL-59041-3
...
7
Insul Dr Gasket WPL-59041-1
...
8
Insul Dr Gasket WPL-59041-10
...
9
Name Plate WPL-57224-11
...
10
Handle WPL-57122-6
...
11
Panel, Control (W/lens) WPL-22001890
...
12
Bulb-Light WPL-W10873798
...
13
Socket WPL-56317-3
...
14
Shield WPL-57618-4
...
15
Hinge WPL-57032-1
...
16
Tapping Plate WPL-56841-1
...
17
Connector, Wire WPL-227991
