Magic Chef FA16AN-1M (BOM: 1Q57A)

Model: FA16AN-1M (BOM: 1Q57A)

Save Part Not Listed?
product name

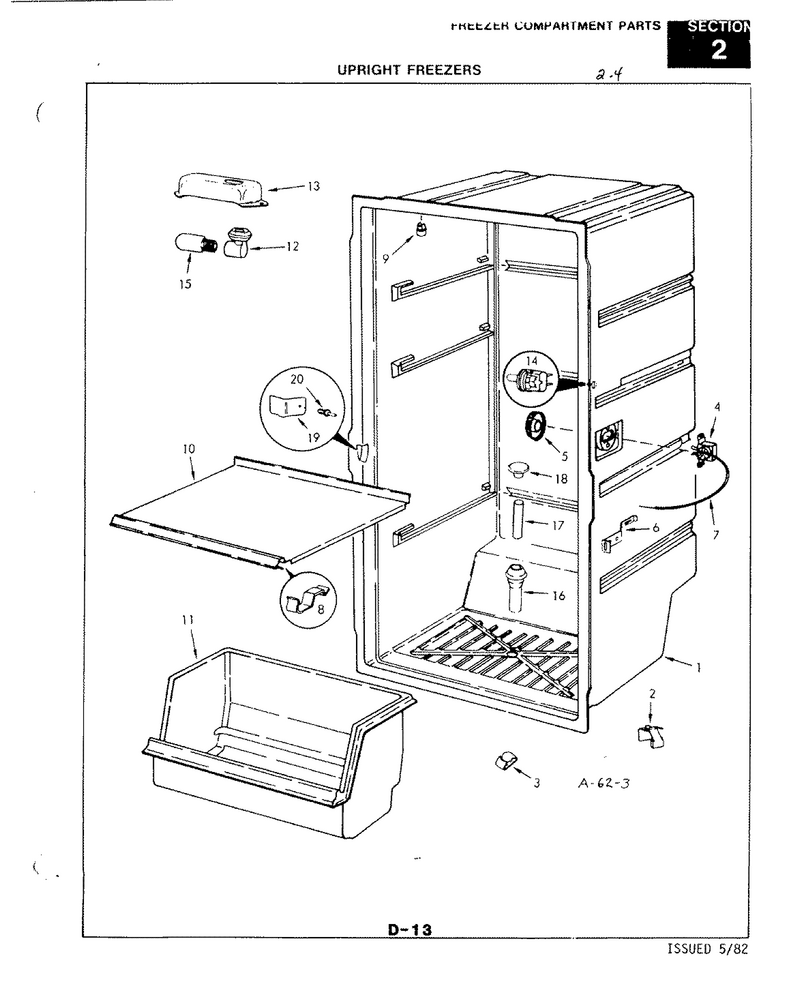

02 - Freezer Compartment

...
...
1
Food Liner WPL-57353-1
...
2
Clip WPL-54576-1
...
3
Clip WPL-58083-1
...
4
Screw WPL-406015-103
...
5
Knob WPL-26621-27
...
6
Bracket WPL-57311-1
...
7
Tubing WPL-4008-13
...
8
Clip WPL-54667-1
...
9
Nut WPL-56142-8
...
10
Frzr Shelf WPL-53743-41
...
11
Drawer WPL-53757-5
...
12
Lamp Holder WPL-27659-3
...
13
Housing WPL-54666-1
...
14
Switch WPL-56432-2
...
15
Bulb-Light WPL-WPA3073101
...
16
Grommet WPL-54531-4
...
17
Drain Tube WPL-54680-3
...
18
Plug WPL-60321-1
...
19
Lock Plate WPL-55395-4
...
20
Stud, Mounting Coil Cover WPL-59920-1

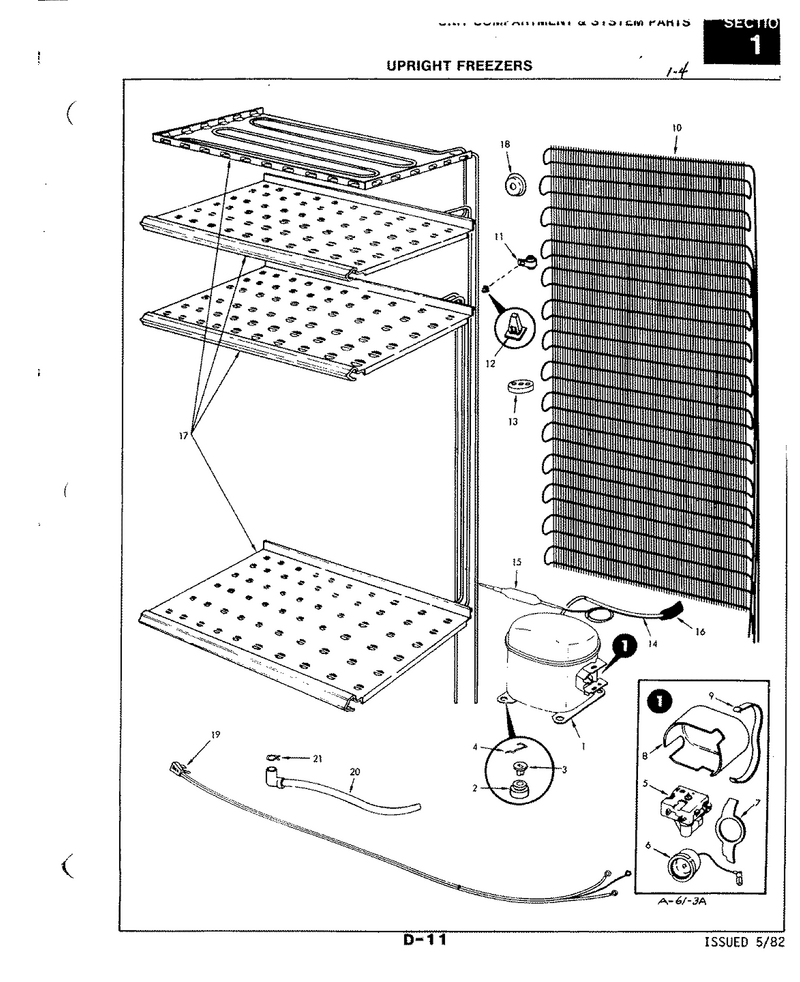

03 - Unit Compartment & System

...
...
1
Compressor WPL-W10619807
...
2
Grommet WPL-17245-3
...
3
Plug, Compressor WPL-52656-2
...
4
Gasket-Dor WPL-576664
...
5
Relay WPL-9286-91
...
6
Overload WPL-53067-58
...
7
Clip WPL-28848-1
...
8
Cover WPL-28849-1
...
9
Clip WPL-28850-3
...
10
Condenser WPL-RA43615-42
...
11
Clamp WPL-22504-1
...
12
Nut WPL-57231-1
...
13
Cushion WPL-63406-1
...
14
Heat Exchanger WPL-RA43605-45
...
15
Drier-Uv WPL-WPW10143759
...
16
Insulation WPL-26275-15
...
17
Frzr Shelf WPL-RA43649-40
...
18
Grommet WPL-55751-1
...
19
Wire Harness WPL-52877-8
...
20
Drain Hose WPL-58831-1
...
21
Clamp WPL-WP596669

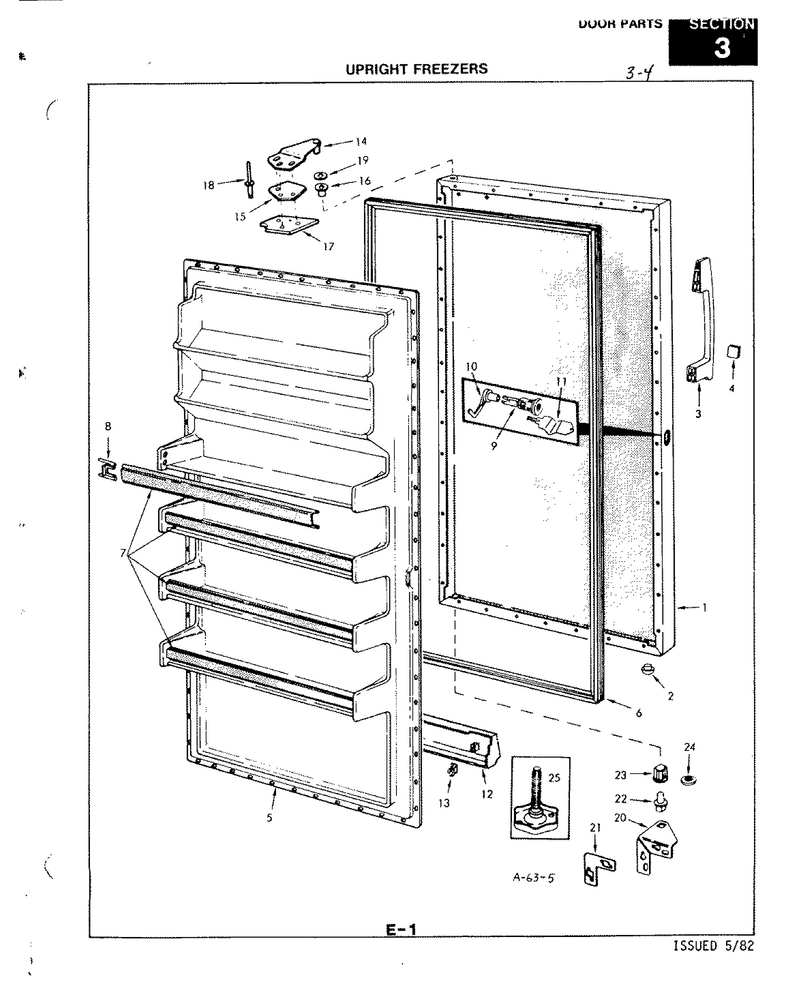

01 - Door

...
...
1
Panel, Outer Door WPL-55625-36-WW
...
2
Plug Button, Door WPL-495034-900
...
3
Handle WPL-56733-13
...
4
Nameplate WPL-59631-2
...
5
Inner Panel WPL-53730-25
...
6
Seal WPL-56287-8
...
7
Trim WPL-57209-44
...
8
Trim Lock WPL-55556-1
...
9
Lock Barrel WPL-59995-3
...
10
Bolt WPL-54881-1
...
11
Key WPL-62027-1
...
12
Screw WPL-WP489478
...
13
Clip, Kickplate WPL-52854-3
...
14
Screw WPL-WP3-24838-048
...
15
Shim WPL-57397-1
...
16
Bushing WPL-55781-1
...
17
Tapping Plate WPL-57396-1
...
18
Rivet WPL-WP210720
...
19
Washer WPL-WP52185-1
...
20
Hinge WPL-53671-10
...
21
Spacer WPL-53688-3
...
22
Pin, Lower Hinge WPL-53672-1
...
23
Bushing, Lower Hinge WPL-66034-1
...
24
Washer WPL-54233-1
...
25
Leveler WPL-W11117769
