Magic Chef FA10AN-1M (BOM: 9Q56A)

Model: FA10AN-1M (BOM: 9Q56A)

Save Part Not Listed?
product name

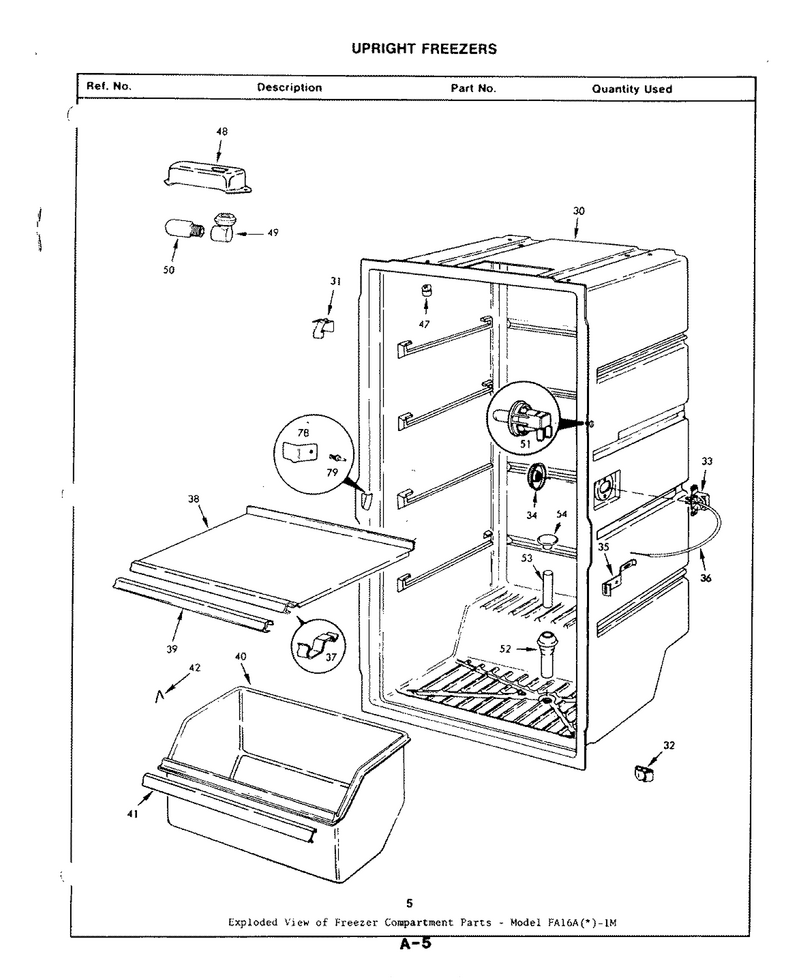

01 - Freezer Compartment

...
...
30
Food Liner WPL-54629-7
...
31
Clip WPL-54576-1
...
32
Clip WPL-58083-1
...
33
Control, Temperature WPL-52881-21
...
34
Knob WPL-26621-27
...
35
Bracket WPL-57311-1
...
36
Tubing WPL-4008-13
...
37
Clip WPL-54667-1
...
47
Nut WPL-56142-8

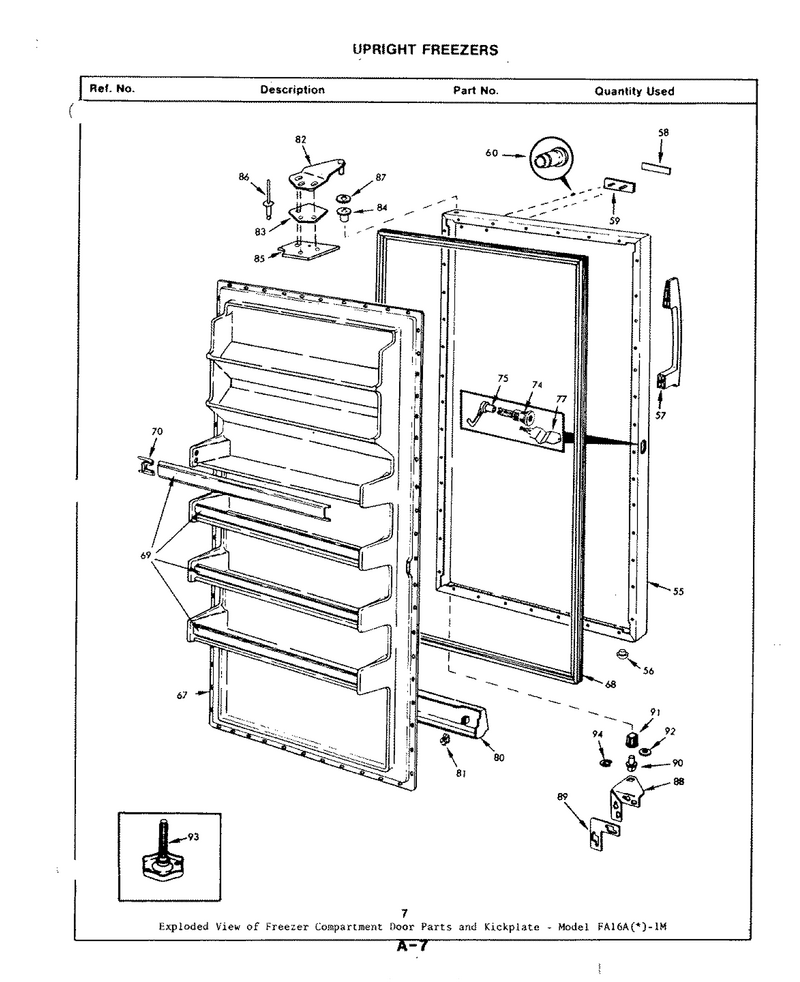

02 - Freezer Door

...
...
55
Outer Panel WPL-53845-37-WW
...
56
Plug Button, Door WPL-495034-900
...
57
Handle WPL-56733-13
...
58
Insert WPL-63566-1
...
59
Bezel WPL-63565-1
...
60
Mtg Clip WPL-23511-4
...
67
Inner Panel WPL-27445-10
...
68
Seal WPL-56287-6
...
69
Trim WPL-57209-32
...
70
Trim Lock WPL-55556-1
...
82
Hinge WPL-53709-10
...
83
Shim WPL-57397-1
...
84
Bushing WPL-55781-1
...
85
Tapping Plate WPL-57396-1
...
86
Rivet WPL-WP210720
...
87
Washer WPL-WP52185-1
...
88
Hinge WPL-53671-10
...
89
Spacer WPL-53688-3
...
90
Pin, Lower Hinge WPL-53672-1
...
91
Bushing, Lower Hinge WPL-66034-1
...
92
Washer WPL-54233-1
...
93
Leveler WPL-W11117769
...
94
Washer WPL-WP52185-1

...
...
1
Screw WPL-WP90767
...
2
Screw WPL-406015-103
...
3
Screw WPL-WP489478
...
4
Screw WPL-402025-1
...
5
Screw WPL-9986-93
...
6
Screw WPL-WP3-24838-048
...
7
Screw WPL-403062-1
...
8
Screw WPL-61005388
...
9
Screw WPL-9986-74
...
10
Manual, Use & Care WPL-63759-2

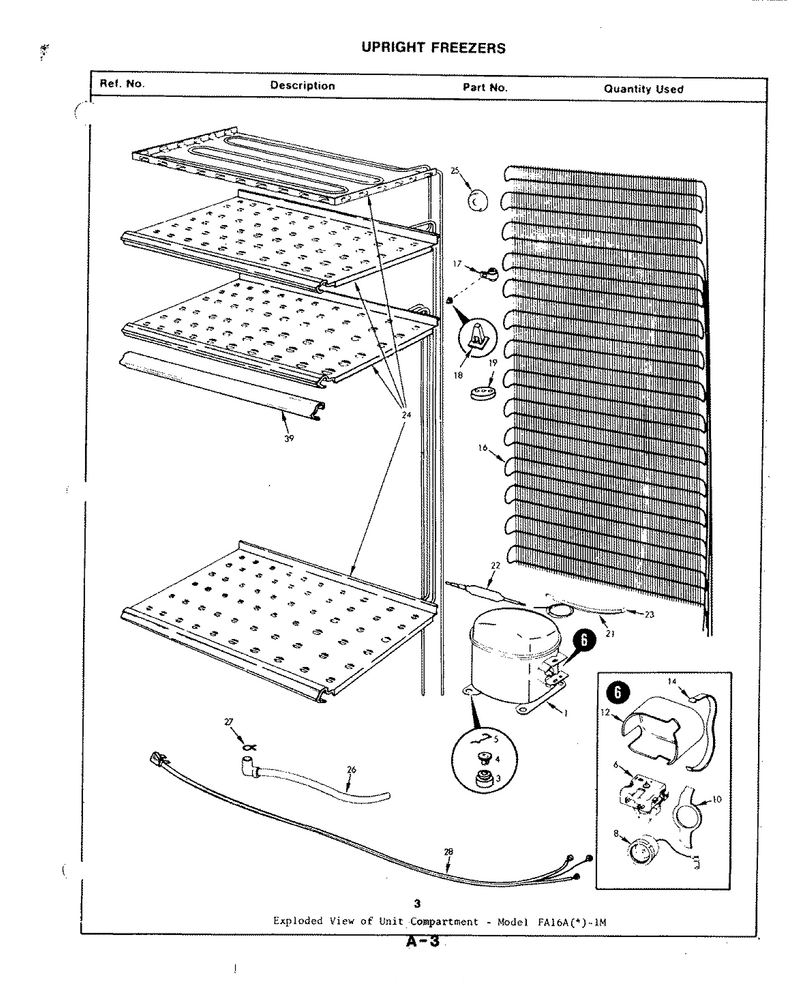

04 - Unit Compartment & System

...
...
1
Compressor WPL-4387521
...
3
Grommet WPL-17245-2
...
4
Plug, Compressor WPL-52656-2
...
5
Gasket-Dor WPL-576664
...
6
Relay, Start WPL-63293-1
...
8
Overload WPL-63294-1
...
10
Clip WPL-63295-1
...
12
Cover WPL-63296-1
...
14
Clip WPL-63297-1
...
16
Condenser WPL-RA43615-43
...
17
Clamp WPL-22504-1
...
18
Nut WPL-57231-1
...
19
Cushion WPL-63406-1
...
21
Heat Exchanger WPL-RA43605-48
...
22
Drier-Uv WPL-WPW10143759
...
23
Insulation WPL-26275-15
...
24
Frzr Shelf WPL-RA43649-41
...
25
Grommet WPL-55751-1
...
28
Flange Heater WPL-RA43683-1
