Magic Chef FA10AN-1M (BOM: 1Q56A)

Model: FA10AN-1M (BOM: 1Q56A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

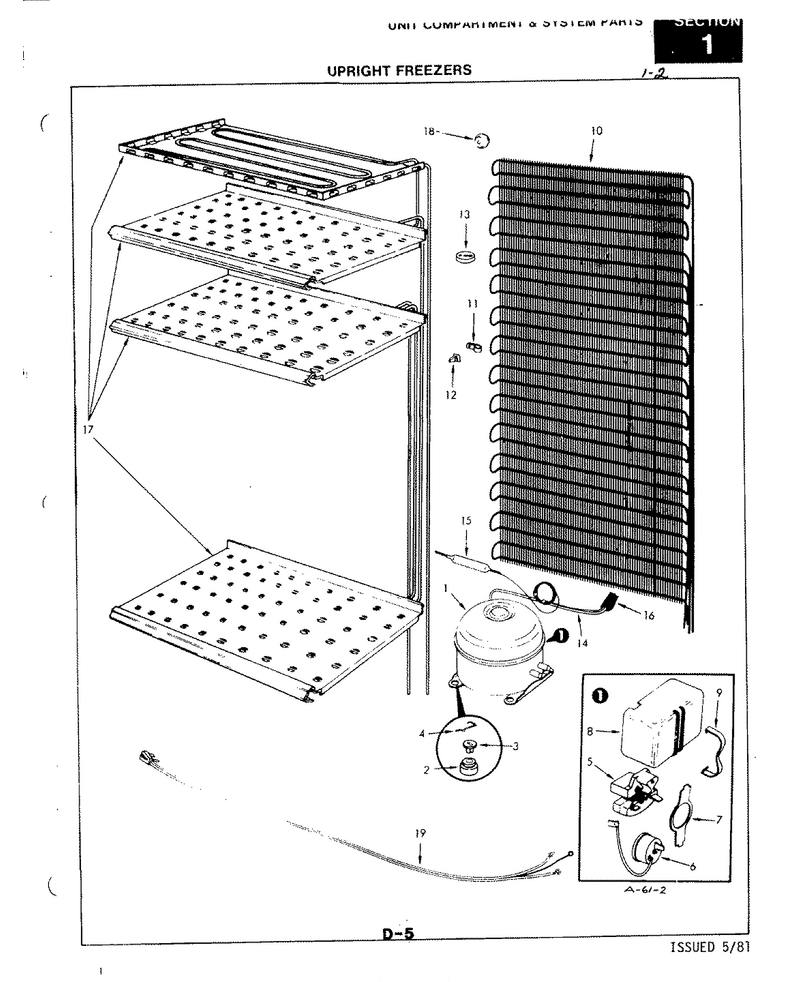

03 - Unit Compartment & System

...
...
1
Compressor WPL-4387521
...
2
Grommet WPL-17245-3
...
3
Plug, Compressor WPL-52656-2
...
4
Gasket-Dor WPL-576664
...
5
Relay, Start WPL-63293-1
...
6
Overload WPL-63294-1
...
7
Clip WPL-63295-1
...
8
Cover WPL-63296-1
...
9
Clip WPL-63297-1
...
10
Condenser WPL-RA43615-43
...
11
Clamp WPL-22504-1
...
12
Nylon Nut, Clamp Mtg. WPL-56231-1
...
13
Cushion WPL-63406-1
...
14
Heat Exchanger WPL-RA43605-48
...
15
Drier-Uv WPL-WPW10143759
...
16
Insulation WPL-26275-15
...
17
Frzr Shelf WPL-RA43649-41
...
18
Grommet WPL-55751-1
...
19
Flange Heater WPL-RA43683-1

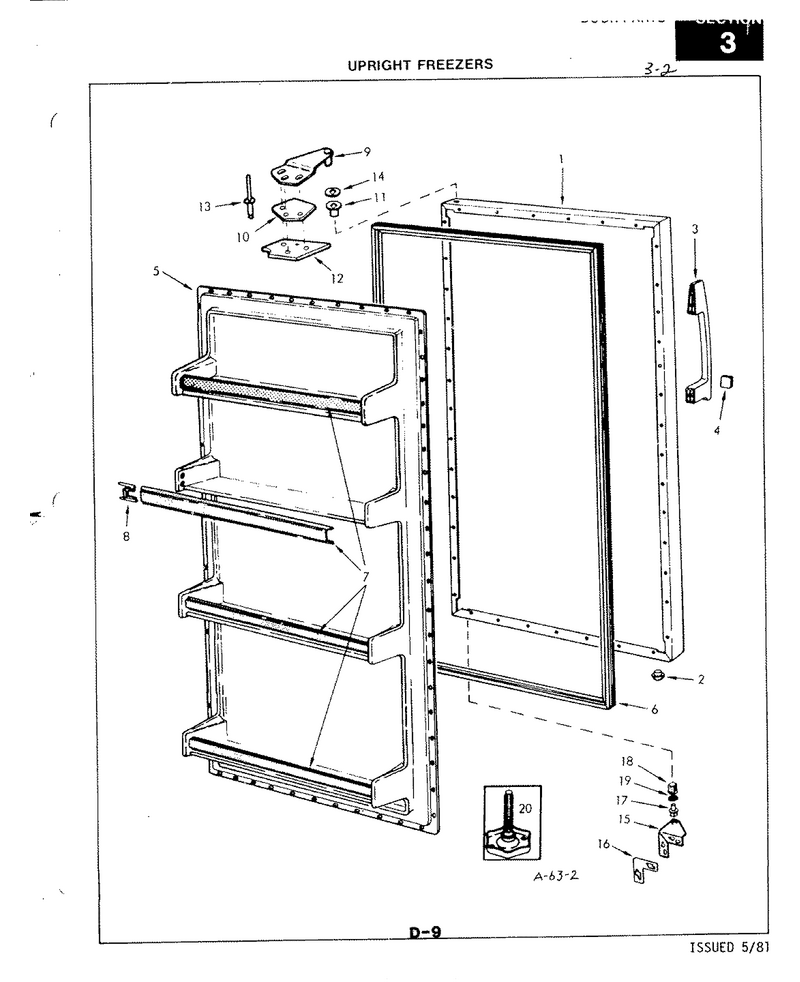

01 - Door

...
...
1
Outer Panel WPL-53845-41-WW
...
2
Plug Button, Door WPL-495034-900
...
3
Handle WPL-56733-13
...
4
Nameplate WPL-59631-2
...
5
Inner Panel WPL-27445-9
...
6
Seal WPL-56287-6
...
7
Trim WPL-57209-32
...
8
Trim Lock WPL-55556-1
...
9
Screw WPL-WP3-24838-048
...
10
Shim WPL-57397-1
...
11
Bushing WPL-55781-1
...
12
Tapping Plate WPL-57396-1
...
13
Rivet WPL-WP210720
...
14
Washer WPL-WP52185-1
...
15
Hinge WPL-53671-10
...
16
Spacer WPL-53688-3
...
17
Pin, Lower Hinge WPL-53672-1
...
18
Bushing, Lower Hinge WPL-66034-1
...
19
Washer WPL-54233-1
...
20
Leveler WPL-W11117769

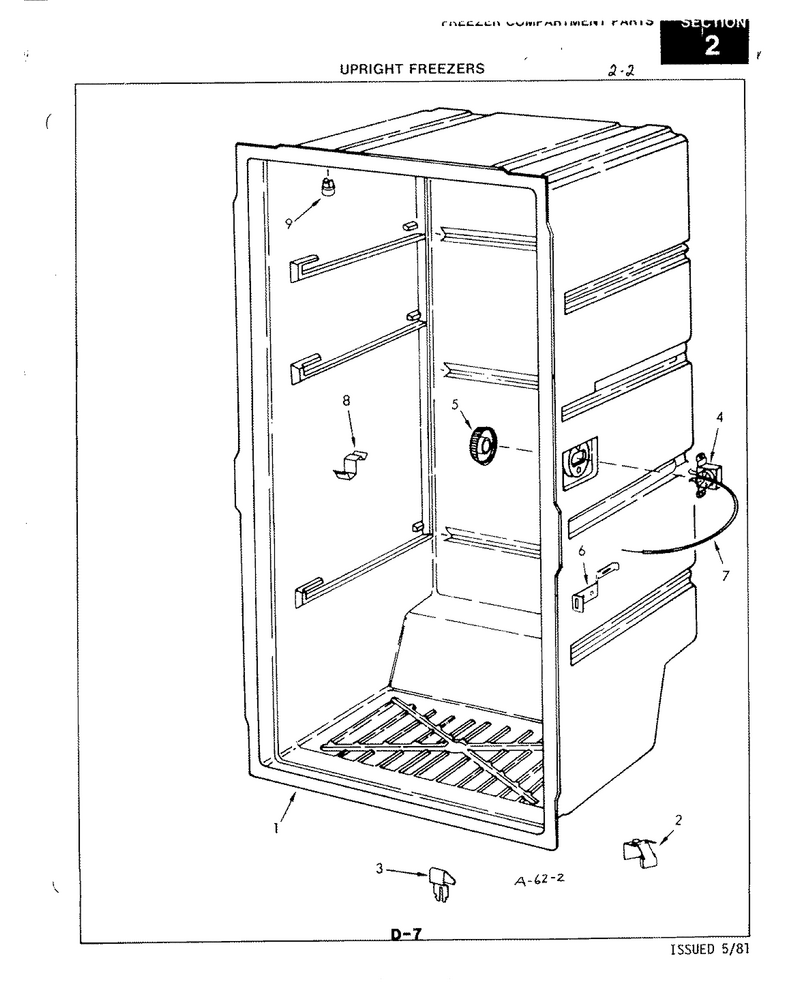

02 - Freezer Compartment

...
...
1
Food Liner WPL-54629-7
...
2
Clip WPL-54576-1
...
3
Clip WPL-58083-1
...
4
Control, Temperature WPL-52881-21
...
5
Knob WPL-26621-27
...
6
Bracket WPL-57311-1
...
7
Tubing WPL-4008-13
...
8
Clip WPL-54667-1
...
9
Nut WPL-56142-8
