Magic Chef DH50M-02

Model: DH50M-02

Save Part Not Listed?
product name

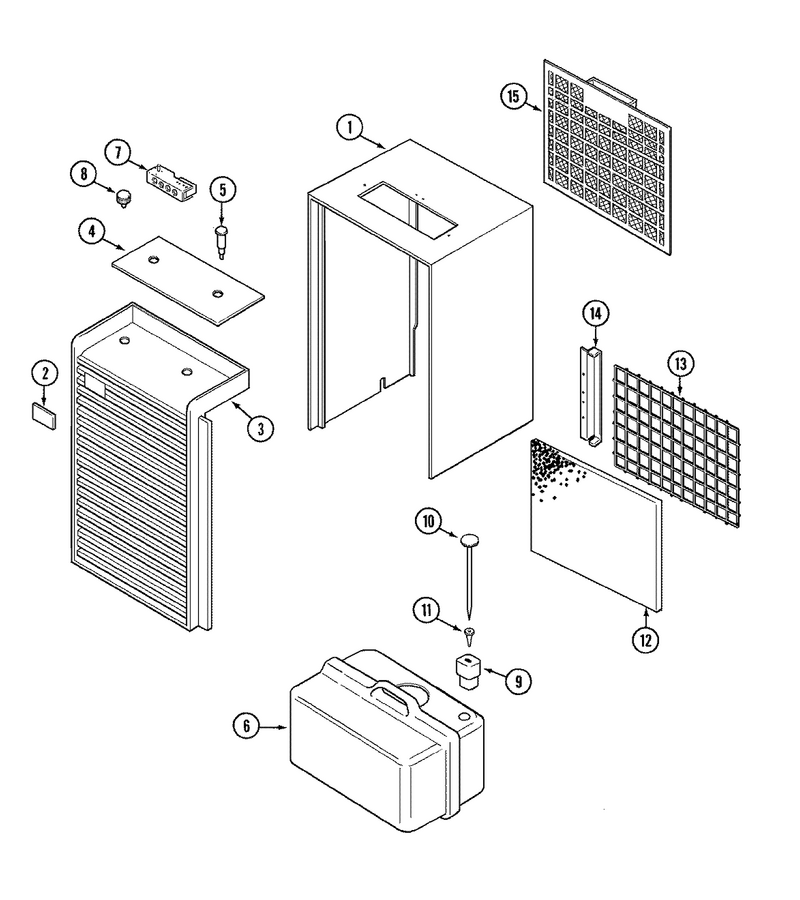

01 - Cabinet

...
...
1
Screw, Bracket WPL-65001014
...
2
Nameplate (Magic Chef) WPL-65001041
...
3
Front, Grill WPL-02100236
...
4
Panel, Escutcheon WPL-65001008
...
5
Signal Light WPL-18509-1
...
6
Bucket WPL-18151-8
...
7
Screw WPL-03020030
...
8
Knob, Humidistat Control WPL-02330064
...
9
Float WPL-18153-1
...
10
Rod WPL-18152-1
...
11
Guide WPL-18182-1
...
15
Filter Assy. WPL-65001019

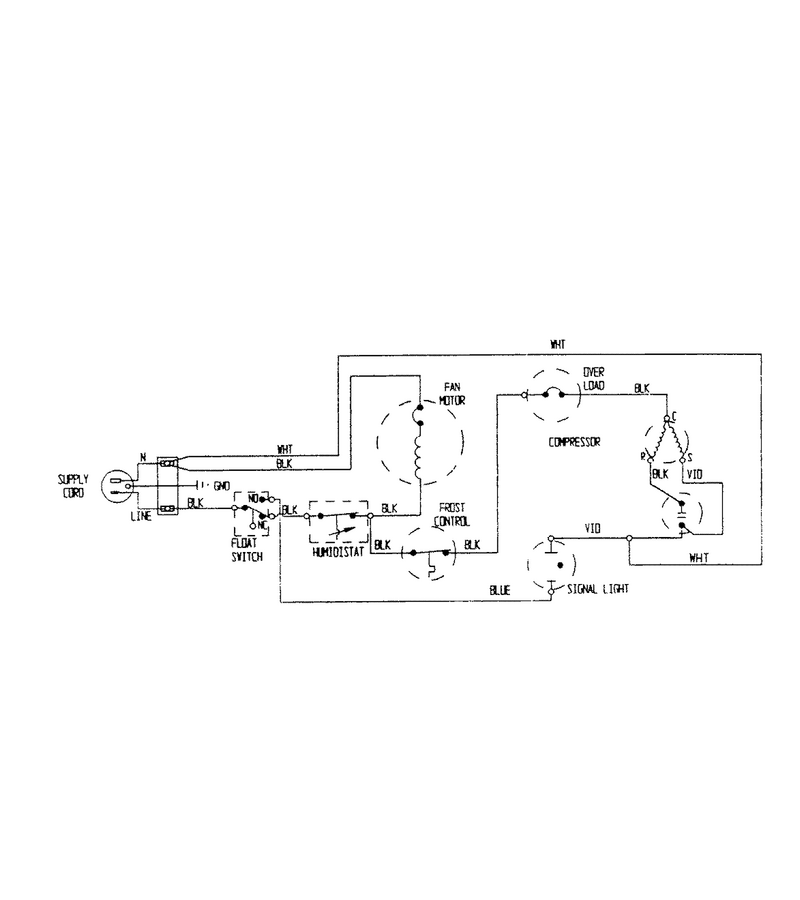

03 - Wiring Information

...
...
NI
Wiring Information WPL-15001970

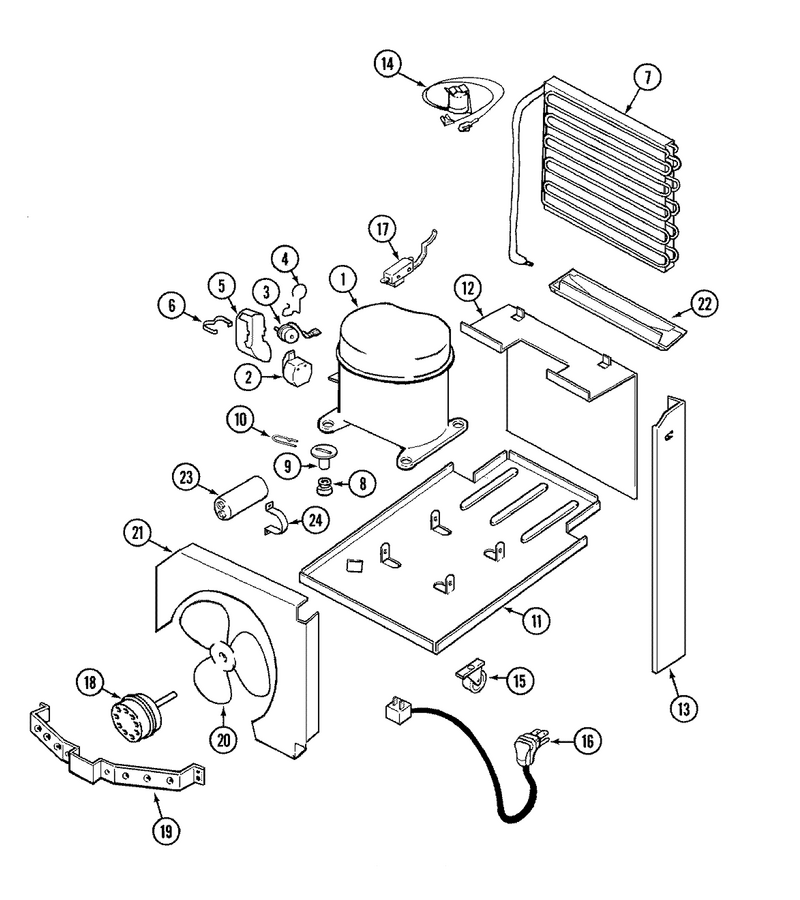

02 - System & Chassis

...
...
1
Compressor Kit (Dehum-R22) WPL-12001335
...
3
Overload WPL-65001022
...
4
Clip, Overload WPL-65001023
...
5
Cover, Terminal WPL-65001024
...
6
Clip, Terminal Cover WPL-65001025
...
7
Coil, Evaporator & Condenser WPL-65001055
...
8
Grommet WPL-242-4
...
9
Plug, Compressor WPL-52656-2
...
10
Clip, Mounting WPL-2163787
...
11
Pan, Base WPL-65001033
...
12
Screw WPL-03020077
...
13
Screw WPL-03020077
...
14
Thermostat WPL-18543-2
...
15
Caster WPL-18147-1
...
16
Power Cord WPL-01080059
...
17
Switch, Overflow Control WPL-18470-2
...
18
Motor, Fan WPL-Y01110042
...
19
Screw WPL-03020030
...
20
Locknut, Fan Blade----Na WPL-65001017
...
21
Orifice, Fan WPL-65001039
...
22
Screw, Bracket WPL-65001014
...
23
Capacitor WPL-65001026
...
24
Bracket, Capacitor WPL-65001059
...
25
Manual, Use & Care WPL-65001031
...
26
Guide, Quick Ref. - Magic Chef WPL-16000329
