Magic Chef DH50M-01

Model: DH50M-01

Save Part Not Listed?
product name

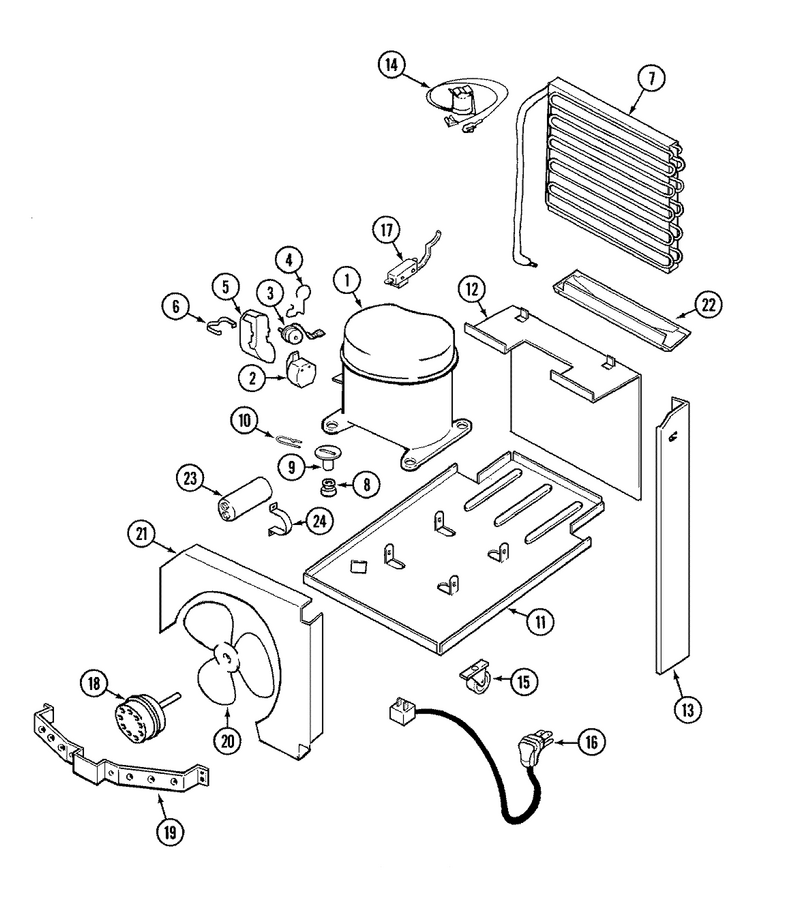

02 - System & Chassis

...
...
1
Compressor Kit (Dehum-R22) WPL-12001335
...
2
Relay, Start WPL-65001002
...
3
Overload WPL-65001003
...
4
Clip, Overload WPL-65001004
...
5
Cover, Terminal WPL-65001005
...
6
Clip, Cover WPL-65001006
...
7
Coil, Evaporator & Condenser WPL-65001055
...
8
Grommet WPL-242-4
...
9
Plug, Compressor WPL-52656-2
...
10
Clip, Mounting WPL-2163787
...
11
Pan, Base WPL-65001033
...
12
Screw WPL-03020077
...
13
Screw WPL-03020077
...
14
Thermostat WPL-18543-2
...
15
Caster WPL-18147-1
...
16
Clamp, Power Cord WPL-65001037
...
17
Screw WPL-65001057
...
18
Locknut, Fan Motor WPL-65001038
...
19
Screw WPL-03020030
...
20
Locknut, Fan Blade----Na WPL-65001017
...
21
Orifice, Fan WPL-65001039
...
22
Trough, Water WPL-65001013
...
25
Manual, Use & Care WPL-65001031
...
26
Guide, Quick Ref. - Magic Chef WPL-16000329

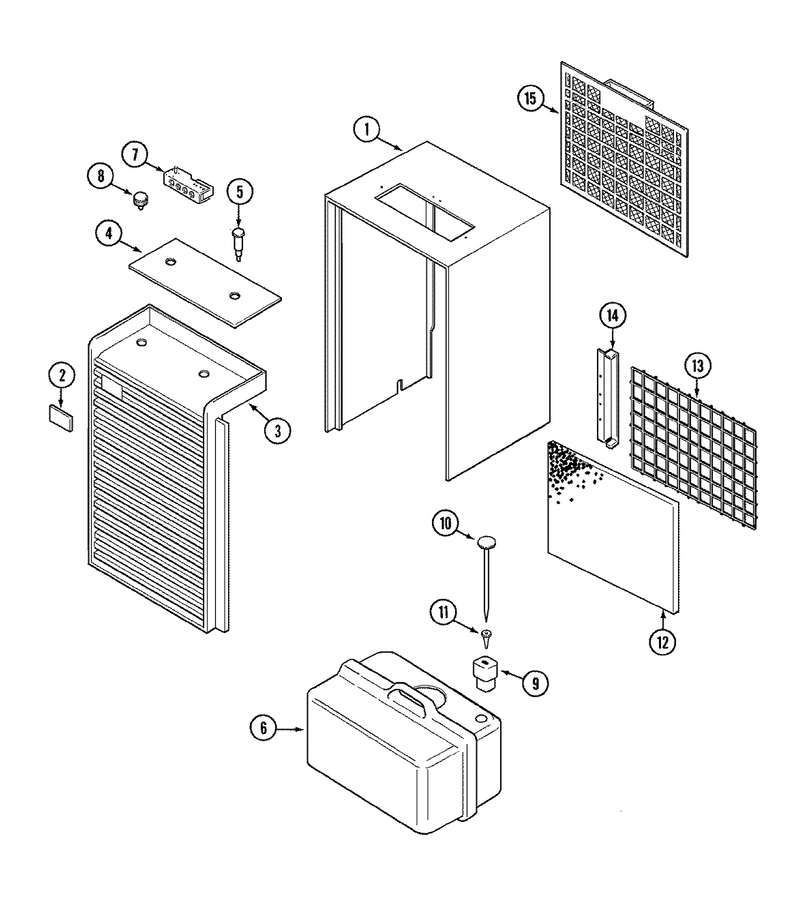

01 - Cabinet

...
...
1
Screw WPL-W11233072
...
2
Nameplate (Magic Chef) WPL-65001041
...
3
Screw WPL-W11233072
...
4
Panel, Escutcheon WPL-65001008
...
5
Signal Light WPL-18509-1
...
6
Bucket WPL-18151-8
...
7
Screw WPL-03020030
...
8
Knob, Humidistat Control WPL-02330064
...
9
Float WPL-18153-1
...
10
Rod WPL-18152-1
...
11
Guide WPL-18182-1
...
15
Filter Assy. WPL-65001019

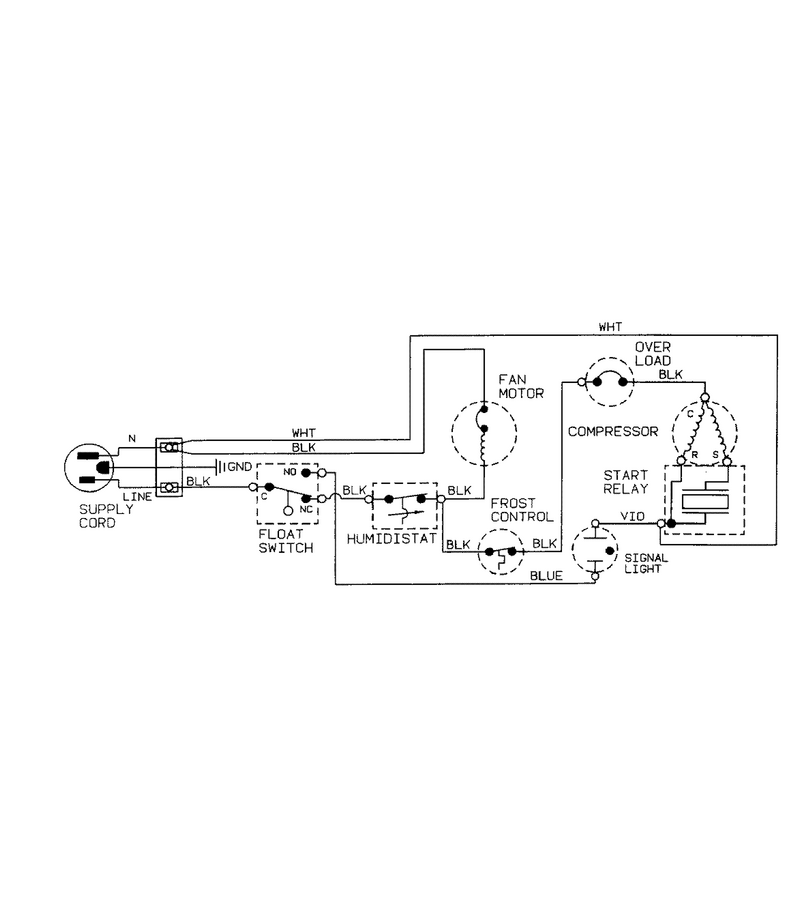

03 - Wiring Information

...
...
NI
Wiring Information WPL-15001969
