Magic Chef CRD22AY-3A (BOM: 5M74A)

Model: CRD22AY-3A (BOM: 5M74A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

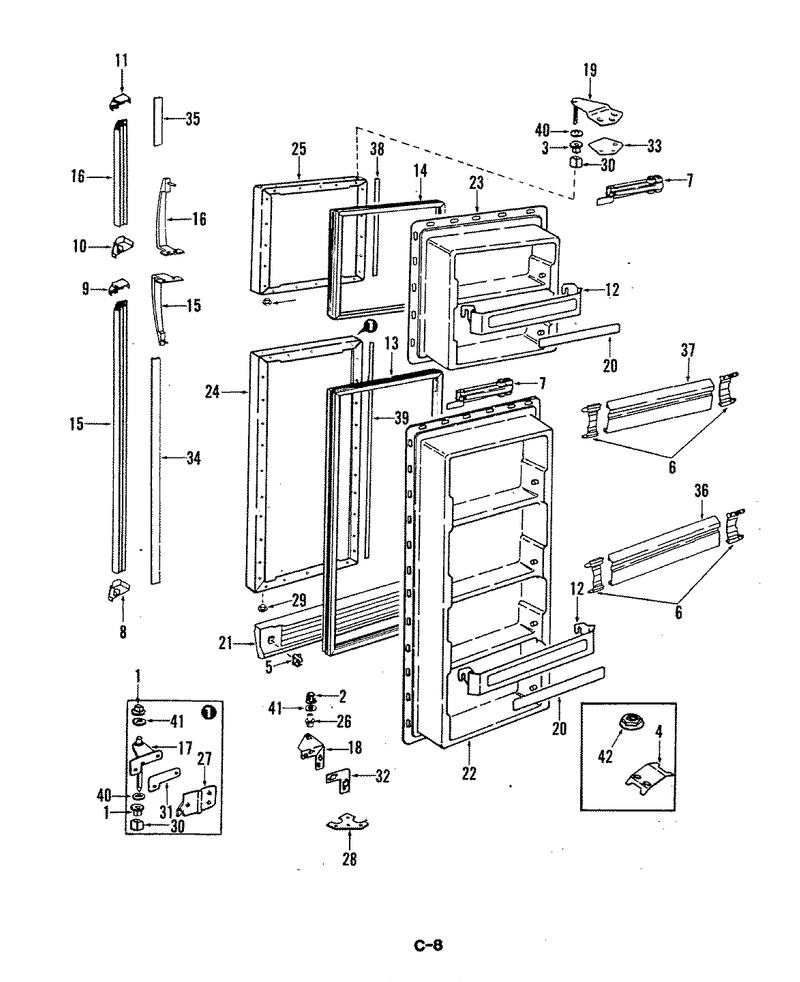

01 - Freezer Door

...
...
1
Bracket, Closer WPL-52614-1
...
2
Bushing, Lower Hinge WPL-66034-1
...
3
Bushing,top/center Hinge WPL-66036-1
...
5
Clip, Kickplate WPL-52854-3
...
7
Closer, Door WPL-54485-1
...
8
End Cap WPL-57947-1
...
9
End Cap WPL-57947-2
...
10
End Cap WPL-57947-2
...
11
End Cap WPL-57947-1
...
12
Shelf Front WPL-65701-8
...
13
Gasket WPL-53712-15
...
14
Gasket WPL-53712-8
...
15
Handle WPL-56835-37
...
16
Handle WPL-56835-38
...
17
Hinge WPL-54390-6
...
18
Hiner, Lower (Chrome) WPL-60630-10
...
19
Upper Hinge,(Chrome) WPL-53709-16
...
20
Insert WPL-65571-9
...
21
Kickplate WPL-56477-8
...
22
Liner, Door WPL-65696-4
...
23
Liner, Door WPL-65695-4
...
26
Pin, Lower Hinge WPL-53672-1
...
27
Tapping Plate WPL-54031-2
...
28
Tapping Plate, Lower Hinge WPL-65964-1
...
29
Screw WPL-WP22001496
...
30
Seal Sleeve WPL-55990-1
...
31
Spacer WPL-54386-4
...
32
Shim, Lower Hinge WPL-60626-1
...
33
Shim, Upper Hinge WPL-65031-1
...
39
Washer WPL-420063-1
...
40
Washer WPL-52185-2
...
41
Washer WPL-61005628

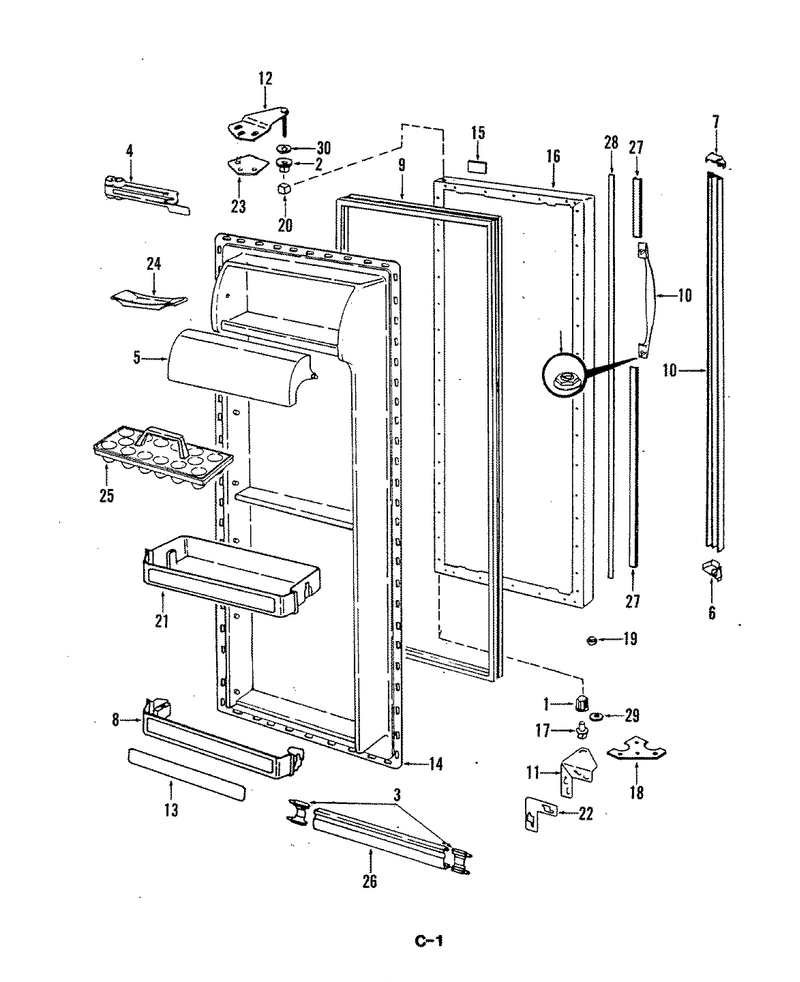

03 - Fresh Food Door

...
...
1
Bracket, Closer WPL-52614-1
...
2
Bushing, Upper Hinge WPL-66036-2
...
4
Closer, Door WPL-54485-1
...
5
Door, Dairy WPL-65589-204
...
8
Shelf Front WPL-65781-4
...
9
Gasket WPL-53712-2
...
10
Handle WPL-63686-3
...
11
Hinge, Lower WPL-60630-12
...
12
Upper Hinge,(Chrome) WPL-53709-16
...
13
Insert WPL-65571-9
...
14
Liner, Door WPL-65640-3
...
15
Nameplate WPL-65791-1
...
17
Pin, Lower Hinge WPL-53672-1
...
18
Tapping Plate, Lower Hinge WPL-65964-1
...
19
Screw WPL-61005388
...
20
Seal Sleeve WPL-55990-1
...
22
Shim, Lower Hinge WPL-60626-1
...
23
Shim, Upper Hinge WPL-65031-1
...
24
Tray, Butter WPL-29936-2
...
25
Tray-Egg WPL-WP67004411
...
27
Handle Ext WPL-65774-6
...
28
Trim WPL-65773-13
...
29
Washer WPL-54233-1
...
30
Washer WPL-WP52185-1
...
31
Fastener WPL-434003-506

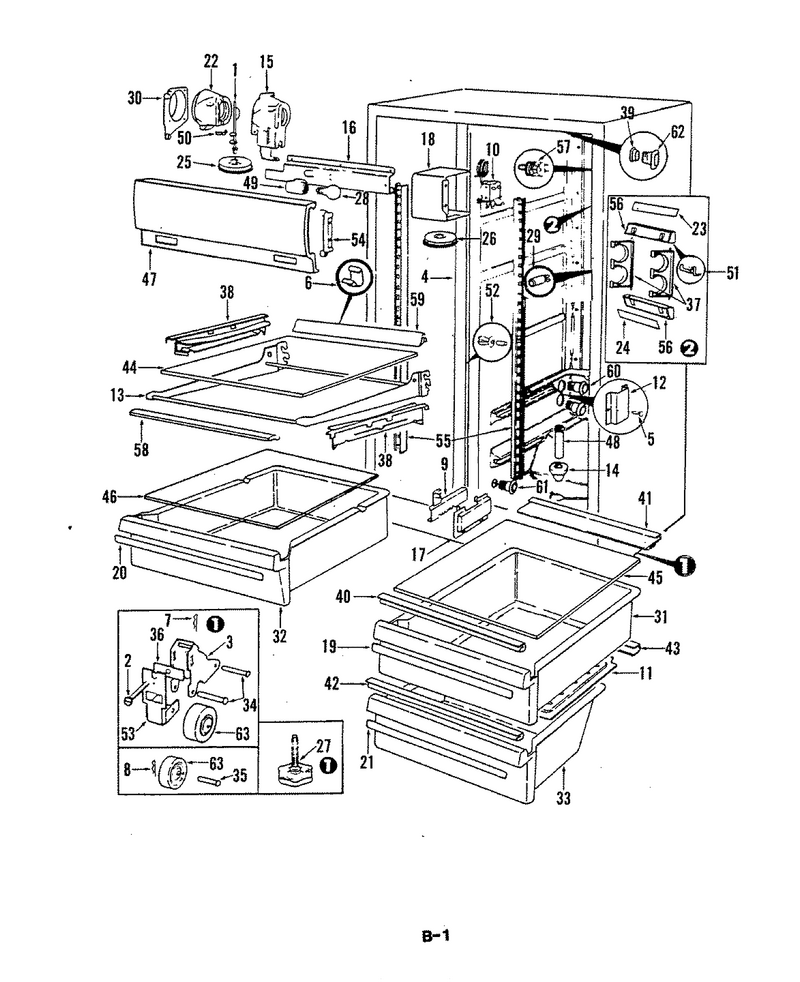

02 - Fresh Food Compartment

...
...
1
Damper WPL-52587-2
...
2
Screw, Wheel Adjustment WPL-56487-1
...
3
Bracket, Wheel WPL-62794-1
...
5
Clip,food Liner Mount.(Slides) WPL-57418-1
...
6
Clip WPL-65358-1
...
7
Pin, Wheel WPL-64965-1
...
8
Clip WPL-56686-4
...
9
Slide Control, (Meat) WPL-65736-1
...
10
Kit, Temp Control WPL-12000034
...
11
Cover, Meat Pan WPL-65608-2
...
12
Air Deflector WPL-62128-1
...
13
Frame, Shelf WPL-65618-2
...
14
Grommet WPL-55512-1
...
15
Housing, Freezer Control WPL-58760-2
...
16
Housing, Light Socket & Wires WPL-59740-2
...
17
Control Housing WPL-65737-1
...
18
Housing, Temperature Control WPL-53682-10
...
19
Insert WPL-65583-17
...
20
Insert WPL-65583-19
...
21
Insert WPL-65583-18
...
22
Insulation, Housing WPL-58767-1
...
23
Insert WPL-65753-3
...
24
Insert WPL-65753-7
...
25
Knob WPL-29893-6
...
26
Knob WPL-29893-5
...
27
Leveler WPL-W11117769
...
28
Bulb-Light WPL-W10887190
...
29
Nylon Nut WPL-19530-2
...
30
Orifice, Freezer Control WPL-53835-2
...
31
Trim-Door WPL-849250
...
32
Pan, Deli WPL-65576-4
...
33
Pan, Meat WPL-65575-4
...
34
Pin, Wheel WPL-64965-1
...
35
Pivot Pin, Wheel (Rear) WPL-62580-1
...
36
Tapping Plate, Wheel WPL-59101-1
...
37
Rack, Wine WPL-56519-4
...
38
Clip WPL-53060-4
...
39
Screw WPL-WP489478
...
40
Seal WPL-65593-2
...
41
Seal, Crisper Pan (Front) WPL-65650-2
...
42
Seal, Meat Pan (Front) WPL-65648-2
...
43
Seal, Meat Pan (Rear) WPL-65649-2
...
44
Glass Shelf WPL-65598-14
...
45
Shelf, Crisper WPL-65687-4
...
46
Glass Shelf WPL-65598-16
...
47
Shield, Light WPL-65578-4
...
48
Tube WPL-55513-1
...
49
Receptacle, Light WPL-29814-2
...
50
Spring, Baffle WPL-52648-1
...
51
Spring, Wine Rack WPL-58057-1
...
52
Rivet WPL-WP59920-17
...
53
Faceplate Bracket WPL-62795-1
...
54
Support WPL-53686-2
...
55
Rail, Shelf Support WPL-58381-4
...
56
Support, Wine Rack WPL-65689-1
...
57
Switch WPL-56432-2
...
58
Trim WPL-65614-2
...
59
Trim WPL-65276-14
...
60
Air Tunnel WPL-53726-1
...
61
Tunnel, Air (Meat) WPL-53726-2
...
62
Tunnel WPL-57410-1
...
63
Wire Harness WPL-65287-2
