Magic Chef 8341VV

Model: 8341VV

Save Part Not Listed?
product name

Popular Parts

Popular Parts

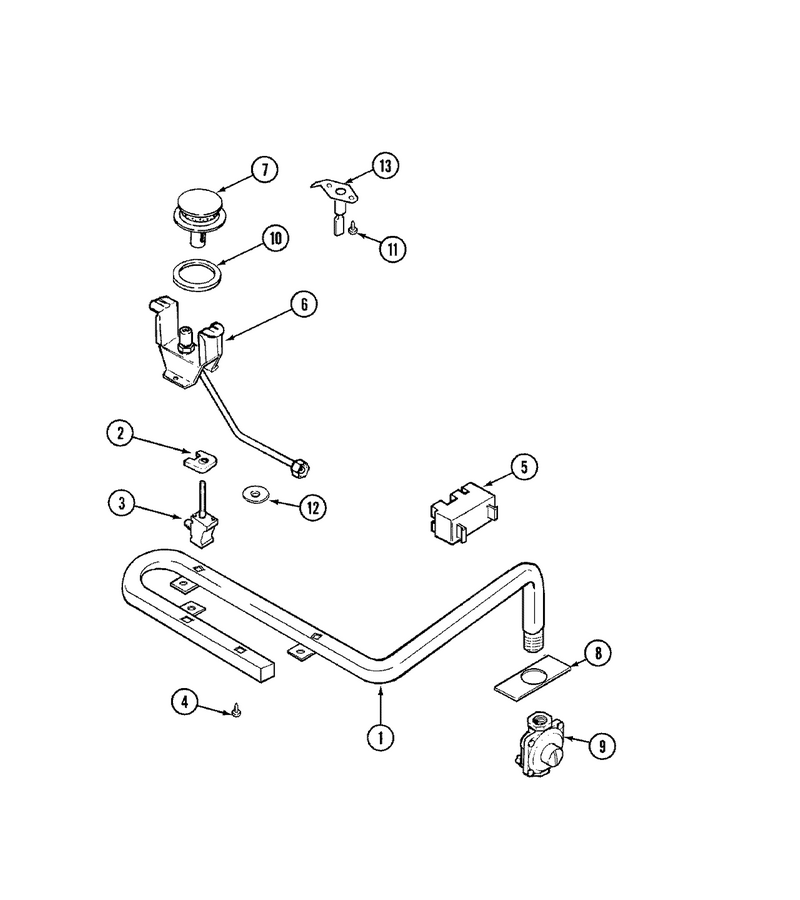

01 - Gas Controls

...
...
1
Screw WPL-W10491986
...
2
Sleeve Kit, Ign. Switch WPL-12001434
...
3
Valve, Burner-----Na WPL-74001980
...
4
Screw WPL-W10491986
...
5
Module-Spk WPL-12001596
...
6
Orifice Fitting Assy. WPL-74001974
...
7
Burnr-Head WPL-WP3412D024-26
...
8
Seal, Manifold Pipe WPL-74002077
...
9
Regulator, Pressure WPL-7510P002-60
...
10
Gasket, Burner WPL-7201P050-60
...
11
Screw WPL-WP59002061
...
12
Cover, Burner Valve WPL-7724P004-60
...
13
Igniter, Top Burner WPL-74004053
...
14
Wire, Igniter - R WPL-5111A261-60

02 - Wiring Information

...
...
NI
Wiring Information WPL-15001540
