Magic Chef 8341VS

Model: 8341VS

Save Part Not Listed?
product name

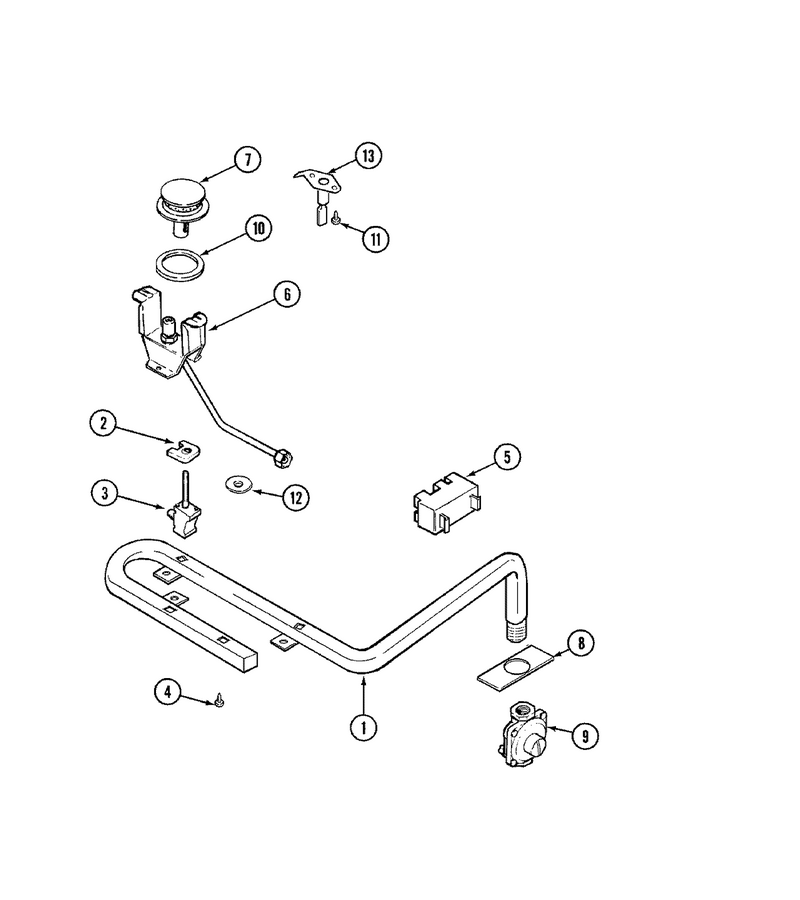

01 - Gas Controls

...
...
1
Pipe, Manifold WPL-74001978
...
2
Switch, Igniter WPL-7403P370-60
...
3
Valve, Burner WPL-74001981
...
4
Screw WPL-W10491986
...
5
Module-Spk WPL-12001596
...
6
Orifice Fitting Assy. WPL-74001977
...
7
Burnr-Head WPL-WP3412D024-09
...
8
Seal, Manifold Pipe WPL-74002077
...
9
Regulator, Pressure WPL-7510P002-60
...
10
Gasket, Burner WPL-7201P050-60
...
11
Screw WPL-WP59002061
...
12
Cover, Burner Valve WPL-7724P004-60
...
13
Not Required Part Or See Note Igniter Not Sold Separately (Must Order Sealed Burner- Item No.7) WPL-W10124350
...
14
Wire, Igniter - R WPL-5111A261-60

02 - Wiring Information

...
...
NI
Wiring Information WPL-15001540
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
