Magic Chef 8341VD

Model: 8341VD

Save Part Not Listed?
product name

Popular Parts

Popular Parts

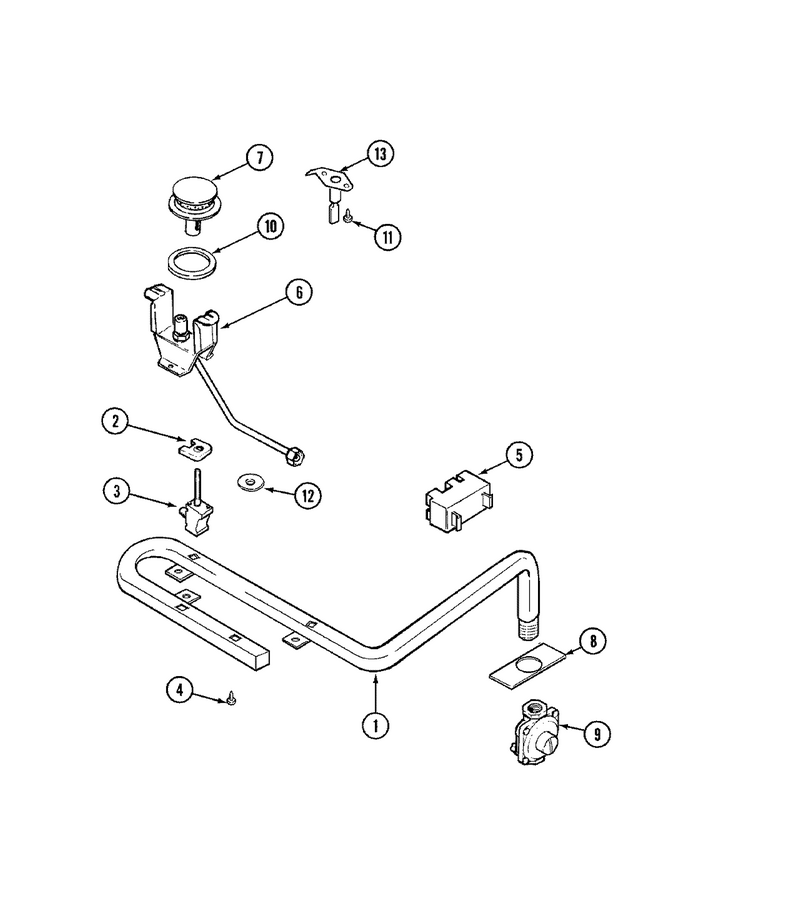

01 - Gas Controls

...
...
1
Screw WPL-W10491986
...
2
Switch, Igniter WPL-7403P369-60
...
3
Valve, Burner WPL-74001979
...
4
Screw WPL-W10491986
...
5
Module-Spk WPL-12001596
...
6
Orifice Fitting Assy. WPL-74001974
...
7
Sealed Burner Assy. (Taupe) WPL-74003521
...
8
Seal, Manifold Pipe WPL-74002077
...
9
Regulator, Pressure WPL-7510P002-60
...
10
Gasket, Burner WPL-7201P050-60
...
11
Screw WPL-WP59002061
...
12
Cover, Burner Valve WPL-7724P004-60
...
13
Igniter, Top Burner WPL-74004053
...
14
Wire, Igniter - R WPL-5111A610-60

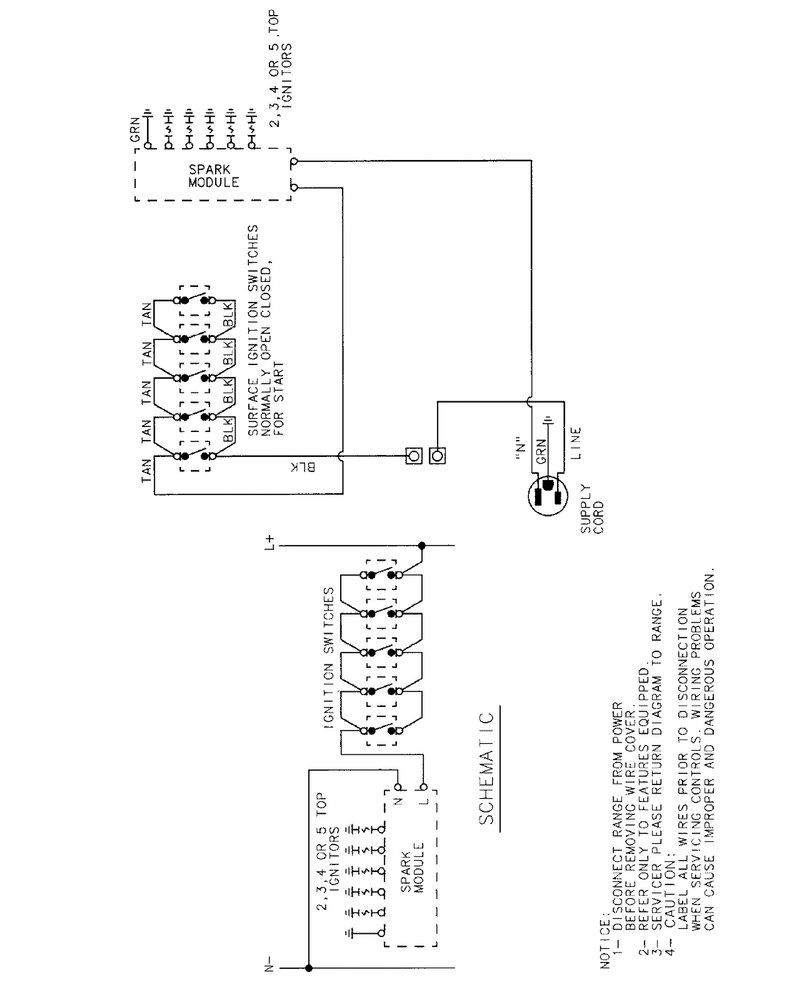

03 - Wiring Information

...
...
NI
Wiring Information WPL-15001540

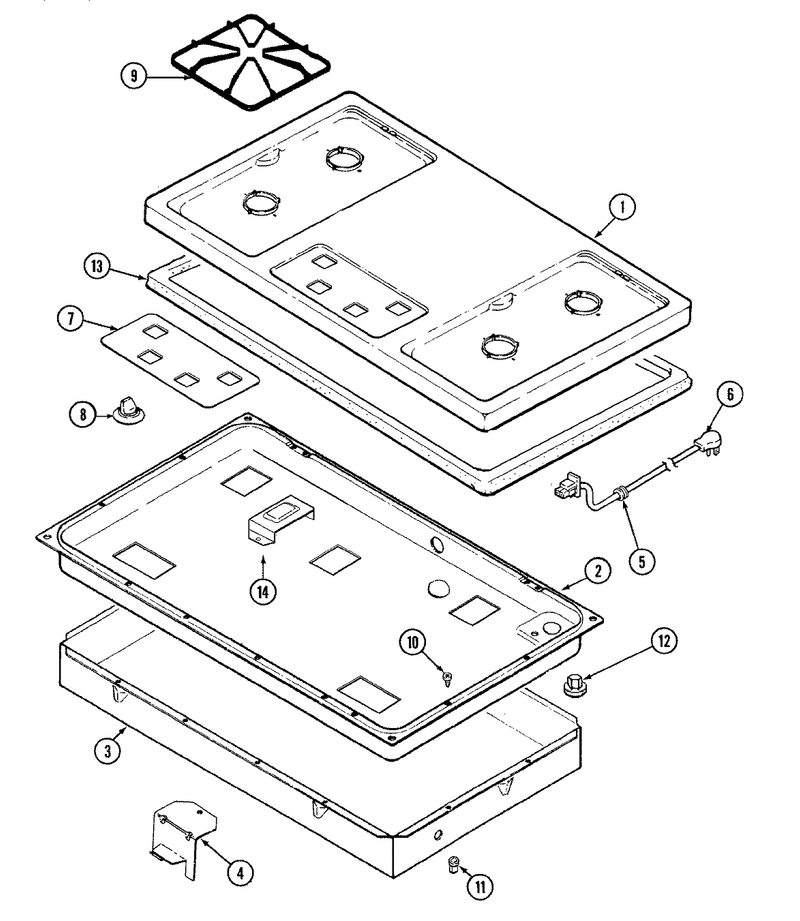

02 - Top Assembly

...
...
1
Top, Main (Alm) WPL-74002022
...
2
Bottom, Burner Box WPL-74001965
...
3
Screw WPL-WP4159193
...
4
Screw WPL-W11684512
...
5
Bushing, Snap WPL-8007P003-60
...
6
Cord, Power WPL-7402P047-60
...
7
Trim, Control Panel (Alm) WPL-74002023
...
8
Knob, Burner (Alm) WPL-74001962
...
9
Grate (Brn) WPL-74001060
...
10
Screw WPL-W11684512
...
11
Nut, Snap WPL-7103P016-60
...
12
Plug, Button (7/8``) WPL-74002078
...
13
Tape, Foam Seal WPL-74002138
...
14
Screw WPL-W11233072
...
15
Grommet, Nylon WPL-8008P012-60
...
16
Screw WPL-W11684512
...
17
Harness, Main Wire WPL-74001877
...
18
Guide, Quick Ref. - Magic Chef WPL-16000329
