Magic Chef 8341VB

Model: 8341VB

Save Part Not Listed?
product name

Popular Parts

Popular Parts

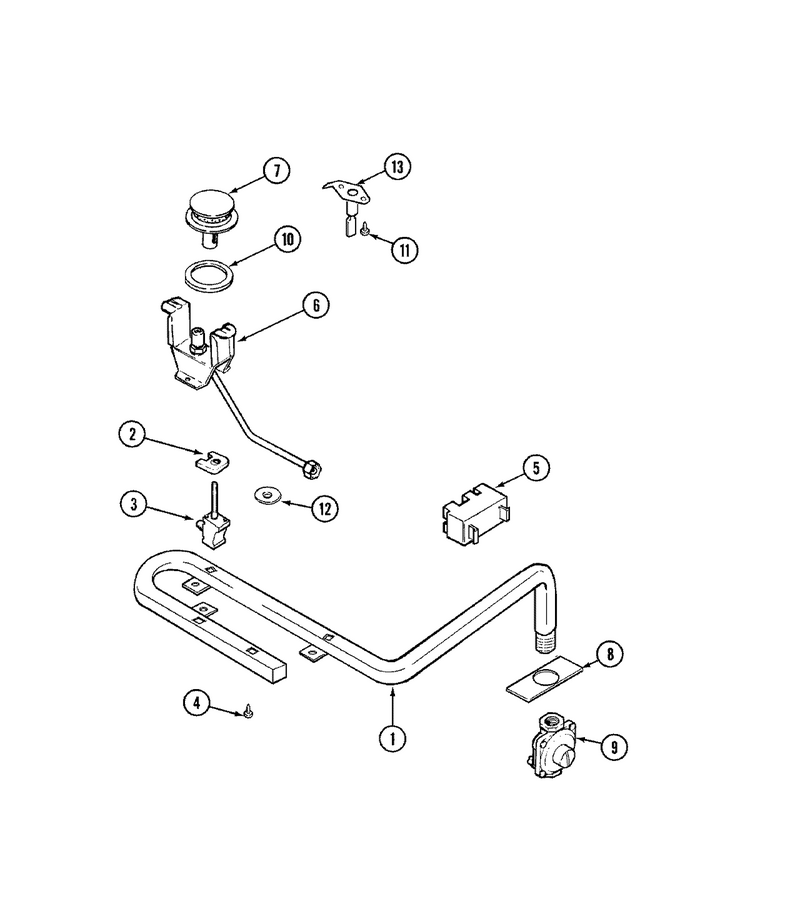

01 - Gas Controls

...
...
1
Plug, Manifold Pipe WPL-74001788
...
2
Igniter Sw WPL-12002788
...
3
Valve, Burner-----Na WPL-74001980
...
4
Screw WPL-W10491986
...
5
Module-Spk WPL-12001596
...
6
Orifice Fitting Assy. WPL-74001974
...
7
Burnr-Head WPL-WP3412D024-09
...
8
Seal, Manifold Pipe WPL-74002077
...
9
Regulator, Pressure WPL-7510P002-60
...
10
Gasket, Burner WPL-7201P050-60
...
11
Screw WPL-WP59002061
...
12
Cover, Burner Valve WPL-7724P004-60
...
13
Igniter, Top Burner WPL-74004053
...
14
Wire, Igniter - R WPL-5111A610-60

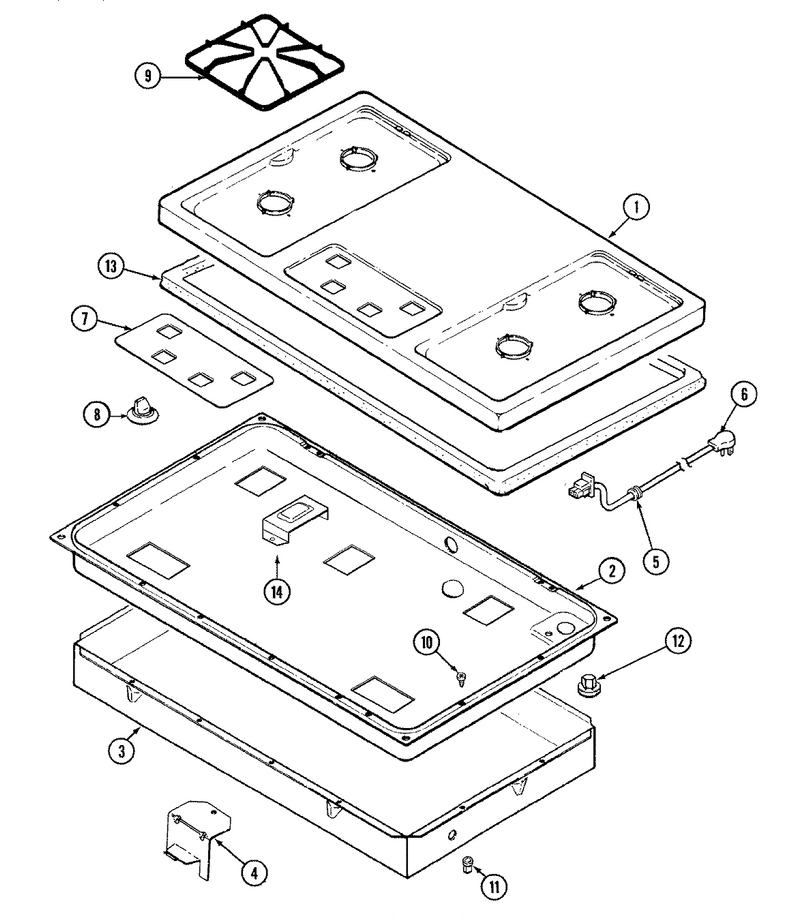

02 - Top Assembly

...
...
1
Top, Main (Blk) WPL-74001876
...
2
Bottom, Burner Box WPL-74001965
...
3
Housing, Unit WPL-74001966
...
4
Bracket, Tie Down WPL-74001969
...
5
Bushing, Snap WPL-8007P003-60
...
6
Cord, Power WPL-7402P047-60
...
7
Panel, Control (Blk) WPL-74001875
...
8
Knob, Burner (Blk) WPL-74001874
...
9
Grate-Brnr WPL-WP7518P464-60
...
10
Screw WPL-W11684512
...
11
Nut, Snap WPL-7103P016-60
...
12
Plug, Button (7/8``) WPL-74002078
...
13
Tape, Foam Seal WPL-74002138
...
14
Screw WPL-W11233072
...
15
Grommet, Nylon WPL-8008P012-60
...
16
Screw WPL-W11684512
...
17
Harness, Main Wire WPL-74001877
...
18
Guide, Quick Ref. - Magic Chef WPL-16000329

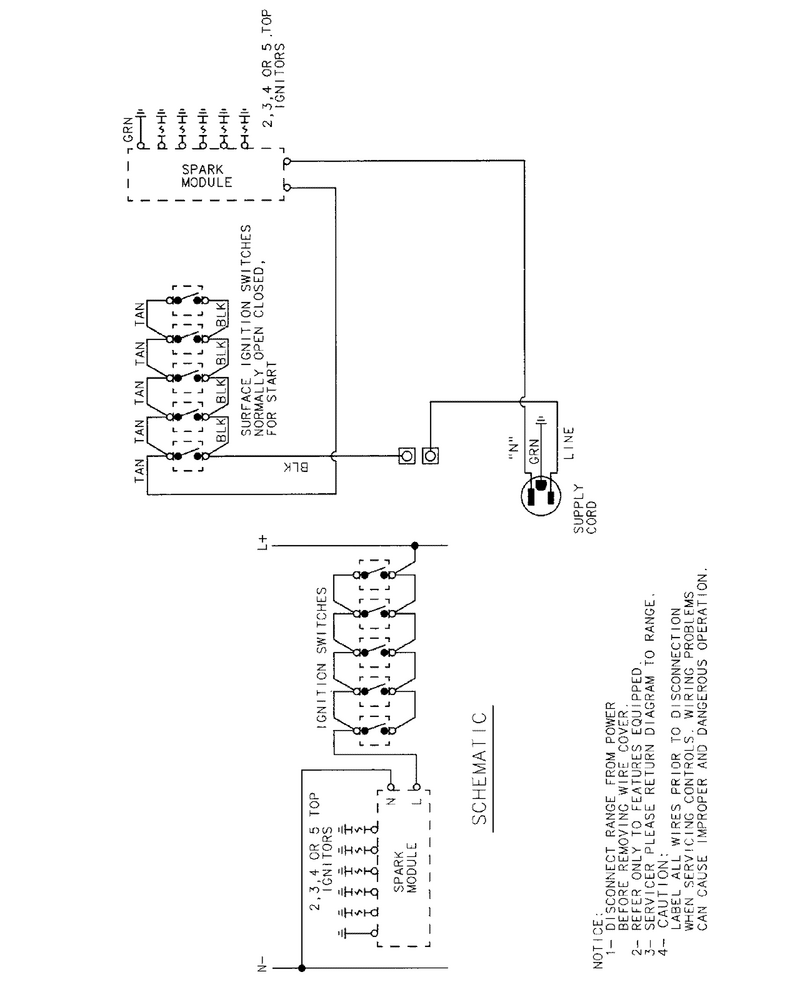

03 - Wiring Information

...
...
NI
Wiring Information WPL-15001540
