Magic Chef 8321TA

Model: 8321TA

Save Part Not Listed?
product name

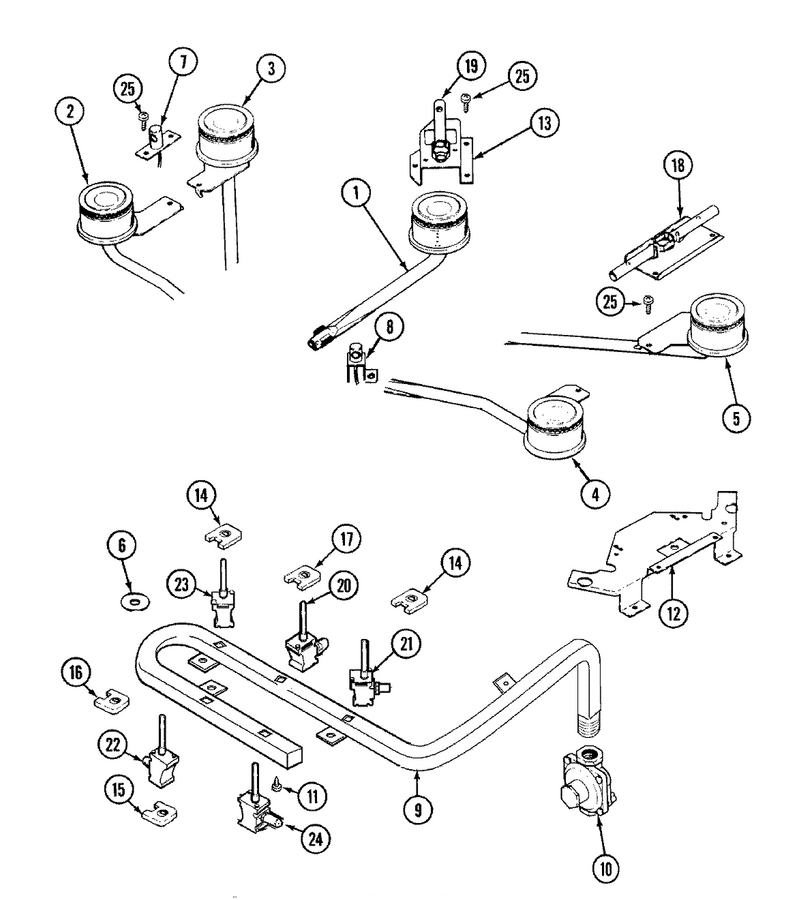

02 - Gas Controls

...
...
1
Burner, Griddle WPL-7505P216-60
...
2
Burner (L.f.) WPL-7505P218-60
...
3
Burner (L.r.) WPL-7505P217-60
...
4
Burner (R.f.) WPL-7505P220-60
...
5
Burner (R.r.) WPL-7505P219-60
...
6
Cover, Burner Valve WPL-7724P004-60
...
7
Igniter (Lt) WPL-7432P017-60
...
8
Igniter, Top WPL-7432P016-60
...
9
Pipe, Manifold WPL-7513P162-60
...
10
Regulator, Pressure WPL-7510P002-60
...
11
Screw WPL-W10491986
...
12
Support, Burner WPL-3807F330-51
...
13
Support First Article WPL-3807F405-45
...
14
Switch, Igniter WPL-7403P370-60
...
15
Switch, Burner WPL-7403P346-60
...
16
Switch, Burner WPL-7403P345-60
...
17
Switch- Ig WPL-WP7403P279-60
...
18
Tube, Assy Flash - Griddle WPL-7506P064-60
...
19
Tube, Assy Flash WPL-7506P017-60
...
20
Valve, Burner (Griddle) WPL-7502P262-60
...
21
Valve, Burner (R.r.) WPL-7502P255-60
...
22
Valve, Burner (L.f.) WPL-7502P258-60
...
23
Valve, Burner (R.r.) WPL-7502P255-60
...
24
Valve, Burner (R.f.) WPL-7502P260-60
...
25
Screw WPL-WP4159193
...
26
Harness, Loose Wire WPL-5125A385-60

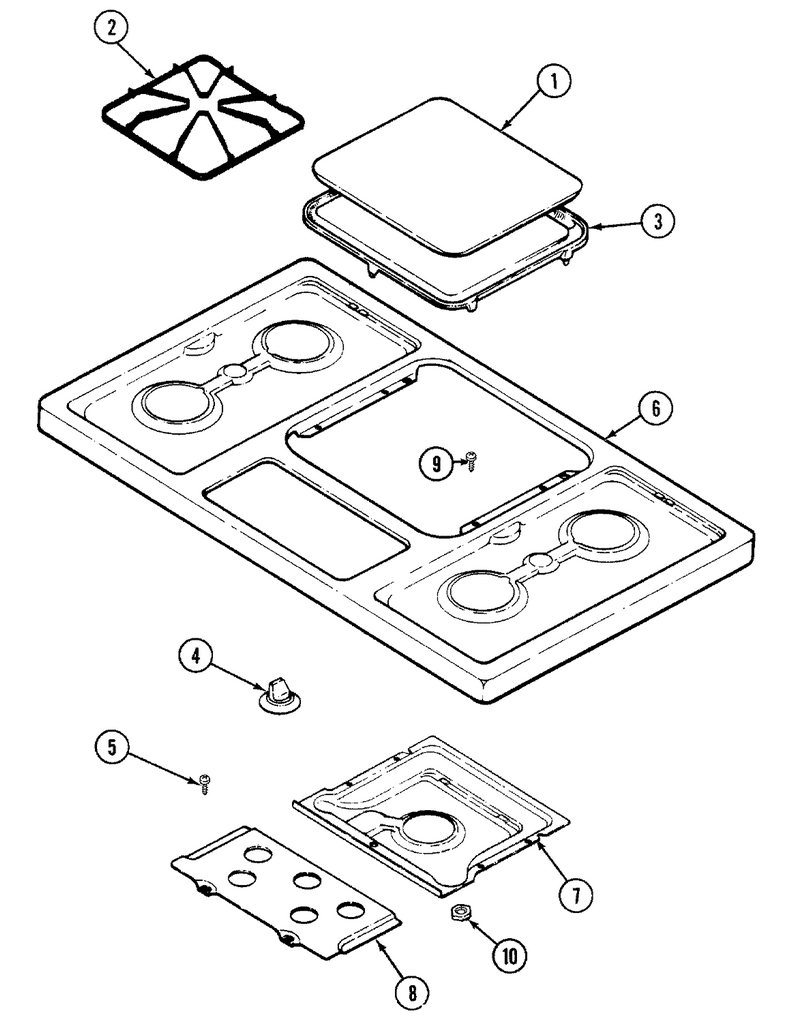

03 - Top Assembly

...
...
1
Cover, Griddle WPL-2005F005-30
...
2
Grate-Brnr WPL-W11400301
...
3
Griddle WPL-7508P006-60
...
4
Knob, Valve (Blk) WPL-7733P102-60
...
5
Screw WPL-WP7101P126-60
...
6
Top, Main (Alm) WPL-2001F041-84
...
7
Tray, Griddle-Drip WPL-2006F003-50
...
8
Trim, Control Panel (Blk) WPL-7720P170-60
...
9
Screw WPL-7101P114-60
...
10
Nut WPL-WPW10131078
...
11
Guide, Quick Ref. - Magic Chef WPL-16000329

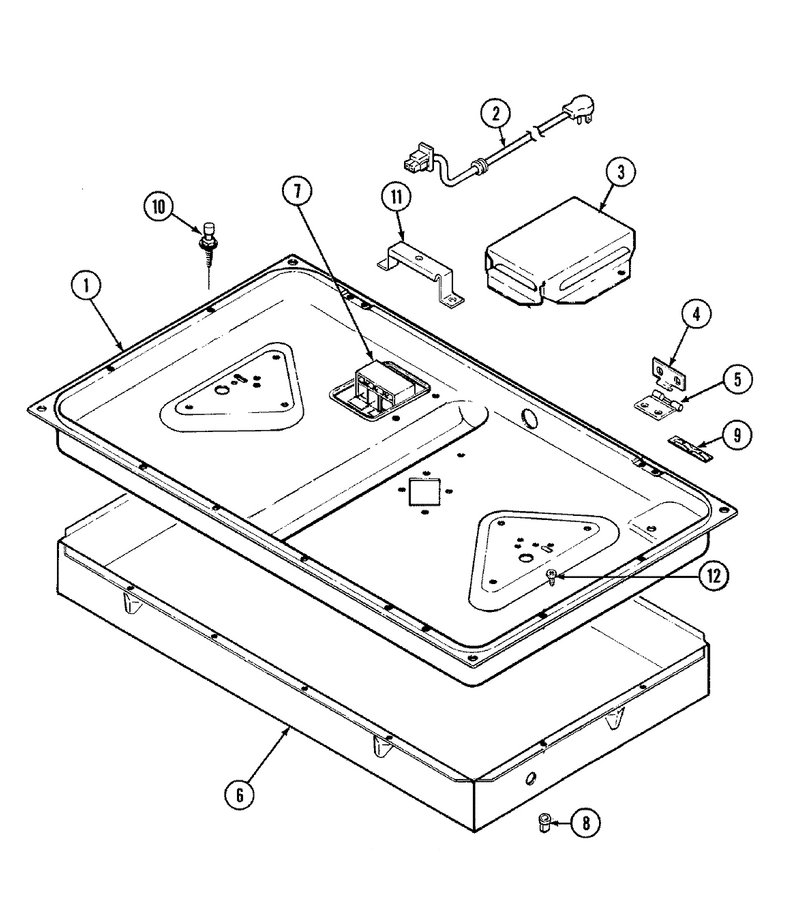

01 - Body

...
...
1
Box, Burner WPL-4011F232-80
...
2
Cord, Power WPL-7402P047-60
...
3
Cover, Transformer WPL-4005F108-51
...
4
Hinge, Top WPL-7106P001-60
...
5
Hinge, Top WPL-7106P005-60
...
6
Housing, Unit WPL-4001F096-51
...
7
Module-Spk WPL-12001596
...
8
Nut, Pal WPL-7103P110-60
...
9
Nut, Twin Speed WPL-7103P028-60
...
10
Spacer, Top WPL-8010P007-60
...
11
Support, Griddle WPL-3807F198-34
...
12
Screw WPL-W11684512
...
13
Bracket, Cooktop Mtg. WPL-3801F342-80
