Magic Chef 8311TW

Model: 8311TW

Save Part Not Listed?
product name

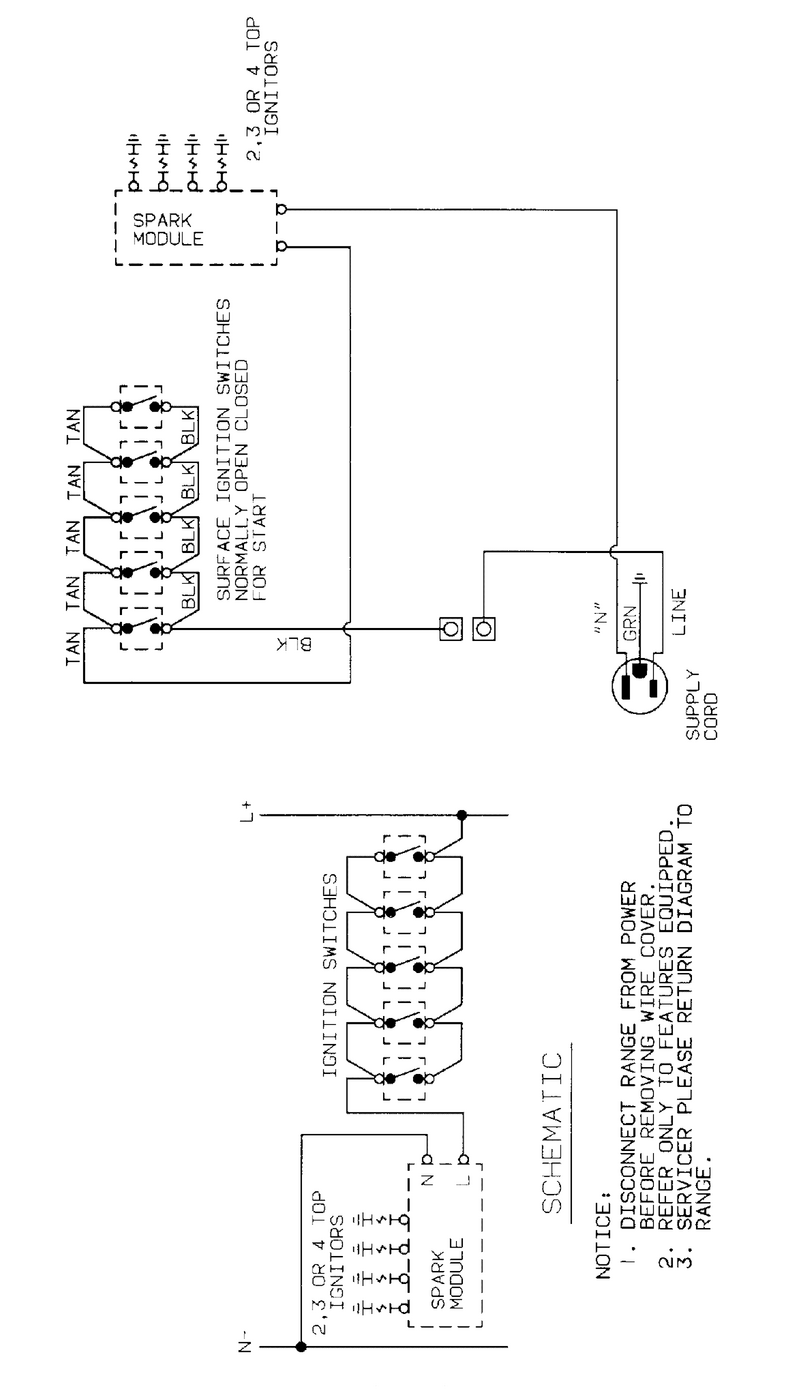

03 - Wiring Information

...
...
NI
Wiring Information WPL-15001198

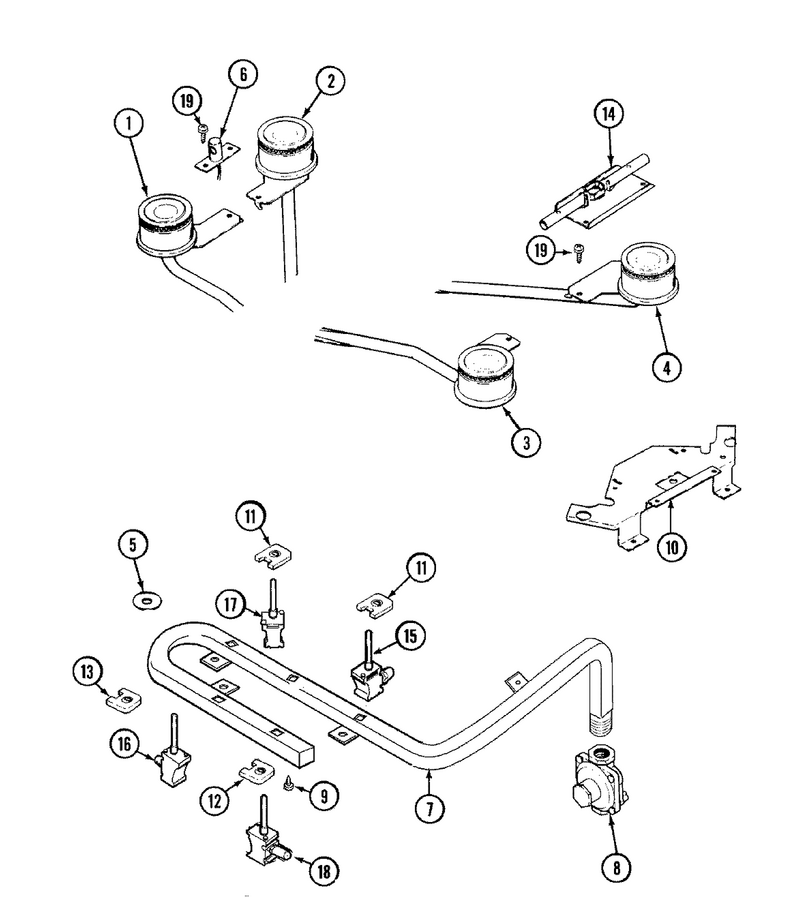

01 - Gas Controls

...
...
1
Burner (L.f.) WPL-7505P218-60
...
2
Burner (L.r.) WPL-7505P217-60
...
3
Burner (R.f.) WPL-7505P220-60
...
4
Burner (R.r.) WPL-7505P219-60
...
5
Cover, Burner Valve WPL-7724P004-60
...
6
Igniter (Rt) WPL-7432P009-60
...
7
Pipe, Manifold WPL-7513P162-60
...
8
Regulator, Pressure WPL-7510P001-60
...
9
Screw WPL-W10491986
...
10
Support, Burner WPL-3807F330-51
...
11
Switch, Igniter WPL-7403P370-60
...
12
Switch, Burner WPL-7403P345-60
...
13
Switch, Igniter WPL-7403P369-60
...
14
Tube, Assy Flash - Griddle WPL-7506P064-60
...
15
Valve, Burner (R.r.) WPL-7502P255-60
...
16
Valve, Burner (L.f.) WPL-7502P258-60
...
17
Valve, Burner (R.r.) WPL-7502P255-60
...
18
Valve, Burner (R.f.) WPL-7502P260-60
...
19
Screw WPL-WP4159193

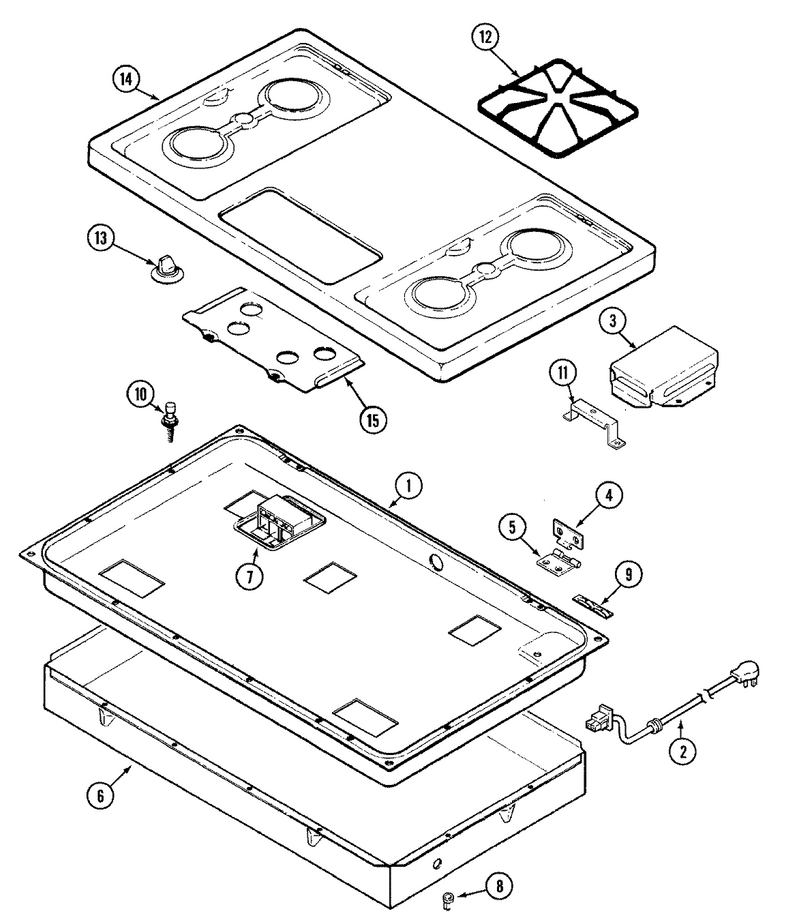

02 - Top Assembly

...
...
1
Box, Burner WPL-4011F232-80
...
2
Cord, Power WPL-7402P013-60
...
3
Cover, Transformer WPL-4005F108-51
...
4
Hinge, Top WPL-7106P001-60
...
5
Hinge, Top WPL-7106P005-60
...
6
Housing, Unit WPL-4001F056-51
...
7
Module, Spark WPL-7431P005-60
...
8
Nut WPL-WPW10131078
...
9
Nut, Twin Speed WPL-7103P028-60
...
10
Plug WPL-7718P006-60
...
11
Spacer, Top WPL-8010P072-60
...
12
Grate-Brnr WPL-W11400301
...
13
Knob, Valve (Blk) WPL-7733P102-60
...
14
Top, Main (Wht) WPL-2001F043-81
...
15
Panel, Control (Blk) WPL-74001457
...
16
Harness, Loose Wire WPL-5125A385-60
...
17
Manual, Use & Care WPL-8113P037-60
