Magic Chef 3968XVB

Model: 3968XVB

Save Part Not Listed?
product name

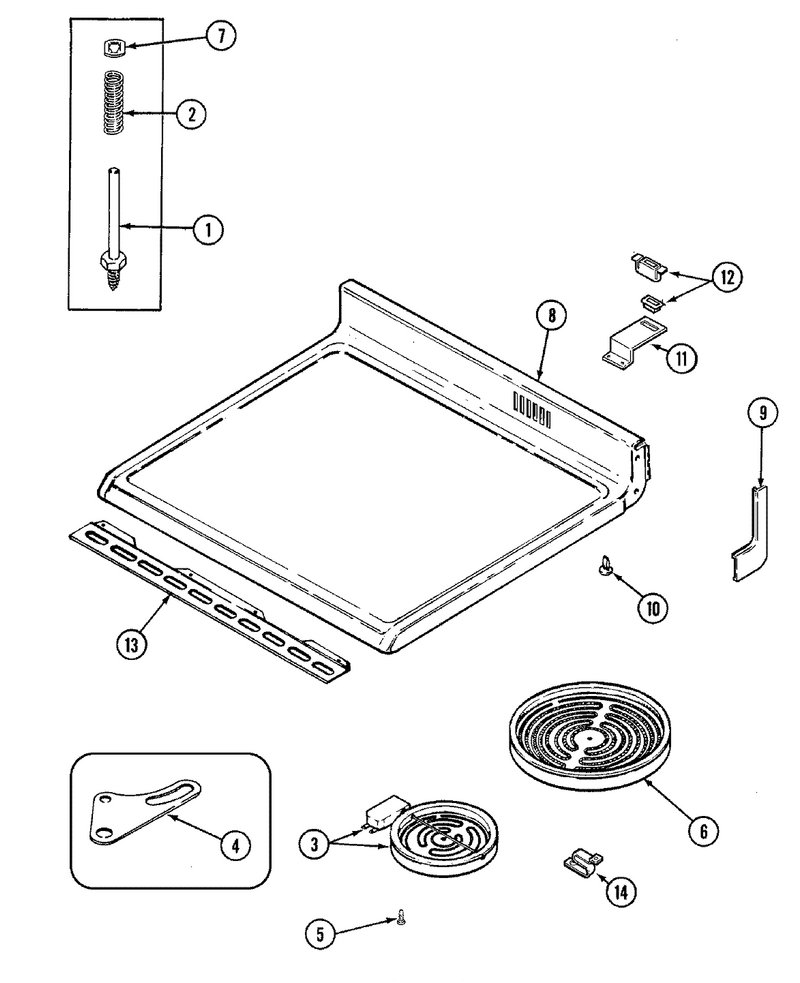

07 - Top Assembly

...
...
1
Not Required Part Or See Note WPL-W10124350
...
2
Not Required Part Or See Note WPL-W10124350
...
3
Limiter Kit (6``) WPL-12500041
...
4
Clip, Element WPL-3819F013-45
...
5
Screw WPL-WP74004005
...
6
Limiter, Temp. (4) WPL-8053620
...
7
Clip, Retainer WPL-7112P091-60
...
8
Scraper, Cooktop WPL-WA906B
...
9
End Cap (Lt-Blk) WPL-7746P031-60
...
10
Cover, Hinge Support WPL-8114P348-60
...
11
Bracket, Indicator Light WPL-3801F312-45
...
12
Light, Indicator (Hot Surface) WPL-7407P097-60
...
13
Bracket, Main Top WPL-3801F305-80
...
14
Support, Element WPL-8004P093-60

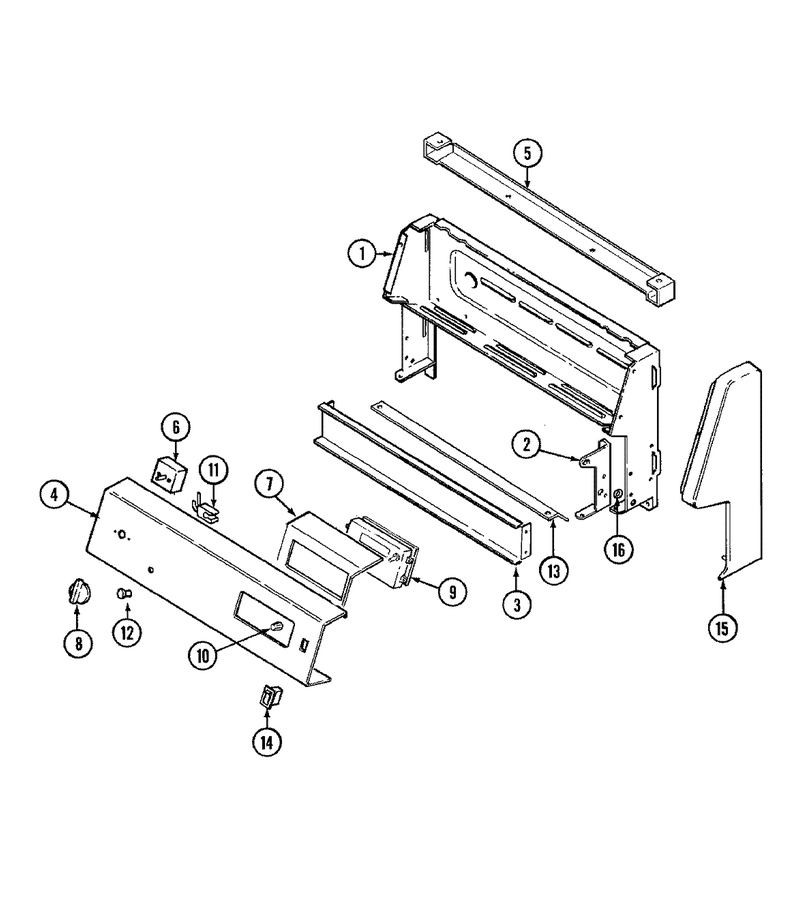

02 - Control Panel

...
...
1
Housing, Control Panel WPL-4001F091-51
...
2
Screw WPL-W11233072
...
3
Brace, Lwr Bkgd WPL-3802F087-51
...
4
Panel, Control (Blk) WPL-74001148
...
5
Extension, Control Panel WPL-4001F064-51
...
6
Switch WPL-WP7403P239-60
...
7
Bracket, Clock WPL-3801F336-45
...
8
Knob, Therm/burner (Blk) WPL-7731P082-60
...
9
Clock (Blk) WPL-74001150
...
10
Knob- Cloc WPL-WP7711P492-60
...
11
Light-Ind WPL-W10852510
...
12
Lens-Light WPL-W11690131
...
13
Shield, Sight WPL-3604F201-80
...
14
Switch, Rocker (Blk) WPL-7403P067-60
...
15
End Cap (Lt-Blk) WPL-7726P050-60
...
16
Nut WPL-WP3195558
...
17
Harness, Control/relay WPL-74001156
...
18
Video, Time Savor Instruction WPL-74001336
...
19
Insert, Operating Instr. WPL-74001524
...
20
Guide, Quick Ref. - Magic Chef WPL-16000329

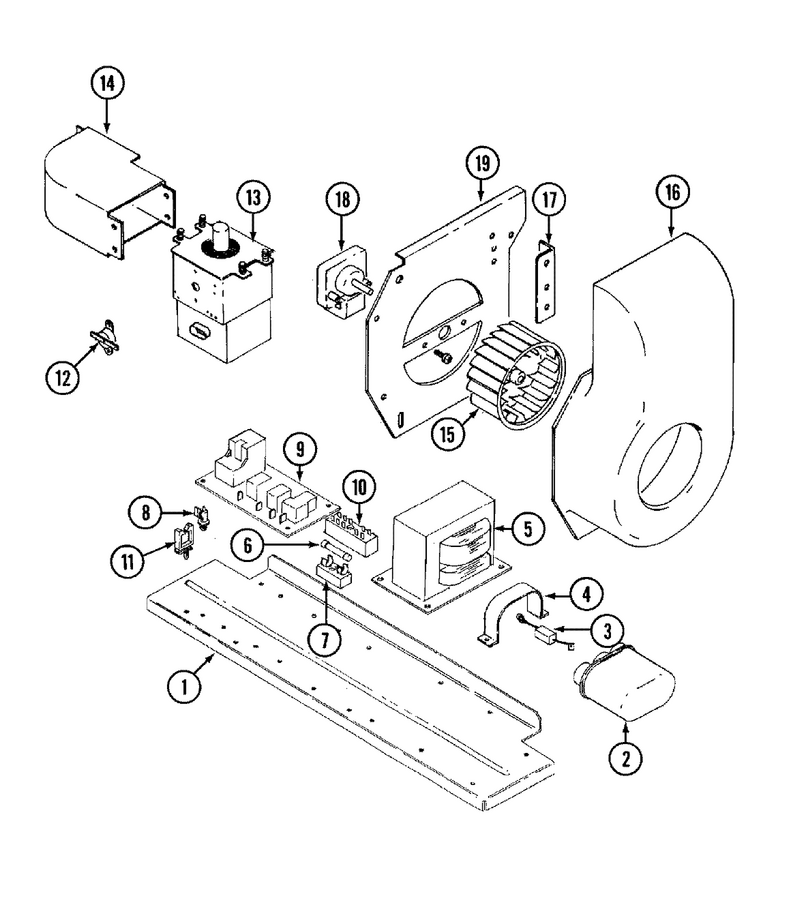

04 - Microwave Components

...
...
1
Support, Transformer WPL-74001036
...
2
Capacitor, Dual WPL-74001038
...
3
Diode Assy WPL-7436P001-60
...
4
Bracket, Capacitor WPL-74001039
...
5
Transformer WPL-74001040
...
6
Fuse 15a 2 WPL-WPY01050009
...
7
Screw WPL-WP59002061
...
8
Support, Relay Board WPL-8004P020-60
...
9
Relay WPL-7428P017-60
...
10
Block, Terminal WPL-7401P015-60
...
11
Clip WPL-7112P029-60
...
12
Screw WPL-WP59002061
...
13
Magnetron WPL-74001045
...
14
Duct, Magnetron WPL-74001046
...
15
Fan WPL-7427P015-60
...
16
Cover WPL-7724P065-60
...
17
Bracket, Blower Support WPL-74001047
...
18
Motor WPL-7409P005-60
...
19
Support, Blower WPL-3807F475-51

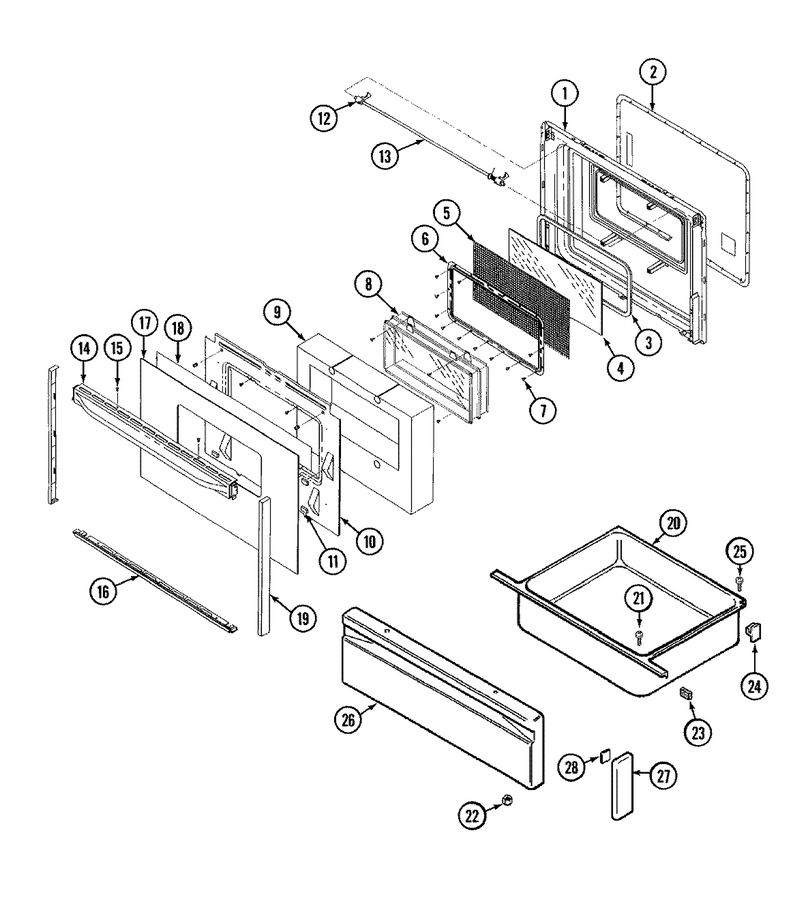

03 - Door/drawer

...
...
1
Lining, Door WPL-74001105
...
2
Gasket, Oven Door WPL-7201P059-60
...
3
Gasket, Window WPL-74001106
...
4
Glass, Inner WPL-7902P392-60
...
5
Screen, Inner Glass WPL-74001107
...
6
Retainer, Screen----Na WPL-74001108
...
7
Screw WPL-W11233072
...
8
Window Assy. WPL-74001109
...
9
Insulation, Door WPL-4804F051-60
...
10
Screw WPL-W11233072
...
11
Spacer, Rubber WPL-8010P085-60
...
12
Spring WPL-74001112
...
13
Shaft, Lever WPL-74001113
...
14
Screw WPL-W11233072
...
15
Screw WPL-WP98008545
...
16
Screw WPL-W11233072
...
17
Glass, Outer (Blk) WPL-74001169
...
18
Tape, Foil (3`` Wide) WPL-8270P090-60
...
19
Tape, End Cap WPL-8270P093-60
...
20
Drawer, Storage WPL-74008337
...
21
Screw WPL-WP7101P072-60
...
22
Nut WPL-WPW10131078
...
23
Seal-Strip WPL-WP854334
...
24
Support- D WPL-WP8004P026-60
...
25
Screw WPL-W11233072
...
26
Panel, Drawer (Blk) WPL-2416F039-65
...
27
Not Required Part Or See Note WPL-W10124350
...
28
Not Required Part Or See Note WPL-W10124350

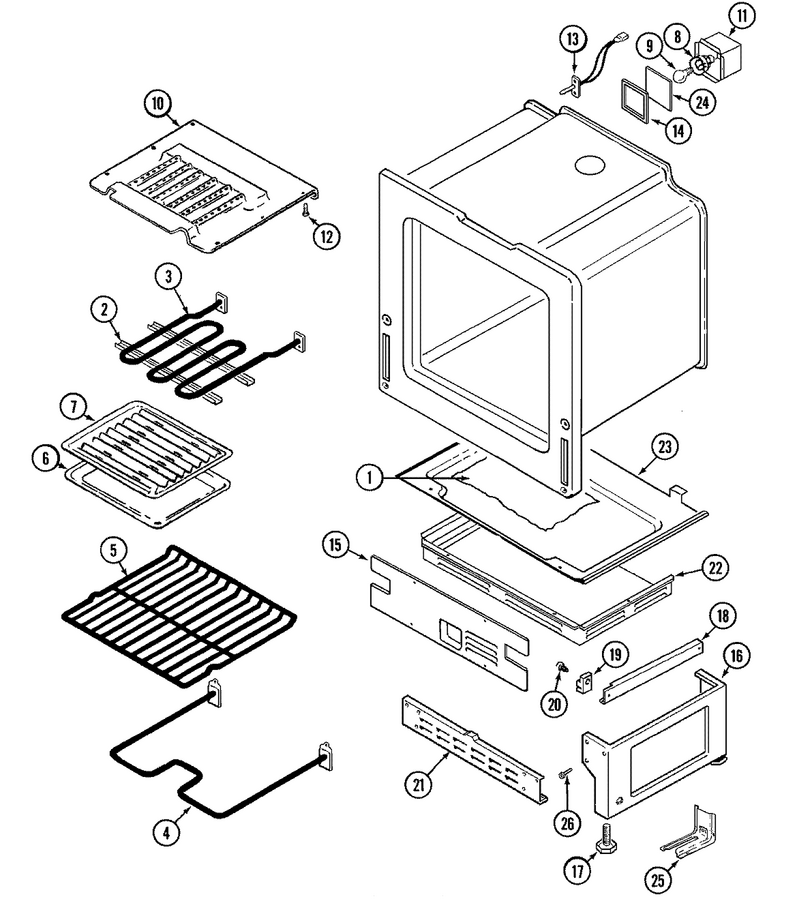

05 - Oven/base

...
...
1
Foil, Insulation Retainer WPL-8312P058-60
...
2
Screw WPL-7101P345-60
...
3
Washer (Stnlss Mesh) WPL-74001165
...
4
Washer (Stnlss Mesh) WPL-74001165
...
5
Rack WPL-74001164
...
6
Pan, Broil WPL-Y3401F02019
...
7
Insert WPL-WP3413F018-19
...
8
Receptacle, Oven Light WPL-7408P034-60
...
9
Light Bulb WPL-8009
...
10
Baffle, Broil WPL-3601F237-47
...
11
Housing, Bulb WPL-74001129
...
12
Screw WPL-74001161
...
13
Oven Sensor Replacement (Long) WPL-12001656
...
14
Gasket, Glass WPL-74001128
...
15
Shield, Microwave Components WPL-74001126
...
16
Pedestal, Side WPL-74003016
...
17
Leg, Leveling WPL-7101P306-60
...
18
Runner, Drawer (2) WPL-W10182835
...
19
Support, Drawer WPL-74002312
...
20
Screw WPL-7101P345-60
...
21
Pedestal, Front/rear WPL-4020F001-80
...
22
Screw WPL-W11233072
...
23
Retainer, Insulation WPL-74001114
...
24
Glass, Oven Bulb WPL-74001127
...
25
Bracket WPL-WP3801F656-51
...
26
Screw WPL-W11233072

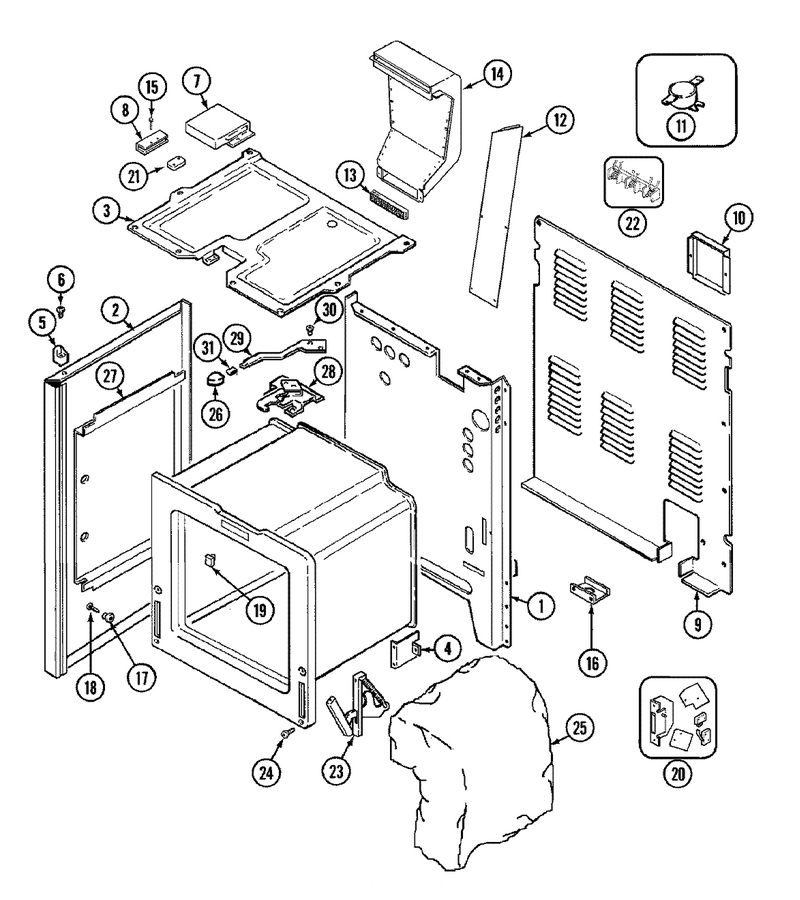

01 - Body

...
...
1
Back, Main WPL-4002F202-80
...
2
Panel, Side (Blk) WPL-2618F110-70
...
3
Box, Burner WPL-4011F238-19
...
4
Support,oven Rear WPL-3807F400-51
...
5
Spacer, Main Top (Rt) WPL-8010P088-60
...
6
Screw WPL-WP74004005
...
7
Cover, Latch Assy WPL-4005F451-80
...
8
Insulator, Switch WPL-74001999
...
9
Cover, Main Back Wire WPL-74001135
...
10
Cover, Terminal Block Access WPL-74001136
...
11
Switch, Hi-Limit WPL-7403P160-60
...
12
Box, Vent (Magnetron Blower) WPL-74001137
...
13
Eliminator, Smoke WPL-74001138
...
14
Vent Box Assy. WPL-4006W123-45
...
15
Screw WPL-7101P031-60
...
16
Bracket, Power Supply WPL-W10190166
...
17
Spacer WPL-W10857933
...
18
Screw WPL-7101P345-60
...
19
Bumper, Door WPL-74001139
...
20
Switch Assy, Interlock (Lt) WPL-74001141
...
21
Switch, Lock----Na WPL-7403P323-60
...
22
Block-Term WPL-WPW10245259
...
23
Hinge WPL-WP7106P045-60
...
24
Screw WPL-WP4159193
...
25
Insulation, Wrap WPL-4804F036-60
...
26
Handle, Door Latch (Blk) WPL-7701P132-60
...
27
Retainer, Side Assy. (Rt) WPL-74001142
...
28
Latch Assy. WPL-74001160
...
29
Lever, Door Latch WPL-8009P024-60
...
30
Screw W/washer (Blk) WPL-7101P280-60
...
31
Clip, Latch Handle WPL-7112P003-60

08 - Wiring Information

...
...
NI
Wiring Information WPL-15001306

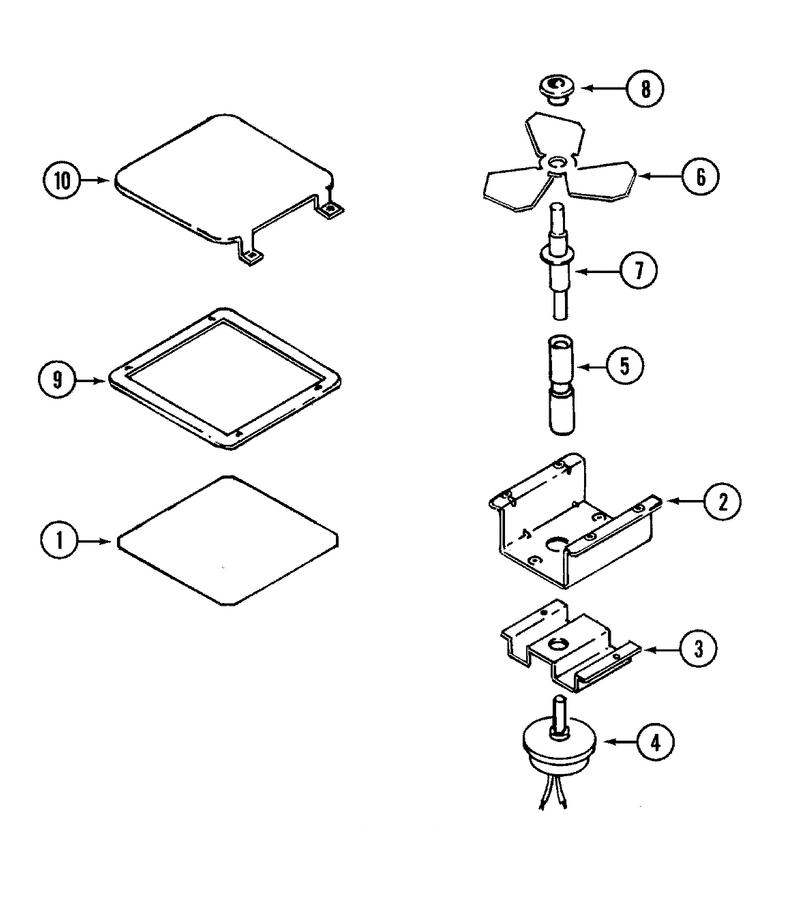

06 - Stirrer Assembly

...
...
1
Seal WPL-74001167
...
2
Lever, Switch Activator (Rt) WPL-74005547
...
3
Bracket, Stirrer WPL-74001116
...
4
Motor, Stirrer WPL-7409P006-60
...
5
Shaft, Stirrer WPL-74001118
...
6
Blade, Stirrer WPL-74001121
...
7
Nut WPL-W10080180
...
8
Spacer WPL-74001124
...
9
Seal, Gasket WPL-74001125
...
10
Plate WPL-3605F167-19
