Magic Chef 3962XVB

Model: 3962XVB

Save Part Not Listed?
product name

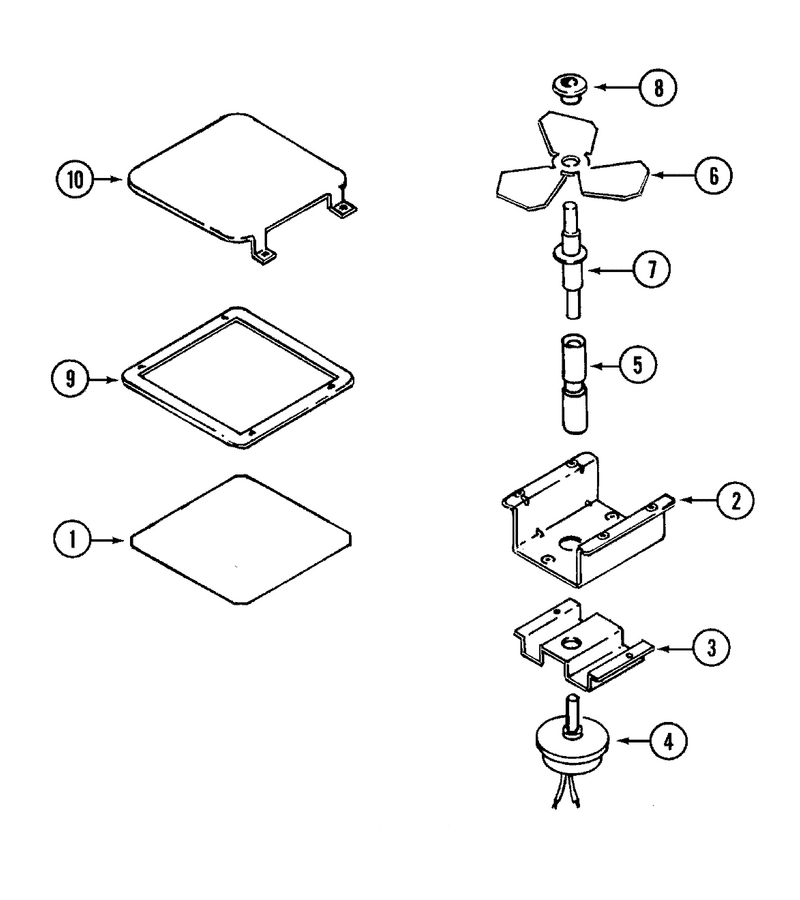

06 - Stirrer Assembly

...
...
1
Seal WPL-74001167
...
2
Screw WPL-WP4159193
...
3
Bracket, Stirrer WPL-74001116
...
4
Motor, Stirrer WPL-7409P006-60
...
5
Insulation, Stirrer Motor WPL-74001119
...
6
Blade, Stirrer WPL-74001121
...
7
Nut WPL-W10080180
...
8
Spacer WPL-74001124
...
9
Seal, Gasket WPL-74001125
...
10
Plate WPL-3605F167-19

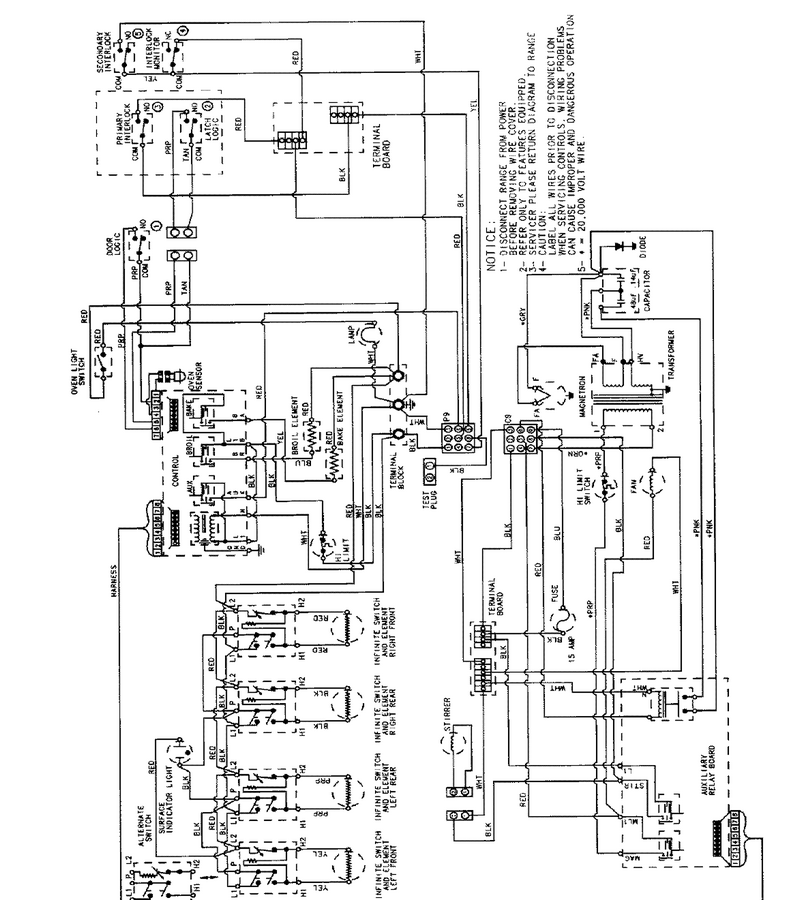

08 - Wiring Information

...
...
NI
Wiring Information WPL-15001330

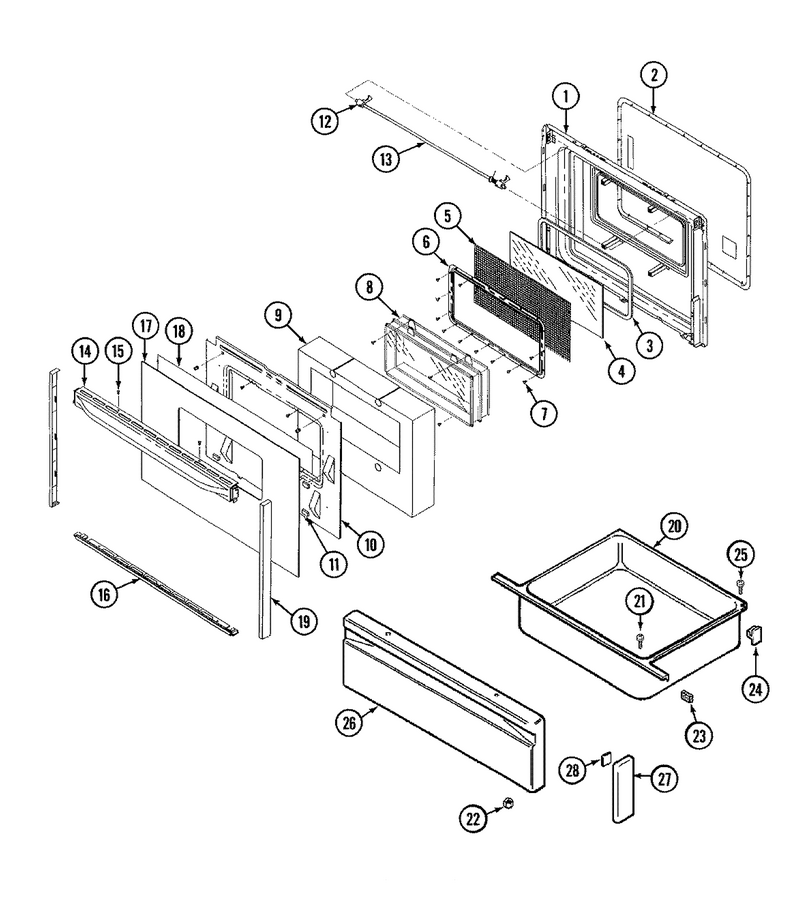

03 - Door/drawer

...
...
1
Lining, Door WPL-74001105
...
2
Gasket, Oven Door WPL-7201P059-60
...
3
Gasket, Window WPL-74001106
...
4
Glass, Inner WPL-7902P392-60
...
5
Screen, Inner Glass WPL-74001107
...
6
Retainer, Screen----Na WPL-74001108
...
7
Screw WPL-W11233072
...
8
Window Assy. WPL-74001109
...
9
Insulation, Door WPL-4804F051-60
...
10
Screw WPL-W11233072
...
11
Spacer, Rubber WPL-8010P085-60
...
12
Spring WPL-74001112
...
13
Shaft, Lever WPL-74001113
...
14
Handle, Door (Blk) WPL-7701P144-60
...
15
Screw WPL-WP98008545
...
16
Screw WPL-W11233072
...
17
Glass, Outer (Blk) WPL-74001169
...
18
Tape, Foil (29 1/2``) WPL-8270P078-60
...
19
End Cap, Oven Door (Blk) WPL-7744P055-60
...
20
Drawer, Storage WPL-3405F018-80
...
21
Screw WPL-WP7101P072-60
...
22
Nut WPL-WPW10131078
...
23
Seal-Strip WPL-WP854334
...
24
Support- D WPL-WP8004P026-60
...
25
Not Required Part Or See Note WPL-W10124350
...
26
Panel, Drawer (Blk) WPL-2416F039-65
...
27
End Cap, Drawer (Blk) WPL-74003044
...
28
Tape WPL-8270P098-60

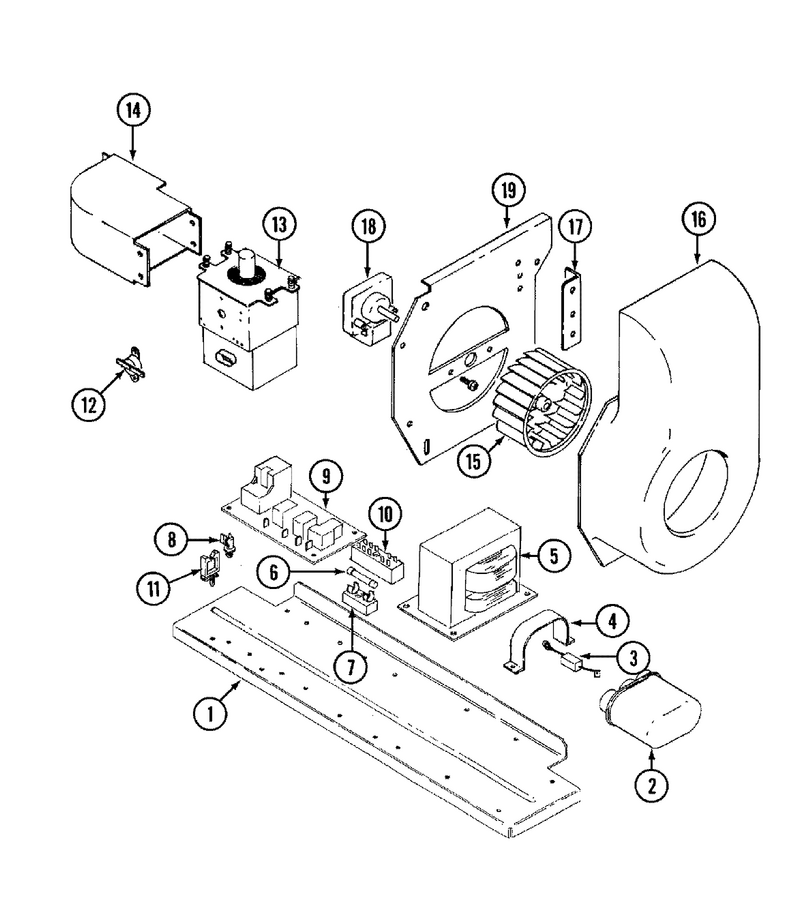

04 - Microwave Components

...
...
1
Support, Transformer WPL-74001036
...
2
Capacitor, Dual WPL-74001038
...
3
Diode Assy WPL-7436P001-60
...
4
Screw WPL-W11233072
...
5
Screw WPL-W11233072
...
6
Fuse 15a 2 WPL-WPY01050009
...
7
Screw WPL-WP59002061
...
8
Support, Relay Board WPL-8004P020-60
...
9
Relay WPL-7428P017-60
...
10
Block, Terminal WPL-7401P015-60
...
11
Clip WPL-7112P029-60
...
12
Screw WPL-WP59002061
...
13
Magnetron WPL-74001045
...
14
Duct, Magnetron WPL-74001046
...
15
Fan WPL-7427P015-60
...
16
Cover WPL-7724P065-60
...
17
Bracket, Blower Support WPL-74001047
...
18
Motor WPL-7409P005-60
...
19
Support, Blower WPL-3807F475-51

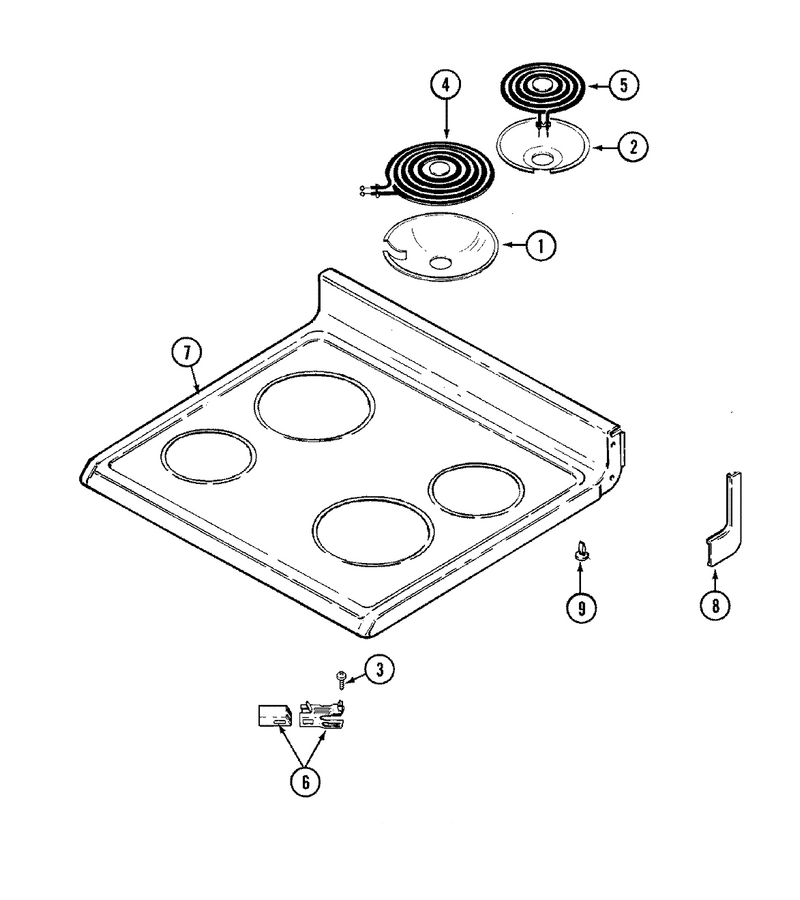

07 - Top Assembly

...
...
1
Bowl-Drip WPL-WPW10290350
...
2
Bowl-Drip WPL-W10290353RW
...
3
Screw WPL-WP74004005
...
4
Elmnt-Surf WPL-WP12001560
...
5
Elmnt-Surf WPL-WPW10259868
...
6
Receptacle Assy. WPL-12001676
...
7
Top, Main (Blk) WPL-74001145
...
8
End Cap (Rt-Blk) WPL-7746P030-60
...
9
Glide-Drwr WPL-WP8016P015-60

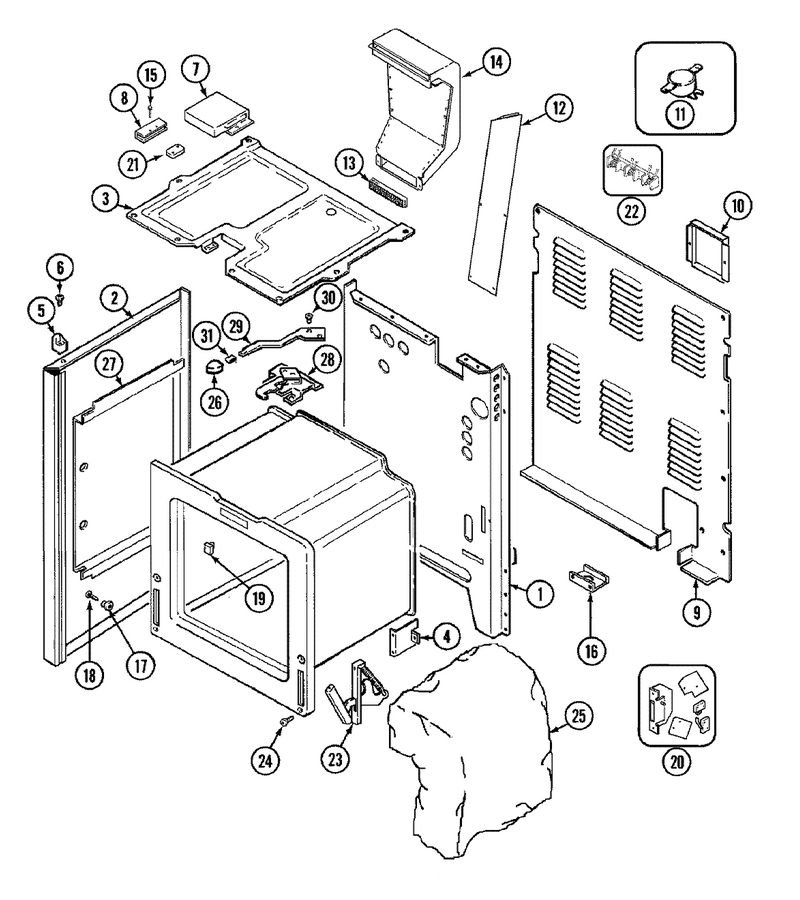

01 - Body

...
...
1
Back, Main WPL-4002F202-80
...
2
Panel, Side (Blk) WPL-2618F110-70
...
3
Box, Burner WPL-4011F240-19
...
4
Support,oven Rear WPL-3807F400-51
...
5
Spacer, Main Top (Lt) WPL-8010P087-60
...
6
Screw WPL-WP74004005
...
7
Cover, Latch Assy WPL-4005F451-80
...
8
Insulator, Latch Switch WPL-74001134
...
9
Block, Terminal WPL-7401P016-60
...
10
Cover, Terminal Block Access WPL-74001136
...
11
Switch, Hi-Limit WPL-7403P160-60
...
12
Tape, Foam WPL-8270P087-60
...
13
Eliminator, Smoke WPL-74001138
...
14
Vent Box Assy. WPL-4006W123-45
...
15
Screw WPL-7101P031-60
...
16
Bracket, Power Supply WPL-W10190166
...
17
Spacer WPL-W10857933
...
18
Screw WPL-7101P345-60
...
19
Bumper, Door WPL-74001139
...
20
Switch Assy, Interlock (Lt) WPL-74001141
...
21
Switch, Double Lock WPL-74001162
...
22
Nut WPL-WP7103P027-60
...
23
Hinge WPL-WP7106P045-60
...
24
Screw WPL-WP4159193
...
25
Insulation, Wrap WPL-4804F036-60
...
26
Not Required Part Or See Note WPL-W10124350
...
27
Retainer, Side Assy. (Rt) WPL-74001142
...
28
Latch Assy. WPL-74001160
...
29
Lever, Door Latch WPL-8009P024-60
...
30
Screw WPL-74001161
...
31
Clip, Latch Handle WPL-7112P003-60

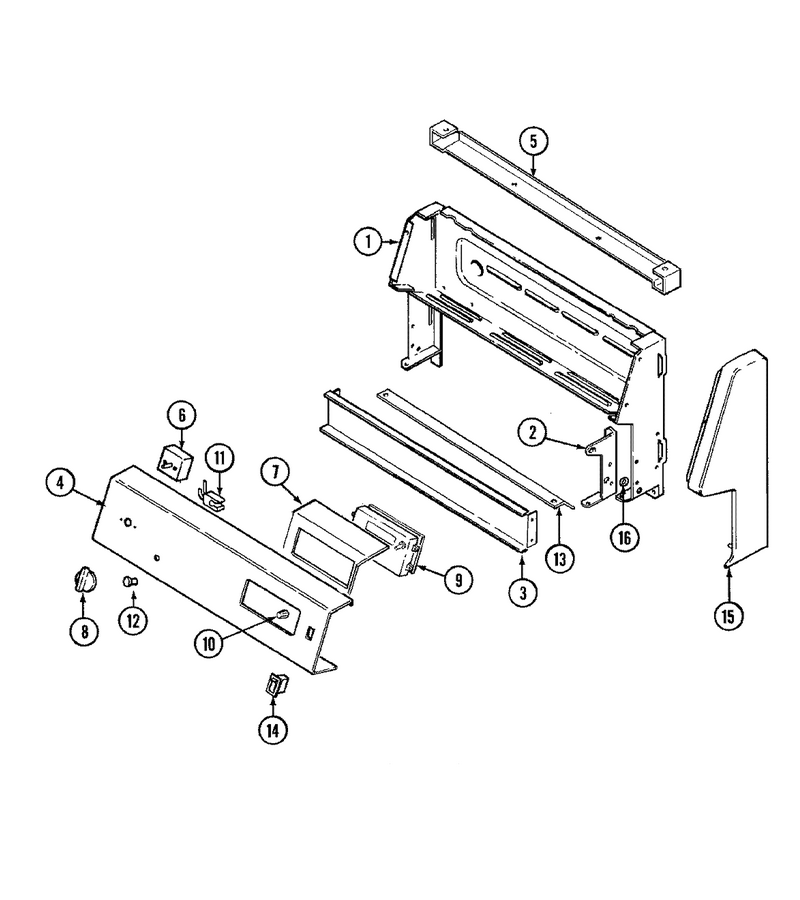

02 - Control Panel

...
...
1
Shield, Rear Wire WPL-74001155
...
2
Screw WPL-W11233072
...
3
Brace, Lwr Bkgd WPL-3802F087-51
...
4
Panel, Control (Blk) WPL-74001148
...
5
Extension, Control Panel WPL-4001F064-51
...
6
Switch-Inf WPL-WP7403P238-60
...
7
Screw WPL-WPY706189
...
8
Knob, Therm/burner (Blk) WPL-7731P082-60
...
9
Clock (Blk) WPL-74001150
...
10
Knob- Cloc WPL-WP7711P492-60
...
11
Light-Ind WPL-W10852510
...
12
Lens-Light WPL-W11690131
...
13
Shield, Sight WPL-3604F201-80
...
14
Switch, Rocker (Blk) WPL-7403P067-60
...
15
End Cap, Panel (Lt-Blk)----Na WPL-74001342
...
16
Harness, Panel/top WPL-74001154
...
17
Video, Time Savor Instruction WPL-74001336
...
18
Guide, Quick Ref. - Magic Chef WPL-16000329

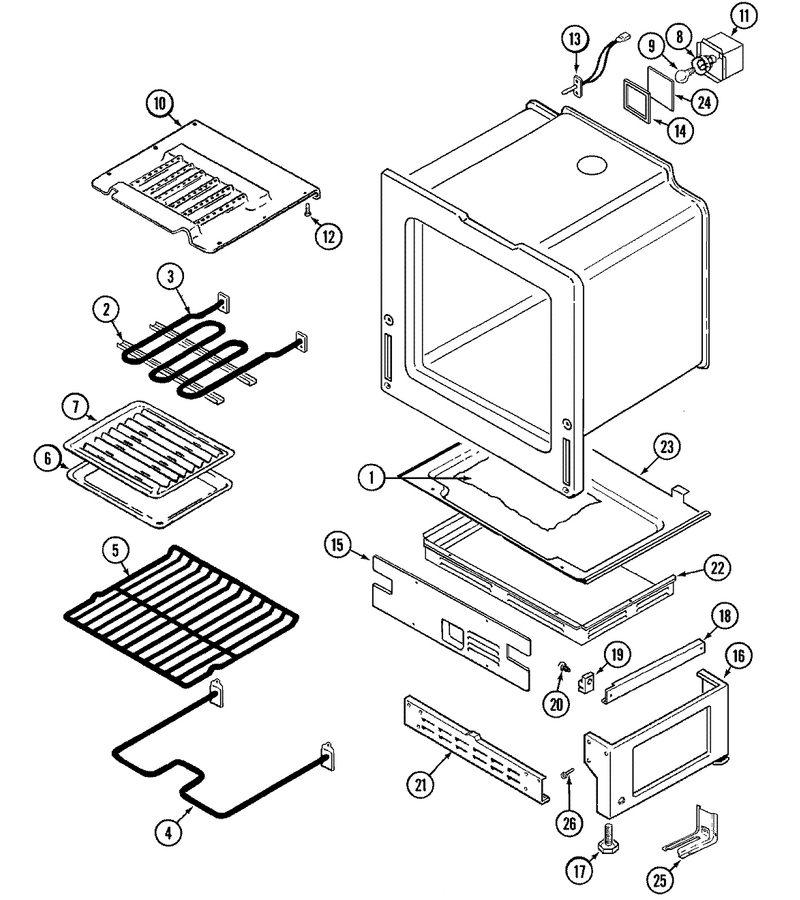

05 - Oven/base

...
...
1
Foil, Insulation Retainer WPL-8312P058-60
...
2
Screw WPL-7101P345-60
...
3
Washer (Stnlss Mesh) WPL-74001165
...
4
Washer (Stnlss Mesh) WPL-74001165
...
5
Rack WPL-74001164
...
6
Pan, Broil WPL-Y3401F02019
...
7
Insert WPL-WP3413F018-19
...
8
Receptacle, Oven Light WPL-7408P034-60
...
9
Light Bulb WPL-8009
...
10
Baffle, Broil WPL-3601F237-47
...
11
Housing, Bulb WPL-74001129
...
12
Screw WPL-74001161
...
13
Screw WPL-74001161
...
14
Gasket, Glass WPL-74001128
...
15
Shield, Microwave Components WPL-74001126
...
16
Pedestal, Side WPL-74003016
...
17
Foot-Level WPL-W11665456
...
18
Runner, Drawer WPL-3406F028-51
...
19
Nut WPL-WP488130
...
20
Not Required Part Or See Note WPL-W10124350
...
21
Pedestal, Front/rear WPL-4020F001-80
...
22
Screw WPL-W11233072
...
23
Retainer, Insulation WPL-74001114
...
24
Glass, Oven Bulb WPL-74001127
...
25
Bracket WPL-WP3801F656-51
...
26
Screw WPL-W11233072
