Magic Chef 38HY-2C

Model: 38HY-2C

Save Part Not Listed?
product name

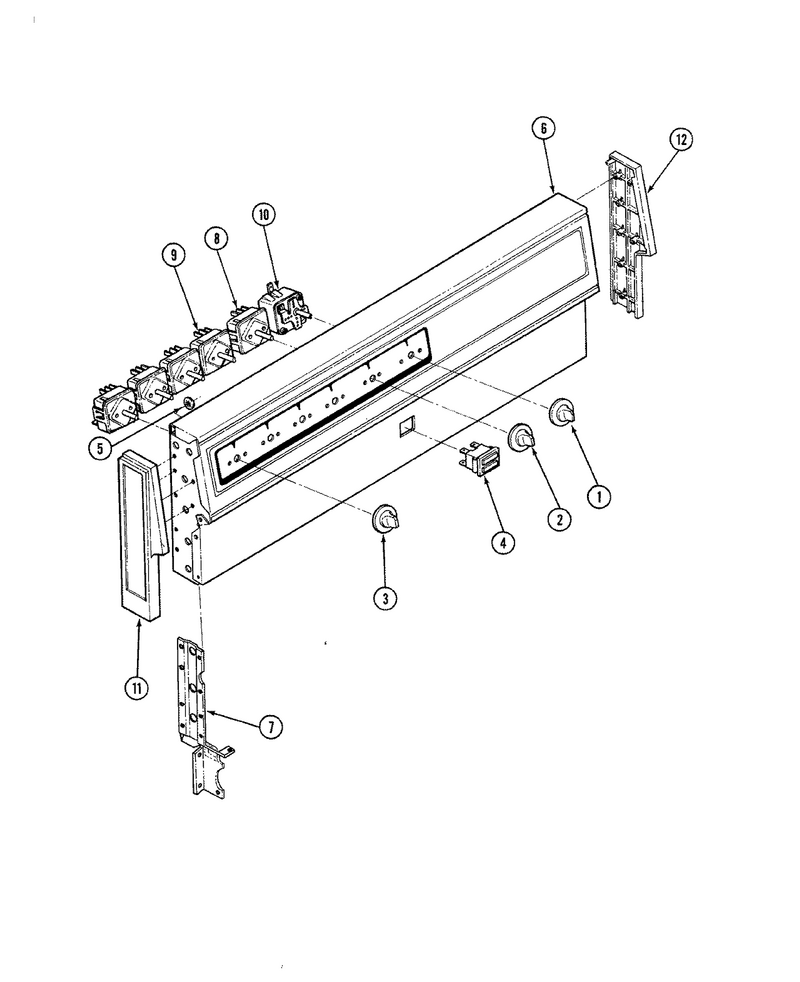

02 - Control Panel

...
...
1
Clock WPL-7601P102-60
...
2
Knob Kit WPL-12500072
...
3
Knob Kit WPL-12500072
...
4
Nut, Push-On End Cap WPL-7103P053-60
...
5
Spacer- Hi WPL-WP8010P069-60
...
6
Support WPL-3807F012-80
...
7
Switch, Rocker (Blk) WPL-7403P067-60
...
8
Switch, Selector WPL-7403P081-60
...
9
Switch, Inf. Control WPL-7403P170-60
...
10
Thrmst-Ovn WPL-W10125459
...
11
Trim, Bkgd. (Lt) WPL-7726P008-60
...
12
Trim, Backguard WPL-7703P189-60

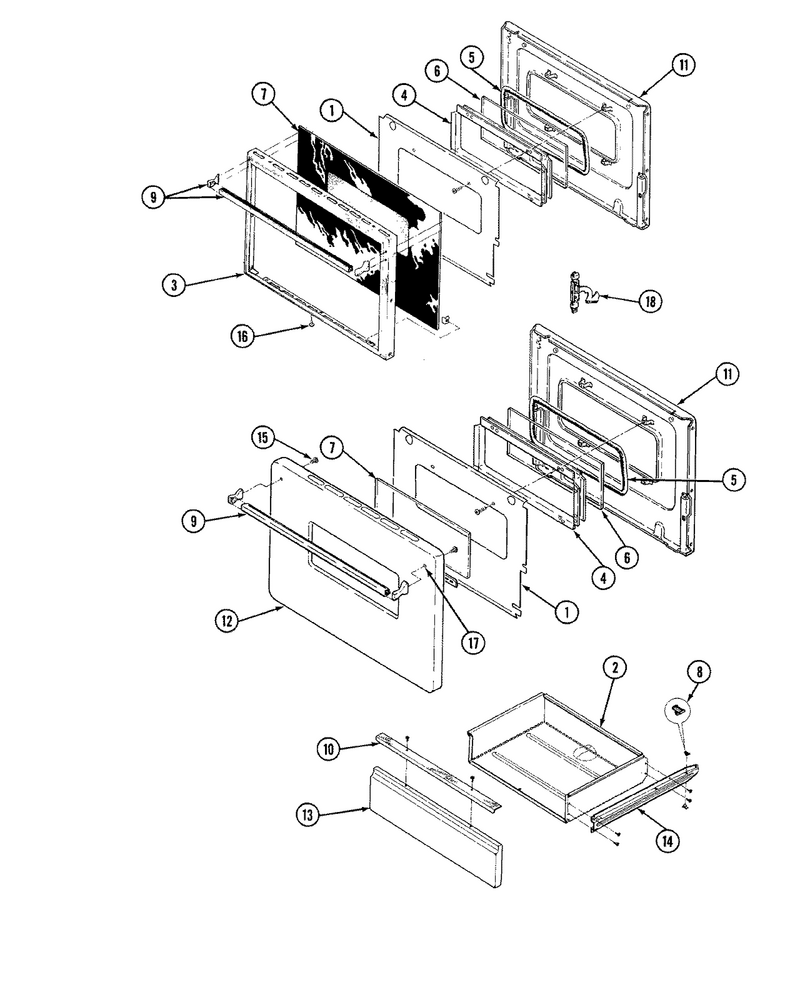

03 - Door Parts

...
...
1
Baffle WPL-3601F095-51
...
2
Drawer, Service WPL-3405F008-80
...
8
Glide, Front WPL-8016P005-60
...
9
+ Handle- WPL-5425A003-60
...
10
Handle, Drawer Almond WPL-7701P014-74
...
11
Pad, Inner Ov Dr WPL-2410F012-51
...
12
Panel, Oven Dr-Y WPL-2401F043-76
...
13
Panel, Service Drawer Hvt. Whe WPL-2416F006-76
...
15
Runner, Outer WPL-3406J007
...
16
Screw WPL-WP4381696
...
17
Seal WPL-7208P002-60
...
18
Hinge, Oven Door (Lt) WPL-3418F029-34
...
19
Trim, Handle WPL-7720P063-60

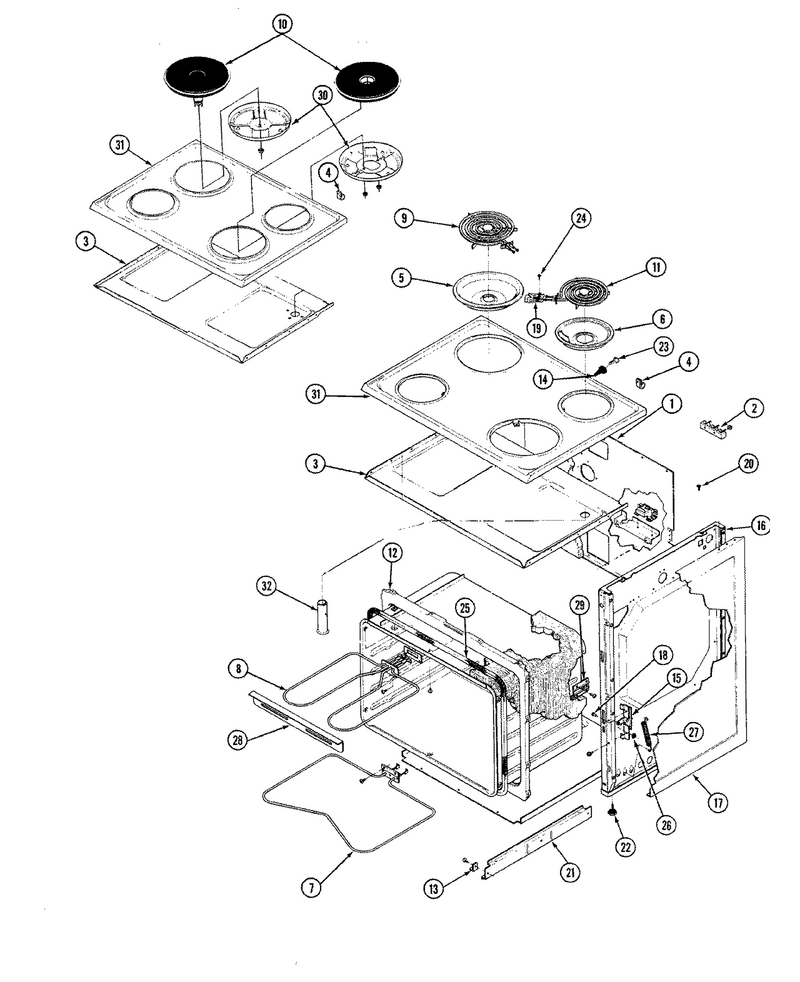

01 - Body

...
...
1
Back, Main WPL-4002F092-80
...
2
Block-Term WPL-WPW10245259
...
3
Bolt WPL-7116P003-60
...
4
Brace, Back-Right WPL-3802F010-80
...
5
Clamp, Wire 3/4 WPL-7111P002-60
...
6
Clip- Ther WPL-WP7112P004-60
...
7
Clip, Top Retainer WPL-7112P030-60
...
8
Cover, Switch WPL-4005F139-51
...
9
Cover, Catch Assy. WPL-4005F137-80
...
10
Bowl-Drip WPL-WPW10196405
...
11
Bowl-Drip WPL-WPW10196406
...
12
Element- B WPL-WPY04000041
...
13
Element- B WPL-WPY04000048
...
14
Elmnt-Surf WPL-WP3191454
...
15
Elmnt-Surf WPL-WPW10259868
...
16
Front, Burner Box Bottom WPL-4012F017-80
...
17
Front, Oven Upper WPL-2201F061-23
...
18
Gasket, Housing WPL-7201P014-60
...
19
Gasket, Lamp Retainer WPL-7201P015-60
...
20
Gasket, Oven WPL-7201P036-60
...
21
Glass, Lamp Guard WPL-7902P057-60
...
22
Spacer- Hi WPL-WP8010P069-60
...
23
Stop, Oven Door WPL-3420A033-34
...
24
Handle, Latch (Blk) WPL-7701P068-60
...
25
Catch Assy. WPL-8002P020-60
...
26
Lever, Door Lock WPL-8009P009-60
...
27
Light Bulb WPL-8009
...
28
Lining Assy, Inner Side WPL-4009W029-80
...
29
Procelain Broiler (Pan And Grid) WPL-4396923
...
30
Panel, Side (Harvest Wheat) WPL-2618F073-76
...
31
Pin, Hinge WPL-7113P002-60
...
32
Receptacle, Lamp WPL-7408P002-60
...
33
Block, Surface Unit WPL-7401P014-60
...
34
Retainer, Lamp Guard WPL-3804F012-45
...
35
Spacer, Main Top WPL-8010P048-60
...
36
Runner, Inner WPL-3406F020-80
...
37
Screw, Special WPL-7101P029-60
...
38
Shield, Light Receptacle WPL-3604F007-80
...
39
Clip, Hinge Pin WPL-7112P019-60
...
40
Strap WPL-8019P002-60
...
41
Support WPL-3807F176-13
...
42
Support, Latch WPL-3807F195
...
43
Support, Lock Switch WPL-3807F193-45
...
44
Support, Oven Rear WPL-3807F205-45
...
45
Switch, Door Lock WPL-7403P045-60
...
46
Top Assy, Main Y WPL-2002W028-06
...
47
Manual, Use & Care WPL-8110P028-60
