Magic Chef 3522WUA-D

Model: 3522WUA-D

Save Part Not Listed?
product name

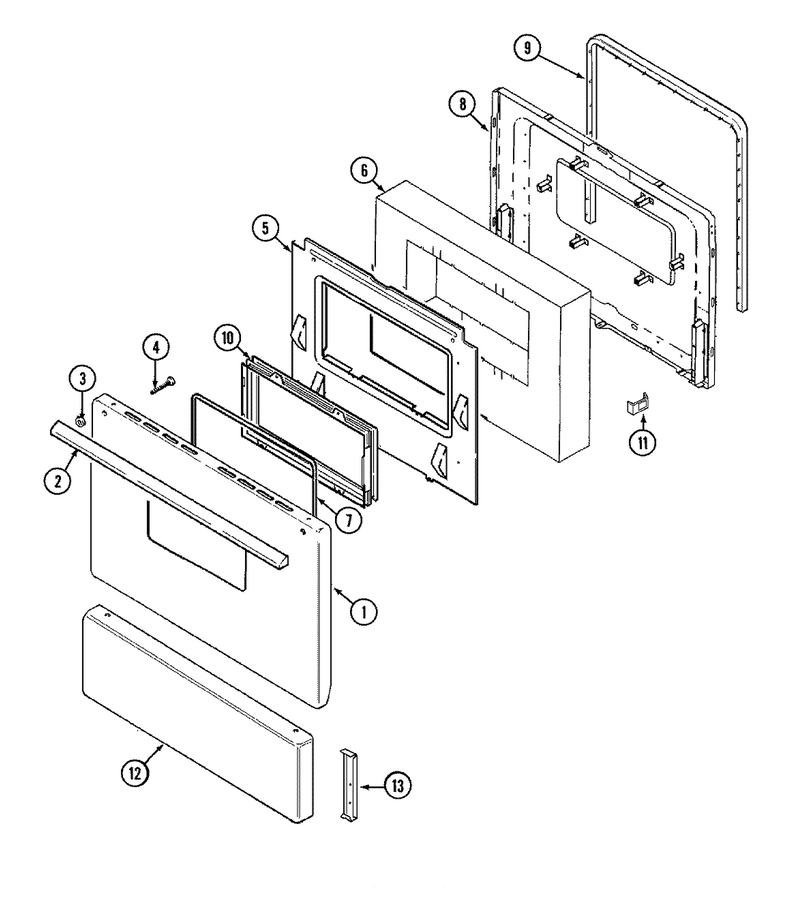

03 - Door

...
...
1
Screw WPL-W11233072
...
2
Hndle-Door WPL-WP2411F013-70
...
3
Spacer, Handle (Blk) WPL-8010P084-60
...
4
Screw WPL-WP3387230
...
5
Baffle, Door WPL-3601F236-51
...
6
Insulation, Door 2`` WPL-4804F050-60
...
7
Gasket, Window WPL-7201P017-60
...
8
Lining, Door WPL-2402W212-19
...
9
Seal- Door WPL-WP7212P043-60
...
10
Window Asy. WPL-7907P015-60
...
11
Clip, Door WPL-7112P034-60
...
12
Screw WPL-W11233072
...
13
Screw WPL-W11233072

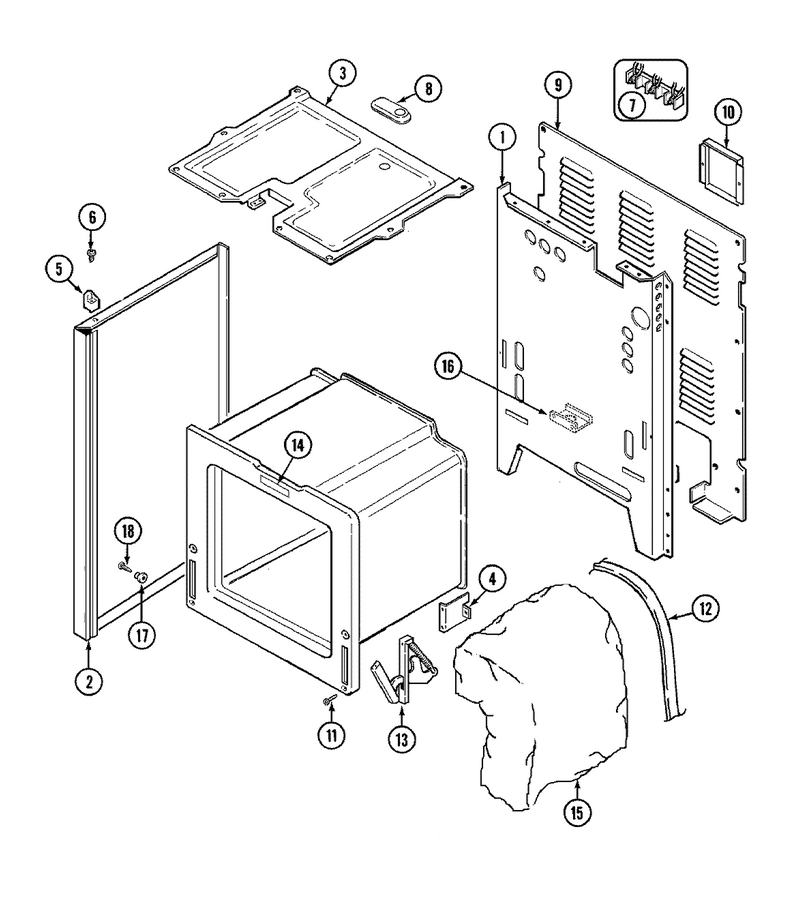

01 - Body

...
...
1
Back, Main WPL-74001772
...
2
Screw WPL-W11233072
...
3
Screw WPL-W11233072
...
4
Screw WPL-W11233072
...
5
Spacer, Main Top (Lt) WPL-8010P087-60
...
6
Screw WPL-WP74004005
...
7
Block-Term WPL-WPW10245259
...
8
Screw W/shoulder (No.8) WPL-74008798
...
9
Cover, Wire WPL-4005F455-51
...
10
Cover, Access WPL-4005F427-51
...
11
Screw WPL-WP4159193
...
12
Strap, Retainer WPL-4820F001-59
...
13
Hinge WPL-7106P056-60
...
14
Cover, Door Lock WPL-7718P013-60
...
15
Insulation, Oven Wrap WPL-4804F044-60
...
16
Screw WPL-W11233072
...
17
Spacer WPL-W10857933
...
18
Screw W/shoulder (No.8) WPL-74008798

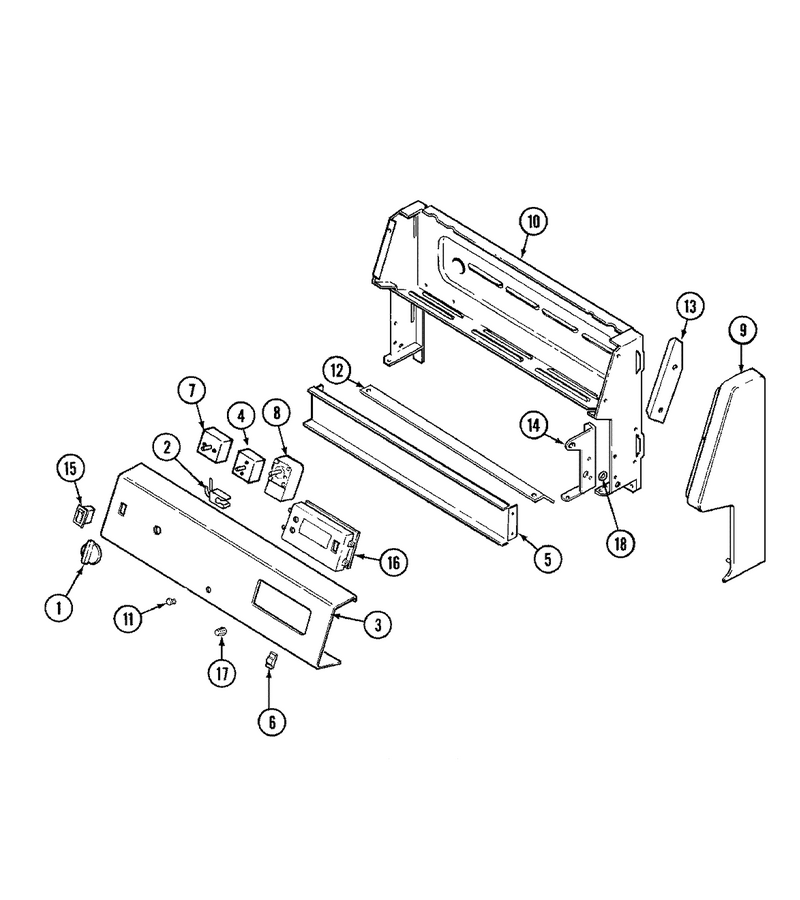

02 - Control Panel

...
...
1
Knob, Therm/burner (Blk) WPL-7731P082-60
...
2
Light-Ind WPL-W10852510
...
3
Panel Assy. (Blk) WPL-4876S048-59
...
4
Screw WPL-WP7101P309-60
...
5
Screw WPL-W11233072
...
6
Button, Slide (Blk) WPL-7711P469-60
...
7
Screw WPL-WP7101P309-60
...
8
Screw WPL-WP7101P309-60
...
9
End Cap (Lt-Blk) WPL-7726P052-60
...
10
Housing, Control Panel WPL-4001F091-51
...
11
Lens-Light WPL-W11690131
...
12
Shield, Sight WPL-3604F201-80
...
13
Screw WPL-W11233072
...
14
Screw WPL-W11233072
...
15
Switch, Rocker (Blk) WPL-7403P067-60
...
16
Clock WPL-7602P104-60
...
17
Button, Set (Blk) WPL-7711P468-60
...
18
Nut WPL-WP3195558
...
19
Harness, Control/top WPL-74001013
...
20
Manual, Use & Care WPL-8113P023-60
...
21
Guide, Quick Ref. - Magic Chef WPL-16000329

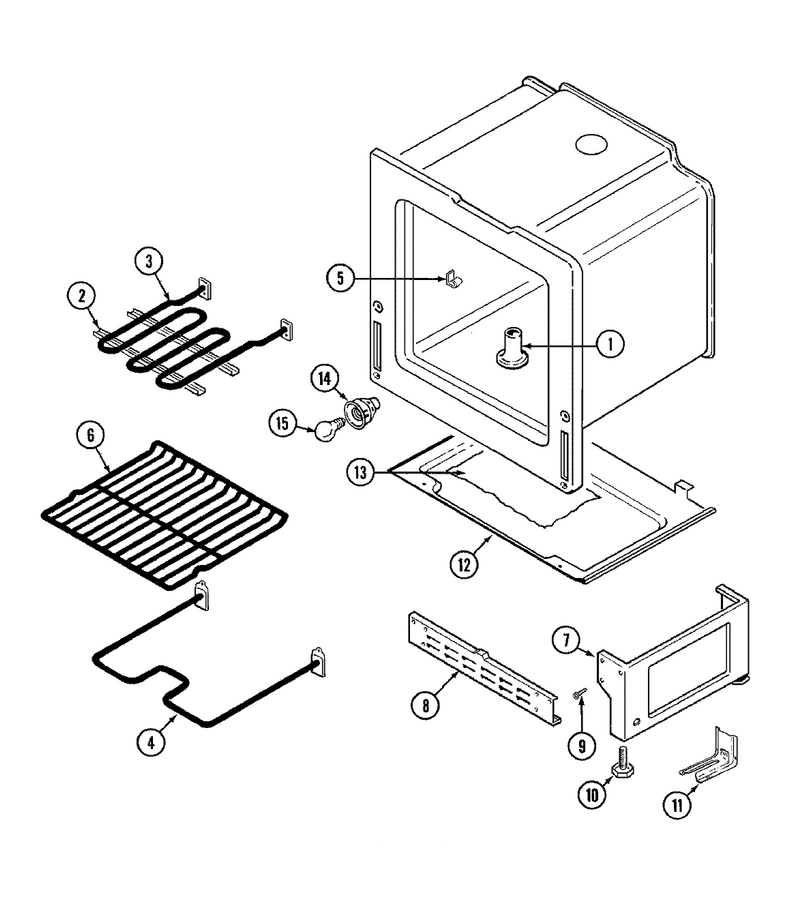

04 - Oven/base

...
...
1
Tube, Vent WPL-8026P020-60
...
2
Screw WPL-W11233072
...
3
Screw WPL-W11233072
...
4
Screw WPL-W11233072
...
5
Clip- Ther WPL-WP7112P004-60
...
6
Rack-Oven WPL-WPW10282492
...
7
Pedestal S WPL-12001342
...
8
Pedestal, Front/rear WPL-4020F001-80
...
9
Screw WPL-W11233072
...
10
Leg, Leveling WPL-74001311
...
11
Bracket WPL-WP3801F656-51
...
12
Screw WPL-W11233072
...
13
Foil, Insulation Retainer WPL-8312P058-60
...
14
Lamp-Asm WPL-WP7407P182-60
...
15
Light Bulb WPL-8009

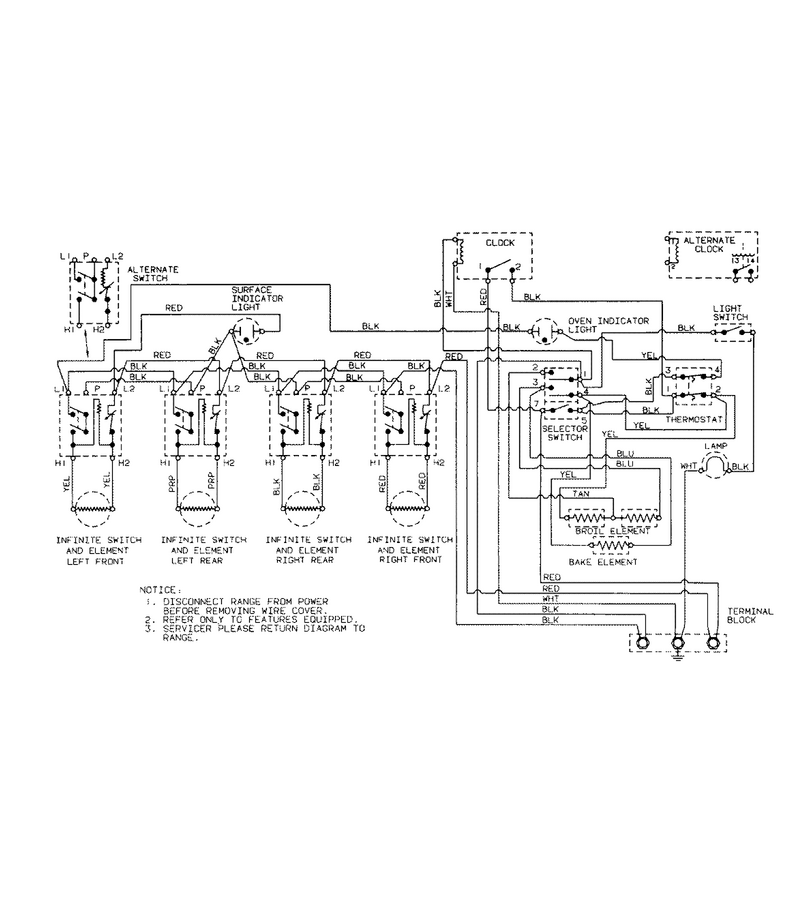

06 - Wiring Information

...
...
NI
Wiring Information WPL-15001468

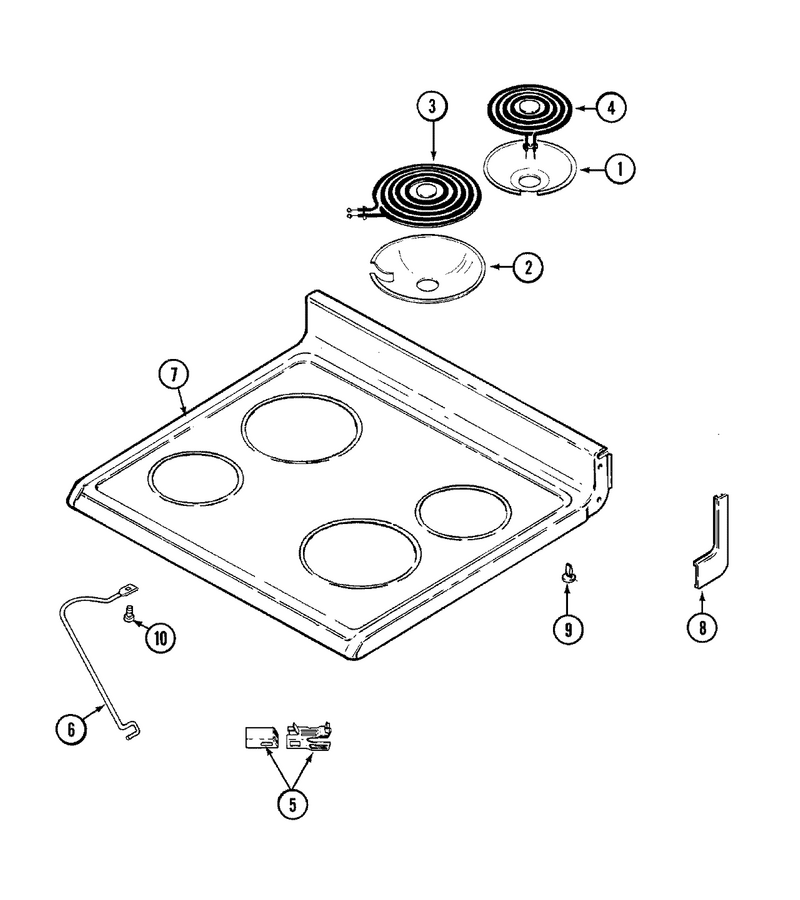

05 - Top Assembly

...
...
1
Bowl-Drip WPL-WPW10196406
...
2
Bowl-Drip WPL-WPW10196405
...
3
Elmnt-Surf WPL-WPY04000035
...
4
Elmnt-Surf WPL-WPY04000036
...
5
Receptacle Assy. WPL-12001676
...
6
Support, Top WPL-74001170
...
7
Screw WPL-W11233072
...
8
End Cap (Rt-Blk) WPL-7746P030-60
...
9
Glide-Drwr WPL-WP8016P015-60
...
10
Screw W/washer (Blk) WPL-7101P280-60
