Magic Chef 28FS-7CXW

Model: 28FS-7CXW

Save Part Not Listed?
product name

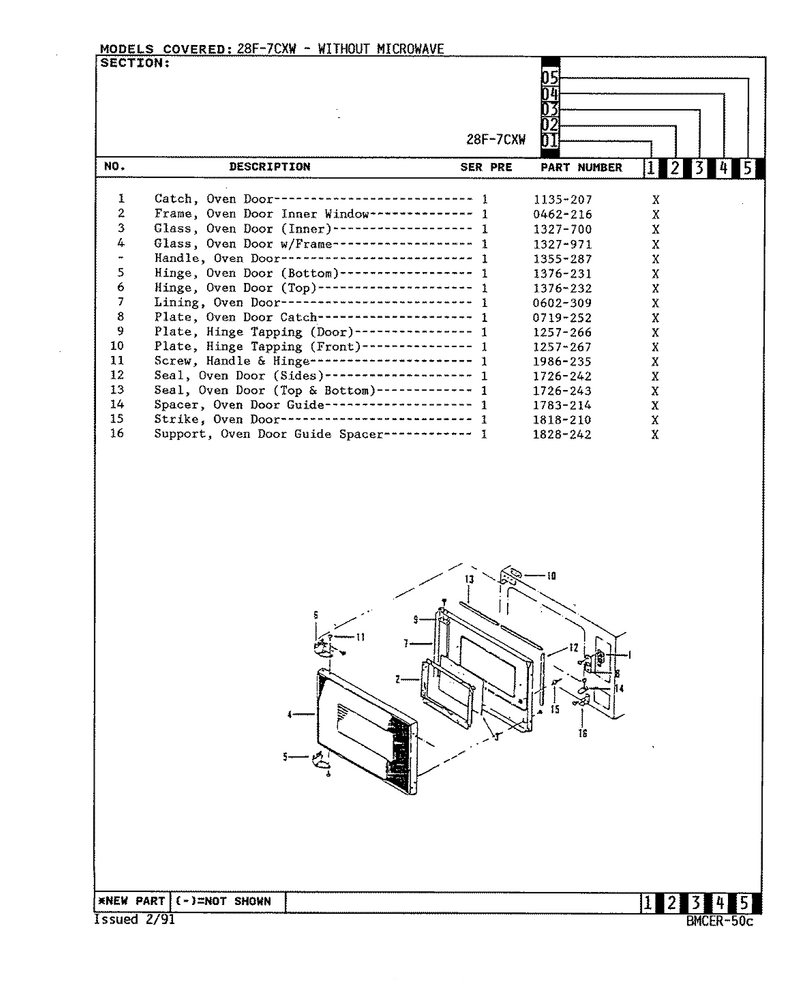

05 - Door (upper)

...
...
1
Catch WPL-1135207
...
2
Frame Assy. WPL-0462216
...
3
Glass WPL-1327700
...
4
+ Glass WPL-1327971
...
5
Hinge WPL-1376231
...
6
Hinge WPL-1376232
...
7
Lining,window Ovn Dr WPL-0602309
...
8
Plate WPL-0719252
...
9
Plate, Control WPL-1257266
...
10
Plate, Control WPL-1257267
...
11
Screw, Special WPL-1986235
...
12
Seal- Door WPL-WP7212P007-60
...
13
Seal- Door WPL-WP7212P006-60
...
14
Spacer WPL-1783214
...
15
Strike WPL-1818210
...
16
Support WPL-1828242

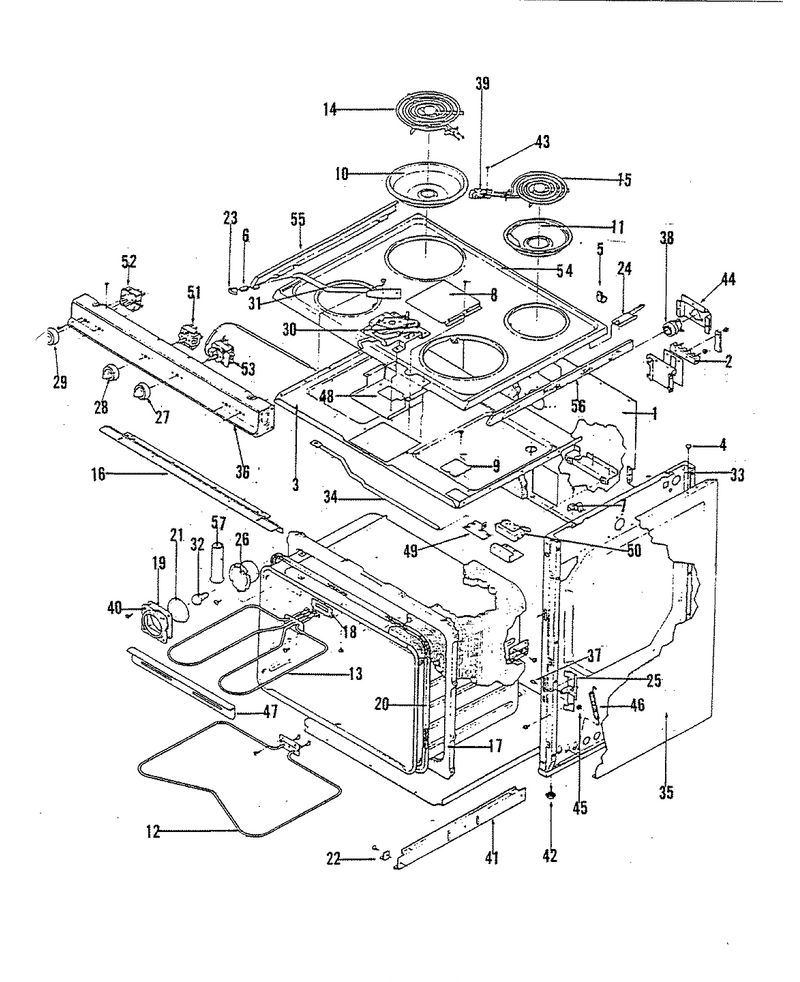

01 - Body (lower)

...
...
1
Block WPL-1867258
...
2
Block-Term WPL-WPW10245259
...
3
Not Required Part Or See Note Bracket, Anti-Tip (Not Used) WPL-W10124350
...
4
Clamp WPL-1140202
...
5
Clamp WPL-1140201
...
6
Clip, Door Lock WPL-7112E003
...
7
Clip- Cabi WPL-WP25-7220
...
8
Cover, Door Lock WPL-4005J137
...
9
Cover, Lock Switch WPL-790347
...
10
Not Required Part Or See Note WPL-W10124350
...
11
Not Required Part Or See Note WPL-W10124350
...
12
Element- B WPL-WPY04000041
...
13
Element- B WPL-WPY04000048
...
14
Not Required Part Or See Note WPL-W10124350
...
15
Elmnt-Surf WPL-WP3147131
...
16
Frame, Burner Box Front WPL-4012F013
...
17
Frame, Oven Front WPL-2201C025
...
18
Gasket, Lampguard WPL-1313259
...
19
Gasket, Lampguard Retainer WPL-1313260
...
20
Gasket, Oven WPL-7201P036-60
...
21
Glass, Lightguard WPL-1327784
...
22
Glide, Service Drawer (Front) WPL-8016E005
...
23
Handle, Door Latch (Blk) WPL-74001719
...
24
Spacer- Hi WPL-WP8010P069-60
...
25
+ Hinge, Oven Door (Lt) WPL-Y0528261
...
26
Insert WPL-WP3413F018-19
...
27
Knob, Thermostat WPL-7711P194-60
...
28
Knob, Selector Switch WPL-7739P018-60
...
29
Knob, Surface Switch WPL-7737P015-60
...
30
Catch WPL-8002P014-60
...
31
Lever, Door Lock WPL-8009P007-60
...
32
Light Bulb WPL-8009
...
33
Lining, Assy Inner Side WPL-4009W077-80
...
34
Link, Door Lock WPL-8021E001
...
36
Panel, Upper Front WPL-7722A090-60
...
37
Pin, Hinge WPL-7113P002-60
...
38
Receptacle, Oven Light WPL-1657202
...
39
Receptacle Assy. WPL-12001676
...
40
Retainer, Lampguard WPL-0749227
...
41
Screw WPL-1986313
...
42
Screw WPL-WP74004005
...
43
Not Required Part Or See Note Screw (Part Not Used) WPL-W10124350
...
44
Shield, Wire WPL-3604J069
...
45
Lock Ring For Timer Shaft WPL-211790
...
46
Spring- Ov WPL-WP7803P058-60
...
47
Support, Broil Element WPL-Y0862419
...
48
Support, Door Lock WPL-3807F188
...
49
Support, Door Lock Switch WPL-3807F422-45
...
50
Switch, Rocker (Blk) WPL-7403P067-60
...
51
Switch, Selector WPL-7403E037
...
52
Switch-Inf WPL-W11122006
...
53
Thermostat WPL-7404E011
...
54
Top Assy, Main WPL-2002W032-30
...
55
Trim, Side Panel L WPL-7706P132-60
...
56
Trim, Main Top (Left) WPL-7746P025-60
...
57
Tube, Oven Vent WPL-8026E005

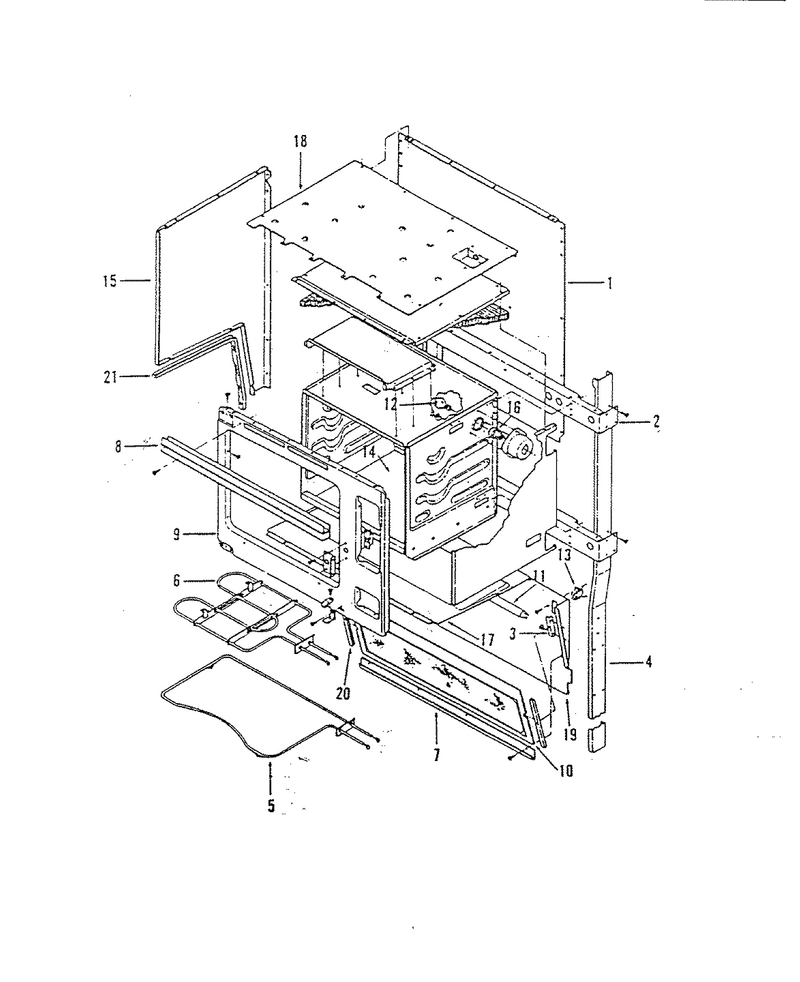

02 - Body (upper)

...
...
1
Back, Main WPL-0903102
...
2
Brace WPL-0277250
...
3
Bracket, Glass Support WPL-0284290
...
4
Clip- Ther WPL-WP7112P004-60
...
5
Element, Bake WPL-1938359
...
6
Element, Broil WPL-1938360
...
7
Extrusion, Backsplash (Btm) WPL-1259563
...
8
Extrusion, Vent WPL-1259564
...
9
Frame, Oven Front WPL-0462237
...
10
Glass, Backsplash WPL-1327103
...
11
Lamp-Fluor WPL-WP95292
...
12
Light Bulb WPL-8009
...
13
Receptacle, Lamp WPL-1448227
...
14
Lining, Oven Btm. (W/out ``l``) WPL-Y0606393
...
15
Receptacle, Fluor. Light Start WPL-1763215
...
16
Receptacle, Oven Light WPL-1657202
...
17
Starter, Fluorescent Light WPL-1804201
...
18
Top, Main WPL-0902284
...
19
Trim WPL-0919325
...
20
Trim WPL-1916936
...
21
Trim WPL-7720P101-60

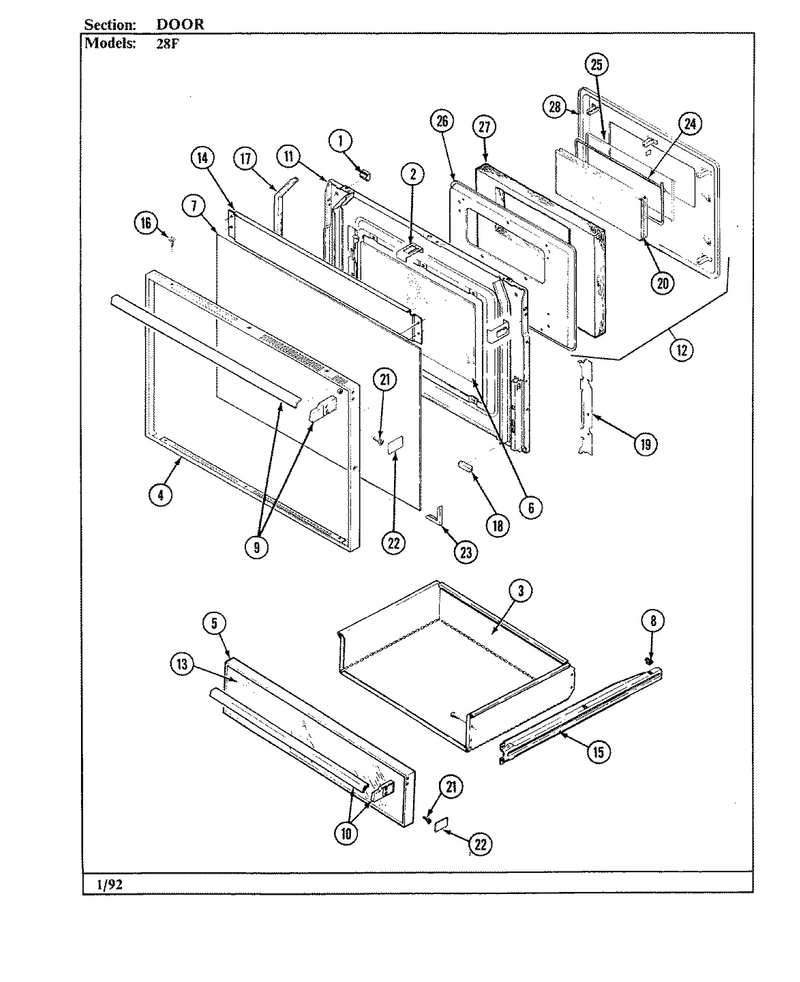

04 - Door (lower)

...
...
1
Bumper WPL-1784200
...
2
Clip, Door Glass WPL-7712E031
...
3
Drawer Assy. WPL-0384227
...
4
Frame, Ovn Door WPL-7706E007
...
5
Frame, Serv Door WPL-7706E056
...
6
Glass, Door WPL-7902E097
...
7
Glass, Door WPL-7902E065
...
8
Glide, Drawer WPL-8016P004-60
...
9
Handle, Door WPL-7701E019
...
10
Handle, Door WPL-7701E019
...
11
Lining Assy, Ov Dr WPL-2402W125-12
...
12
+ Pad Assembly WPL-2430F016
...
14
Retainer, Glass WPL-3804F040
...
15
Runner WPL-Y0766215
...
16
Screw, Special WPL-1986258
...
17
Seal WPL-1726250
...
18
Spring- Ov WPL-WP7803P058-60
...
19
Support, Glass WPL-3804J038
...
20
+ Window, Ov Dr Assy WPL-5700A081-60
...
21
Screw WPL-7101P123-60
...
22
Insert, Handle (Chrome) WPL-7728P068-60
...
23
Spacer, Glass Corner WPL-8010P045-60
...
24
Gasket, Window WPL-7201P018-60
...
25
Retainer WPL-3804F022-45
...
26
Pad, Inner WPL-2410F016-51
...
27
Insulation Door Pad WPL-4804F006-60
...
28
Pad, Door WPL-2410W041-15

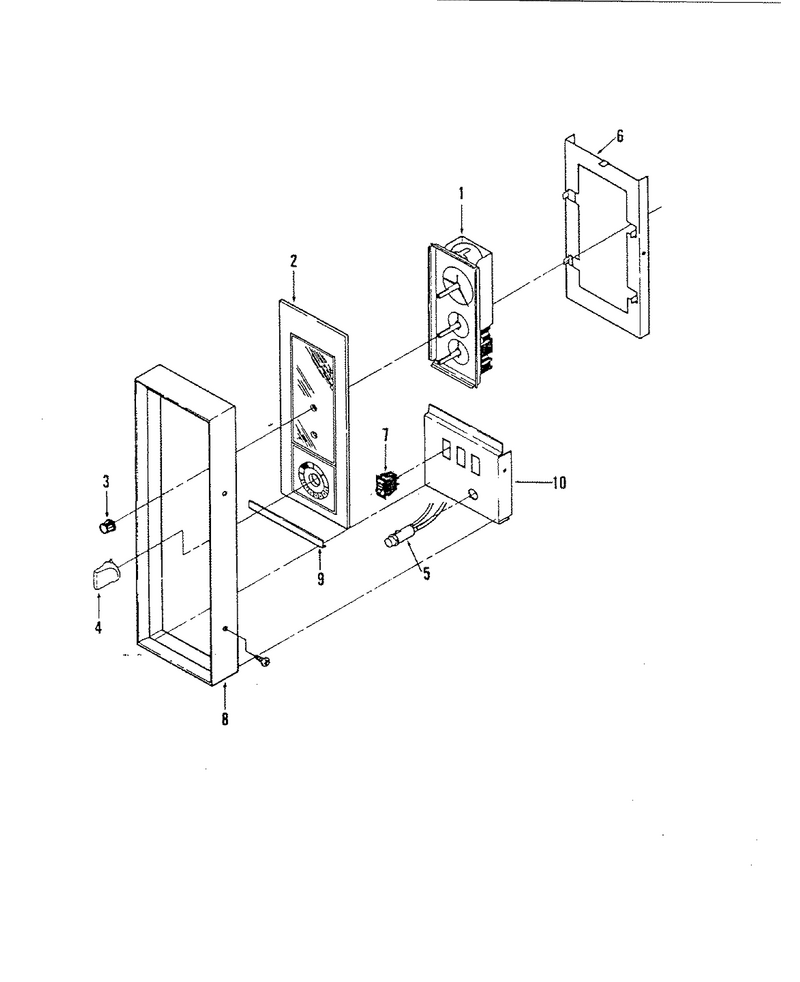

03 - Control Panel

...
...
1
Clock WPL-7601P056-60
...
2
Glass, Panel WPL-7902P143-60
...
3
Knob- Cloc WPL-WP7711P466-60
...
4
Knob,thermostat(Ele) WPL-1360341
...
5
Light, Indicator WPL-1406231
...
6
Plate WPL-0719259
...
7
Knob- Cloc WPL-WP7711P466-60
...
8
Trim, Control Panel WPL-7720P087-60
...
9
Trim WPL-1916268
...
10
Trim WPL-1916277
