MTD Pro Trimmers MP479 41AD479C995

Model: MP479 41AD479C995

Save Part Not Listed?
product name

Engine Assembly

...
...
1
Engine Cover Assembly (Incl. 2 & 3) MTD-753-06134
...
2
Cover Screw MTD-710-04194
...
3
SCREW, M5 X18 MTD-9052-1
...
4
Rocker Cover MTD-753-05901
...
5
Rocker Cover O-Ring MTD-753-05902
...
6
CYLINDER ASSEMBLY MTD-753-06311
...
7
Oil Plug (Incl. 8) MTD-753-05408
...
8
Oil Plug O-Ring MTD-791-182290
...
9
CRANKCASE COVER MTD-841-020721S
...
10
Crankcase Cover O-Ring MTD-753-05238
...
11
Crankcase Assembly (Incl. 10) MTD-753-06313
...
12
Flywheel Assembly MTD-753-06221
...
13
Lead Wires MTD-753-05264
...
14
Module Assembly MTD-753-05301
...
15
Muffler Gasket MTD-753-05244
...
16
Muffler Assembly (Incl. 15 & 17) MTD-753-05245
...
17
Screw MTD-710-04809
...
18
Spark Plug MTD-794-00082
...
19
GASKET/INSULATOR MTD-753-05247
...
20
Nut MTD-712-04099
...
21
Insulator MTD-753-06947
...
22
Heat Shield MTD-753-06949
...
23
CARBURETOR ASSEMBLY MTD-753-06220B
...
24
O-Ring MTD-791-181751
...
25
AIR CLEANER COVER MTD-753-05252
...
26
Air Filter MTD-753-05254
...
27
Screw MTD-710-04517
...
28
Fuel Tank Assembly w/Fuel Lines (Incl. 29) MTD-753-06240
...
29
Fuel Cap MTD-753-1229
...
30
Fuel Tank Pads MTD-753-05259
...
31
Starter Housing Assembly (Incl. 3) MTD-753-06950
...
32
Clutch Assembly MTD-753-06281
...
33
Clutch Cover (Incl. 2) MTD-753-05263
...
34
Anti-Rotation Screw MTD-791-182519
...
35
SCREW MTD-9689A
...
36
Nut MTD-712-0161
...
37
Rocker Cover Screw MTD-791-181025
...
38
Gasket MTD-753-06948
...
39
Gasket MTD-791-181709
...
xx
SPARK ARRESTER Not shown MTD-753-05297
...
xx
SHORT BLOCK Not shown (Incl. 3 - 6, 8, 10, 11 & 18) MTD-753-06674

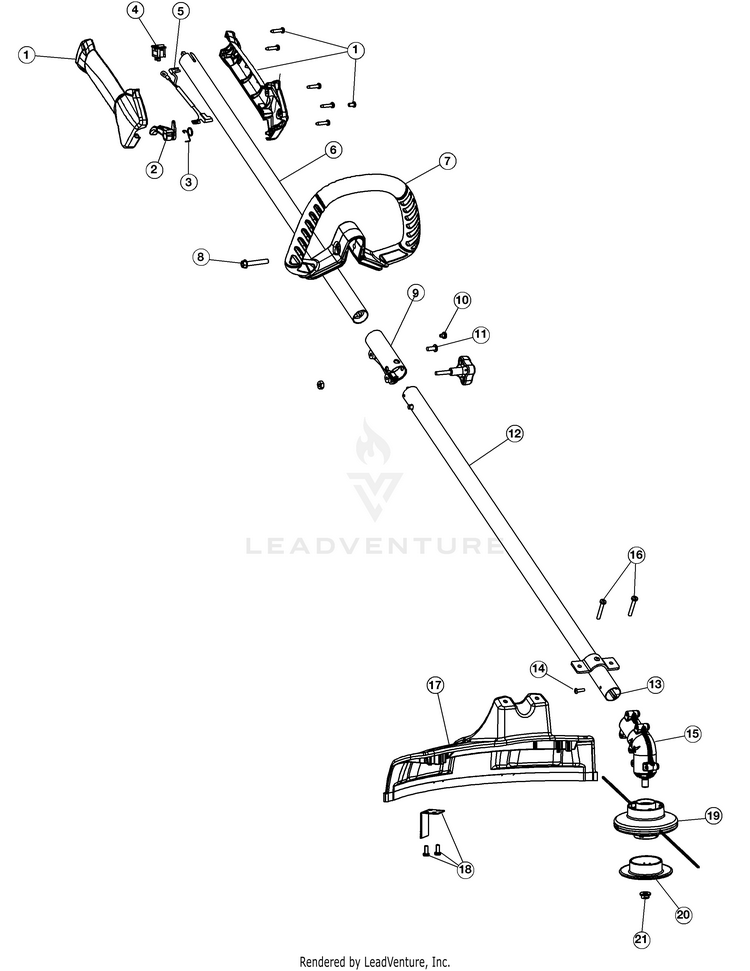

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Housing Assembly MTD-753-04236
...
7
D-Handle Assembly (Incl. 8) MTD-753-06039
...
8
Bolt MTD-753-06040
...
9
Split Boom Coupler (Incl. 10 and 11) MTD-753-1190
...
10
Screw MTD-791-182057
...
11
Bolt MTD-791-181617
...
12
Lower Drive Shaft Housing Assembly MTD-753-08164
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Anti-Rotation Screw MTD-7039
...
15
GEARBOX ASSEMBLY MTD-753-06124
...
16
Shield Mounting Screw MTD-753-06125
...
17
Shield Assembly (Incl. 18) MTD-753-06123
...
18
Blade Assembly MTD-753-06126
...
19
FIXED HEAD STRING ASSEMBLY MTD-753-05495
...
20
GLIDE CAP MTD-731-05714
...
21
Lock Nut MTD-712-04018A
