MTD Pro Trimmers MP475 41CD475D995, 41CD475D995 MP475

Model: MP475 41CD475D995, 41CD475D995 MP475

Save Part Not Listed?
product name

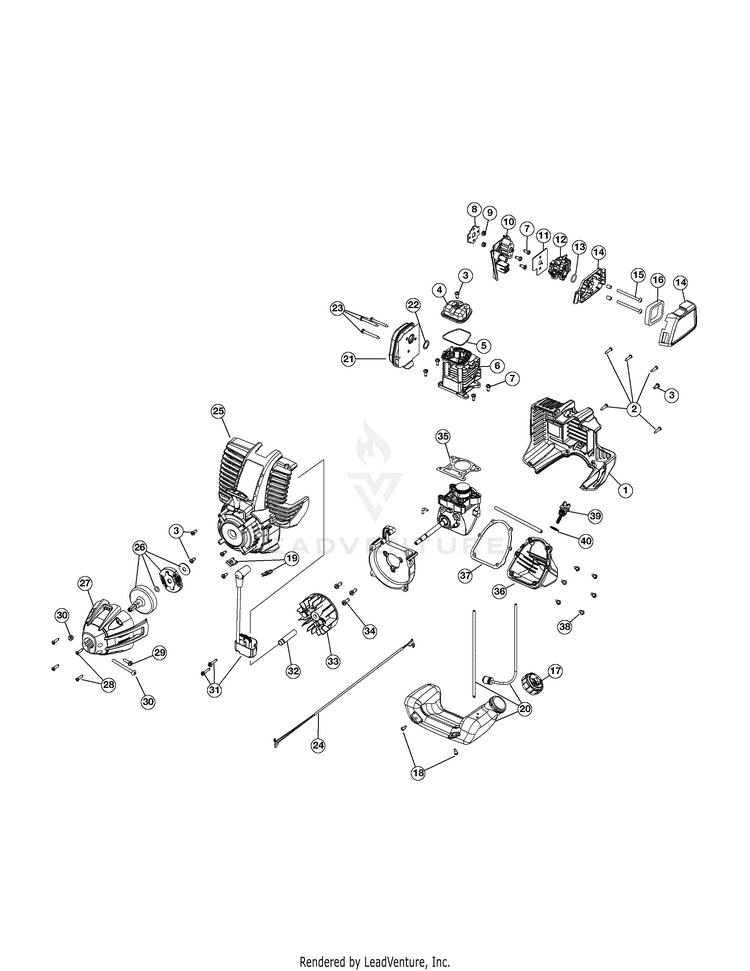

Engine Assembly

...
...
1
ENGINE COVER RR MTD-753-05449
...
2
Screw MTD-791-181345
...
3
SCREW M5X0.8 MTD-710-04604A
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY MTD-753-05438
...
7
SCREW, M5 X18 MTD-9052-1
...
8
GASKET/INSULATOR MTD-753-05247
...
9
Nut MTD-712-04099
...
10
Insulator (Incl. Ref No. 11) MTD-753-05452
...
11
CARB GASKET AC2.2 MTD-753-05439
...
12
CARBURETOR WITH PRIMER MTD-753-05440
...
13
Carburetor O-Ring MTD-791-181751
...
14
AIR CLEANER ASSEMBLY MTD-753-05441
...
15
Air Filter Mounting Screw MTD-710-04517
...
16
Air Filter MTD-753-05442
...
17
Fuel Cap MTD-753-05289
...
18
Screw MTD-791-181930
...
19
Clip Nut MTD-791-182366
...
20
FUEL TANK ASSEMBLY MTD-753-05443
...
21
MUFFLER AC2.2 MTD-753-05444
...
22
Muffler Gasket MTD-753-05244
...
23
Screw MTD-710-04809
...
24
Lead Wire MTD-753-05264
...
25
STARTER HOUSING ASSEMBLY MTD-753-06326
...
26
Clutch Assembly MTD-753-06281
...
27
CLUTCH COVER ASSEMBLY MTD-753-05446
...
28
Cover Screw MTD-791-181345
...
29
Anti-Rotation Screw MTD-791-182519
...
30
SCREW:CLMPNG W/NUT MTD-753-04291
...
31
Module Assembly MTD-753-05447
...
32
Spacer MTD-750-04434
...
33
Flywheel MTD-753-05240
...
34
SCREW, 1/4-20X.562 F MTD-791-181861
...
35
GASKET, CYLINDER B MTD-791-182374
...
36
PAN, OIL W/ GASKET MTD-791-182377
...
37
GASKET, OIL PAN MTD-791-181018
...
38
Screw MTD-9054
...
39
Dipstick Assembly (Incl. Ref No. 40) MTD-791-182378
...
40
O-Ring MTD-791-182290
...
xx
Spark Plug Not shown MTD-794-00082
...
xx
SHORT BLOCK Not shown MTD-753-05450

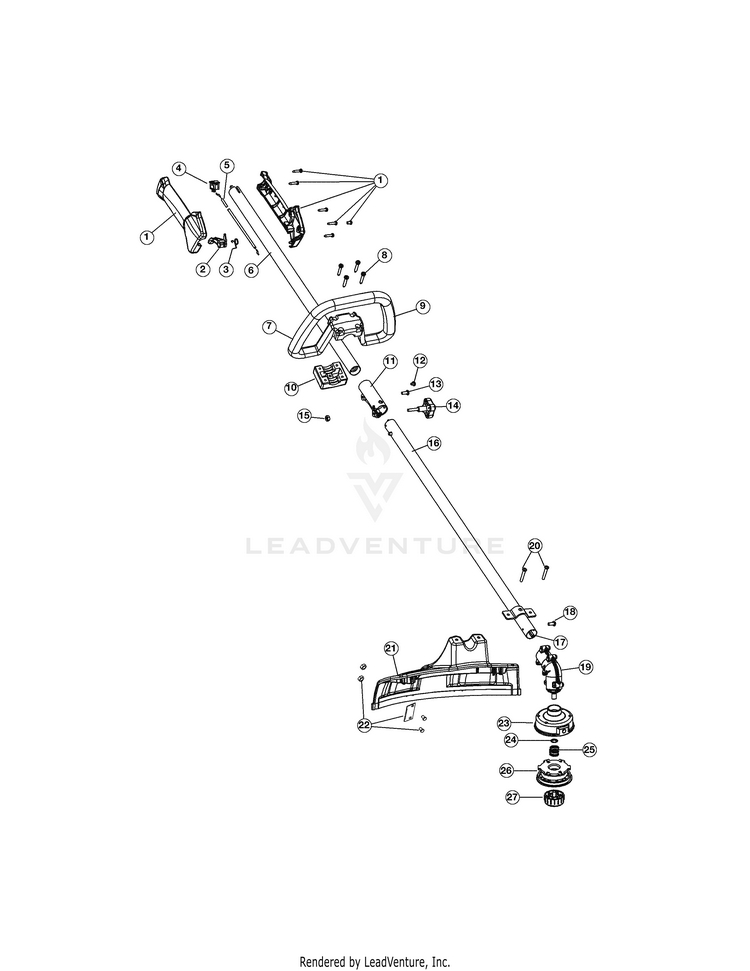

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Housing Assembly MTD-753-04344
...
7
D-HANDLE A MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
12
Screw MTD-791-182057
...
13
Bolt MTD-791-181617
...
14
ADJUSTMENT KNO MTD-791-181618B
...
15
Knob Retaining Nut MTD-712-04018A
...
16
Lower Drive Shaft Housing Assembly MTD-753-08164
...
17
LOWER DRIVE SHAFT MTD-753-05267
...
18
Anti-Rotation Screw MTD-7039
...
19
GEARBOX ASSEMBLY MTD-753-06571
...
20
Shield Mounting Screws MTD-753-06125
...
21
Shield Assembly (Incl. Ref No. 22) MTD-753-06123
...
22
Blade Assembly MTD-753-06126
...
23
OUTER REEL W/RETAINING RING MTD-753-04284
...
24
Retainer MTD-791-610660
...
25
Spring MTD-791-610317B
...
26
Inner Reel MTD-753-1155
...
27
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Not shown MTD-953-1156
...
xx
Shoulder Strap Not shown MTD-791-682075B
...
xx
Fixed Line Insert Not shown MTD-753-05778
