product name

MTD Pro Trimmers MP475 41CD475C995, 41CD475C995 MP475

Model: MP475 41CD475C995, 41CD475C995 MP475

Back To Assemblies

Save Part Not Listed?
product name

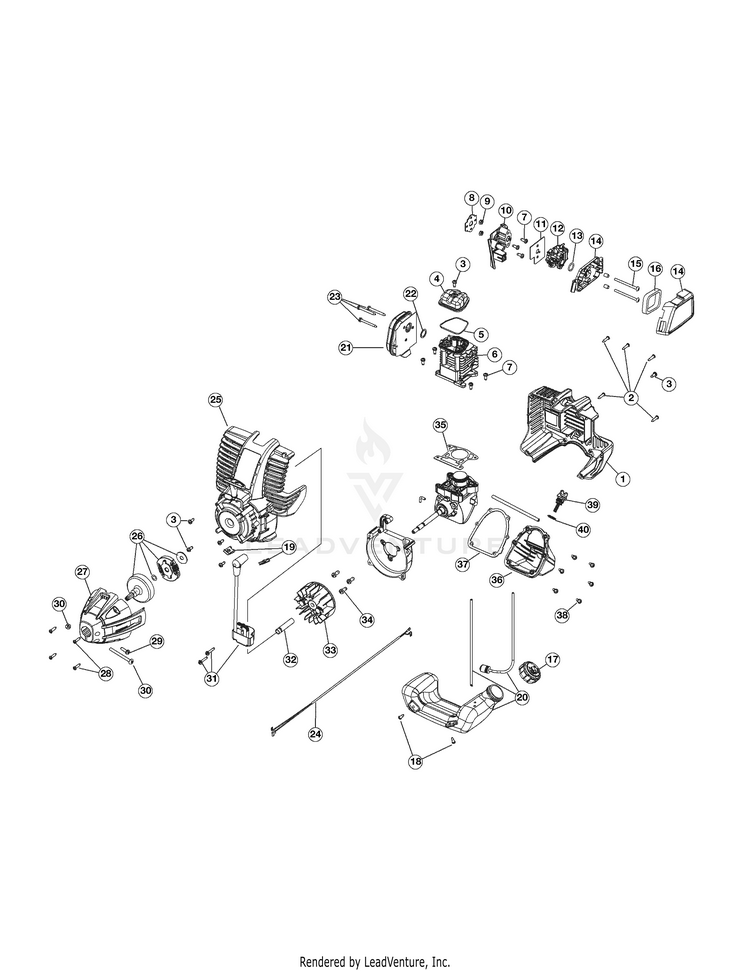

Engine Assembly

...
...
1
ENGINE COVER RR MTD-753-05449
...
2
Screw MTD-791-181345
...
3
SCREW M5X0.8 MTD-710-04604A
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY MTD-753-05438
...
7
SCREW, M5 X18 MTD-9052-1
...
8
GASKET/INSULATOR MTD-753-05247
...
9
Nut MTD-712-04099
...
10
Insulator (Incl. 11) MTD-753-05452
...
11
CARB GASKET AC2.2 MTD-753-05439
...
12
CARBURETOR WITH PRIMER MTD-753-05440
...
13
Carburetor O-Ring MTD-791-181751
...
14
AIR CLEANER ASSEMBLY MTD-753-05441
...
15
Air Filter Mounting Screw MTD-710-04517
...
16
Air Filter MTD-753-05442
...
17
Fuel Cap MTD-753-05289
...
18
Screw MTD-791-181930
...
19
Clip Nut MTD-791-182366
...
20
FUEL TANK ASSEMBLY MTD-753-05443
...
21
MUFFLER AC2.2 MTD-753-05444
...
22
Muffler Gasket MTD-753-05244
...
23
Screw MTD-710-04809
...
24
Lead Wire MTD-753-05264
...
25
STARTER HOUSING ASSEMBLY MTD-753-06326
...
26
Clutch Assembly MTD-753-06281
...
27
CLUTCH COVER ASSEMBLY MTD-753-05446
...
28
Cover Screw MTD-791-181345
...
29
Anti-Rotation Screw MTD-791-182519
...
30
SCREW:CLMPNG W/NUT MTD-753-04291
...
31
Module Assembly MTD-753-05447
...
32
Spacer MTD-750-04434
...
33
Flywheel MTD-753-05240
...
34
SCREW, 1/4-20X.562 F MTD-791-181861
...
35
GASKET, CYLINDER B MTD-791-182374
...
36
PAN, OIL W/ GASKET MTD-791-182377
...
37
GASKET, OIL PAN MTD-791-181018
...
38
Oil Pan Screw MTD-9054
...
39
Dipstick Assembly (Incl. 40) MTD-791-182378
...
40
O-Ring MTD-791-182290
...
xx
Spark Plug (Not Shown) MTD-794-00082
...
xx
SHORT BLOCK (Not Shown) MTD-753-05450
